Ford Puma bucket seat guide
Original Puma coupe: compare the complete mounting systems

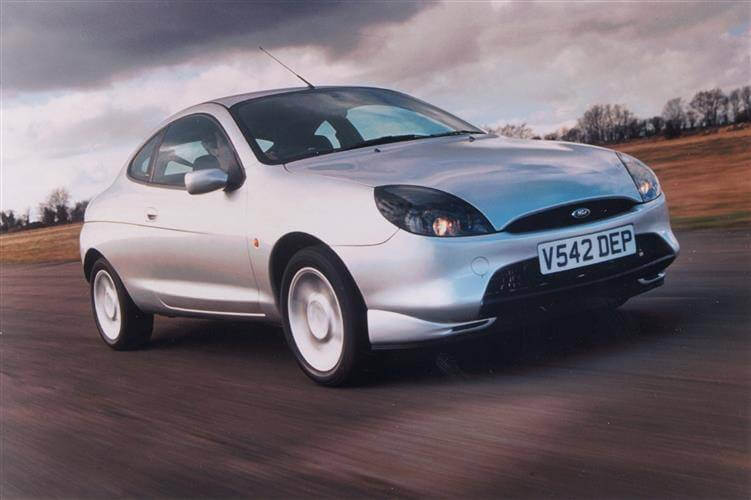

This guide covers the original Ford Puma coupe, with the September 1997 to 2002 application used for the Sparco fitting reference. The later Puma crossover is a separate car. Send the actual model year and body before choosing a mounting system.
Racing Puma owners should identify the car and its existing seat arrangement with the enquiry. The shop has a separately named SW Racing Puma frame listing. That name does not establish every other bracket or seat combination for the car.
Garreth can compare a fixed-back bucket with a reclining seat around the support and access you need. Cameron can assess the complete mounting assembly and finished position. Include any floor repairs or previous seat conversion.
- Original Puma coupe, not the later crossover
- Full physical-side reference and exact seat version
- Complete mounting and restraint assessment
At a glance
- Five mounting-system families are listed here, including two separately named SW shop orders.
- State the physical seating side and actual steering arrangement with the full supplied reference.
- The Sparco Puma order includes its listed bridge piece; confirm the exact handed package.
- RECARO and Corbeau have required order selections and their own complete assemblies.
- SW supplies one selected base per side; upper fittings and mounting hardware are separate.
- Seat patterns, cage year ranges and restraint mounting require separate checks.
Mounting systems
Choose the lower system and the exact seat together. A shared brand or a similar Ford part number does not establish the whole assembly. Compare the supplied interfaces and the required adjustment before ordering.
The physical-right position is the driver side on an RHD car; physical left is the passenger side. State the actual steering arrangement if the car differs. Use the full reference and selected position in the quotation.
Sparco: specify the handed Puma package
The shop Sparco Puma package is 00499069-1699. Its current description includes the Puma bridge piece, with the RHD Driver Side order 00499069DX-1699 and RHD Passenger Side order 00499069SX-1699. Confirm the actual supplied package and installation instructions.
Sparco’s dated application table lists Puma ECT from September 1997 to 2002, with 00499069DX and 00499069SX and a 345 x 271 mm interface. Its driver and passenger notes must be read with the physical side and steering arrangement. The shop suffix identifies its own package.
Sparco runners are a separate choice where sliding adjustment is required. A side-mounted shell also needs the correct supports and a permitted connection to the lower assembly. The bridge-piece description does not establish a universal seat or runner combination.
-
From £131.77 Incl. VATFrom £109.81 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
OMP: select the physical side and matching interface
The OMP shop order is HC793, with HC793D selected as RHD driver and HC793S as RHD passenger. Put physical right or physical left beside that selection. Have the actual supplied reference compared with the car and intended seat.
The listing gives 345 x 271 mm and 405 x 290 mm interfaces. Those figures are distinct from the base patterns of some other seats in this guide. Confirm the exact mating components before choosing the route.
A compatible side-mounted shell needs suitable supports above the frame. A base-mounted seat needs its own correctly matched base connection. Do not assume that every seat from OMP, Sparco, Corbeau or Cobra uses one common pattern.
-
From £151.80 Incl. VATFrom £126.50 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
RECARO: confirm the current assembly and seat version
The RECARO Puma listing has a required Subframe – Position selection. It is a complete assembly described with sliding adjustment. Confirm the current supplied physical-side code and included parts before adding separate runners.
Historical RECARO documents identify Puma ECT with physical-left 86.60.16 and physical-right 86.60.26. On an RHD car those are passenger and driver respectively. A historic application entry does not approve every current RECARO seat version or installation.
The Sportster CS is a base-mounted reclining option to discuss against the exact Puma assembly and supplied documentation. The shop lists its base at 405 x 290 mm and the seat is supplied without fitting brackets. Check the actual seat version and current application conditions together.
Corbeau: base mounting with its own mechanism choice
The Corbeau Puma order has required seating-position and mechanism selections. Choose Slide subframe or Tilting subframe as appropriate, then have the supplied assembly itemised. Confirm the exact Corbeau seat model with the enquiry.
The shop specifies base-mounted buckets and reclining seats for this route. Corbeau’s general subframe guidance also excludes side-mounted seats. It is not the lower system to assume for an FIA side-mounted shell.
Check the runners and any tilt mechanism included in the actual order before adding further parts. Trial the useful travel and rear access in the car. A mechanism name does not establish the finished seat position.
SW: separate standard and Racing Puma shop orders
The SW Puma and separately named Racing Puma shop listings use the named 0095 and 0096 lower-base family. The standard RHD driver order is SW-SM-0095 and passenger order SW-SM-0096. The Racing Puma shop variants add the -RPUMA suffix to those references.
SW’s current driver and passenger pages identify the same physical-side family. Their titles say 98-01, while the vehicle-fitment field says 1997 to 2002. Confirm the actual year and supplied application with the order, particularly at the ends of that range.
One selected base is supplied per side. Side mounts, sliders, mounting bolts and harness eye bolts are separate. The shop’s 345 mm width attribute is one dimension, so it does not establish the complete fixing pattern.
The optional side supports are offered for 8 mm or 10 mm seat bolts. Choose them from the exact shell instructions and the complete lower assembly. Adding harness hardware to the order does not establish suitable restraint anchors.
-
From £134.89 Incl. VATFrom £112.41 Excl. VATPayPal CreditJust inSelect options This product has multiple variants. The options may be chosen on the product page
-
From £134.89 Incl. VATFrom £112.41 Excl. VATPayPal CreditJust inSelect options This product has multiple variants. The options may be chosen on the product page
Separate runners and side supports
Sparco 0049306, Endurance Motorsport and Cobra Premium runners are separate options to assess with the chosen frame and seat. Check both fixing interfaces and the actual runner version. Include the extra height and useful travel in the cabin trial.
Cobra runners have version and width distinctions. Cobra’s competition mounting guidance specifies direct side mounting without runners. Check the selected seat instructions and actual event requirements before choosing an adjustable arrangement.
Use compatible side supports for the actual shell and lower assembly. The Sparco steel supports below are one option to assess. Their own listing does not approve every possible floor-frame and shell combination.
-
From £84.00 Incl. VATFrom £70.00 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
Fixed-back bucket seats
The Auto Style BS6 is a side-mounted fibreglass bucket listed for Road and Track use. It does not have the competition homologation stated for the FIA-labelled options. Compare the actual driver support and intended-use requirements before choosing it.
Cobra Monaco Pro is the steel-frame dual-mount choice here. Its listed base pattern is 292 x 330 mm. A base route needs a matching connection; a side route needs the specified supports and complete lower assembly.
OMP Champ-R, Mirco RS2 3D, Sabelt GT3 and Sparco Evo QRT are side-mounted fibreglass choices. Their current shop listings state FIA 8855-1999 approval. Check the actual supplied seat version and label against the event requirements.
Garreth can compare the support and shoulder shape with the driver. Cameron can trial the complete position for height and reach. The preferred shell still needs checking against the door, centre area and operating clearances.
-
From £282.00 Incl. VATFrom £235.00 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £425.40 Incl. VATFrom £354.50 Excl. VATPayPal Credit250+ coloursKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
Reclining sport seats
Auto Style RS6-II and Sparco R100 are base-mounted recliners with different listed patterns: 345 x 280 mm and 345 x 271 mm respectively. Do not round that difference away. Confirm the exact seat and both interfaces above the chosen lower frame.
The Corbeau RRS listing supplies two seats and lists 291 x 330 mm and 345 x 271 mm in its attributes. Confirm the actual supplied seat version. Each position needs its own correct lower assembly and upper fittings.
RECARO Sportster CS is supplied as a seat for one selected position. Assess its exact version with the RECARO Puma route and current supplied documents. A similar base dimension is not a complete compatibility decision.
Check backrest movement and access to the recline and slide controls with the seat installed. Include any use of the rear seating in the trial. A reclining seat or tilting subframe does not automatically preserve the access you need.
-
From £333.60 Incl. VATFrom £278.00 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £282.00 Incl. VATFrom £235.00 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
-
From £1,581.30 Incl. VATFrom £1,317.75 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
Roll cages: select the complete design
Safety Devices names both F109 and F103 for the Puma from 1997 to 2001. Keep that range separate from the seat-kit references extending to 2002. Confirm the actual body, year and cage documents before ordering.
The shop F109 six-point order has six front-and-rear bundle choices. They differ in rear diagonal, harness-bar provision and whether both single door bars are included. Specify the complete selected bundle instead of assuming every version includes the same parts.
The F109 rear-only order has three rear-section choices. It does not include the front cage or the pair of door bars. The separate F103 is the CDS full weld-in design; check the supplied installation and certification documents with the intended event.
Custom Cages FP/99T is the named International Multipoint T45 design, currently described by the maker as FIA Certificated. FP/99NS is a different CDS National design. The maker states that the National design does not meet current FIA International standards.
The JP half cage below is the current shop Road and Track order, with CDS or T45 material selection. The shop states that this version cannot be used in competition. Do not infer an upgrade in approval from material choice or from a newer cage carrying a similar name.
Confirm the actual supplied JP design, fitting kit and required mounting work. The maker’s current Mk1 Puma half-cage family describes bolt-in construction with weld-in mounts. Include the cage and restraint proposal in the seat-position trial.
-
From £858.00 Incl. VATFrom £715.00 Excl. VATPayPal CreditMade to orderKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £514.80 Incl. VATFrom £429.00 Excl. VATPayPal CreditMade to orderKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £553.20 Incl. VATFrom £461.00 Excl. VATPayPal CreditMade to orderKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
Belts and harnesses
Retain or replace restraints only after assessing the actual seat, belt path and mounting points. The lower seat frame does not approve a complete restraint installation. Follow the exact belt manufacturer instructions for routing, angles and attachments.
TRS Clubman three-point bolt-in and four-point clip-in are listed as Road and Track products. Their strap count or fitting name does not establish suitable factory anchors in a Puma. Assess the actual proposed attachments and driver position.
TRS Magnum four-point and six-point Superlite, and Schroth Profi 3×2 six-point, have their own stated FIA specifications. Takata Drift II and Drift III are listed for Road and Track use. Match the actual supplied version and label to the intended use.
A six-point system needs a permitted crotch-strap route through the actual seat and suitable attachments. A cage or harness bar does not establish the rest of that installation. Cameron can compare the complete restraint path with the driver seated.
-
From £96.00 Incl. VATFrom £80.00 Excl. VATPayPal CreditAmazing valueSelect options This product has multiple variants. The options may be chosen on the product page
-
From £120.00 Incl. VATFrom £100.00 Excl. VATPayPal CreditAmazing valueSelect options This product has multiple variants. The options may be chosen on the product page
-
From £246.00 Incl. VATFrom £205.00 Excl. VATPayPal CreditAmazing valueSelect options This product has multiple variants. The options may be chosen on the product page
-
From £274.80 Incl. VATFrom £229.00 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
-
From £294.00 Incl. VATFrom £245.00 Excl. VATPayPal CreditAmazing valueSelect options This product has multiple variants. The options may be chosen on the product page
-
From £324.00 Incl. VATFrom £270.00 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £444.01 Incl. VATFrom £370.01 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
Fitting comparison and installation trial
Have the installer inspect the actual mounting area and compare the supplied frame reference with the car. Include repairs, replacement panels and previous changes. Confirm the selected physical side and the complete assembly before final installation.
Trial the regular driver in the finished seat and lower assembly. Compare height and reach through the useful adjustment range. Check door and centre-area clearance, controls, buckle access and any required rear access.
Follow the relevant instructions for hardware, orientation and tightening. Include any original safety functions and restraint changes in the assessment. Have the completed installation checked before the car is used.
| Route or seat | Reference or method | Interface or contents | Check before ordering |
|---|---|---|---|
| Puma scope | Original coupe; Sparco reference 09/1997 to 2002 | Racing Puma identified separately | No later-crossover application inferred |
| Sparco shop package | 00499069-1699 | Listed bridge piece; 345 x 271 mm | Exact handed package and supplied instructions |
| Sparco RHD sides | DX-1699 driver / SX-1699 passenger | Physical right / left | Manufacturer driver/passenger notes read with actual steering |
| OMP shop sides | HC793D driver / HC793S passenger | Physical right / left | Exact supplied assembly and interface |
| OMP listed interfaces | 345 x 271 mm and 405 x 290 mm | Different seat patterns still need matching | No all-brand base-pattern claim |
| RECARO historical sides | 86.60.16 left / 86.60.26 right | RHD passenger / driver | Current seat version and supplied application documents |
| RECARO assembly | Required position selection | Sliding adjustment described in listing | Confirm contents before adding more runners |
| Corbeau assembly | Required side and Slide/Tilting choices | Base-mounted route | Not for side-mounted shells |
| SW standard / Racing orders | 0095 driver / 0096 passenger family | One selected base; upper fittings separate | Racing shop suffix -RPUMA; exact year/application confirmed |
| SW width and supports | 345mm is one width dimension | 8 mm / 10 mm optional seat supports | Complete pattern, seat instructions and hardware |
| Monaco Pro | Base or side mounting | 292 x 330 mm listed base | Actual permitted method and lower connection |
| RS6-II / R100 / Sportster CS | Base-mounted recliners | 345 x 280 / 345 x 271 / 405 x 290 mm listed | Exact seat version and both interfaces |
| Corbeau RRS pair | Two seats | Listed patterns 291 x 330 / 345 x 271 mm | Two complete position-specific assemblies |
| Safety Devices F109 / F103 | Named 1997-2001 | Bundle/rear-only/fullweld-in are distinct | No automatic 2002 extension or identical included parts |
| Custom Cages FP/99T / FP/99NS | International T45 /National CDS | Different certification/compliance categories | Actual documents, installation and event |
| JP shop half cage | Road and Track; not competition | CDS/T45 and exact supplied design | Confirm mounting work and fitting kit |
| Restraints and cage bars | Separate installation assessment | Permitted anchors, routing and crotch-strap path | A cage or strap count does not approve the installation |
Manufacturer references: SW RHD driver base, SW RHD passenger base, Sparco dated 2018 application reference, RECARO historical Sportster application document, Corbeau subframe guidance, Cobra mounting guidance, Safety Devices F109, Safety Devices F103, Custom Cages International T45, Custom Cages National CDS, JP current Mk1 Puma half-cage family. Match historical references and current supplied versions to the actual car and intended use.
Common questions
Is this guide for the later Puma crossover?
It covers the original Puma coupe, using the September 1997 to 2002 Sparco application; the later crossover needs its own correctly identified fitting route.
Should I identify a Racing Puma separately?
Yes. Send the actual model and existing seat arrangement; the separately named SW shop order does not establish every other bracket or seat combination.
How many lower fitting routes are compared?
Sparco, OMP, RECARO, Corbeau and SW, with separate standard-Puma and Racing-Puma SW shop listings.
What is included with the Sparco Puma order?
The current shop description includes its Puma bridge piece; confirm the exact handed package and supplied installation instructions.
Which Sparco order is the RHD driver side?
The shop names 00499069DX-1699 as RHD driver and 00499069SX-1699 as RHD passenger; state physical right or left with the actual steering arrangement.
Which OMP code is selected for each RHD position?
The current shop choices are HC793D for RHD driver and HC793S for RHD passenger; confirm the actual supplied reference and assembly.
Do all base-mounted seats share one pattern?
No. Compare the exact seat drawing and both mating interfaces; the examples here include 292 x 330, 345 x 271, 345 x 280 and 405 x 290 mm.
Does the RECARO order have a required side selection?
Yes. Select its Subframe – Position and confirm the complete current supplied assembly before adding further runners or adapters.
Which historical RECARO code is physical left?
The Puma ECT reference is 86.60.16 for physical left and 86.60.26 for physical right; an RHD driver is on physical right.
Does a historical RECARO entry approve every current seat?
No. Confirm the exact current seat version, lower assembly and applicable supplied documents together.
Can the Corbeau Puma frame be assumed suitable for a side-mounted shell?
The shop and Corbeau general guidance specify a base-mounted route and exclude side-mounted seats; choose a different permitted lower system for such a shell.
Which Corbeau mechanism should I order?
Choose the required Slide or Tilting option and have the included parts and actual access assessed with the selected seat.
Which SW family is RHD driver or passenger?
SW-SM-0095 is the named RHD driver family and SW-SM-0096 the passenger family; Racing Puma shop variants add -RPUMA. Confirm the actual supplied reference.
Why confirm the SW year range?
The maker titles say 98-01 while the fitment field says 1997 to 2002; have the actual year and supplied application confirmed with the order.
Does the SW base include all upper fittings?
The base is one selected side. Side supports, sliders, mounting bolts and harness eye bolts are separate choices.
Does the RRS pair include two complete fitting kits?
It supplies two seats. Specify the correct lower assemblies and upper fittings separately for both positions.
Can every Cobra competition installation use runners?
Cobra mounting guidance specifies direct side mounting without runners for competition use; check the exact seat instructions and event requirements.
Does seat homologation approve the whole Puma installation?
Check the actual supplied version and label with the event, then assess the complete vehicle mounting and restraint installation separately.
Do the Safety Devices cage references cover every 2002 car?
F109 and F103 are named for 1997 to 2001; have any car outside that stated range checked separately.
Do all F109 shop bundles include door bars and a harness bar?
No. The selected front-and-rear bundle determines the diagonal, harness-bar provision and whether both door bars are included.
Is the Custom Cages National design the same as its International T45 cage?
No. FP/99NS is the CDS National design and FP/99T the International T45 design; check the actual supplied documents and event requirements.
Does a bolt-in JP half cage mean no mounting work?
Confirm the exact supplied design and fitting kit. The current maker family describes bolt-in construction with weld-in mounts, and the shop half-cage order is not a competition cage.
Do three or four straps establish suitable factory anchors?
Strap count does not establish the condition, strength or permitted use of the actual attachments; follow the exact restraint instructions.
Does fitting a cage complete the six-point harness assessment?
No. The actual seat needs a permitted crotch-strap route with suitable attachments, and the whole belt path must be assessed with the driver.
Your fitting enquiry
Send Garreth the actual model year and body, including Racing Puma identification where relevant. State the steering arrangement and physical side for each seat. Include photographs of the mounting area and details of any previous work.
Cameron can compare the complete fitting assembly with the exact seat version and intended use. List any parts already owned. Include the required adjustment, rear access and actual restraint proposal.
