Ford Fiesta Mk3 bucket seat guide

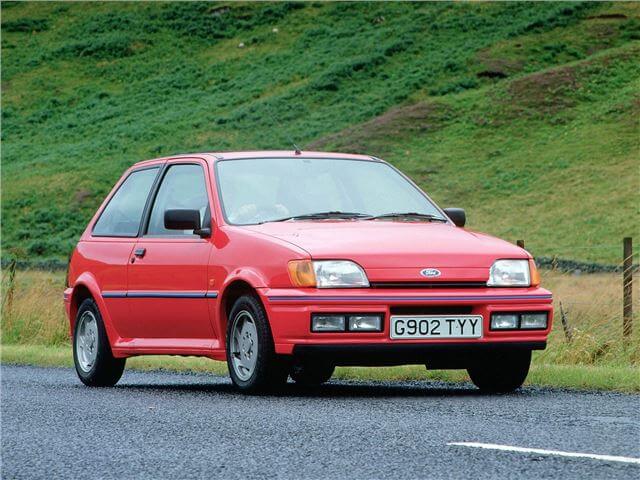

Mk3 generation, including XR2i, RS Turbo and RS1800

The Fiesta Mk3 fitting choices here come from OMP, Sparco, Cobra and Corbeau. Start with the exact vehicle application and seating side, then choose the seat and upper mounting parts together. These kits use different arrangements, so one fitting method does not cover every option.

This guide includes XR2i, RS Turbo and RS1800 enquiries within the Mk3 range. The shop describes Cobra and OMP applications across 1989 to 1997, but its Corbeau listing specifies 1989 to 1994 and the Mk3 cage listings stop at 1996. Confirm the individual product application against the car before ordering.

Send Garreth the build year, body style and intended use if the registration year or Fiesta generation is unclear. Cameron can check the exact seat and installed driving position. For the following generation, use our 1995 to 2002 Fiesta guide.

Ford Fiesta MK3 on track with a helmeted driver
Ford Fiesta RS Turbo Mk3 on track

Mounting

The vehicle kit forms the lower connection to the Fiesta. A base-mounted seat then needs its fixing pattern and runner arrangement checked; a side-mounted shell needs suitable supports and a lower assembly intended for that mounting method. Have the seat mounting areas inspected before installation, including any previous repairs.

Cameron can check the proposed stack of frame, supports and runners against the required driving position. Measure clearance to the door, console and controls with the actual seat in mind. A narrow seat name or a low frame description alone cannot establish the final fit.

OMP HC776 fitting frame

The OMP HC776 listing has two current choices: HC776D for the RHD driver and HC776S for the RHD passenger. Each covers one seating position. The shop lists 345 x 271 mm and 405 x 290 mm upper fixing patterns; compare the complete connection to the exact supplied seat or runner.

A 405 x 290 mm pattern does not establish compatibility with every RECARO seat. For a side-mounted shell, confirm suitable supports, bolts and the lower assembly together. Keep this Mk3 application separate from the later Fiesta OMP frame.

Sparco 00499062 fitting frame

Sparco 00499062DX is labelled RHD driver and 00499062SX is labelled RHD passenger in the shop. Order the selected side for each seat required and confirm the physical position before purchase. The listing describes a 345 x 271 mm upper pattern.

Confirm what the supplied Mk3 kit contains and how it connects to the chosen runners or supports; an illustrative frame photograph does not establish its contents.

Cobra Mk3 adaptation bars

Cobra AB-FO-FI3 supplies adaptation bars for the Mk3 and is described for use with the original mounting hardware. The shop offers driver, passenger and pair selections. Its description says runners are separate, while the order options also use slide and tilting labels, so ask Garreth to confirm exactly what the selected order supplies before adding rails.

The shop bar attribute says 291 x 330 mm; Cobra describes its base-mounted seat patterns as 292 or 405 x 330 mm. Match the actual seat and runner configuration to the bars. Confirm the required Premium runner handle width and resolve the fixing-pattern differences for the supplied arrangement.

Corbeau base-mounted seat route

The Corbeau shop listing specifies Mk3 applications from 1989 to 1994, with driver or passenger and slide or tilting choices. Keep that stated date limit when checking an order. A later registration or a general Mk3 description needs an exact supplier application check.

Corbeau states that its subframes serve its base-mounted reclining and classic seats, include double-locking runners and are unsuitable for side-mounted seats. The shop describes more than one frame or adaptation arrangement, so confirm the actual Mk3 package before buying extra rails. The current maker table does not establish a Mk3-specific fitting code.

Sliding runners

Sparco 0049306, Endurance and Cobra Premium SUBFR07EL are runner choices to assess with the selected kit and seat. Check the fixing positions at both ends and the extra height the rails add. Cobra Premium runners also need the correct handle configuration for the seat.

Avoid duplicating rails where the confirmed kit already supplies them. For competition use, follow the exact seat maker and event requirements; Cobra specifies side mounts without runners for its competition installations.

Side supports

Sparco steel supports are an option for a compatible side-mounted shell and suitable lower assembly. Cobra SUBFR31 supports are intended for the Nogaro. Check shell width, fixing positions and specified hardware together; adding supports does not turn the Corbeau base-mounted subframe into an approved side-mount route.

Fixed-back bucket seats

Cobra Monaco Sport Narrow and Monaco Pro list both base and side mounting with a 292 x 330 mm base pattern. The Narrow is listed for road and track use, while Monaco Pro carries an FIA 8855-1999 listing. Choose the mounting method for the actual supplied seat and confirm its current approval label for the intended event.

OMP TRS-X also lists base and side mounting, with a 345 x 271 mm base pattern and FIA 8855-1999 approval. It needs a different base connection from the Cobra seats. Cameron can compare the chosen lower kit and complete mounting arrangement before you order.

OMP Champ-R, Sparco Rev QRT and Sparco Evo QRT are side-mounted fixed-back shells. Match suitable supports to the exact seat and lower assembly. Check shoulder width and headroom in the Fiesta at the intended driving position.

OMP Classic 1970s Revival HA737E is a fixed-back, base-mounted seat, with a 345 x 271 mm shop pattern and road and track listing. It belongs with the fixed seats here; it has no reclining mechanism.

Reclining sport seats

The Sparco R100 Martini uses a 345 x 271 mm base pattern, while Auto Style BS5 is listed at 345 x 280 mm. Check the selected frame and rails against the exact seat. Backrest movement and access to the adjustment controls also need room in the cabin.

The Corbeau RRS listing below supplies two standard-base reclining seats in black vinyl. Vehicle frames are separate. Its attributes show two possible base patterns, so have Garreth confirm the supplied seat version and matched Corbeau Mk3 assembly before ordering.

One RRS pair order supplies two seats, but a single-side vehicle subframe order supplies only that selected position; check both frame quantities and their actual contents.

Roll cages

The cage options below have different uses and installation requirements. Match the exact body, roof and year before choosing a configuration. Plan the seat position and required occupant clearance with the cage installer.

F044 rear cage

Safety Devices lists F044 for the Mk3 BE13 from 1989 to 1996, three-door and without a sunroof, and states it is not for competition use. The rear choices differ in diagonal and harness-bar arrangement. Its separate Mk4/5 application does not establish interchangeability of the cars’ seat frames.

F055 rear and full bolt-in cages

The shop lists F055 rear and full bolt-in options for the Mk3, with the full cage specifying a 1989 to 1996 three-door application. The rear options are 5SMU with a fixed diagonal, 5SMU-HB with a diagonal and harness bar, or 5SXU with a cross diagonal and harness bar. Confirm the exact rear configuration and order contents.

The full F055 layout passes through the dashboard and includes a dash bar and lower turret brace. Its front section must be used with a rear cage, while its dedicated door bars require front and rear sections. Check the selected assembly, installation instructions and certification documents with Safety Devices against the event requirements.

F081 full weld-in cage

F081 is the full CDS weld-in cage RBF081 6SXX for the 1989 to 1996 Mk3 BE13 three-door. Safety Devices lists Motorsport UK/FIA homologation. Arrange the complete welded installation and confirm its documentation and current event requirements before ordering.

Harnesses

The TRS Clubman, TRS Magnum, Takata Drift II and Drift III, and Schroth Profi 3×2 choices below need assessing with the exact seat and proposed anchor arrangement. The number of straps does not establish suitable mounting points. Follow the chosen belt maker’s instructions for attachment strength, routing and belt angles.

A cage option with a harness bar still needs its intended belt attachment and loading checked. Cameron can help review the route through the seat and the required lap, shoulder and any crotch-strap attachments. Confirm the belt’s current approval separately from the cage and seat installation.

What fits

Compare the complete mounting arrangement and supplied parts before choosing a kit; the seat pattern is only one connection in the installation.

Route or seatApplication or methodInterface or contentsCheck before ordering
OMP HC776HC776D RHD driver; HC776S RHD passengerShop 345 x 271 or 405 x 290 mm patternsExact seat or runner connection; no universal RECARO fit
Sparco 00499062DX RHD driver; SX RHD passengerShop 345 x 271 mm patternConfirm supplied kit contents and upper assembly
Cobra AB-FO-FI3Adaptation bars; driver, passenger or pairDescription excludes runnersShop 291 x 330 mm; match actual seat and rails
Corbeau Mk3Shop 1989 to 1994; select physical sideBase-mounted Corbeau recliners/classic seatsConfirm exact package and runner contents; excludes side mounts
Cobra Monaco Sport Narrow / ProBoth list base and side mounting292 x 330 mm base patternNarrow road/track listing; Pro FIA listing
OMP TRS-XBase and side mounting345 x 271 mm base patternListed FIA 8855-1999; check actual seat label
OMP Champ-R / Sparco Rev and Evo QRTSide-mounted fixed-back shellsSuitable supports and lower assemblyCabin width, installed height and hardware
OMP Classic 1970s RevivalFixed-back base mount345 x 271 mm shop patternRoad/track listing; no reclining mechanism
Auto Style BS5 / Sparco R100 MartiniBase-mounted recliners345 x 280 / 345 x 271 mm respectivelyDifferent fixing patterns; allow backrest movement
Corbeau RRS pairTwo standard-base reclining seatsVehicle frames separateConfirm seat version and frames for both positions
Safety Devices cagesF044 rear; F055 rear/full; F081 weld-inDifferent application and use limitsCheck selected configuration and installation

Common questions

This guide covers OMP, Sparco, Cobra and Corbeau listings; match each kit's exact application and mounting method to the car and seat.

The shop describes Cobra and OMP across 1989 to 1997, Corbeau from 1989 to 1994 and the Mk3 cage options from 1989 to 1996; confirm the chosen product for the exact car.

The current shop options label HC776D as RHD driver and HC776S as RHD passenger, with one frame for each selected seating position.

The current shop options label 00499062DX as RHD driver and 00499062SX as RHD passenger; confirm the physical side for the car before ordering.

A 405 x 290 mm fixing pattern alone does not establish compatibility with every RECARO seat; check the exact seat, rails and complete connection.

It is the Mk3 adaptation-bar listing, described for use with original mounting hardware; confirm the seat-specific upper connection and selected side or pair order.

The description excludes runners, although the order options use slide and tilting labels. Confirm the selected package before adding separate rails.

The bar listing states 291 x 330 mm and Cobra describes 292 or 405 x 330 mm seat patterns, so check the actual seat and runner configuration before ordering.

Corbeau excludes side-mounted seats from these subframes; use a separately confirmed lower assembly and support arrangement intended for the chosen shell.

Corbeau describes runners in its subframe kits, while the shop also describes adaptation arrangements; confirm the actual Mk3 contents before ordering extra rails.

Both current listings describe base and side mounting with a 292 x 330 mm base pattern; choose the method for the supplied seat and suitable lower assembly.

Its current listing describes both base and side mounting, with a 345 x 271 mm base pattern and FIA 8855-1999 approval; confirm the supplied seat and intended installation.

The Evo QRT listing here specifies side mounting, so check suitable supports and the lower assembly for the exact shell.

HA737E is a fixed-back, base-mounted seat with a 345 x 271 mm shop pattern and road and track listing.

It supplies two standard-base reclining seats, with vehicle frames separate; check the seat version and frame quantity for both seating positions.

The shop lists BS5 at 345 x 280 mm and R100 Martini at 345 x 271 mm, so compare the complete fixing arrangement for the chosen seat.

Safety Devices states that F044 is not for competition use; its Mk3 application is the 1989 to 1996 three-door without a sunroof.

The shop describes a through-dashboard front section and dash bar; arrange the complete installation and check the required front, rear and door-bar parts.

F081, RBF081 6SXX, is the full CDS weld-in cage for the stated Mk3 three-door application; confirm installation and current event documentation with Safety Devices.

Use the selected belt maker's instructions for the actual seat and vehicle, including anchor strength, belt routing and angles; strap count alone cannot establish a suitable installation.

More help

Send Garreth the Mk3’s build year, body and roof type, and the physical seating side you need. Include the exact seat and whether you want one position or both. Cameron can check the proposed frame, upper mounting parts and restraint arrangement against those details.

Call 0115 647 8650 or use the contact link below with the specification.
