Auto Style Type BS5 Reclining Seat

Name: Auto Style Type BS5 Reclining Seat
Brand: Auto Style Racing
SKU: SS34Z
Price: 295.00 GBP
Availability: InStock

£354.00 Incl. VAT£295.00 Excl. VAT

Sport seat and drivers under 6ft. The showroom team sit in these seats every day, so call with your height and waist for the honest fit answer.

Size/Fitting guide

SKU: SS34Z Categories: Auto Style Reclining Sport Seats, Sports Seats

Save to Pinterest

Why buy from us

Free UK delivery over £100Calculated at checkout on smaller orders.
Tracking by email and textFrom the moment it leaves us.
Fitting advice since 2003Ask before you buy if you are unsure.
Showroom appointmentsSee the kit in person before you order.

Secure checkout

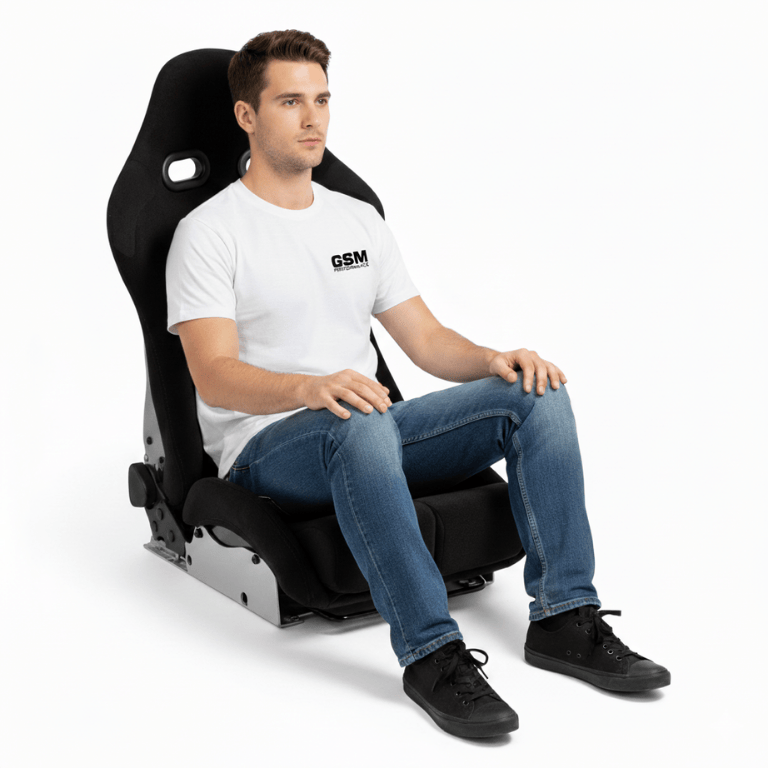

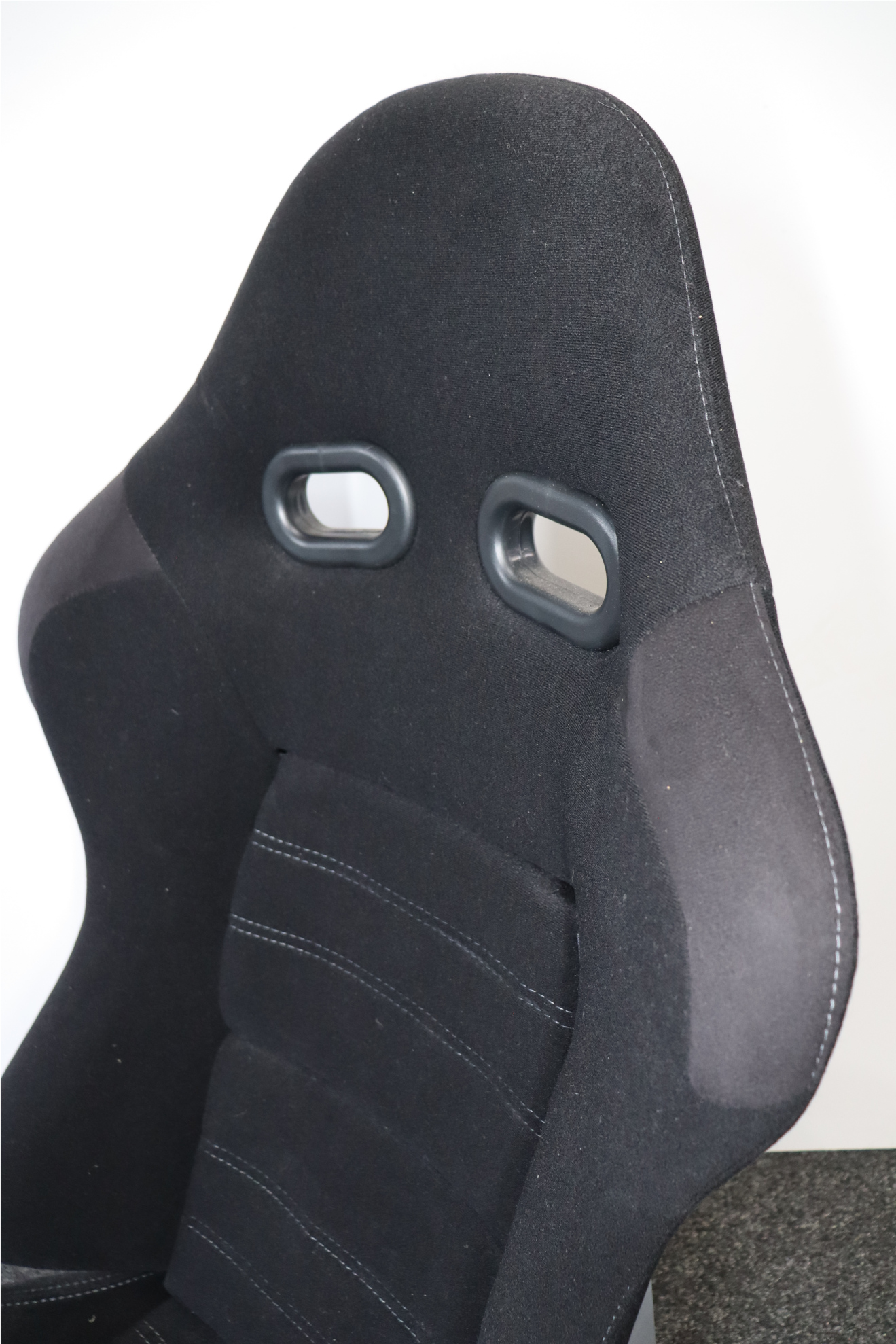

The BS5 is a reclining seat with a fibreglass-reinforced backrest on a steel frame. Part number SS34Z, sold singly, black fabric only. It combines the adjustment of a recliner with more back-panel stiffness than a purely steel-framed seat, because the backrest shell is reinforced with GRP behind the trim even though the main frame underneath is steel.

Sized for drivers under 6ft. Waist size is all sizes, so the height restriction is the only physical limit. Weight is approximately 16kg, which is the heaviest reclining seat in the 345mm range by some margin. If reducing cabin weight is a consideration, the Eco at 13kg is lighter.

The fibreglass-reinforced backrest keeps the panel from flexing when loaded in cornering, which is the functional difference from the standard steel-framed recliners. The BS2 (SS42) also has a fibreglass-reinforced backrest; it has no height restriction and is available in vinyl or grey fabric. The BS5 is under 6ft only, and black fabric only. If the BS2 fits the driver, it is the one to choose, with the same backrest construction. The BS5 is for drivers under 6ft who prefer the BS5 shell profile.

Base mount, 345mm x 280mm bolt pattern, sliders included. Reclining, double-sided adjustment. Road and Track approval. No headrest. Works with a 4-point harness.

Additional information

Weight	16.3 kg
Dimensions	60 × 60 × 120 cm
Approval	Road & Track
Brand	Auto Style Racing
Construction	Steel frame seats
Driver Height	Under 6ft
Driver Waist Size	All sizes suitable
Fixing Type	Base Mount
Mechanism Type	Reclining Seats
Product Colour	Black
Protection Type	No head support
Brackets included	Seat and sliders
Trim Material	Fabric
Harness compatibility	4 point compatible
Arm Rests	Without armrests
Fixing Bolt Pattern	345mm x 280mm

Auto Style seat size guide

Auto Style make one size of every seat. The buckets suit a 32 to 36 inch waist, the two small ones go down to 28, and the recliners take most drivers.

How Auto Style size their seats

There are no Standard and XL versions. Each bucket is one shell and our product data bands it: nearly all of them at 32 to 36 inch, with the Type K5 and the Type K12 Small at 28 to 32 for slimmer and younger drivers. The Type BS7 is the tall bucket for drivers over 6 ft; the BS6, BS8, K5, K12 and Zandvoort suit drivers under 6 ft.

The reclining range is all one size and suits all heights. Three of them have published dimensions: the Eco Lux is 510 mm across the base, 540 mm across the shoulders, 550 mm deep and 910 mm tall; the RS6-II is 530 mm across the base and 560 mm across the shoulders; the Pro Luxury is 470 mm across the base and 600 mm across the shoulders.

Which Auto Style fits you

Model	Waist band	Driver height	Shell	Approval
Fixed bucket
Type BS1, BW, FS, JJ, LV, MO, RR, RT	32 to 36	All heights	Fibreglass	Road and track
Type BS6, BS8	32 to 36	Under 6 ft	Fibreglass	Road and track
Type BS7	32 to 36	Over 6 ft	Fibreglass	Road and track
Type BH	32 to 36	All heights	Steel frame	Road and track
Type K12, Zandvoort	32 to 36	Under 6 ft	Steel frame	Road and track
Type K5, Type K12 Small	28 to 32	Under 6 ft	Steel frame	Road and track
Reclining
Type GT, AK, BS2, C, DS, Eco, Eco Lux, GK, JW, LH	All sizes	All heights	Steel frame	Road and track
Type MR, MS, Pro, RK, RS6 II, T, T Eco, TN, VGR, Z	All sizes	All heights	Steel frame	Road and track
Type BS5	All sizes	Under 6 ft	Steel frame	Road and track
Classic
Type Classic, Headrest, II, RS, Retro, Retro II	All sizes	All heights	Steel frame	Road and track

Price pointAuto Style seats are the entry to the range and the bolsters are softer than a Cobra or Corbeau at the same waist. If you are at the top of a band and want to be held, look at the BS7 or step up a brand.

Measure yourself first

Four numbers decide whether a seat fits. Take them in the clothes you drive in, and write them down before you compare models.

AWaistAround your natural waist, not your trouser size. Trouser sizes usually run an inch or two under the real figure, and the waist bands on our product pages use the real one.

BSeated hip widthSit on a hard chair with your feet flat and measure straight across the widest point of your hips with a rule or a straight edge, not a tape that follows the curve. This is the number that decides whether a fixed shell is tight.

CShouldersStraight across the back at the widest point. Fixed back seats hold you here, so a shell that is narrow at the shoulders is uncomfortable long before it is unsafe.

DHeight and torsoYour height, and if you are over 6 ft whether that is mostly leg or mostly body. A long body needs a taller shell with the head support set higher.

Before you order

Check the car, not only the driver. Transmission tunnels, door cards and B pillars are what stop a wide shell going in. Our seat mounting and fixing points guide covers what to measure.
Side mount and base mount shells are not interchangeable. Which one you need depends on the car and the subframe, so pick the brackets at the same time as the seat.
If you run a HANS or plan to, filter on HANS friendly. The shoulder openings are cut to clear the collar.
FIA seats carry an expiry date on the homologation label. Check what your championship accepts and how long the seat has left, particularly on discounted older stock.

Send us your measurementsWaist, seated hip width, height and the car. We have fitted a lot of Auto Style seats and will tell you honestly if the one you have picked is going to be tight. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Waist bands and heights are our product data, checked 6 September 2026. The Eco Lux, RS6-II and Pro Luxury dimensions are Auto Style’s own listings.

Will I fit in this seat?
The maker sizes this seat for drivers under 6ft in height. Those are the paper numbers; how a seat actually feels to sit in and climb out of is a different question, and our showroom team sit in these seats every day, so call us with your height and waist and we will give you the honest answer.

What do I need to fit it to my car?
You need the car-specific frame for your vehicle, plus a sliding runner for fore-and-aft adjustment. Tell us your car and we will quote the complete fitting kit in one go. Our sliding runner guide covers the adjustment side.

Does it recline like a normal seat, and what about armrests?
Yes, the backrest reclines, which is the whole point of a sport recliner over a fixed bucket: support in the corners, comfort on the motorway, and access to rear seats. Armrests: not fitted on this model.

I am a bigger driver. Will it work for me?
Possibly, and it depends on the exact shell rather than the brand. We wrote a straight-talking guide on sport recliners for larger drivers from real showroom fittings, and if you send us your waist and height we will tell you honestly which recliners work at your size.

Availability

Two stock positions, and they are very different

Auto Style seats are produced in batches and imported into the UK and Europe every 12 weeks. What that means for your order depends on where the seat is.

Showroom stock is roughly 4 days. Distribution stock is roughly 3 to 4 weeks.

Stock rotates constantly

These sell quickly once a batch lands, so a model that was on the shelf last week may be on the next container. Contact us for the precise position before you order and we will tell you which of the two you are in.
