VW Up bucket seat guide

2011 to 2023

Cobra make the only direct fit frame for the Up, and Cobra’s own seats cover most of the choice on this car, from FIA competition shells through to their Nogaro and Misano lines. The frame and its runners are built to Cobra’s wide 405mm pattern, the Nogaro’s. Seats on a narrower base, the Corbeau recliners included, go on with a pair of Endurance Motorsport seat adapter bars across the runners, which bring the pattern down to 345mm or 291mm. Our step by step Up fitting guide has the exploded diagram.

Custom Cages build a Multipoint T45 roll cage titled specifically for the Up, so a proper competition build is well supported once the frame and seat are sorted.

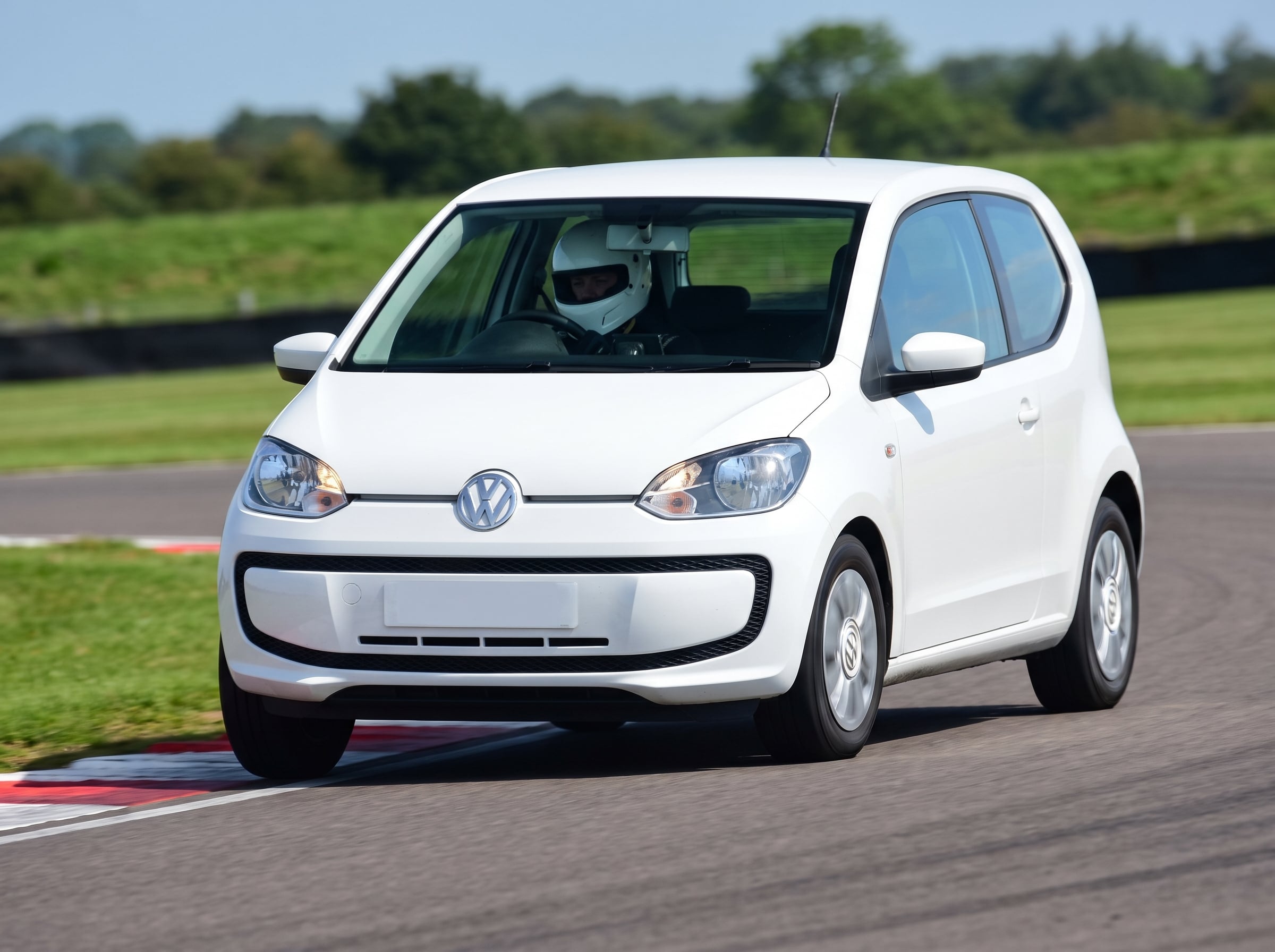

White Volkswagen Up city car on a British race circuit at an apex with red and white kerbing
Volkswagen Up on a trackday

The fitting frame

Cobra make a direct fit frame for the Up at £255.00, the only frame currently listed for this car. It bolts to the factory floor mounting points, and the sliding runner comes with it, built to Cobra’s wide 405mm pattern. The Cobra Nogaro is the only seat that fits it directly, on the right Nogaro side mounts and brackets. Every other seat, a Monaco Pro, a Daytona, a Misano or a Corbeau recliner, goes on with the adapter bars across the runners.

4The seatBase mount, bolts to the bars3Adapter barsAcross the runners, 405mm to 345 or 2912Cobra sliding runnersAt 405mm wide, with the frame1Cobra VW Up frameBolts to the factory floor pointsBolts the bar to the runner, 405mmSeat at 345mmSeat at 291mmDrawing to explain the order of parts, not to scale. Widths are real; the gaps between layers are opened up to show the stack.
The stack, from the floor up: the Cobra frame, its runners at 405mm, the adapter bars across the runners, then the seat. The dashed lines show where each layer bolts to the one below.
Only the Nogaro fits without the adapter barsThe Cobra Nogaro is the one seat that fits the Up frame directly, on the right Nogaro side mounts and brackets. Every other seat on this page goes on with the adapter bars across the runners, as drawn above. The full step by step is in our Up fitting guide.

The fitting kit

The Cobra Nogaro is the only seat that fits the frame directly, on its own Nogaro side mounts and brackets. Every other seat goes on with the Endurance Motorsport adapter bars across the runners, side mounted on the general Cobra side mounts or base mounted.

FIA competition and Cobra bucket seats

The Cobra Monaco Pro at £282.00 and the Cobra Monaco Premium Edition at £354.60 are the entry point. The Cobra Monaco 40th Edition at £474.00 sits above them, and the Cobra Nogaro Street at £789.00, the Cobra Suzuka T Pro-Fit at £673.20 and the Cobra Nogaro Circuit at £819.00 sit at the top of the range. The Cobra Nogaro Club Sport at £629.00 rounds out the Nogaro line.

Reclining sport seats

The Cobra Daytona at £599.00 is the entry point. The Cobra Misano Anniversary and Anniversary Spec 2, both £1374.17, are the premium options on this page. The Corbeau Sportline RRB Black, Sportline RRS, PSR and SVR Vinyl pairs, from £598.80 to £1,020.00 go on the Cobra frame with the adapter bars across the runners, the route our Corbeau PSR in a VW Up guide takes step by step.

💬
Our recommendationA Corbeau recliner fits, on the adapter bars

The Cobra frame and its runners are built to the wide 405mm pattern, so a Corbeau recliner goes on with a pair of adapter bars across the runners. Cameron works out the fit and the best combination for a given car, so tell him the seat and he will confirm the parts before you order.

Harnesses

There is no harness made specifically for the Up, so you are fitting a universal belt and working out the mounting yourself. The standard rear seat belt mounts are not rated for harness shoulder strap loads, so the cage below, a bolt-in harness bar, or a fabricated anchor point is needed.

The Schroth Profi 3×2 at £444.01 and the TRS Magnum 6 Point Superlite at £294.00 are both FIA 8853-2016. The TRS Magnum 4 Point at £246.00 is FIA 8854-1998. All three carry a stamped expiry date regardless of wear. For a road or trackday car, the Takata Drift II and III and the TRS Clubman belts cost less, though none of those four are HANS compatible.

💬
Our recommendationConfirm the anchor before the belt

Tell us whether the car is caged, what is behind the seats now, and whether a head restraint is going in, and we will tell you what the shoulder straps can anchor to before you spend anything on the belt.

Roll cage

Custom Cages build a Multipoint T45 roll cage titled specifically for the Up at £1,818.30.

If competing, check the specification against your class regulations before ordering, and keep the sign-off paperwork with the logbook. Pad any tube within reach of a helmet, and tell your insurer, because a cage is a notifiable modification.

What fits what

Every seat below goes on the Cobra frame. The Nogaro is the only one that fits directly, on the Nogaro side mounts and brackets. Every other seat needs the adapter bars across the runners.

SeatMountingStyleNotes
Cobra Monaco ProBase mount on the adapter bars at 345mm, or side mountFIA 8855-1999£282.00
Cobra Monaco Premium EditionSide mount, with the adapter barsFIA motorsport£354.60
Cobra Suzuka T Pro-FitSide mount, with the adapter barsFIA 8855-1999£673.20
Cobra Nogaro CircuitSide mount, Nogaro bracket, no adapter barsFIA motorsport£819.00
Cobra DaytonaBase mount on the adapter bars at 291mmRoad and track£599.00
Cobra Misano AnniversaryBase mount on the adapter barsRoad and track£1374.17
Cobra Nogaro Club SportSide mount, Nogaro bracket, no adapter barsRoad and track£629.00
Corbeau PSR (pair)Base mount on the adapter bars at 345mm or 291mmRoad and track£558.00 the pair

Common questions

Cobra confirm one at £255.00, the only frame currently listed for this car.

Yes, and it is the only one. The Cobra Nogaro fits the Up frame directly on the right Nogaro side mounts and brackets. Every other seat needs the adapter bars.

No. The sliding runner comes with the Cobra frame, at 405mm. Base-mount seats other than the Nogaro sit on the adapter bars on top of it.

Yes. The Cobra frame and its runners are built to the wide 405mm pattern, and a pair of Endurance Motorsport seat adapter bars across the runners brings it to 345mm or 291mm for the Corbeau base. Our Up fitting guide shows the whole stack.

Yes. Custom Cages build a Multipoint T45 kit titled specifically for the Up at £1,818.30.

General Cobra side-mount seats use the £74.40 Cobra Steel Side Mounts. Nogaro seats need the separate £78.00 Nogaro-specific bracket.

No. They are not rated for the loads a harness shoulder strap puts through them in an impact. The cage above, a bolt-in harness bar, or a fabricated anchor point is needed instead.

More help

If you want the frame, runners, adapter bars and seat confirmed together before you order, the contact link is the quickest way to get it looked at.
