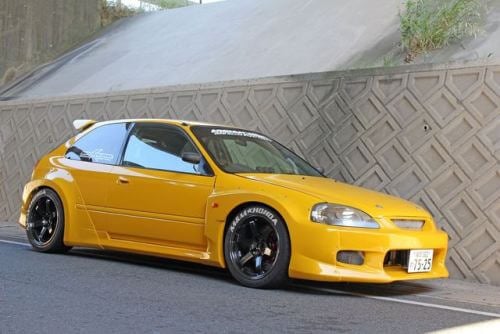

Honda Civic EK bucket seat guide

1996 to 2000, including EK4, EJ9 and EK9 applications

“Will that seat fit my EK?” usually means two questions at the counter: can we attach it to the floor, and can we put the driver where they need to sit? We start with the chassis code, seating side and exact seat. An EJ9 with a reclining seat can need a different combination from an EK9 with a side-mounted bucket.

The fitting options here include M2, PCI, Planted, Sparco, Corbeau and seven BRIDE rail types. Each has its own application and upper mounting arrangement. A frame listed for one chassis or seat family does not establish fit for every sixth-generation Civic.

For an import, send us the complete chassis code, build year, body style and steering-wheel side. Photographs of the existing seat mounts help if previous owners have changed them. Cameron can then work through the floor bracket, runner and seat together.

Honda Civic EK on track with a helmeted driver
Honda Civic EK9 Type R on track

Mounting

M2: side mount, base mount or a pair

The individual M2 frame and two-frame pack provide separate purchasing options. The maker lists M2-20269-S000 for the physical left and M2-20269-S010 for the physical right, for the 1996-2000 EK/EJ application. In a right-hand-drive car, right is the driver’s side.

M2’s standard rail is a sliding side-mount assembly with 290mm seat-hole centres. That dimension is one part of the match. We still need the seat’s complete hole layout, approved support arrangement and clearance around the shell.

Our individual listing has separate base-mount and side-mount choices on each side. For a base-mounted seat, have us confirm the supplied adapter arrangement before adding the separate M2 adaptation bars. The paired listing buys the two frames together; confirm the upper hardware for both seats when ordering.

Garreth’s top tip: settle the seat and mounting choice together. A pair of frames is useful when both front seats are being changed, but there is no benefit in ordering adapters twice.

PCI: sliding S1 or installation-adjustable A1

PCI SM-EK-S1 includes a fore-and-aft slider. The SM-EK-A1 sets the position during installation and can be repositioned with tools. They are separate handed products for the 1996-2000 Civic application.

Both use PCI’s side-mount support system. Confirm the chosen shell against that system and the space in the car. We would start with the S1 for a shared driving position, then consider the A1 where adjustment with tools suits the build.

Planted SB042 and the upper mounting pattern

Planted SB042 bracket is the floor adapter for its listed 1996-2000 Civic application. Its left bracket is SB042DR and its right bracket is SB042PA, using the maker’s left-hand-drive driver/passenger naming. Our shop choices translate those physical sides for a right-hand-drive car: passenger/left and driver/right.

Confirm the vehicle’s market and floor layout before ordering an imported application. Translating the seating label alone does not verify a different floor. The earlier SB041 belongs to the preceding Civic application.

Planted also offers Standard and Alternate slider bolt patterns. The Alternate arrangement changes the Recaro pattern for Cobra and Scheel-Mann slider applications. Our side selection does not identify that upper pattern, so tell us which runners and seat will sit on it.

Side-mounted seats need the appropriate side supports above the floor bracket. Base-mounted seats need their exact seat or runner pattern matched. A slider, when required, is another interface in the assembly.

Sparco and the two Corbeau applications

The Sparco EK frame has a listed 345mm × 271mm base interface. Choose the seating side and the required runner option: “No sliding runner required” or “With Sparco seat slider”. Confirm what that selected order supplies before adding a separate runner kit. A side-mount shell needs its specified supports and an agreed connection to the frame.

Corbeau lists the EJ9 frame separately from the EK frame. Both have seating-side and slide/tilting mechanism choices. These are seat-specific Corbeau routes, so send us the exact seat model and chassis code before selecting the mechanism.

BRIDE rails for EK4 and EK9

BRIDE’s current application data lists H035 for the physical right and H036 for the physical left across the seven rail types below. The maker’s EK4, EK9 and listed EK4 Ferio records use those codes with a front-wheel-drive application note. The matching system principally covers Japanese-market cars, so have us check the exact chassis and floor for a car from another market.

Rail typeRight / left codesUpper mounting arrangementWhat decides the choice
FGH035FG / H036FGSliding side mount, 290 ± 5mm × 395mmExact fixed-shell application and clearance
FXH035FX / H036FXFixed side mount, 290 ± 5mm × 395mmFixed position and the specified competition support arrangement
IGH035IG / H036IGSliding side mount, 290 ± 5mm × 395mmExact shell application and aluminium side supports
MOH035MO / H036MOSliding bottom mount, 330mm × 290mm or 271mm × 345mmSeat family and the maker’s original-RECARO exceptions
ROH035RO / H036ROSliding bottom mount, 260mm × 405mmListed GIAS/STRADIA and applicable original-RECARO arrangements
XLH035XL / H036XLSliding side mount, 290 ± 5mm × 430mmThe specified wide-shell application
XRH035XR / H036XRSliding bottom mount, 260mm × 405mmSTRADIA II type-XL application

MO, RO and XR have different seat applications. BRIDE specifically directs the relevant original RECARO SR/L arrangements in cars including the EK9 to RO; identify the actual seat before using that note. A matching pair of dimensions does not replace the seat application check.

Cameron’s fitting view: measure with the driver in position. Check pedal reach, steering alignment, headroom and the seat’s movement beside the sill, door trim and centre console. Include the height of every bracket and runner in that check.

Runners and upper fittings

M2, PCI S1 and the sliding BRIDE rail types already contain the fore-and-aft mechanism. PCI A1 and BRIDE FX use a fixed position. Confirm the selected frame before adding another set of runners.

For a separate Sparco runner, discuss the 0049306 sliding kit with the exact frame and seat. On a side-mounted shell the runners sit below the prescribed side supports. The complete lower and upper hole patterns still need to match.

The Endurance Motorsport runner kit is another option to check for a separate slider arrangement. Obtain its complete interface dimensions for the proposed supports. Its universal description alone does not establish an EK fit.

Check the complete seat and mounting combinationSend the full chassis code, body style, steering-wheel side, seating side and exact seat model. Include photographs where the original mounts have been changed.

Competition bucket seats

The Sparco Sprint and Cobra Monaco Pro offer listed base- and side-mount routes. Their base patterns differ: 345mm × 271mm for the Sprint and 292mm × 330mm for the Monaco Pro. Identify the chosen route before ordering the upper hardware.

OMP’s Champ-R and ARS-R are side-mounted fibreglass shells. The Mirco RS2 3D and RTS-2 Velour are also side mounted, with different trim and shell choices on their product pages. Choose the driver’s fit first, then check that shell inside the car.

The Evo L QRT is Sparco’s larger Evo shell. Its width makes a cabin measurement worthwhile, particularly where a door bar or substantial door trim occupies the same space. Use the support arrangement specified for the exact seat.

Corbeau’s Sprint X System 3 uses a carbon/Kevlar shell construction and carries the listed FIA 8855-1999 approval. “System 3” names the construction. Corbeau specifies its Pro-Team mounting arrangement and M10 grade 12.9 seat fixings; check that complete interface before choosing a frame below it.

Garreth’s top tip: try the seat if you can. A shell that supports the driver and fits the finished cabin is a better starting point than choosing on shell material alone.

💬
Competition seats for the Civic EKChoosing a bucket for the Civic EK

Try the seat and check the shell in the cabin. The Sprint and Monaco Pro offer different base patterns as well as side-mount routes. For a side-mounted shell, specify its prescribed supports and the complete Civic mounting combination.

Reclining sport seats

The Auto Style BS5 and RS6-II Vinyl include sliders and list a 345mm × 280mm fixing pattern. That differs from the 345mm × 271mm Sparco base pattern. Confirm which interface is being measured before connecting them to a vehicle frame.

The Sparco R100, R100 Martini, R500 Fabric and R500 Sky are listed as seat-only purchases with a 345mm × 271mm base pattern. Include the required runner and vehicle bracket in the order. Check lever access and rearward recline clearance as well as the upright driving position.

Cobra’s Misano Anniversary and Spec 2 list a 291mm × 330mm base pattern. Their product choices include the base arrangement, and the Spec 2 has further required seat configuration choices. Send us the intended specification so we can match the runners and floor bracket to it.

Cameron’s fitting view: a recliner needs room to move. Check the outside lever beside the sill and the backrest beside the door bar, then make sure the seat still travels far enough for the drivers using it.

💬
Reclining seats for the Civic EKChoosing a recliner for the Civic EK

The Auto Style seats here include sliders on a 345 x 280 mm interface. The named Sparco recliners are seats only at 345 x 271 mm. Choose the seat, runners and vehicle bracket together, then check access to the recline controls.

Roll cages

The cage needs its own shell and installation check. The seating bracket’s application does not establish a cage fit, and a cage name does not tell us which tubes can carry a harness. Start with the body style, roof configuration and intended use.

SW half cage has body, sunroof, material and rear-cross-gusset options as well as colour. Confirm the exact specification for the car, including its harness-bar provision. The title alone is insufficient where the ordering options distinguish hatchback and coupe.

Safety Devices H019 is the EK4/EK9 three-door hatchback bolt-in family. The rear-cage listing distinguishes a single diagonal, a single diagonal with harness bar, and a cross diagonal with harness bar. Select the specified bar arrangement; the plain single-diagonal version is different.

The full H019 listing adds compatible front/rear and door-bar combinations. A front section requires a rear section, and door bars require the matching full assembly. Safety Devices lists the H019 family as not for competition use.

The Safety Devices H017 is a T45 full weld-in cage for the listed EK4/EK9 three-door hatchback. Its description includes harness bars, roof and door-bar bracing, with an unpainted finish. Obtain the installation specification for the actual shell.

Custom Cages HO/EK/98T is the live international multipoint T45 weld-in kit. Its installation and certification process belong with the kit specification.

The separate Custom Cages HOB/98T is the T45 bolt-in route. The maker’s bolt-in information still describes welding for footplates; confirm the exact application and installation requirements. We can discuss the cage specification alongside the seat and harness before you order.

Harnesses

Choose the attachment layout with the seat and harnessUse the exact harness maker's routing and fitting instructions. Check the specified anchors and any harness-bar provision with the cage and event requirements.

Choose the seat, harness and attachment layout together. Follow the exact harness instructions for anchors, angles, webbing routing and any wrap-around bar. Harness point count alone does not determine whether a cage is needed or whether a particular tube is suitable.

The TRS Clubman three-point bolt-in and four-point clip-in are different attachment layouts. In the three-point layout, the shoulder straps share a rear attachment; the four-point has separate rear shoulder attachments. A four-point designation does not add a crotch strap.

TRS Magnum four-point and six-point Superlite harnesses have different listed homologations and layouts. Match the current label, seat openings and attachment arrangement to the event requirements. The Magnum four-point listing identifies it as unsuitable for HANS use.

Takata Drift II and Drift III are both four-point harnesses. Drift III has the wider shoulder webbing; it is not a six-point FIA competition harness. Both current listings identify them as unsuitable for HANS use.

Schroth’s Profi 3×2 is a six-point racing harness with its own installation requirements. Confirm the intended restraint and FHR arrangement against the maker’s instructions and event rules. Do not treat a webbing width or product label as a blanket exemption from those rules.

Garreth’s top tip: send us photographs of the proposed attachment points with the seat details. That gives Cameron something specific to check before a harness joins the order.

What fits

These are the mounting routes and listed approvals for the sixteen seats above. Final selection also depends on the exact seat specification, its support system, the vehicle floor and the finished cabin measurements. The recliners use the shop’s “Road & Track” category; check any required seat homologation separately.

SeatListed mountingListed approvalFitting detail
Sparco SprintBase or sideFIA 8855-1999345mm × 271mm base pattern; match the chosen route
Cobra Monaco ProBase or sideFIA 8855-1999292mm × 330mm base pattern
OMP Champ-RSideFIA 8855-1999Exact shell and approved supports
OMP ARS-RSideFIA 8855-1999Measure the chosen shell inside the cabin
Mirco RS2 3DSideFIA 8855-1999Check the selected shell and support arrangement
Mirco RTS-2 VelourSideFIA 8855-1999Confirm size and trim choices separately from frame fit
Sparco Evo L QRTSideFIA 8855-1999Check larger-shell clearance and specified supports
Corbeau Sprint X System 3SideFIA 8855-1999Pro-Team supports and specified M10 fixings
Auto Style BS5BaseRoad & Track345mm × 280mm; sliders included
Auto Style RS6-II VinylBaseRoad & Track345mm × 280mm; sliders included
Sparco R100BaseRoad & Track345mm × 271mm; seat only
Sparco R100 MartiniBaseRoad & Track345mm × 271mm; seat only
Sparco R500 FabricBaseRoad & Track345mm × 271mm; seat only
Sparco R500 SkyBaseRoad & Track345mm × 271mm; seat only
Cobra Misano AnniversaryBaseRoad & Track291mm × 330mm; confirm required base choice
Cobra Misano Anniversary Spec 2BaseRoad & Track291mm × 330mm; confirm full seat configuration

Common questions

Check the individual application. Corbeau lists EJ9 and EK frames separately, while BRIDE’s listed H035/H036 applications identify particular EK4/EK9 records. Give us the complete chassis and body details before choosing.

In BRIDE’s listed EK applications, H035 is physical right (the RHD driver’s side) and H036 is physical left (the RHD passenger’s side).

Use the EK application’s H035/H036 codes, since the preceding EG6 application uses H033/H034.

BRIDE FX is fixed; choose a listed sliding type where you need fore-and-aft movement, after matching the exact seat.

Identify the exact seat first. BRIDE’s original-RECARO SR/L application note directs relevant cars including the EK9 to RO, with exceptions including electric versions. We can check that note against the seat you intend to retain.

M2’s standard EK/EJ rail includes a sliding mechanism; confirm the seat interface and any base adaptation before adding upper hardware.

Have us confirm what that selected package supplies. The individual listing already separates base- and side-mount choices, so adding a separate set automatically can duplicate part of the arrangement.

The S1 has a fore-and-aft slider. A1 is adjusted with tools during installation or later repositioning. Both still require the correct handed application and seat support match.

The maker uses left-hand-drive naming. SB042DR is physical left and SB042PA is physical right; our choices translate them for a right-hand-drive car.

No. Planted offers Standard and Alternate upper patterns separately. Tell us the runner and seat specification so we can confirm that part of the order.

The listed patterns differ: 345mm × 280mm for the Auto Style seats here and 345mm × 271mm for the Sparco seats. We need to match the actual interfaces, including the included Auto Style sliders.

The current EK frame description limits it to the appropriate Corbeau base-mounted seats. A side-mount bucket needs a separately confirmed support route.

System 3 describes Corbeau’s shell construction. The Sprint X listed here carries FIA 8855-1999 approval; check the actual seat label and specified supports.

Measure the chosen shell, driving position and mounting height inside the car. Include door trim, console and any cage bars in the check. A vehicle-specific floor bracket does not settle shell clearance.

The listed options differ. The single-diagonal version and the versions with a harness bar are separate choices, so confirm the complete part specification.

Check the exact kit’s instructions. Custom Cages describes footplate welding in its bolt-in information, while other kits have their own mounting arrangements.

Both are four-point harnesses, with 2-inch shoulder webbing on Drift II and 3-inch on Drift III.

Its four-point layout has separate shoulder and lap attachments. Do not count a crotch strap into that designation; choose the required restraint layout against the maker’s instructions.

Use the exact harness installation instructions and event requirements. Suitable anchors, strap routing, seat openings and any specified bar arrangement decide the installation, not point count alone.

Send the full chassis code, build year, market, body style, steering-wheel side, seating side and exact seat model. Add photographs of the floor mounts and any cage or harness attachments. Cameron can check the proposed combination from there.

More help

Send us the car and seat details, including any hardware you already have. Garreth can help choose the purchase, and Cameron can work through the fitting combination. Drop us an email or click to open a chat while you gather the measurements.

If you prefer to talk it through, call 0115 647 8650. Bring the seat specification and photographs of the mounts so we can discuss the full installation.

Need a personal recommendation?

Send us the exact car and seat specification, with photographs of the mounts. We can help choose the complete fitting combination.
