TRS Nascar 5 Point 75mm Superlite FHR Only Harness

From £204.00 Incl. VATFrom £170.00 Excl. VAT

TRS Nascar 5 Point 75mm Superlite FHR Only Harness by TRS Motorsport. Application: Saloon. Approval: Road & Track. Brand: TRS Motorsport.

Product Colour

Clear

Package Bundle Recommendations

Choose any extras you would like added to this product.

TRS Back Plate

£2.00

TRS 2 Inch Harness Shoulder Pads

Choose an option

£15.95

Add to wishlist

SKU: N5PTFHRSL Categories: TRS Nascar Harnesses, Off-Road Harnesses

Save to Pinterest

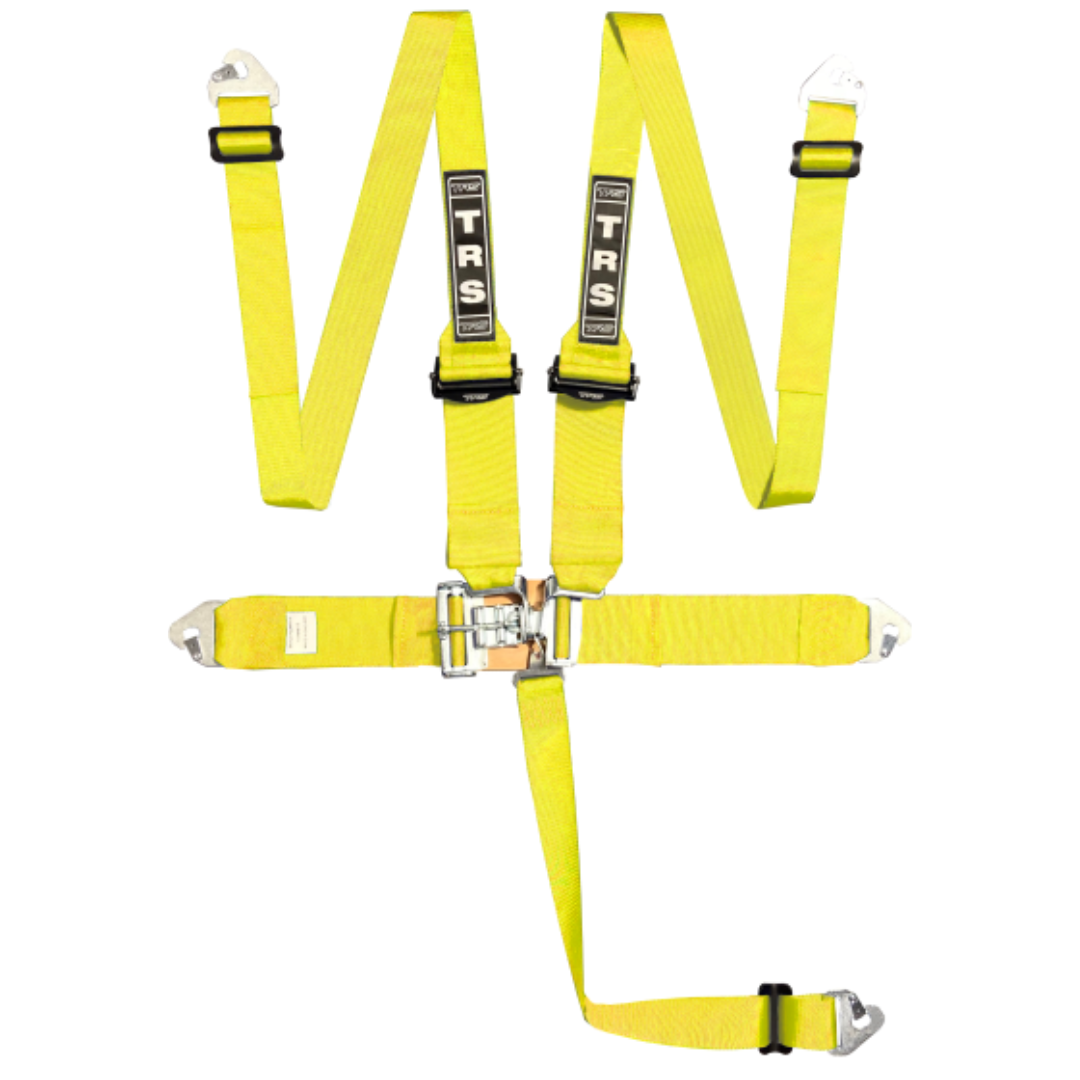

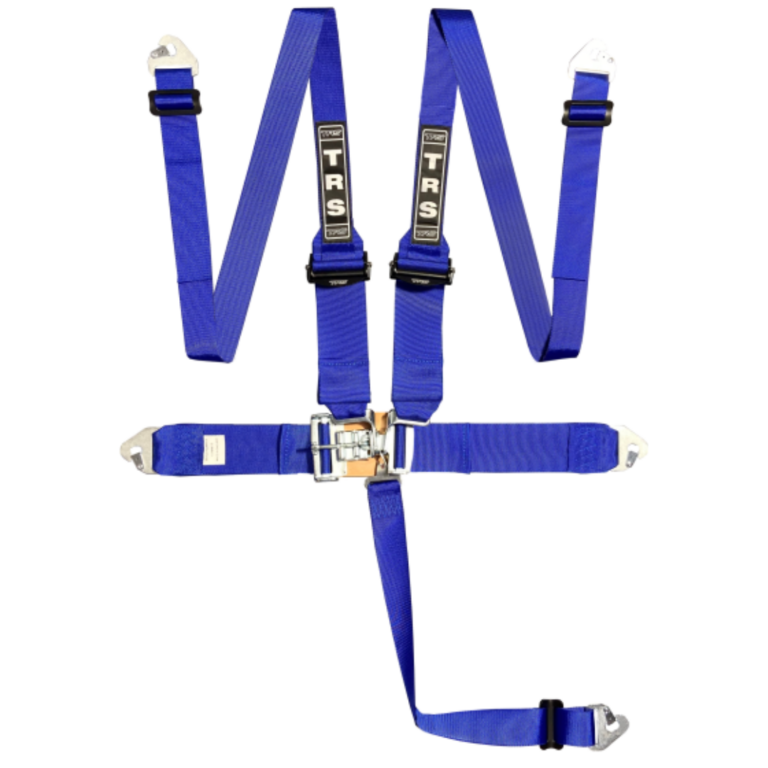

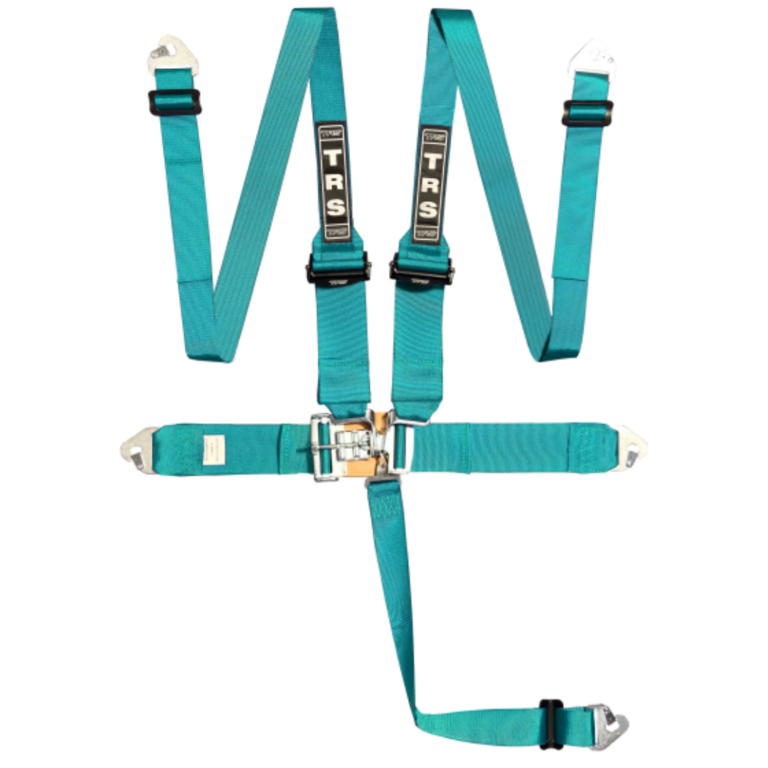

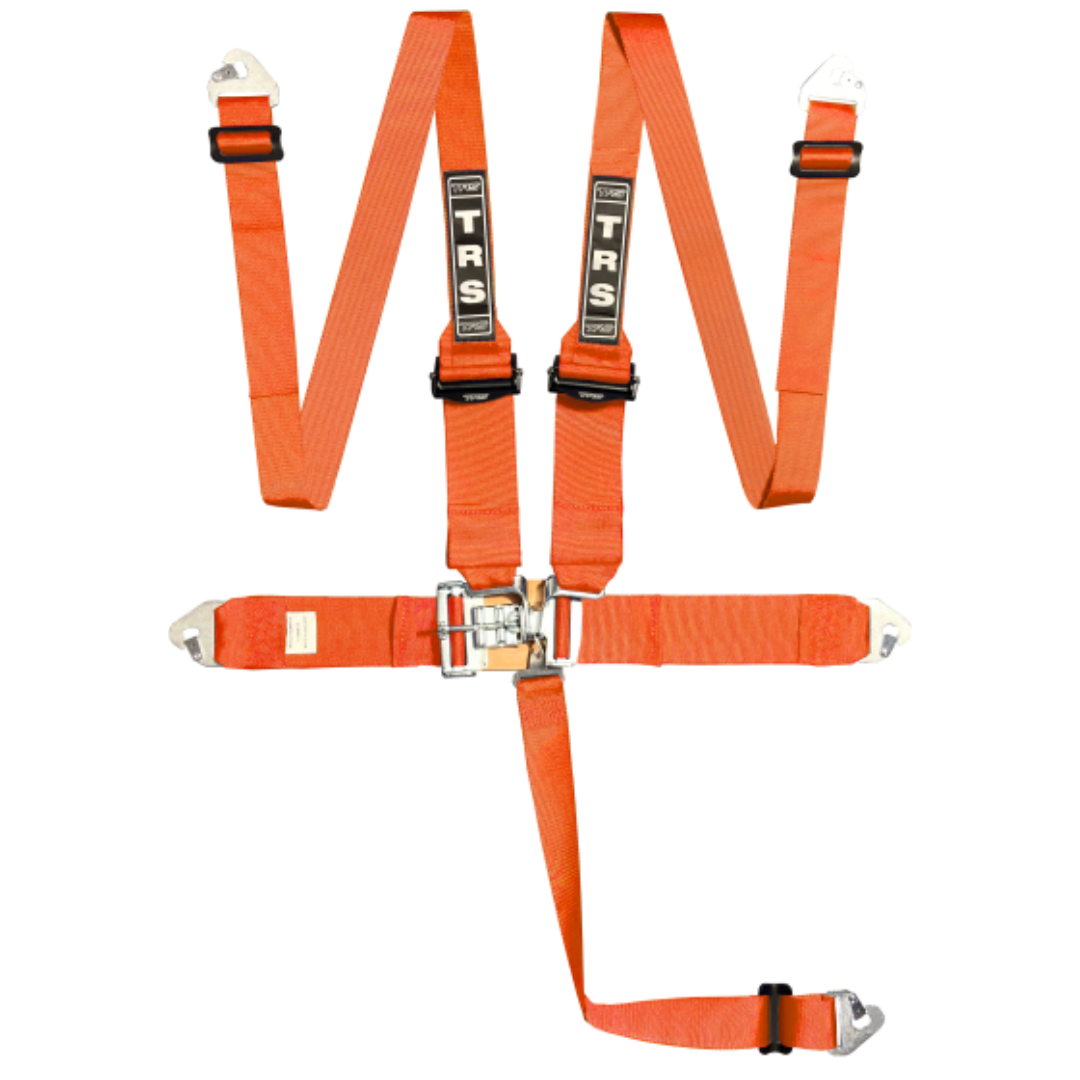

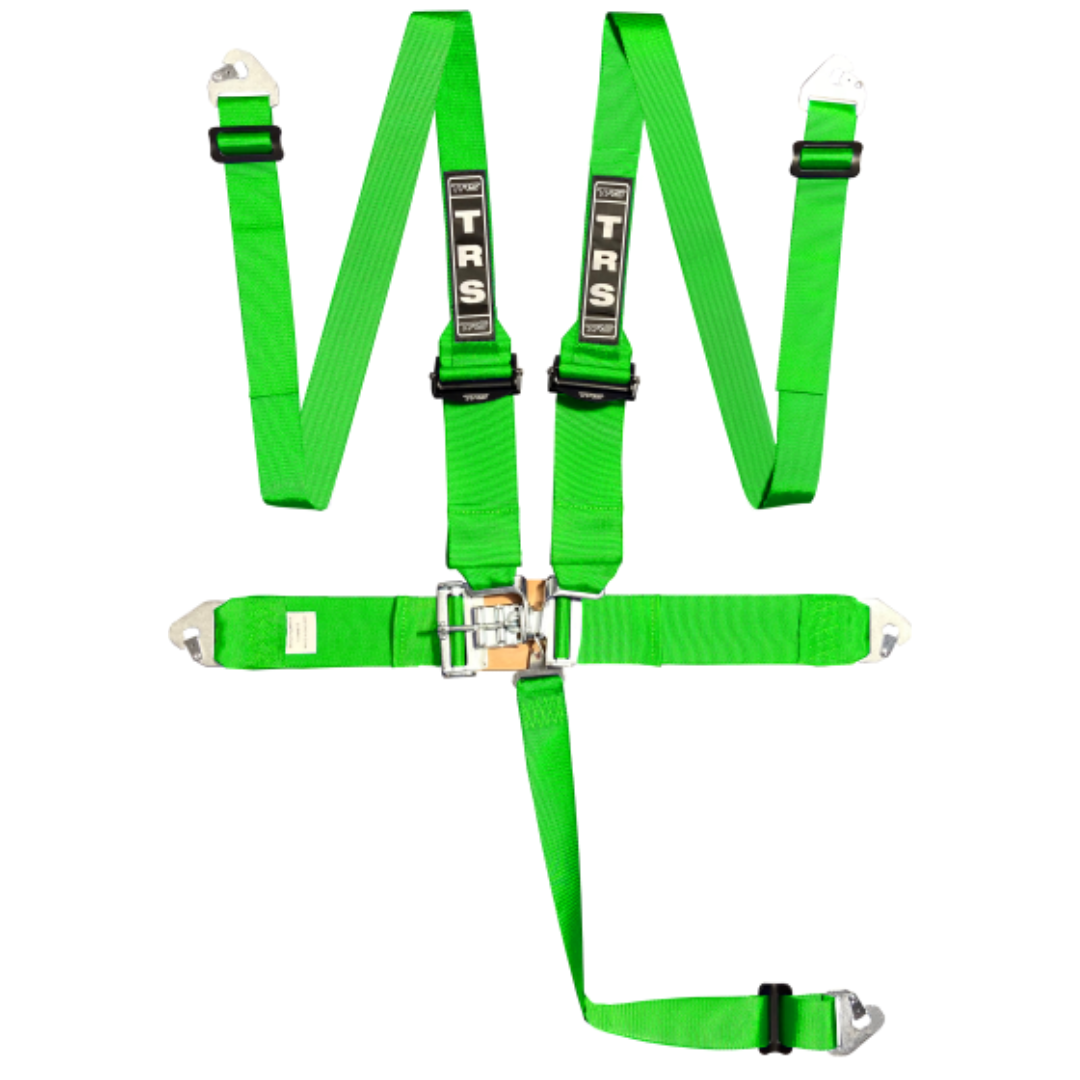

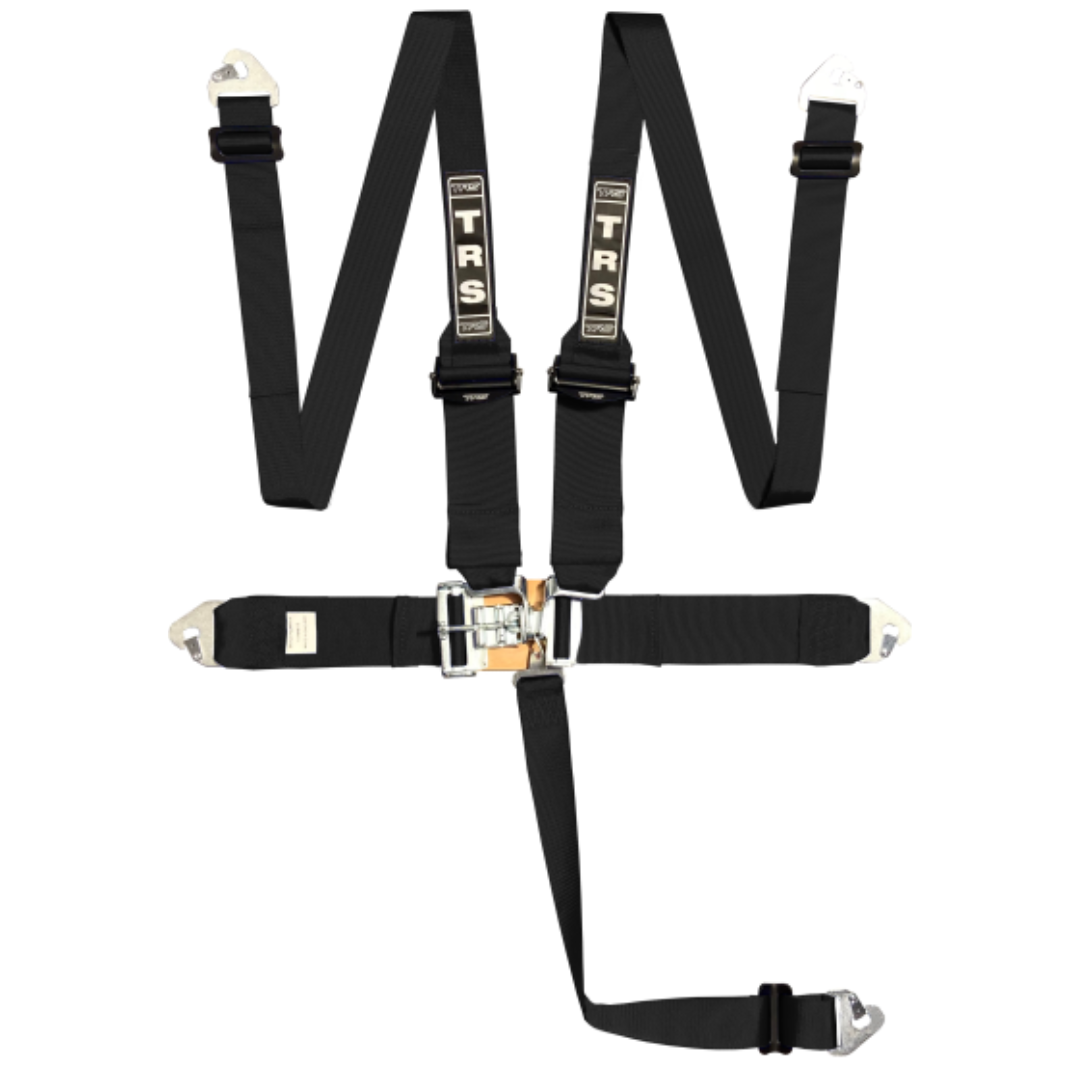

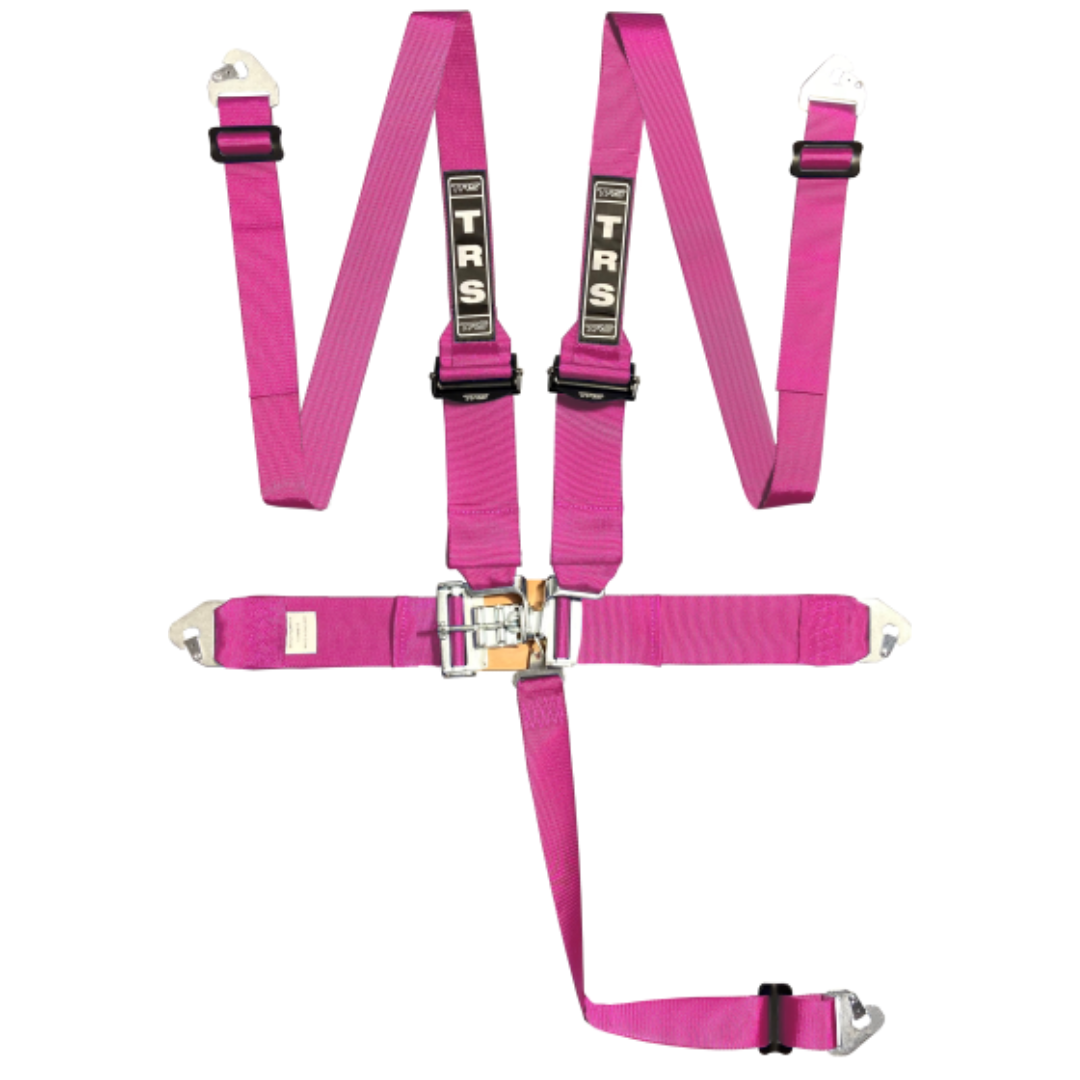

Five-point Nascar harness in FHR Only, Superlite configuration, requiring a Frontal Head Restraint device for use. Not approved without one. Aluminium shoulder adjusters, steel lap adjusters. Available in 50mm and 75mm strap widths. Lever-latch buckle. Road and track approved when used with a HANS or FHR device. Part number N5PTFHRSL.

FHR Only means the shoulder straps are designed to connect to the anchor points of a HANS device or equivalent approved FHR. The Superlite adjuster spec adds aluminium on the shoulder adjusters, making this a lighter version of the FHR-only five-point than the steel-adjuster equivalent. Five points means a sub strap under the buckle without the full six-point rear sub strap anchor, which simplifies the rear harness routing in some car types.

This harness suits drivers who use a HANS or FHR device in competition where FIA harness homologation is not required: some off-road events, American oval series, rally events run to non-FIA regulations, and similar applications. The Nascar lever-latch buckle gives audible confirmation of release, which some drivers prefer in environments where vibration is sustained over a long stage or stint.

At £170, this is the most expensive harness in the Nascar range. Nine colour options. Not FIA approved. For FIA classes, the Magnum or Pro six-point HANS range is the correct product. At £170, the comparison is the entry-level Magnum 6-point HANS standard (21C620, £209); the Nascar FHR five-point costs less but does not carry FIA approval. If your class requires FIA, the additional £39 for the FIA-approved version is the correct investment.

Additional information

Weight	3 kg
Dimensions	30 × 25 × 20 cm
Application	Saloon
Approval	Road & Track
Brand	TRS Motorsport
Buckle Type	Latch Release
HANS Compatibility	HANS Specific
Harness Type	5-Point
Harness Strap Width	50mm, 75mm
Installation Type	Clip In
Product Colour	Pink, Green, Miami Blue, Orange, Silver, Yellow, Black, Blue, Red

Have you written anything about this exact product?
Yes, we have covered this exact product: One pair only: the Mirco RTX-7 Blue Stitch Limited Edition has landed in the showroom, and Superlite GTA Classic Bucket Seats: Now On Display at GSM Performance. That is first-hand coverage from our own builds and showroom, not brochure copy.

Is this harness legal for competition?
This one carries Road and Track rather than current FIA homologation, so check your championship regulations before buying it for competition. For road and track day use, that is not a problem. Ask us if you are unsure which your events require.

What does the strap width mean for me?
This is a 50mm and 75mm harness. The shoulder width choice interacts with whether you run a HANS device, and our guide on 3 inch versus 2 inch harnesses explains which to pick and why.

Do I need a HANS-specific harness?
No. Only 6-point FIA harnesses work with a HANS device: not 4-point belts, and not road harnesses, however good they are at their own job. This 5-point road and track belt is for use without a head and neck device; if you run or plan a HANS, look at the 6-point FIA HANS-pattern belts in the range and we will spec the right one.

What does it mount to?
A harness needs proper anchor points: a harness bar, cage, or the car’s designed mounting points, plus a seat with the right slots, and as a 5-point it needs each point anchored correctly. Tell us the car and seat and we will confirm the mounting plan before you order.
