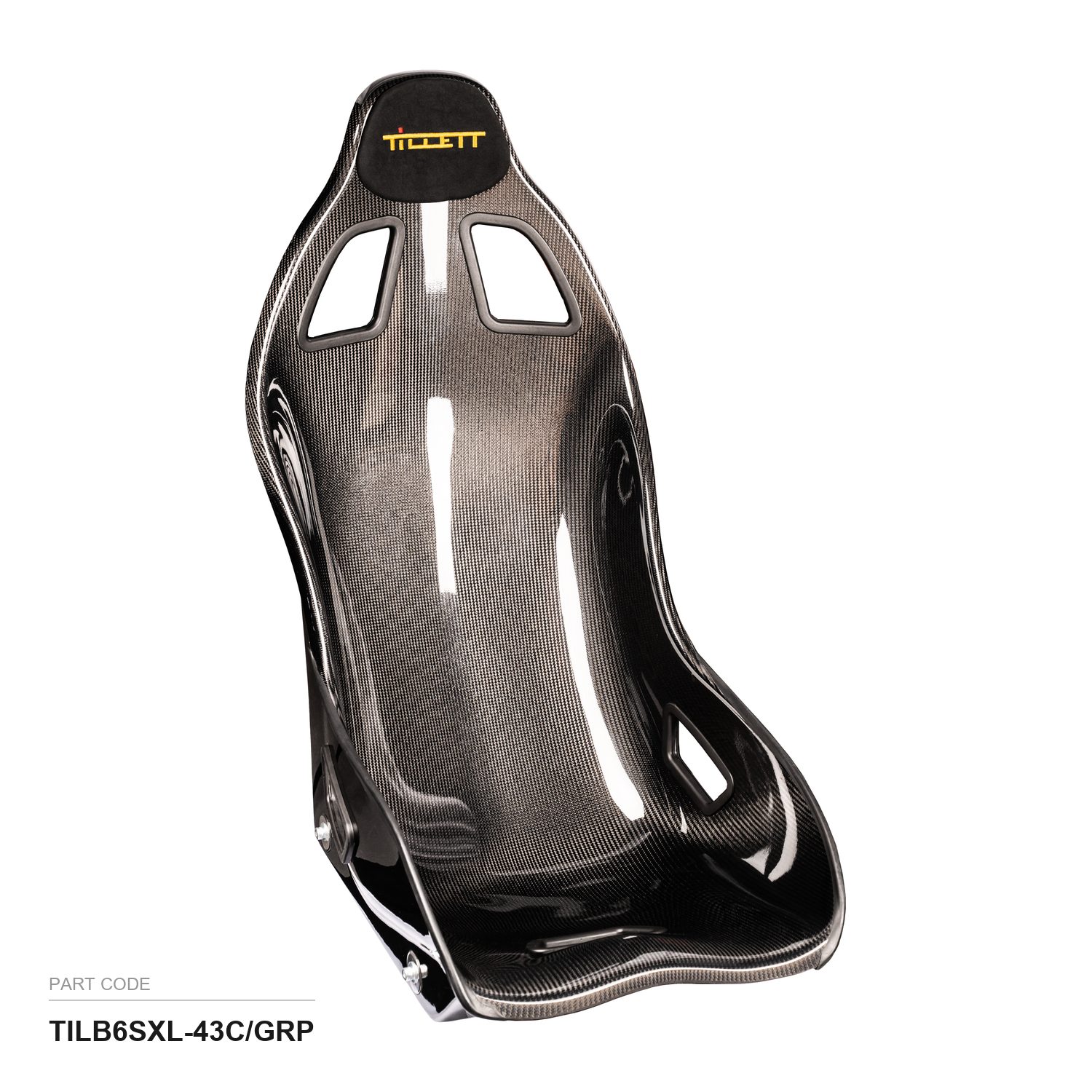

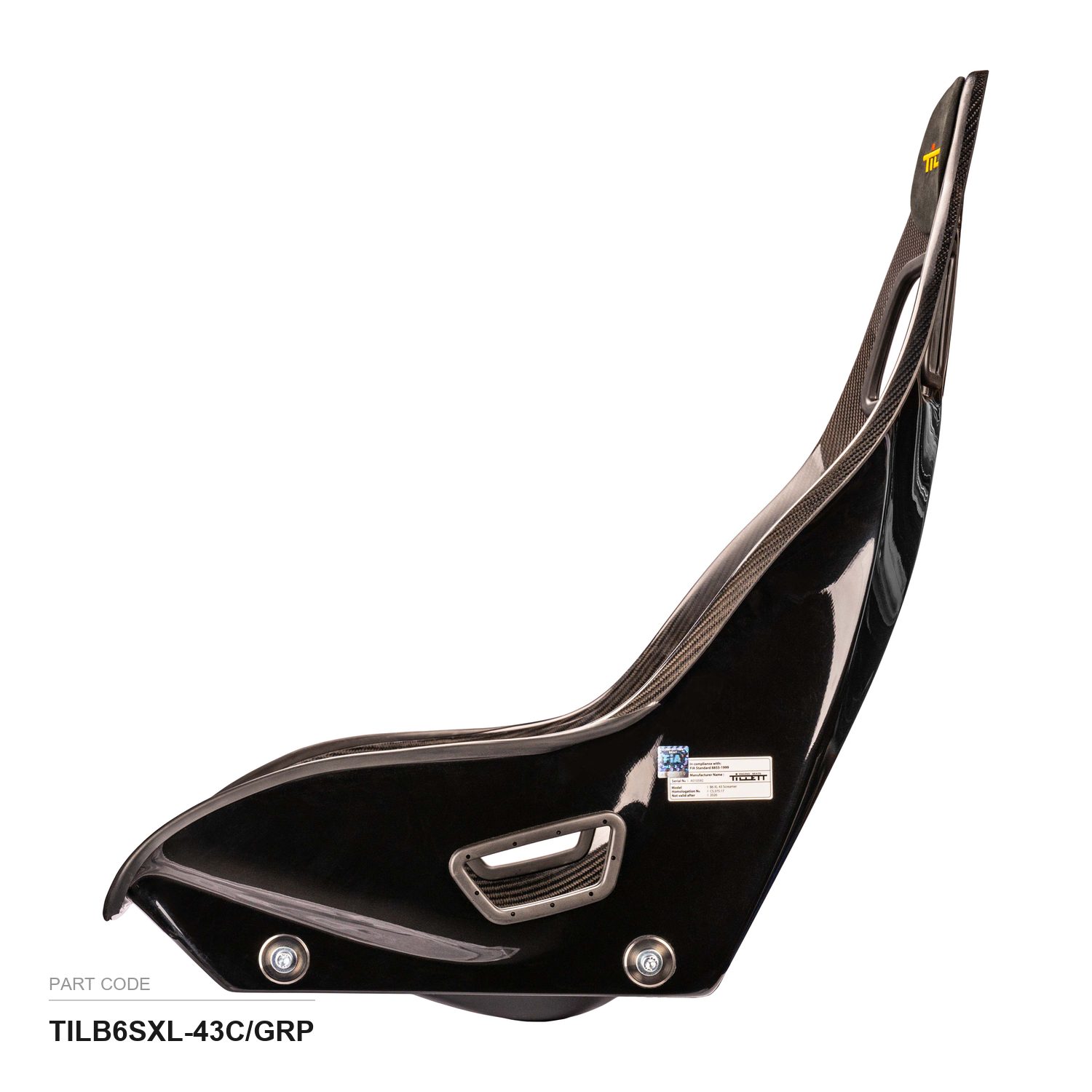

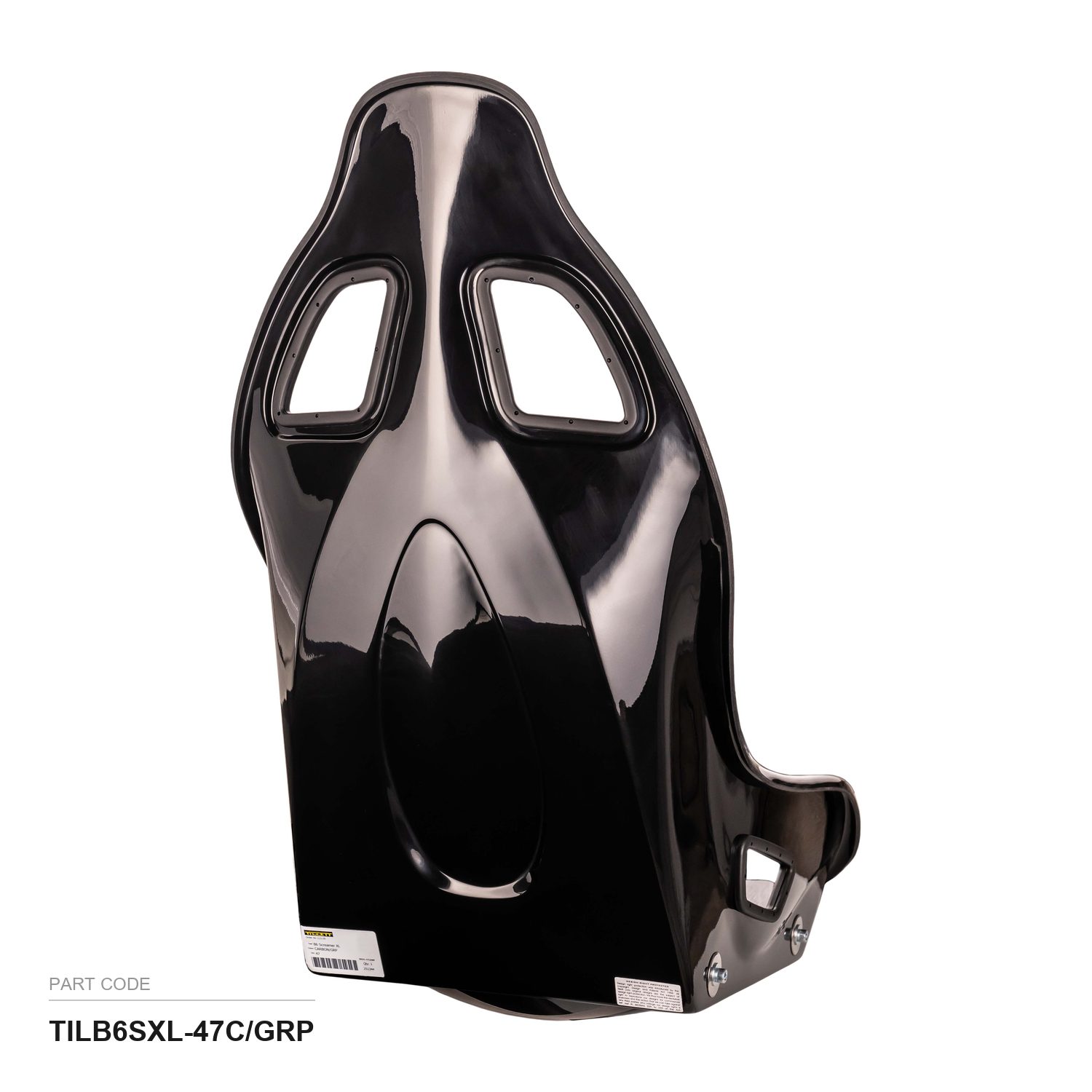

Tillett B6 XL Screamer Carbon/GRP FIA Race Car Seat

From £1,414.28 Incl. VATFrom £1,178.57 Excl. VAT

Tillett B6 Screamer Carbon Grp Race Car Seat by Tillett Seats. Approval: FIA 8855-1999. Brand: Tillett Seats. Brackets included: Seat only.

Seat Cover Options

Headrest Cushion Only

two Dinamica faux suede covered panels

Rolled Edges Option

43cm Width with rolled edges cut off

47cm with rolled edges left on

Clear

Tillett logo colour

Bundle Item Recommendations

Choose any extras you would like added to this product.

Tillett STRI (FORMERLY TR1) Adjustable Seat Runner Set

£138.91

Tillett PTBI (FORMERLY THE TBF1) Aluminium Side Mounts

£230.42

Add to wishlist

Size/Fitting guide

Save to Pinterest

The B6 XL Screamer in carbon and GRP is the wide-shell FIA version of the B6. It carries FIA 8855-1999 approval under the same homologation that covers the standard-width B6 Screamer. SKU TILB6SXL.

Shell is carbon and GRP. Width is 43 cm with rolled edges cut off and 47 cm with them on. Both edge cuts are within the FIA approval. Tillett quote 5.8 to 6.1 kg across the Screamer range with up to 10 per cent variation between builds. The seat mounts by side mount only, takes a 6-point harness, and is confirmed for HANS device use at 30 degrees.

If you need the XL shell with FIA 8855-1999, this is the seat. If the approval is not a requirement for your class, the B6 XL Carbon without the Screamer designation costs less, mounts by side or base mount, and carries Road and Track rather than FIA approval.

The standard-width B6 Screamer Carbon is listed separately at the same price as this seat. The only difference between the two is the interior width: 40 cm without rolled edges on the standard versus 43 cm here. If the standard width fits you, order the standard Screamer. If you need the extra room, order this one.

Headrest cushion and Dinamica faux suede panels available as options.

Additional information

Approval	FIA 8855-1999
Brand	Tillett Racing Seats
Brackets included	Seat only
Coloured Shell	Carbon
Construction	Carbon Fibre seats
Harness compatibility	6 point compatible
Mechanism Type	Fixed Back Seats
Protection Type	No head support
Product Colour	Carbon Effect
Seat Cover Options	Headrest Cushion Only, two Dinamica faux suede covered panels
Rolled Edges Option	43cm Width with rolled edges cut off, 47cm with rolled edges left on
HANS Compatibility	HANS Friendly

Tillett seat size guide

Tillett shells are thin single-skin composites with almost no padding, so the internal width is the seat width. Tillett publish it for every model, and the XL and W versions exist for a reason.

How Tillett size their seats

Tillett quote an external and an internal width for each shell. Because there is no foam to squash, your seated hip width has to fit inside the internal figure with 10 to 20 mm to spare. Every B-series shell has an XL, about 30 mm wider, and the W2i and W6 are the wide versions of the W1i and W5, made for drivers over 100 kg or over a 36 inch waist.

Several shells are offered with a rolled edge or a cut edge. The cut edge (B6-40, B7-40, B8-43) loses 30 to 40 mm of external width for narrow cars without changing the inside.

Brackets have to match the shellTillett brackets are angled to match the side of the seat: 8 degrees on the B2, 2 degrees on the B6, B7 and B8. A bracket at the wrong angle stresses the composite. Use a load-spreading spacer of at least 40 mm at every bolt.

Tillett dimensions

From Tillett’s dimension sheets, 2022 to 2025. Widths are the widest point.

Model	External width	Internal width	Height	Weight
B2	44.5 cm	39.5 cm	103 cm	3.2 kg (4.2 with suede panels)
B6	44 cm (40 cut edge)	34 cm	100 cm
B6 XL	plus 3 cm	plus 3 cm	100 cm
B7	44 cm (40 cut edge)	37 cm upper, 34 cm lower	100 cm
B7 XL	47 cm	37 cm
B8	44.5 cm (43 cut edge)	39.5 cm	105 cm
W2i	48 cm	36.5 cm		2.3 kg (4.0 with back frame)
W5	42.5 cm	36 to 38 cm	90 cm
W6	45 cm	41 cm	90 cm

Which Tillett fits you

Model	Waist band	Driver height	Shell	Approval
Competition, FIA 8855-1999
B6 Screamer, B6 Screamer XL	Standard / XL (plus 3 cm)	All heights	GRP or carbon-GRP	FIA 8855-1999
B7	32 to 36	All heights	Epoxy composite	FIA 8855-1999
B7 XL	36 to 40	All heights	Epoxy composite	FIA 8855-1999
C1	32 to 36	All heights	Composite	FIA 8855-1999
Race and track
B6	32 to 36	All heights	GRP or carbon-GRP	Road and track
B6 XL	36 to 40	All heights	GRP or carbon-GRP	Road and track
B2, B8, B9	One size	All heights	Carbon or carbon-GRP	Road and track
B10, B10 XL	Standard / XL	All heights	GRP or carbon-GRP	Road and track
Low back and formula
W1i	Under 100 kg	All heights	GRP or carbon-GRP	Road and track
W2i	Over 100 kg, over 36 inch	All heights	GRP or carbon-GRP	Road and track
W3, W4, W5	One size	All heights	GRP or carbon-GRP	Road and track
W6	Over 100 kg, over 36 inch	All heights	GRP	Road and track

The W-series shells are supplied single skin and need bespoke brackets, or the optional back frame on the W1i and W2i. The B6 comes bottom mount or side mount; the side mount version takes Tillett’s STB, VTB and Elise brackets.

Measure yourself first

Four numbers decide whether a seat fits. Take them in the clothes you drive in, and write them down before you compare models.

AWaistAround your natural waist, not your trouser size. Trouser sizes usually run an inch or two under the real figure, and the waist bands on our product pages use the real one.

BSeated hip widthSit on a hard chair with your feet flat and measure straight across the widest point of your hips with a rule or a straight edge, not a tape that follows the curve. This is the number that decides whether a fixed shell is tight.

CShouldersStraight across the back at the widest point. Fixed back seats hold you here, so a shell that is narrow at the shoulders is uncomfortable long before it is unsafe.

DHeight and torsoYour height, and if you are over 6 ft whether that is mostly leg or mostly body. A long body needs a taller shell with the head support set higher.

Before you order

Check the car, not only the driver. Transmission tunnels, door cards and B pillars are what stop a wide shell going in. Our seat mounting and fixing points guide covers what to measure.
Side mount and base mount shells are not interchangeable. Which one you need depends on the car and the subframe, so pick the brackets at the same time as the seat.
If you run a HANS or plan to, filter on HANS friendly. The shoulder openings are cut to clear the collar.
FIA seats carry an expiry date on the homologation label. Check what your championship accepts and how long the seat has left, particularly on discounted older stock.

Send us your measurementsWaist, seated hip width, height and the car. We have fitted a lot of Tillett seats and will tell you honestly if the one you have picked is going to be tight. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Waist bands are our product data, checked 6 September 2026. Widths, heights and weights are from Tillett’s dimension sheets dated 2022 to 2025; blanks are where the sheet gives no figure.

Have you written anything about this exact product?
Yes, we have covered this exact product: Tillett B6 XL Screamer Seat Unboxed In-Store. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will I fit in this seat?
This is the XL version of the shell, cut wider than the standard seat. Tillett do not publish per-model driver limits for the XL shells, so rather than guess, send us your height and waist and we will confirm against the actual seat.

Is it FIA approved, and for how long?
Yes, it carries FIA 8855-1999 homologation. Every FIA seat has a not-valid-after year printed on its homologation label, and that label date is what a scrutineer checks, so look at the label on the seat you receive and check it against your championship regulations. Buying new means you get the freshest label the maker currently produces.

Does it work with harnesses and a HANS device?
The shell takes 6 point compatible. If you are planning the full seat, harness, and HANS setup, tell us the car and we will spec it end to end.

How do I know it will feel right, not just fit on paper?
Fair question, because makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike in the car. We keep the ranges on display in the Nottingham showroom, you are welcome to come and sit in them, and if you cannot get to us, call and describe your build, as the team sit in these seats every day. Our head support measurements guide shows the kind of real-world data we collect.

Tillett seats are custom-made to order

These carbon seats are handcrafted in the UK for each order. We do not stock or display them in the showroom, so everything is a special order placed with Tillett when you buy.

Lead times depend on the model and the options you choose, so ring us before ordering if you are working to a date.

Special order

Because each seat is made for you, our special order terms apply once production has begun.

Tell us your height, weight and the car, and we will confirm the right size and mounting before anything is made. Tillett sizing is specific and worth getting right first time.
