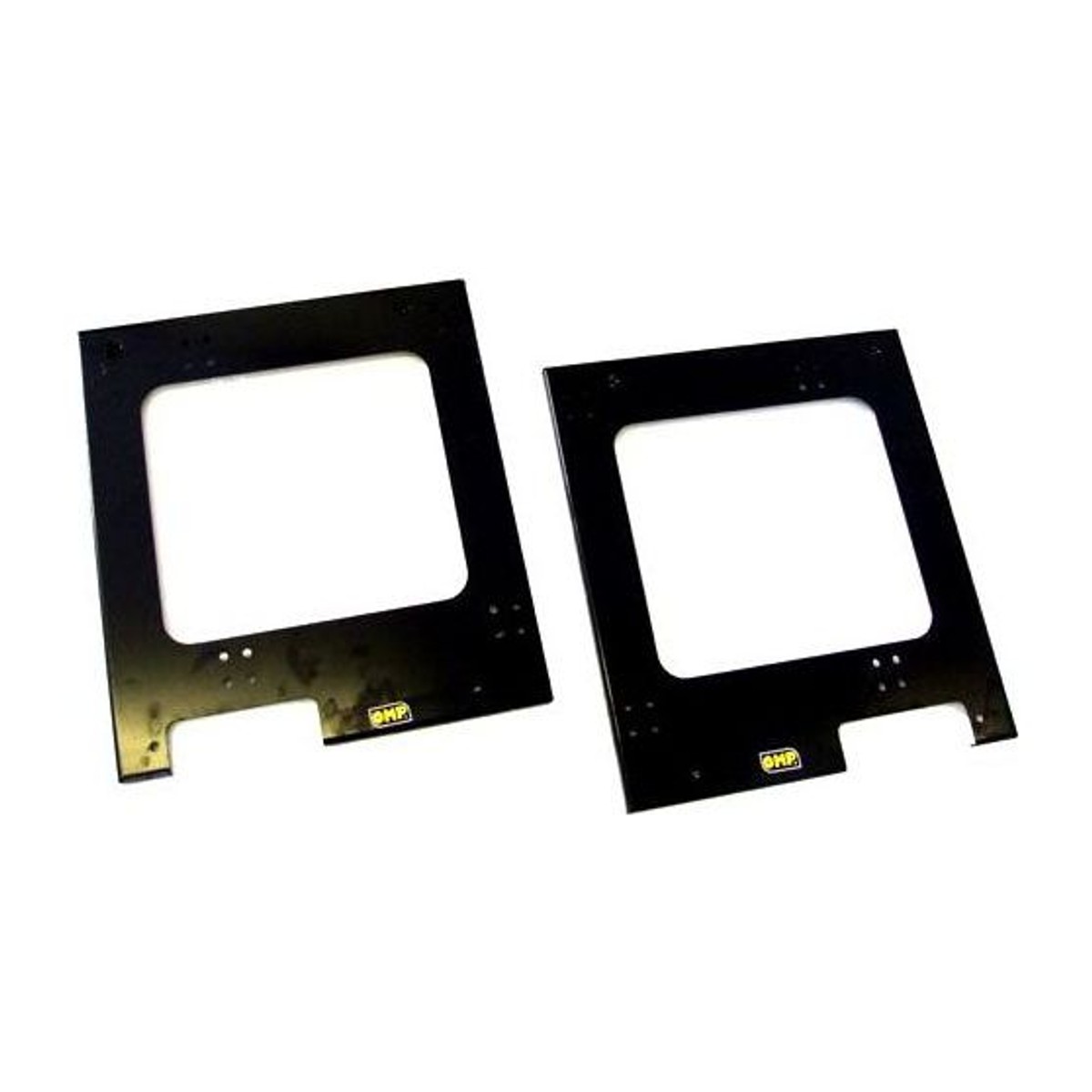

A pair of OMP direct fit sub-frames for the Seat Ibiza Mk3 6L. Part number HC814-X2.
Both sides in one order, handed for driver and passenger. Check the chassis code rather than the model name: the Ibiza ran across several generations and the 6L takes its own frame.
Why an OMP frame
It carries two bolt patterns. The 345mm by 271mm spacing used by Sparco, OMP and Corbeau seats, and the wider 405mm by 290mm Recaro pattern, because the flat plates have multi-hole clusters at each corner. An OMP frame accepts a Recaro where a Sparco frame will not.
In a small car that widens the pool of shells you can realistically fit, which genuinely helps when cabin width rather than mounting is what rules a seat out.
Fitment
Steel, base mount, on the floor mounting points already in the car, so nothing is drilled.
Side mount competition shells need side mounts or adaption bars over the frame.
Before you order
Tell us the seats and your height and build. These are cars that get built for club competition, so tell us the class as well if you are working to a rulebook and we will check the whole installation rather than just the frames.
Have you written anything about this exact product?
Yes, we have covered this exact product: Customer Car: BMW E39 With Bucket Seats Fitted Using Planted Technology Subframes, and Seat Ibiza MK3 6L with Corbeau seats. That is first-hand coverage from our own builds and showroom, not brochure copy.
Will this fit my car?
This frame is made for the Seat Ibiza Mk3 6L. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.
Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.
Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.
Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.
Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
