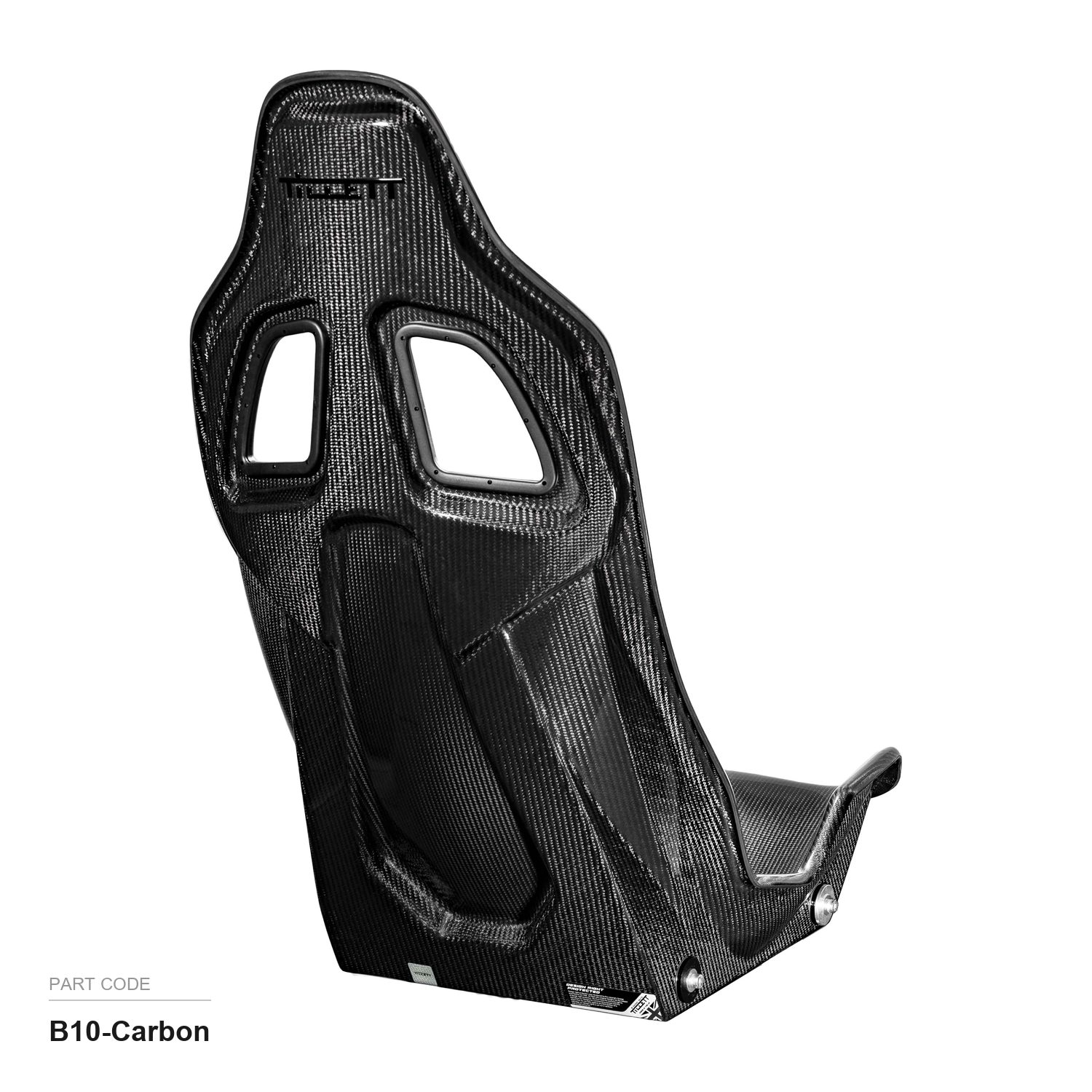

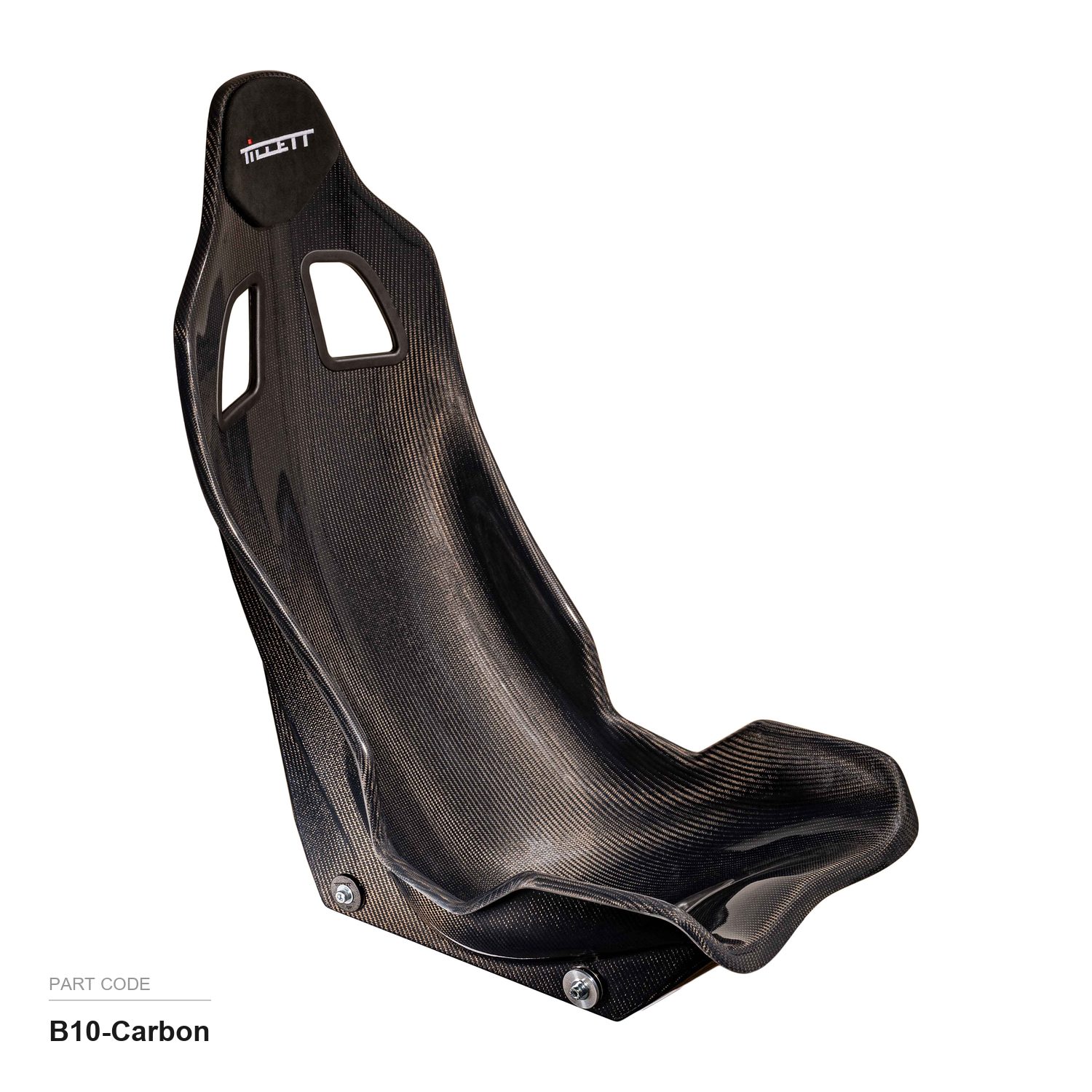

The B10 is the B6 reworked for a car you actually drive. Tillett took the B6 race shape and cut the sides away so you can still use the standard three point belt, which is the single thing that stops most people fitting a proper bucket to a road car.

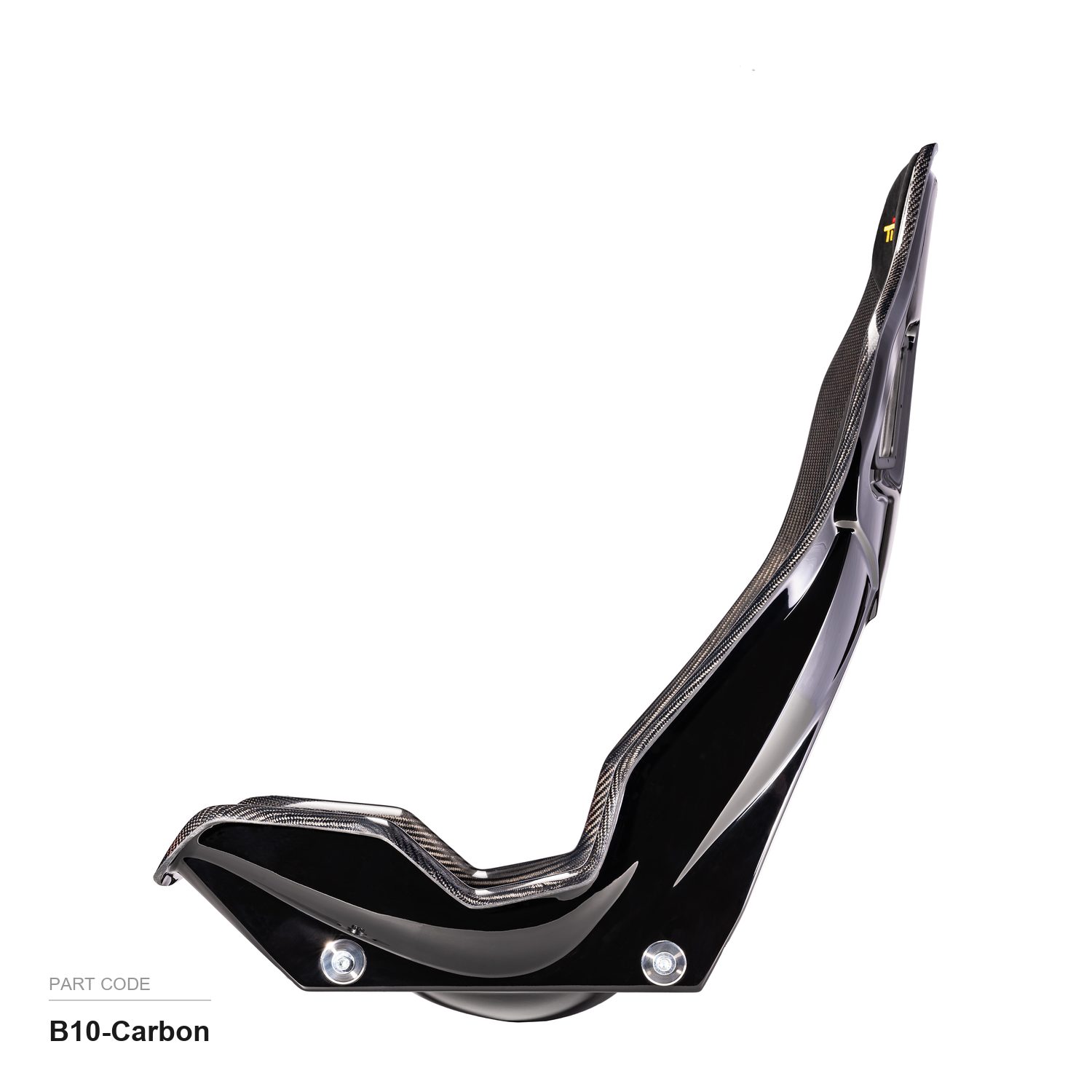

Two other changes are worth knowing. The front of the seat kicks up more than the B6, which helps if you have long legs or if you are running the seat at a more upright angle, as you would in a saloon. And the headrest sits higher than the B6’s, so a driver with a long torso does not run out of support at the top.
It weighs 4.5kg and Tillett quote it for drivers up to 100kg and around a 36 inch jeans waist. Above that, the B10 XL is the one to look at.

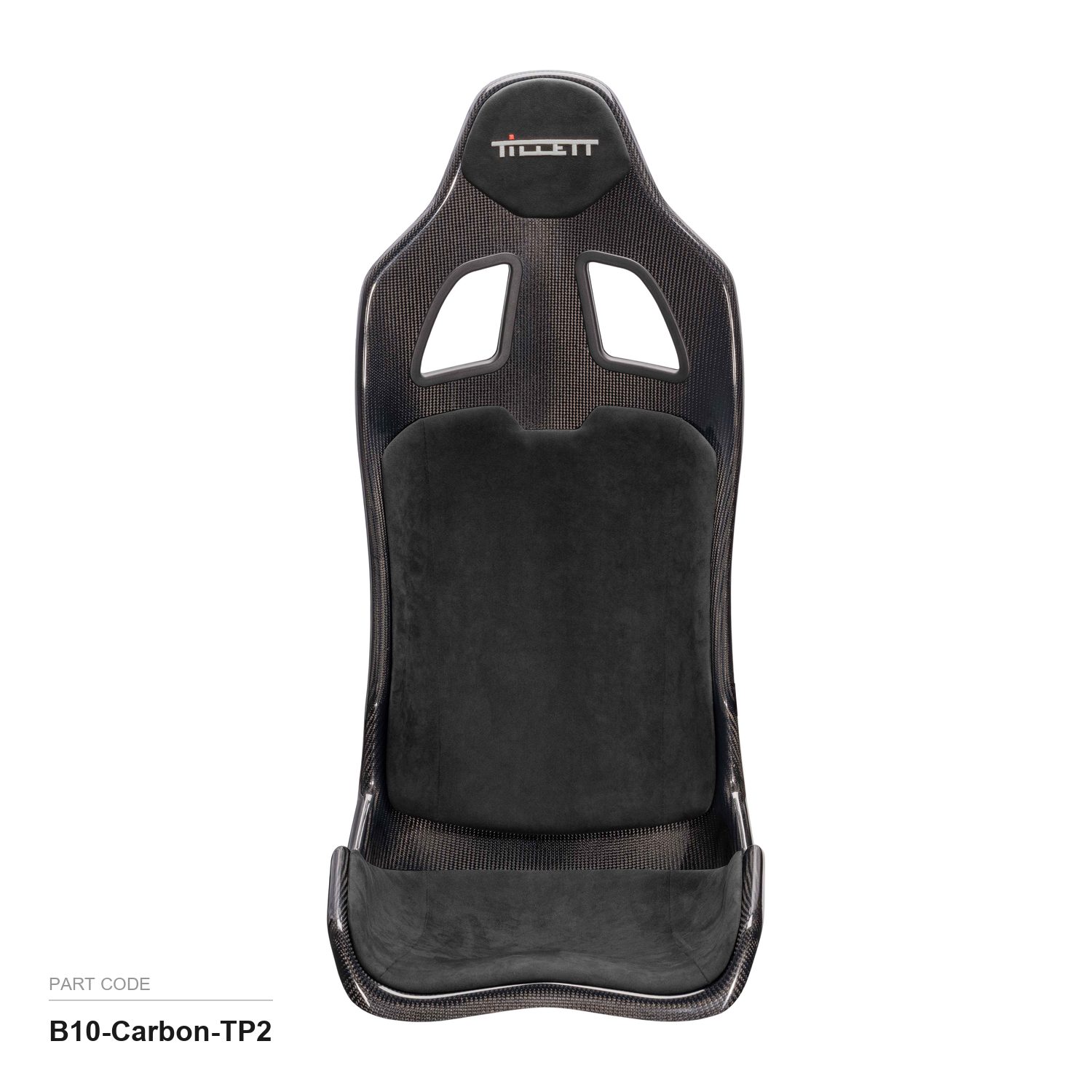

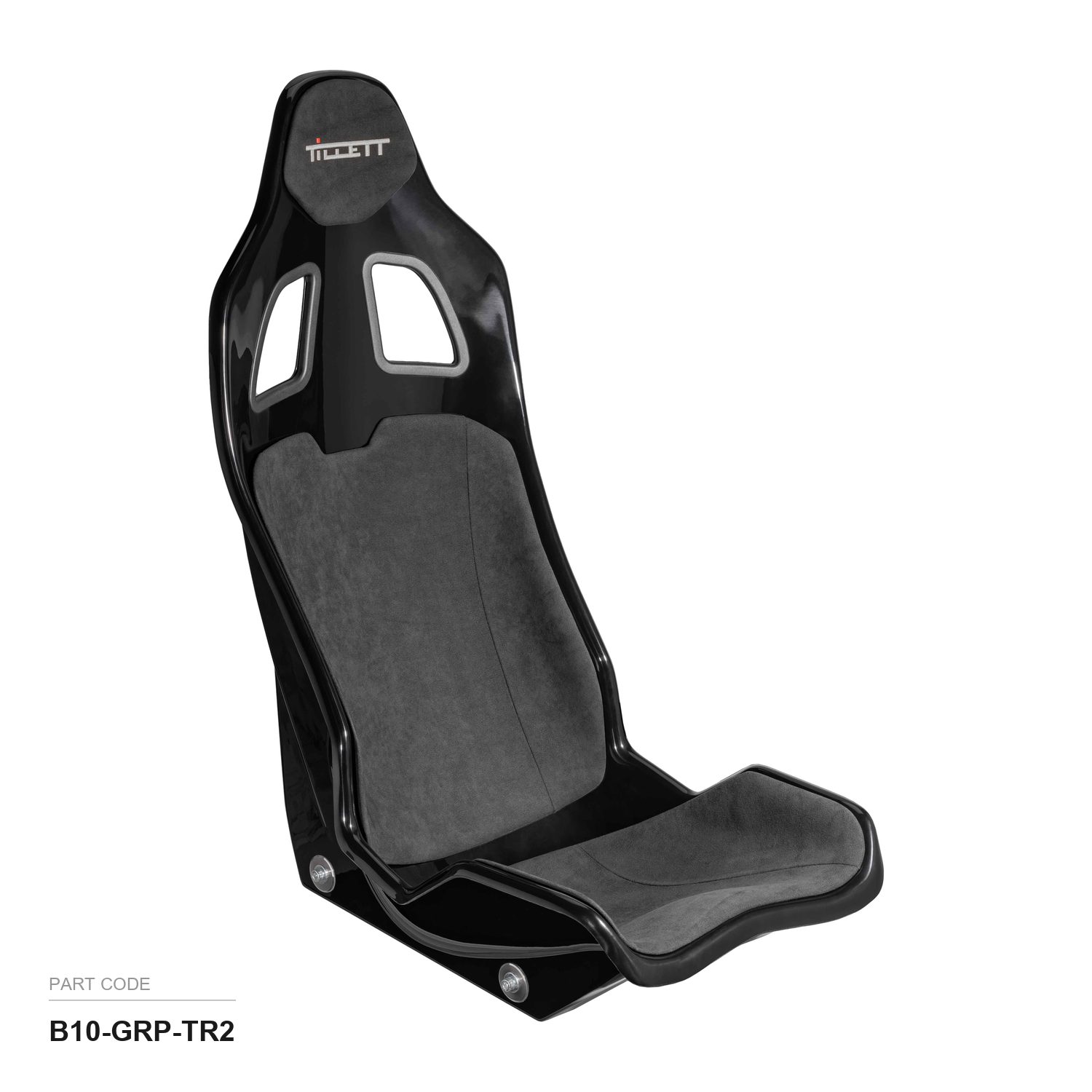

The listing covers 44.5cm with the rolled edges left on. Construction is available in carbon/GRP and in GRP, with a Dinamica suede covered headrest pad included. It mounts on stainless steel side mounting points using current FIA seat fittings, and it takes Tillett’s 2 degree bracket range.
Road and Track, no FIA homologation, which is the right call for what this seat is for. If you need approval, the Screamer or the C1 is the answer.
Listed for base mount as well as side mount, six point harness compatible, seat only. Part number B10.
Have you written anything about this exact product?
Yes, we have covered this exact product: New Tillett B10 Seat For 2023. That is first-hand coverage from our own builds and showroom, not brochure copy.
Will I fit in this seat?
Send us your height and waist size and we will confirm the fit. The paper dimensions only tell half the story, and our showroom team sit in these seats every day, so you get the honest answer rather than a guess from a chart.
Is this seat FIA approved?
No, this is a road and track day seat rather than a homologated competition seat. For events that require an FIA seat, look at the FIA-approved shells in the range, and ask us if you are unsure what your series needs.
What do I need to fit it to my car?
This seat takes both base and side mounting, so the fitting stack depends on which route you pick for your car. You will need the car-specific frame, and a sliding runner if you want fore-and-aft adjustment. Our guide on base mount versus side mount walks through the whole stack, and tell us your car and we will quote the full kit.
Does it work with harnesses and a HANS device?
The shell takes 6 point compatible. If you are planning the full seat, harness, and HANS setup, tell us the car and we will spec it end to end.
How do I know it will feel right, not just fit on paper?
Fair question, because makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike in the car. We keep the ranges on display in the Nottingham showroom, you are welcome to come and sit in them, and if you cannot get to us, call and describe your build, as the team sit in these seats every day. Our head support measurements guide shows the kind of real-world data we collect.
Tillett seats are custom-made to order
These carbon seats are handcrafted in the UK for each order. We do not stock or display them in the showroom, so everything is a special order placed with Tillett when you buy.
Lead times depend on the model and the options you choose, so ring us before ordering if you are working to a date.
Special order
Because each seat is made for you, our special order terms apply once production has begun.
Tell us your height, weight and the car, and we will confirm the right size and mounting before anything is made. Tillett sizing is specific and worth getting right first time.
