A PCI Racing sliding sub frame for the Nissan 350Z, 2002 to 2008. Part number SM-350Z-S1.
A 350Z already sits you reasonably low, so the reason people change the seat is usually support rather than height. The factory seat lets you move about while the car carries a lot of speed through a corner, which is tiring on a track day and worse once a harness is fitted.
The slider
The seat moves fore and aft after installation, which suits a car that is still used on the road. PCI’s S1 slider bolts to the base with four bolts where a conventional slider uses two, which they rate as twice as strong as two bolt mounting.
Construction
Laser cut and CNC formed from a single piece of 1/8 inch carbon steel, with the bends placed to add stiffness where thicker metal would otherwise be needed. Gloss black powder coat, grade 10.9 8mm hardware, and five and six point sub belt mounting locations built into the mount.
Ordering
Side mount, for a competition bucket. It bolts to the factory seat mounting points, so nothing is drilled and the standard seats come out whole and can go back in.
Handed, so choose driver or passenger side and order twice for a pair.
Tell us the seat you are fitting, and set the seat position before you fix any harness anchor points. Seat height decides where the shoulder straps are allowed to run.
Have you written anything useful for my car?

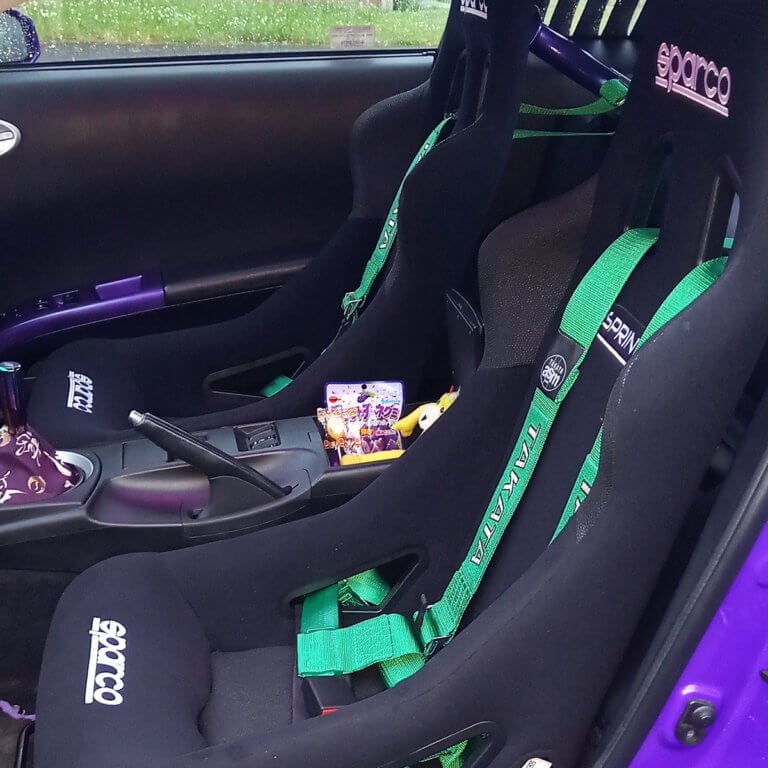

Yes: Sparco Sprint Bucket Seats and Takata Harnesses in a Nissan 350Z, and The Sparco Grid-Q FIA Bucket Seat, A Perfect Match for the Nissan 350Z. Those are written around the same car, from real fittings and customer questions, so they are worth a look before you decide.
Will this fit my car?
This frame is made for the Nissan 350Z. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.
Which seats does it take?
Check the bolt pattern in the specification against your seat. The Compatible seats tab above lists what bolts straight on. If your seat is not listed, tell us what you run and we will confirm the fit.
Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on PCI frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.
Base mount or side mount, and does it matter?
This is a side-mount frame: the seat hangs between side brackets bolted through its flanks, the motorsport-style stack that gives fine height and angle control. Our guide on base mount versus side mount explains the whole fitting stack.
Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
