OMP – VW Polo 9N direct Fit Subframes

From £137.30 Incl. VATFrom £114.42 Excl. VAT

OMP – VW Polo 9N direct Fit Subframes by OMP Racing. Brand: OMP Racing. Sport Seat Position: RHD Driver Side, RHD Passenger Side.

Sport Seat Position

Clear

Add a sliding runner:

Add to wishlist

SKU: HC814. Categories: OMP Car Specific Fitting Frames, OMP Car Fitting Frames

Save to Pinterest

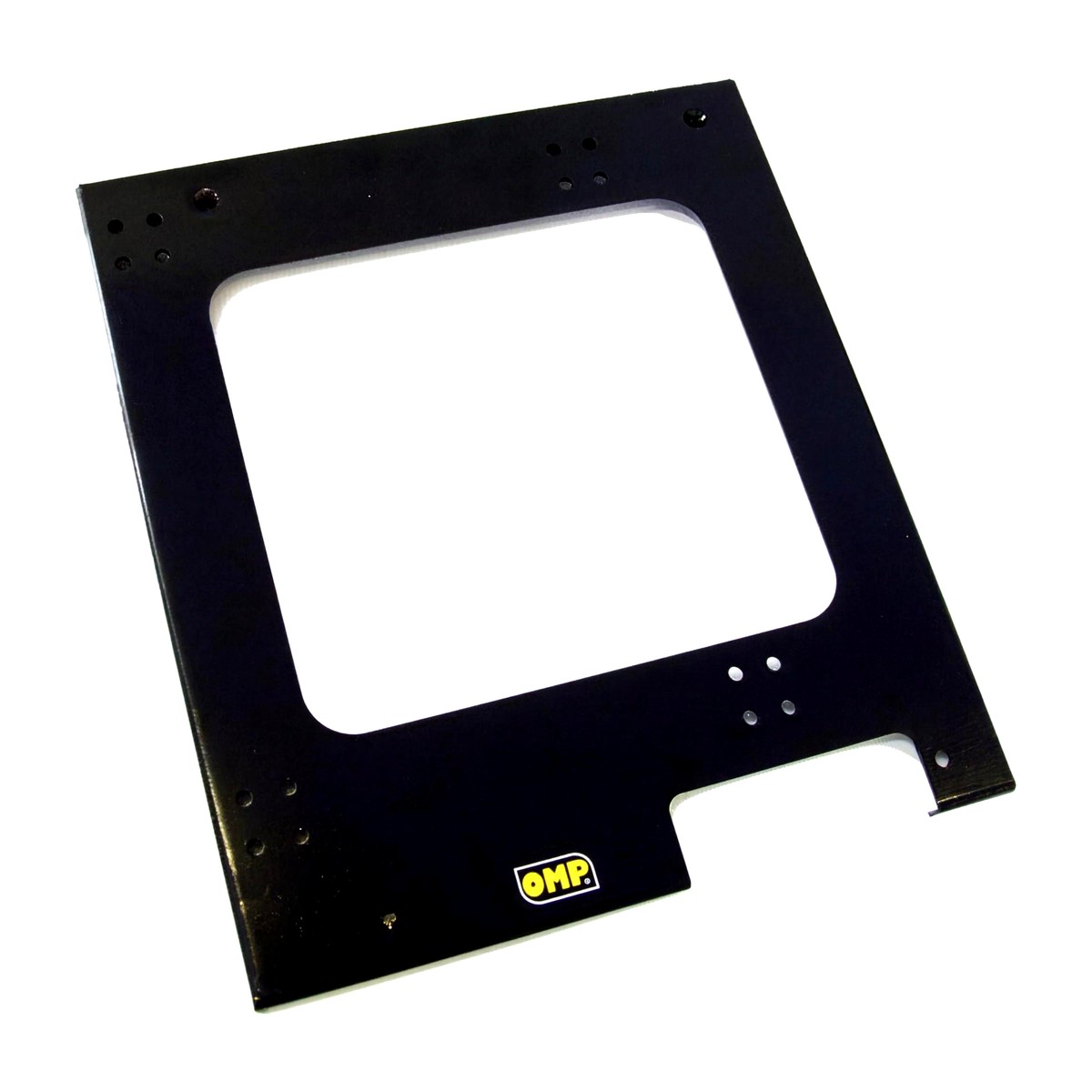

An OMP direct fit subframe for the Volkswagen Polo 9N. Part number HC814.

9N is the generation code, and it decides the part

Volkswagen changed the Polo floor between generations and the frames do not interchange. The Mk5 takes a completely different part on its own stem, so ordering on the Polo name alone is not enough.

If the V5 does not make the generation obvious, send it to us and we will read it.

What else is on this stem

HC814 covers the small VW Group cars of that period: the Skoda Fabia Mk1, Fabia Mk2 5J and Seat Ibiza Mk3 6L.

They are closely related underneath, which is why one OMP part number covers the group with different suffixes.

Check the width before the seat

A 9N Polo is a narrow car. The frame is not the constraint, the cabin is, so measure between the tunnel and the sill before choosing a shell. Tell us the figure and we will say which seats go in rather than which we would like to sell.

The detail

Steel, base mount, using the floor mounting points already in the car. Nothing is drilled and the standard seats come out whole.

Two bolt patterns from the multi-hole clusters at each corner: 345mm by 271mm for Sparco, OMP and Corbeau, 405mm by 290mm for Recaro. Sold singly and handed.

Additional information

Brand	OMP Racing
Sport Seat Position	RHD Driver Side, RHD Passenger Side
Make & model	Volkswagen Polo 9N
Fixing Type	Base Mount
Fixing Bolt Pattern	345mm x 271mm, 405mm x 290mm
Construction	Steel
Compatible Seats	Corbeau base mount seats, OMP base mount seats, Recaro base mount seats, Sparco base mount seats
Sold As	Single

What's included?

Photos are for illustration: It is very important to point out that the main product photos are entirely for illustration only. With over 1000 different frames available for different vehicles and applications, the manufacturer images provided are entirely illustration. What you receive may differ from this image.

What will be in the box? There are several types of seat frames which may be supplied depending on the vehicle and application. You may receive 1 of the following 4 types. If you are using them with a certain seat, please contact us in advance for professional advice.

#1. A full replacement frame with a sliding runner and resisitor kit
#2. A full replacement frame with a sliding runner
#3. A full replacement frame only
#4. An adaption bracket kit

Additional seat belt brackets: Each seat frame can be used for a variety of applications including road car reclining seats throuh to Motorsport FIA seats. Seat belt brackets are not required in a range of application so manufacturers generally do not supply them with their frame kits. If you require seat belt brackets please contact us in advance

NOT SUITABLE FOR OEM/FACTORY seats removed from other vehicles

Bolt point tolerances:

Please note that OMP, Sparco and various other brands have a +/- 10mm tolerance on the bolt point locations on each of their sub-frames. This means that when installing the equipment into your vehicle, you may find that one or more of the bolt points may need extending for a perfect fit.

This is normal and, when installed by a skilled professional, it may only add five minutes to the total installation time. A prime example is the OMP Renault Clio MK3 frames and the BMW E46 frames as two bolt points need extending by 5mm in 75% of installations.

Drilling of frames and equipment may be required to complete your installation.

Matching seats and frames:

There are over half a dozen different bolt patterns in the industry for base mounted seats. There are over 30 different bolt patterns for side mounted seats. Aftermarket frames from different brands will have different bolt location points.

Seats and frames are not a direct fit between brands. Seat frames are also not suitabled for OEM seats (Fitted into a vehicle from the factory) Please ensure to contact us for professional advice before purchasing your seat frames. We will be able to provide you a recommendation as to which seat frame is right for which seat.

Have you written anything useful for my car?
Yes: Customer Question: Can I Fit The Mirco MX5 Seat Into My VW Polo 6N MK3?. Those are written around the same car, from real fittings and customer questions, so they are worth a look before you decide.

Will this fit my car?
This frame is made for the Volkswagen Polo 9N. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.

Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.

Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.

Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.

Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
