OMP – Seat Ibiza Mk2 6K direct Fit Subframes

From £123.50 Incl. VATFrom £102.92 Excl. VAT

Seat fitting hardware for the Seat Ibiza Mk2 6K. Mounting stacks are specific to the seat pattern, so tell us your seat and car and we will confirm the complete kit.

Sport Seat Position

Clear

Add a sliding runner:

Add to wishlist

SKU: HC780 Categories: OMP Car Specific Fitting Frames, OMP Car Fitting Frames

Save to Pinterest

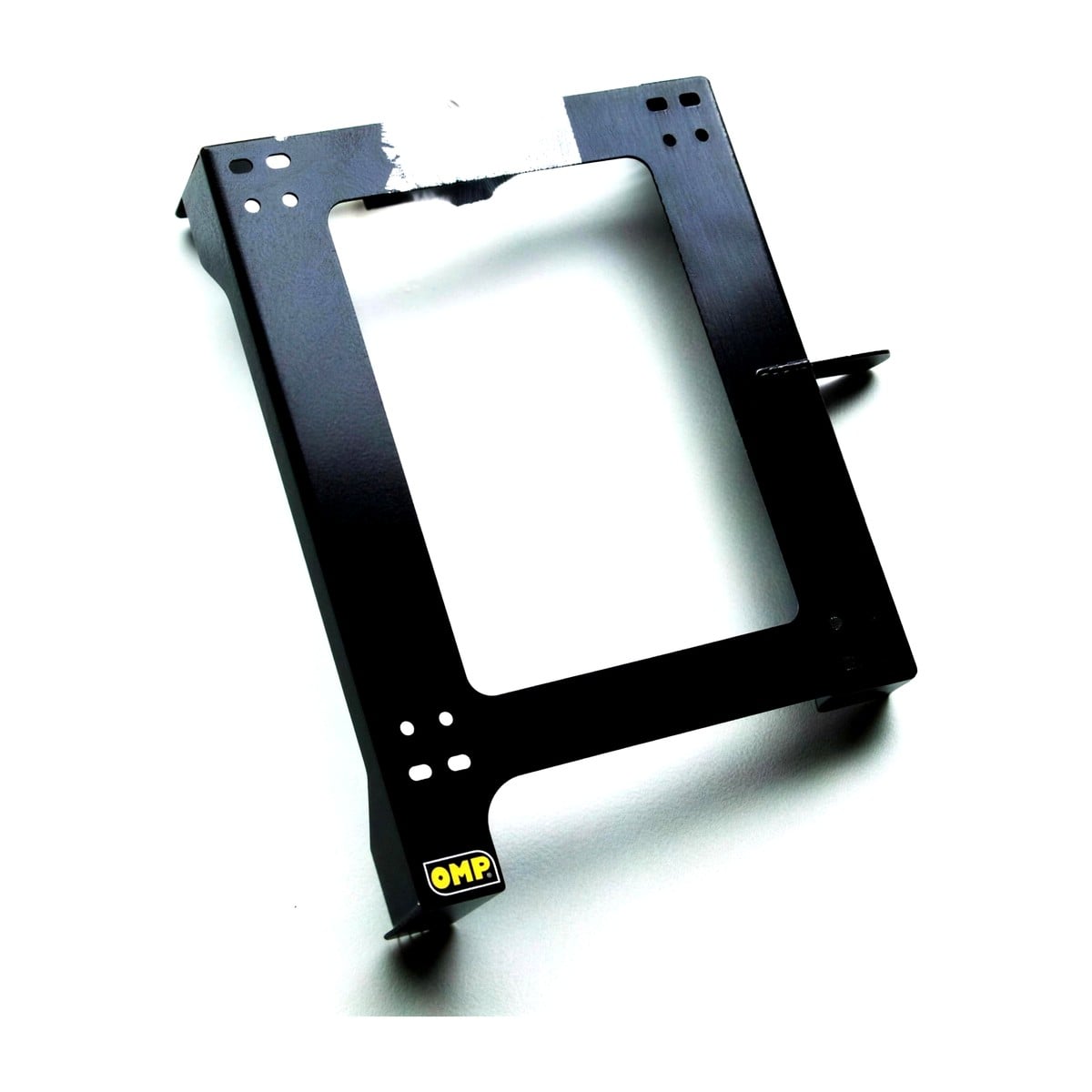

An OMP direct fit subframe for the Seat Ibiza Mk2, the 6K. Part number HC780. The 6K ran from 1993 to 2002.

Check the floor before you spend anything

Twenty five to thirty years old and built to a price. Lift the carpet and look at the metal around the seat mounting points before you order.

A frame is only as good as what it bolts to, and on a car of this age the mounting area is where the rot goes unnoticed because nobody looks under the carpet. Worth ten minutes now.

The Cupra, and the rally record

The 6K Cupra with the 2.0 16v is the version people build, and there is genuine history behind it: Seat won the World Rally Championship 2 litre class with the 6K three years running.

It is also a light car, which shapes the seat choice. Adding a heavy steel framed shell works against the thing that makes it good, so a lighter seat earns its price here rather than being an indulgence.

What else takes this frame

The 6K shares its platform with the VW Polo Mk3 and the Seat Cordoba. If you have one of those, send us the registration and we will check whether this frame suits it.

The Mk3 Ibiza, the 6L, takes HC814 instead, so check which you have before ordering. More widely the HC780 stem covers the Golf Mk4, Golf Mk3, Bora, Audi A3 8L, Leon Mk1, Lupo GTI and Polo Mk2.

Tell us your height

These are not large inside. The frame will fit; whether the shell does is the real question, so measure between the tunnel and the sill and tell us how tall you are before choosing a seat.

The detail

Steel, base mount, on the mounting points already in the floor, so nothing is drilled and the originals come out whole.

Two bolt patterns: 345mm by 271mm for Sparco, OMP and Corbeau base mount seats, and 405mm by 290mm for Recaro. Sold singly and handed, so order twice for a pair. A side mount shell needs side mounts or adaption bars over the frame.

Additional information

Brand	OMP Racing
Sport Seat Position	RHD Driver Side, RHD Passenger Side
Make & model	Seat Ibiza Mk2 6K
Fixing Type	Base Mount
Fixing Bolt Pattern	345mm x 271mm, 405mm x 290mm
Construction	Steel
Compatible Seats	Corbeau base mount seats, OMP base mount seats, Recaro base mount seats, Sparco base mount seats
Sold As	Single

What's included?

Photos are for illustration: It is very important to point out that the main product photos are entirely for illustration only. With over 1000 different frames available for different vehicles and applications, the manufacturer images provided are entirely illustration. What you receive may differ from this image.

What will be in the box? There are several types of seat frames which may be supplied depending on the vehicle and application. You may receive 1 of the following 4 types. If you are using them with a certain seat, please contact us in advance for professional advice.

#1. A full replacement frame with a sliding runner and resisitor kit
#2. A full replacement frame with a sliding runner
#3. A full replacement frame only
#4. An adaption bracket kit

Additional seat belt brackets: Each seat frame can be used for a variety of applications including road car reclining seats throuh to Motorsport FIA seats. Seat belt brackets are not required in a range of application so manufacturers generally do not supply them with their frame kits. If you require seat belt brackets please contact us in advance

NOT SUITABLE FOR OEM/FACTORY seats removed from other vehicles

Bolt point tolerances:

Please note that OMP, Sparco and various other brands have a +/- 10mm tolerance on the bolt point locations on each of their sub-frames. This means that when installing the equipment into your vehicle, you may find that one or more of the bolt points may need extending for a perfect fit.

This is normal and, when installed by a skilled professional, it may only add five minutes to the total installation time. A prime example is the OMP Renault Clio MK3 frames and the BMW E46 frames as two bolt points need extending by 5mm in 75% of installations.

Drilling of frames and equipment may be required to complete your installation.

Matching seats and frames:

There are over half a dozen different bolt patterns in the industry for base mounted seats. There are over 30 different bolt patterns for side mounted seats. Aftermarket frames from different brands will have different bolt location points.

Seats and frames are not a direct fit between brands. Seat frames are also not suitabled for OEM seats (Fitted into a vehicle from the factory) Please ensure to contact us for professional advice before purchasing your seat frames. We will be able to provide you a recommendation as to which seat frame is right for which seat.

Have you written anything about this exact product?
Yes, we have covered this exact product: Customer Car: BMW E39 With Bucket Seats Fitted Using Planted Technology Subframes, and Seat Ibiza MK3 6L with Corbeau seats. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will this fit my car?
This frame is made for the Seat Ibiza Mk2 6K. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.

Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.

Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.

Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.

Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
