Customer Question: What’s the Widest Seat I Can Fit in My Mini R50-R56
Fitting aftermarket bucket seats into a Mini Cooper R50, R53, R56 can be both exciting and challenging. With its compact and tightly packaged cabin, the Mini poses strict limitations on what size bucket seats can be installed, especially if you plan on keeping the interior intact. Over the years, we’ve worked with hundreds of Mini owners looking to upgrade to FIA-approved or track-day-ready bucket seats, and one thing has always remained consistent: shoulder width is the most critical measurement to get right. If the shoulders are too wide, the seat will interfere with the door cards, B-pillars, or worse, just won’t fit at all.
A common question we get asked is: what’s the widest bucket seat I can fit into my Mini? The answer depends on the seat’s shoulder width, base width, and how much you’re willing to modify the interior. In this guide, we’ll break down the options that fit within the Mini’s cockpit space, explain what works best without modification, and highlight the seats that push the limits for larger drivers.
Understanding the Mini Cabin Limitations
The cabins of the Mini R50, R53, and R56 are all very similar in size. The shoulder and base width limits that apply to the R56 also apply to the earlier models, which means the same guidance works across the full R50–R56 range.
As a rule of thumb, for the best fitment without interior modifications, you’ll want to keep to around 600mm at the shoulders and 500mm at the base. Seats wider than this will start to clash with the door cards, the centre tunnel, or even each other if you’re fitting two.
This doesn’t mean you can’t go bigger, but it does mean you’ll likely need to strip out interior trim, remove door cards, or adjust the seating position to make it work.
The Widest Bucket Seat Options That Fit
For drivers needing extra room, there are larger bucket seats that push the Mini’s interior to its limits. Two standout options are the Sparco Sprint L and the OMP TRS-E XL.
Sparco Sprint L
The Sparco Sprint L is an FIA-approved steel-frame bucket seat designed with larger drivers in mind. It offers a wider internal fit than the standard Sprint, making it suitable for drivers up to around a 42-inch waist. The Sprint L can be both base or side mounted, which gives you flexibility when it comes to installation. Despite its larger size, it sits under the 600mm shoulder limit, so it can fit without needing to remove the door cards.
Key Features:
- Lateral fixing for tubular frame
- An additional hole in base cushion for 5th and 6th harness strap
- Self-extinguishing quality velour fabric
- Base and Side Mounting
- Durable Steel Frame
- FIA 8855-1999 Approved
OMP TRS-E XL
The OMP TRS-E XL is another FIA-approved steel-frame bucket seat with generous internal dimensions. Like the Sprint L, it suits drivers up to a 42-inch waist, but it’s slightly wider overall. At 620mm at the shoulders, it exceeds the 600mm guideline, meaning you’ll need to remove the door cards for it to fit properly. The TRS-E XL can only be side mounted, so you’ll need brackets to mount it onto a subframe. It’s not an easy fit, but it’s doable for dedicated builds.
Key Features:
- FIA Approved
- Tubular Steel Frame
- Removable Leg Cushions
- Use with 4, 5, or 6 Point Harnesses
- Side mount only
- HANS Compatible
Seat Dimensions for the Mini
Both seats will fit drivers up to a 42-inch waist, making them the largest realistic options for Mini R50–R56 models. Beyond this, larger seats like the OMP WRC-XL or Sparco Evo XL are simply too wide to fit into the cockpit.
For the easiest installations, we recommend sticking to seats under 600mm shoulder width and 500mm base width. This ensures a snug but straightforward fit without major interior modifications.
Customer Build: Sparco Evo L in a Mini R53
One of our previous customers came to us with a Mini Cooper S R53 that already had a JP half cage installed and a set of Sparco R100 reclining bucket seats. At 6ft 3″, they quickly found the R100s too cramped, even when mounted on adjustable rails. Legroom and headroom were both limited, making the car uncomfortable on longer drives and practically unusable with a helmet on track days.
The customer paired the Evo L seats with Endurance side mounts and finished the install with Sparco 4-point harnesses. Mounted directly to the floor on fixed mounts, the new setup maximised legroom and headroom, making it comfortable even with a helmet. After fitting, they reported that the difference was night and day:
First-Hand Customer Insight
Here’s what our customer had to say about the process:
“I bought an R53 Mini Cooper S, which had a JP half cage in it as well as Sparco R100 reclining bucket seats. When I first got in the car, I was quite cramped as I’m 6ft 3″. Despite being on adjustable rails, I couldn’t get the desired legroom. I knew the R100s had to go.
After doing some reading online, I found a recent GSM Performance blog post on how a customer had fit fixed bucket seats on fixed mounts, mounted to the floor of their R53, to maximise legroom and headroom.
Following this, I booked an appointment at GSM Performance to find the right bucket seat for me. After much deliberation, I decided to go with the Sparco Evo Ls. I bought Endurance seat mounts and completed the package with Sparco 4-point harnesses.
The advice I was given during my appointment, combined with all the information in the blog post, meant I was confident in my decision. Installation was relatively straightforward and did not require much modification.
With the seats in, I now have ample legroom as well as room to spare for my head, even with a helmet on. I’ve done a couple of track days since, and have felt secure through every corner, without sacrificing comfort whilst driving to and from the track. A special thanks to GSM Performance for the help!”
View this Mini R53 build in action on their Instagram – @r53.rocket
Seat Size Comparison: Evo L vs Evo XL vs Mini Fitment Limits
When looking at Sparco’s Evo range, the Evo L and Evo XL often come up as the top picks for taller or broader drivers. Both are FIA-approved fibreglass shell bucket seats, designed with motorsport in mind, but their dimensions make a big difference when it comes to Mini fitment.
Sparco Evo L
- Shoulder width: approx. 580mm
- Base width: approx. 470mm
- Fits within the Mini’s 600mm shoulder limit, meaning it slots into the R50, R53, and R56 without major modifications.
Sparco Evo XL
- Shoulder width: approx. 640mm
- Base width: approx. 500mm
- Exceeds the Mini’s shoulder clearance. Even with door cards removed, the XL’s width makes it too large for the cockpit.
Mini Fitment Limits
- Shoulder width: 600mm maximum
- Base width: 500mm maximum
- Staying within these dimensions ensures the best chance of a clean fit without heavy modifications.
This comparison highlights why the Evo L is the sweet spot for Mini owners. It delivers the support and space larger drivers need, while still respecting the car’s interior limitations. The Evo XL, while popular in larger track builds, is simply too wide for the Mini’s compact cabin.
Reference Video – Sparco Grid Q Installation (Dreamscape Automotive)

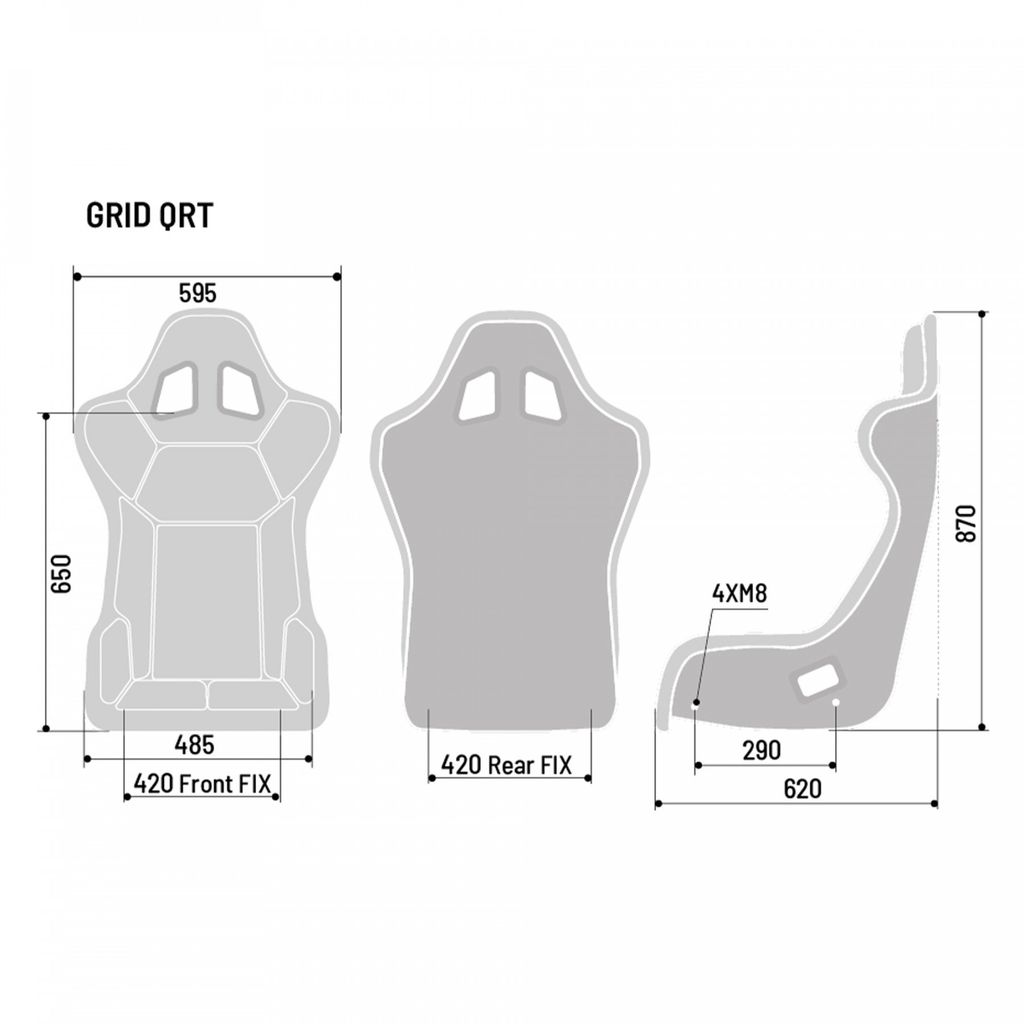

Sparco Grid Q – The Limit for Shoulder Width
This YouTube video by Dreamscape Automotive provides a perfect real-world example of fitting a pair of Sparco Grid Q FIA bucket seats into a Mini R56. The video clearly shows how the seat just squeezes into place—with only 1–2mm clearance from the door cards and B-pillar.
The video also documents the installation process and provides insight into the level of fitment precision required when using full-sized FIA seats in compact hatchbacks. A must-watch if you’re planning a similar setup.
The Sparco Grid Q is one of the most popular FIA-approved bucket seats for narrow builds, and now serves as our benchmark for Mini R56 installs. We took our in-store display model and measured it in detail. Here are the verified figures:
- Shoulder Width: 600mm
- Base Width: 490mm
- Height: 870mm
- Interior Base Width at the Hips: 350mm
From these measurements we recommend this seat to drivers with a 30- 34 inch waist size. We strongly recommend choosing seats 600mm wide or less at the shoulders and up to 500mm wide at the base to fit the Mini Cooper R56. In the Dreamscape install, the floor pan had a bit of extra space, but side clearance at the shoulder was virtually zero.
Top Seat Recommendations for the Mini R56
While the Sparco Sprint L and OMP TRS-E XL are the widest possible seats that can be squeezed into a Mini, they are right on the limit and much harder to install. For most owners, the better option is to choose a seat that sits within the Mini’s fitment sweet spot of 600mm shoulders and 500mm base width. Staying within these dimensions ensures an easier installation without needing to remove door cards or modify the interior.
We’ve picked out a range of FIA-approved fibreglass and steel-frame bucket seats that fit perfectly within the R50, R53, and R56 cabins. These seats are all suitable for track days, spirited road use, or even full competition builds, depending on your setup.
All of these seats will work across the Mini R50, R53, and R56 platforms, offering a much simpler fitment process compared to wider models like the Sprint L or TRS-E XL. If you’re looking for the easiest way to upgrade to a fixed-back seat without trimming or modifying your car’s interior, these are the best places to start.
-
From £206.09 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £324.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £235.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Installation Options – Choosing the Right Subframe
Installing bucket seats in a Mini requires the right subframes and mounts. Here’s a breakdown of what we recommend:
OMP Subframes – Designed for motorsport use, with 345mm and 405mm bolt patterns for standard and XL-sized seats. No seat belt mounts, so better for harness setups.
Sparco Subframes – Include seat belt mounts, making them more road-friendly. Support 345mm bolt patterns for standard-sized seats and Cobra side-mounted options.
Cobra Subframes – Feature a 291mm bolt pattern, compatible only with Cobra recliners and base-mounted bucket seats.
Planted Technology Brackets – The most versatile option. They include all common bolt patterns, support both side and base mounting, and come with seat belt mounts.
We also supply side mount brackets for direct-to-floor installation. This option is ideal for motorsport builds where a fixed seating position is acceptable, but it removes adjustability, so it isn’t recommended for daily use.
-
From £89.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £78.20 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £79.90 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £94.50 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £74.17 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £75.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £185.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Going Wider? Remove Door Cards for More Room
If you want to fit a seat wider than the 600mm shoulder or 500mm base limit, you’ll need to make some compromises. This could mean removing the door cards, stripping interior trim, hammering the centre tunnel, or offsetting one seat slightly behind the other to avoid them clashing over the centre console.
In some cases, you may also need to fabricate custom mounts or trim plastics around the B-pillars to get the clearance you need. This obviously takes away from comfort and isn’t ideal for daily use, but for full track builds or dedicated race cars, it opens the door to fitting bigger models like the Sparco Evo XL, OMP WRC-XL, or even the Corbeau XL range.
Final Thoughts – Fitment First, Always
The Mini R50, R53, and R56 may have compact interiors, but with the right seat choice, you can still achieve a proper bucket seat setup. For most builds, keeping within the 600mm shoulder and 500mm base limits will give you the best balance of fitment and comfort. For larger drivers, the Sparco Sprint L and OMP TRS-E XL are the widest options possible, though the TRS-E XL will require extra work to fit.
Whatever direction you take, the right seat and installation setup can completely transform the feel of your Mini, making it more focused, supportive, and track-ready.
