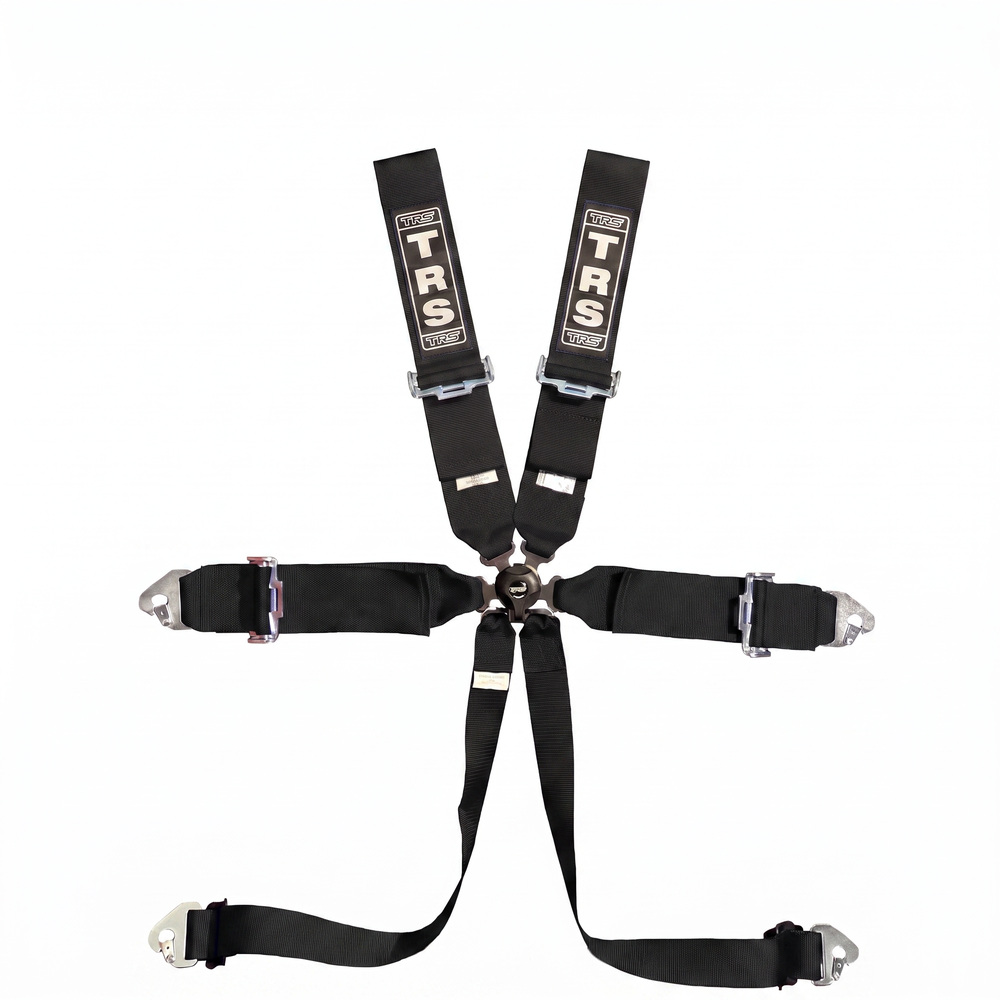

This is the TRS Magnum Superlite 6 Point FIA harness, cut specifically for the Mazda MX-5 Mk1 (NA) and Mk2 (NB). It is the same belt as the standard version, on the same FIA 8853-2016 homologation and with the same buckle and webbing, with the shoulder straps made shorter to suit the distance between the seat and a roll bar or harness bar in an MX-5.
What the MX-5 version changes
- Shoulder straps are cut shorter for the MX-5, approximately 105cm from the adjuster to the end of the strap against roughly 150cm on the standard belt.
- Once wrapped around your bar that leaves no loose webbing behind the shoulders, and the three bar slide finishes close to the bar where it should sit.
- Supplied to wrap around a roll bar or harness bar. There are no end fittings on the shoulder straps, so a bar behind the seats is required.
Specification
- Six point, FIA 8853-2016 homologated. The expiry is printed on the label inside the belt.
- 3 inch (75mm) shoulder straps and 3 inch lap straps.
- Aircraft style rotary quick release buckle.
- Superlite specification, with aluminium adjusters on the shoulder straps.
- Works with or without a head restraint.
- Intercom cable securing tab on the shoulder strap, thumb loops on the lower shoulder straps and Velcro patches on the lap straps.
Made to order. The MX-5 cut is not a shelf item, it is made to length by TRS, so tell us when you order if you need it for a date and we will confirm the lead time. If you want an exact shoulder strap length for your own bar position, ring us on 0115 9893488 before ordering and we will check it with TRS.
Fitment. Listed for the MX-5 Mk1 and Mk2. For a Mk3 or Mk4 the bar position differs, so ask us and we will work out the length you need.
