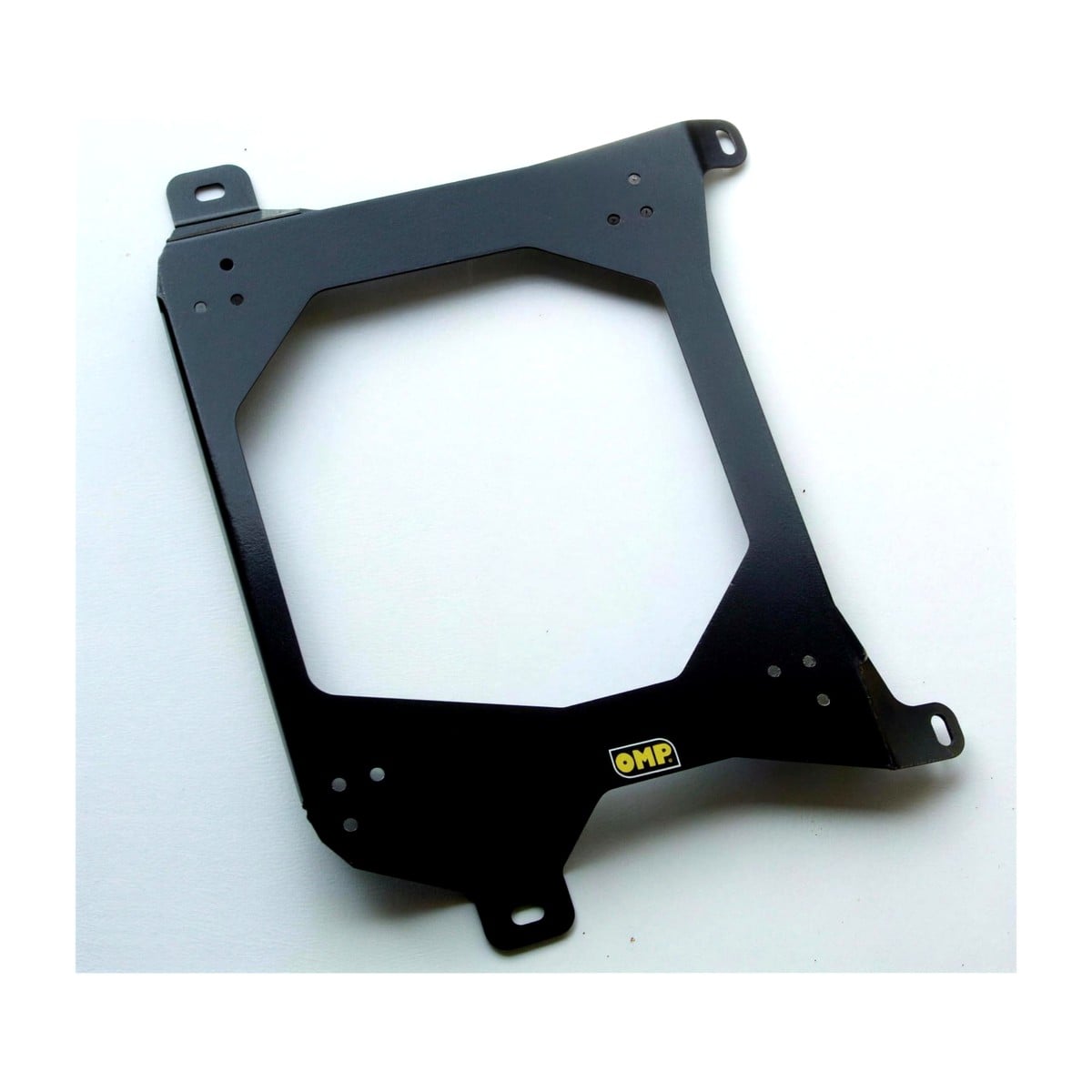

An OMP direct fit sub-frame for the Mitsubishi Lancer Evo 5. Part number HC803-5210.
The Evo 4 and 5 share a base part number here, which is what you would expect from two closely related cars. If you have seen a seat and frame combination working on one, it carries over to the other.
The usual reason to change seats in an Evo is the harness. A factory seat is built around a three point belt, and once you move to a four or six point the shoulder slot position and the shell shape start to matter a great deal.
Why an OMP frame
It carries the wider 405mm by 290mm Recaro pattern alongside the 345mm by 271mm spacing used by Sparco, OMP and Corbeau seats. If you want to keep a Recaro shell, an OMP frame will take it where a Sparco frame will not.
Fitment
Steel, base mount, on the floor mounting points already in the car, so the factory Recaros come out whole and can go back in. On a car this collectable that matters.
Side mount shells need side mounts or adaption bars over the frame.
Ordering
Sold singly, handed. Order twice for a pair, and tell us the seat when you order.
Have you written anything useful for my car?
Yes: Customer Question: How Do I Fit Recaro Seats Into My Mitsubishi Evo 9?, and Customer Car: BMW E39 With Bucket Seats Fitted Using Planted Technology Subframes. Those are written around the same car, from real fittings and customer questions, so they are worth a look before you decide.
Will this fit my car?
This frame is made for the Mitsubishi Lancer Evo 5. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.
Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.
Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.
Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.
Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
