OMP – Fiat Punto 2nd series direct Fit Subframes

From £82.76 Incl. VATFrom £68.97 Excl. VAT

Seat fitting hardware for the Fiat Punto MK2. Mounting stacks are specific to the seat pattern, so tell us your seat and car and we will confirm the complete kit.

Sport Seat Position

Clear

Add a sliding runner:

Add to wishlist

Save to Pinterest

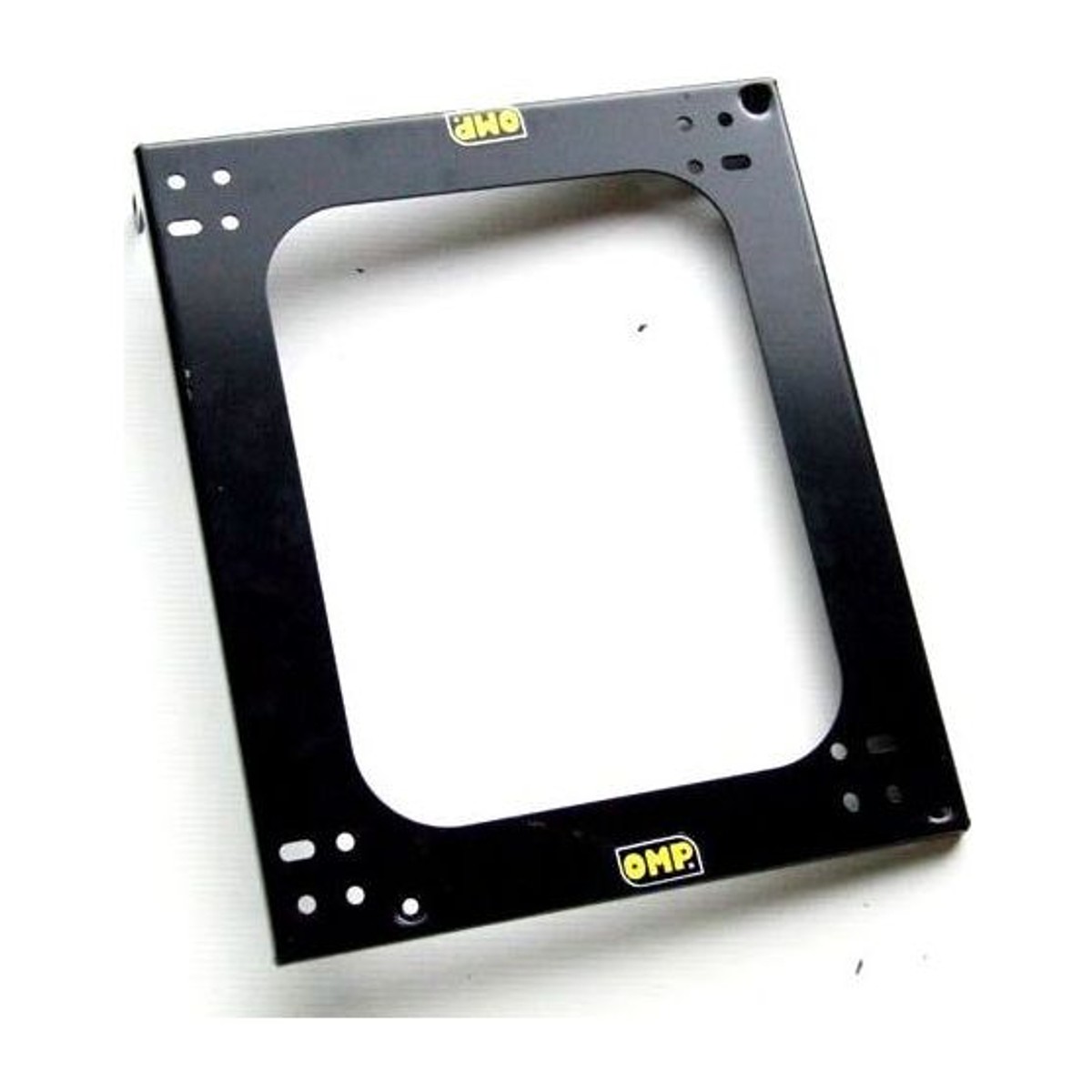

An OMP direct fit subframe for the Fiat Punto second series, built from 1999 to 2010. Part number HC797.

Check which Punto you have first

Three generations, three frames, and they do not interchange. If your car is from 1993 to 1999 it is a Mk1 and takes HC786. If it is a Grande Punto from 2005 it takes HC862. Everything between is this one.

The overlap years are where people order wrong, because the Mk2 and the Grande Punto were sold alongside each other for a period. Send us the registration if you are in any doubt.

Why installation is straightforward on this one

A front wheel drive floor with no transmission tunnel complications, which makes it one of the easier cars in this range to work in. If this is your first seat installation, that helps.

The Abarth GT and Sporting

The versions most often prepared for track use in this generation, and the reason the frame exists.

What else you need

Side mounts and the seat. Steel, black powder coat, no bolts. Both bolt patterns drilled, 345 by 271mm and 405 by 290mm, so OMP, Sparco and Corbeau shells fit alongside Recaro.

One frame per side.

Additional information

Brand	OMP Racing
Sport Seat Position	RHD Driver Side, RHD Passenger Side
Make & model	Fiat Punto MK2
Fixing Type	Base Mount
Fixing Bolt Pattern	345mm x 271mm, 405mm x 290mm
Construction	Steel
Compatible Seats	Corbeau base mount seats, OMP base mount seats, Recaro base mount seats, Sparco base mount seats
Sold As	Single

What's included?

Photos are for illustration: It is very important to point out that the main product photos are entirely for illustration only. With over 1000 different frames available for different vehicles and applications, the manufacturer images provided are entirely illustration. What you receive may differ from this image.

What will be in the box? There are several types of seat frames which may be supplied depending on the vehicle and application. You may receive 1 of the following 4 types. If you are using them with a certain seat, please contact us in advance for professional advice.

#1. A full replacement frame with a sliding runner and resisitor kit
#2. A full replacement frame with a sliding runner
#3. A full replacement frame only
#4. An adaption bracket kit

Additional seat belt brackets: Each seat frame can be used for a variety of applications including road car reclining seats throuh to Motorsport FIA seats. Seat belt brackets are not required in a range of application so manufacturers generally do not supply them with their frame kits. If you require seat belt brackets please contact us in advance

NOT SUITABLE FOR OEM/FACTORY seats removed from other vehicles

Bolt point tolerances:

Please note that OMP, Sparco and various other brands have a +/- 10mm tolerance on the bolt point locations on each of their sub-frames. This means that when installing the equipment into your vehicle, you may find that one or more of the bolt points may need extending for a perfect fit.

This is normal and, when installed by a skilled professional, it may only add five minutes to the total installation time. A prime example is the OMP Renault Clio MK3 frames and the BMW E46 frames as two bolt points need extending by 5mm in 75% of installations.

Drilling of frames and equipment may be required to complete your installation.

Matching seats and frames:

There are over half a dozen different bolt patterns in the industry for base mounted seats. There are over 30 different bolt patterns for side mounted seats. Aftermarket frames from different brands will have different bolt location points.

Seats and frames are not a direct fit between brands. Seat frames are also not suitabled for OEM seats (Fitted into a vehicle from the factory) Please ensure to contact us for professional advice before purchasing your seat frames. We will be able to provide you a recommendation as to which seat frame is right for which seat.

Have you written anything about this exact product?
Yes, we have covered this exact product: Top 5 reclining seat choices for your Fiat Punto Mk2, including our fitting guide. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will this fit my car?
This frame is car-specific, so match the vehicle in the product name to your exact car and generation. If you are unsure, send us the registration and we will confirm before you order.

Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.

Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.

Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.

Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
