OMP Citroen C4 Direct Fit Subframes

From £123.50 Incl. VATFrom £102.92 Excl. VAT

OMP Citroen C4 Direct Fit Subframes by OMP Racing. Brand: OMP Racing. Sport Seat Position: RHD Driver Side, RHD Passenger Side.

Sport Seat Position

Clear

Add a sliding runner:

SKU: HC864 Categories: OMP Car Specific Fitting Frames, OMP Car Fitting Frames

Save to Pinterest

Why buy from us

Free UK delivery over £100Calculated at checkout on smaller orders.
Tracking by email and textFrom the moment it leaves us.
Fitting advice since 2003Ask before you buy if you are unsure.
Showroom appointmentsSee the kit in person before you order.

Secure checkout

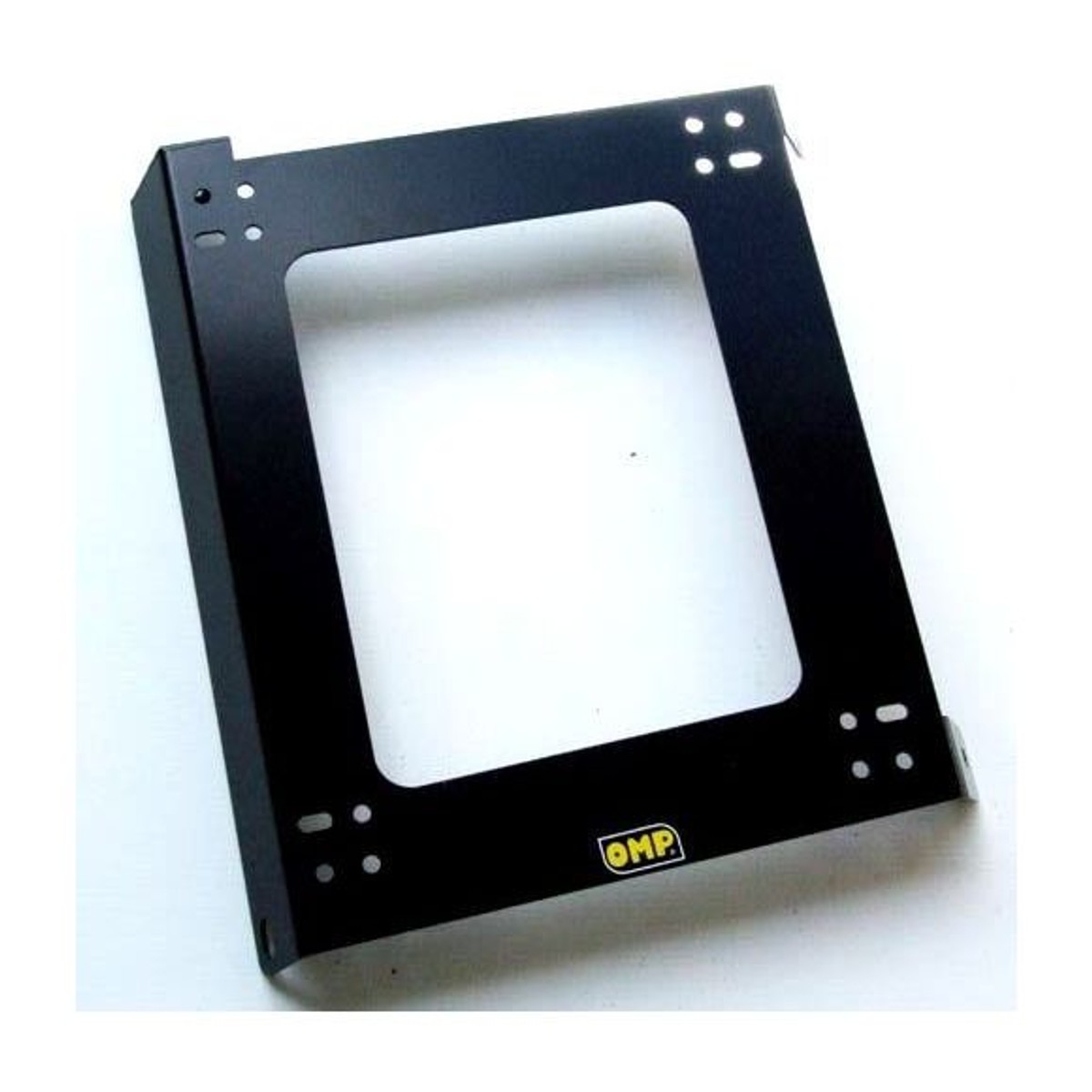

An OMP direct fit subframe for the Citroen C4. Part number HC864.

A frame with no siblings

Unusually, the C4 sits on its own OMP part number rather than sharing a stem with related cars. So there is no equivalent frame to fall back on and nothing that carries over from another model in the group.

That makes confirming the car more important than usual. Send us the registration and we will check it against the part before anything ships.

What the frame actually does

It picks up the floor mounting points Citroen already provided and gives an aftermarket seat a flat base to bolt to. Nothing is drilled, nothing is fabricated, and the seat load goes into the structure the factory designed to carry it.

That last point is worth dwelling on. A seat bolted to a fabricated bracket is only as good as the fabrication, and in an accident that is the part that matters.

Seat choice

Two bolt patterns from the multi-hole clusters at each corner: 345mm by 271mm for Sparco, OMP and Corbeau base mount seats, 405mm by 290mm for Recaro.

An OMP frame therefore takes a Recaro where a Sparco frame will not.

The detail

Steel, base mount. Sold singly and handed, so choose RHD driver or RHD passenger and order twice for a pair. A side mount shell needs side mounts or adaption bars over the frame.

Additional information

Brand	OMP Racing
Sport Seat Position	RHD Driver Side, RHD Passenger Side
Make & model	Citroen C4
Fixing Type	Base Mount
Fixing Bolt Pattern	345mm x 271mm, 405mm x 290mm
Construction	Steel
Compatible Seats	Corbeau base mount seats, OMP base mount seats, Sparco base mount seats
Sold As	Single

What's included?

Photos are for illustration: It is very important to point out that the main product photos are entirely for illustration only. With over 1000 different frames available for different vehicles and applications, the manufacturer images provided are entirely illustration. What you receive may differ from this image.

What will be in the box? There are several types of seat frames which may be supplied depending on the vehicle and application. You may receive 1 of the following 4 types. If you are using them with a certain seat, please contact us in advance for professional advice.

#1. A full replacement frame with a sliding runner and resisitor kit
#2. A full replacement frame with a sliding runner
#3. A full replacement frame only
#4. An adaption bracket kit

Additional seat belt brackets: Each seat frame can be used for a variety of applications including road car reclining seats throuh to Motorsport FIA seats. Seat belt brackets are not required in a range of application so manufacturers generally do not supply them with their frame kits. If you require seat belt brackets please contact us in advance

NOT SUITABLE FOR OEM/FACTORY seats removed from other vehicles

Bolt point tolerances:

Please note that OMP, Sparco and various other brands have a +/- 10mm tolerance on the bolt point locations on each of their sub-frames. This means that when installing the equipment into your vehicle, you may find that one or more of the bolt points may need extending for a perfect fit.

This is normal and, when installed by a skilled professional, it may only add five minutes to the total installation time. A prime example is the OMP Renault Clio MK3 frames and the BMW E46 frames as two bolt points need extending by 5mm in 75% of installations.

Drilling of frames and equipment may be required to complete your installation.

Matching seats and frames:

There are over half a dozen different bolt patterns in the industry for base mounted seats. There are over 30 different bolt patterns for side mounted seats. Aftermarket frames from different brands will have different bolt location points.

Seats and frames are not a direct fit between brands. Seat frames are also not suitabled for OEM seats (Fitted into a vehicle from the factory) Please ensure to contact us for professional advice before purchasing your seat frames. We will be able to provide you a recommendation as to which seat frame is right for which seat.

Will this fit my car?
This frame is made for the Citroen C4. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.

Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.

Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.

Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.

Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
