Corbeau Revenge X System 1 XL FIA Motorsport Bucket Seat

From £804.00 Incl. VATFrom £670.00 Excl. VAT

FIA 8855-1999-homologated seat sized for a 36in to 40in waist. The showroom team sit in these seats every day, so call with your height and waist for the honest fit answer.

Product Colour

Coloured Shell

Clear

Additional Upgrades

Top Stitch Upgrade (+£42.00)

Custom Embroidery (+£48.00)

Package Bundle Recommendations

Choose any extras you would like added to this product.

Endurance Motorsport Steel M10 Side Mounts – B301648 – GSM Performance

Endurance Motorsport Steel M10 Side Mounts for Corbeau Seats

£32.50

Corbeau Seats Fitted Lumbar Support

£30.00

Corbeau Pro 2006SSU 6 Point FIA Harness Belt

£175.00

Add to wishlist

Size/Fitting guide

Save to Pinterest

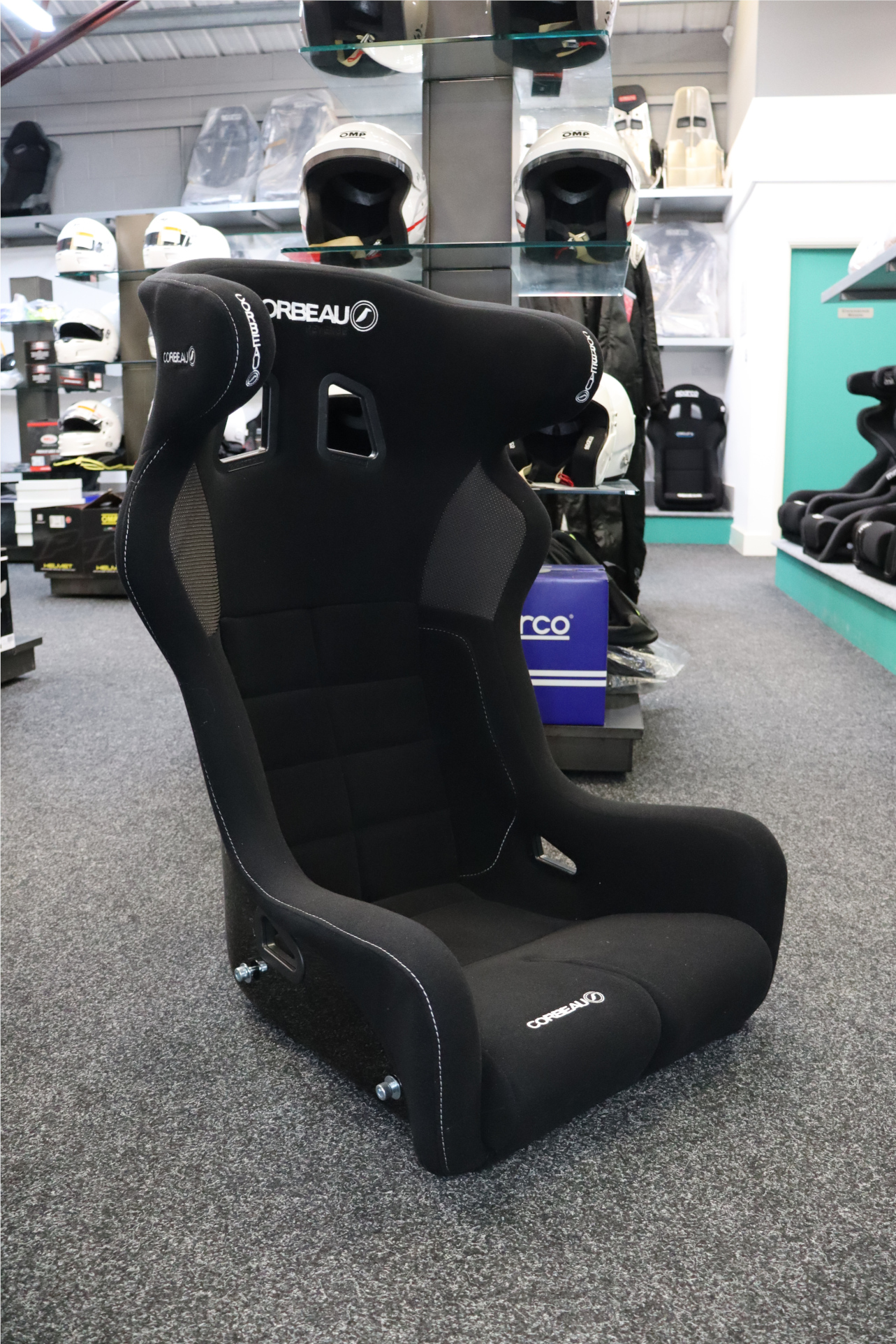

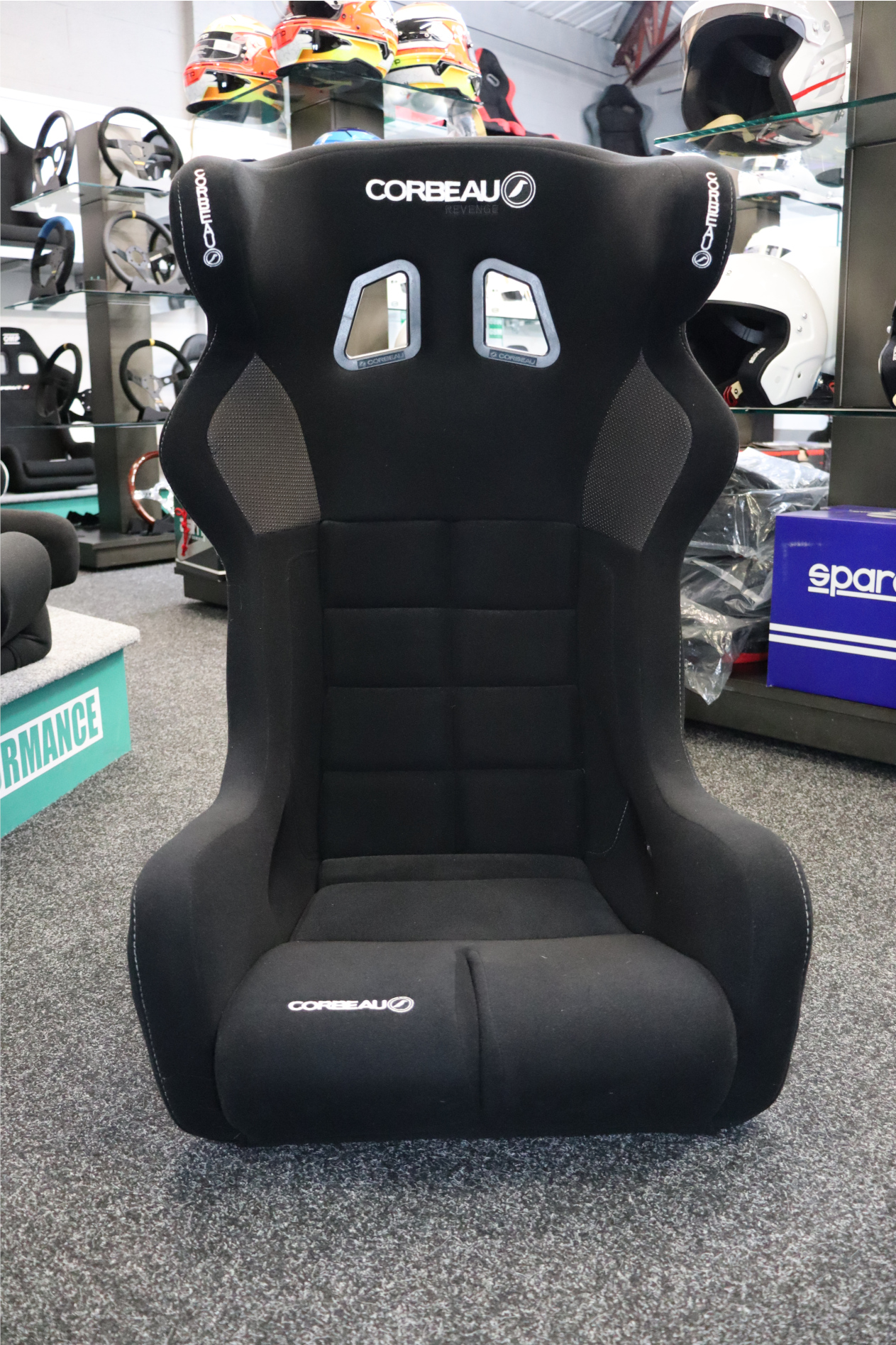

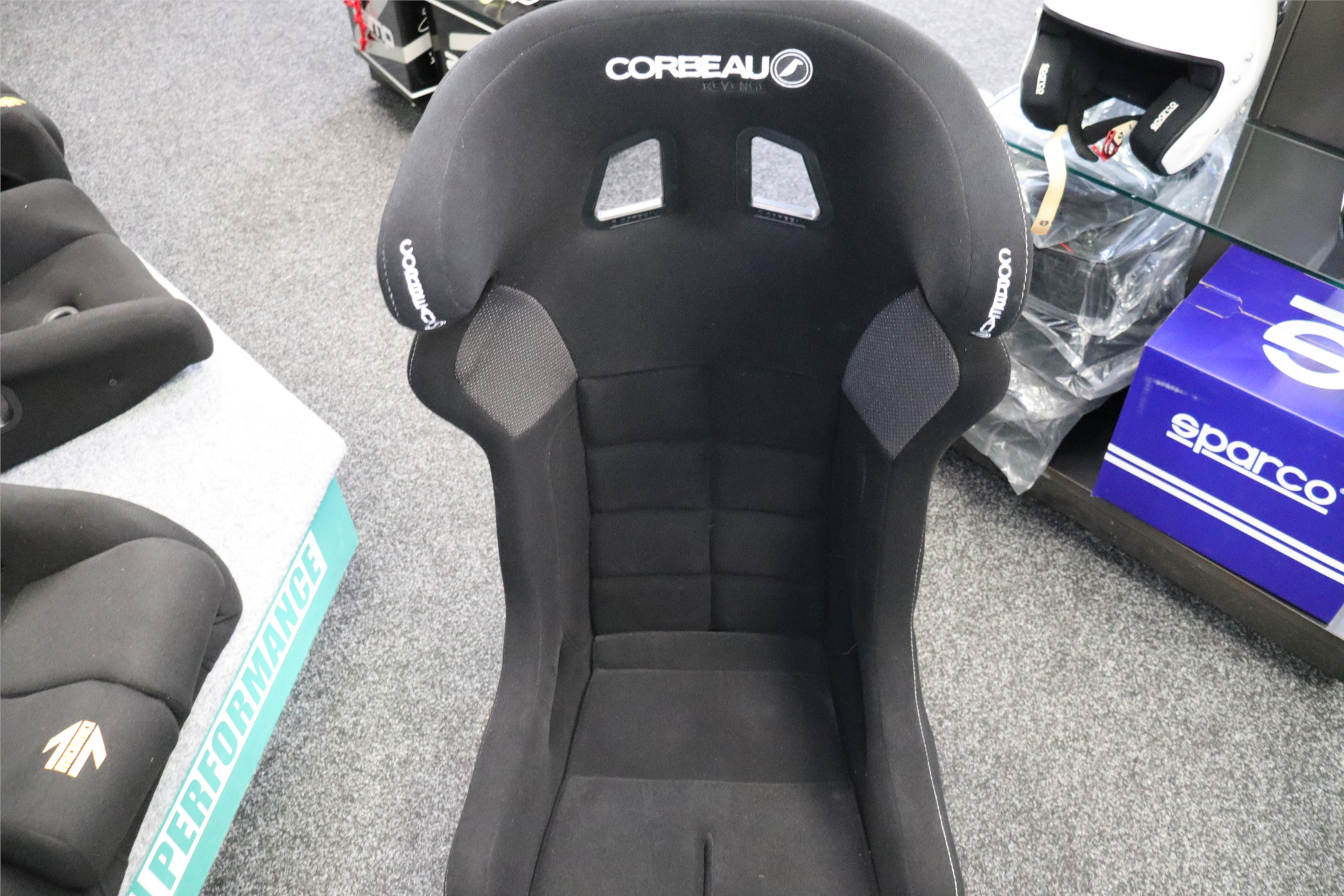

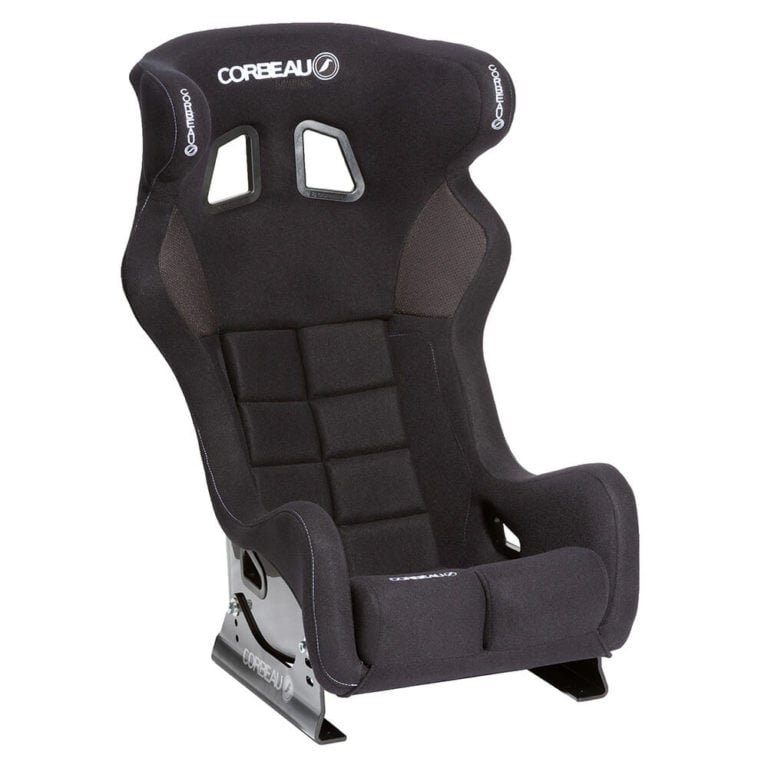

The Revenge X in XL width, FIA 8855-1999, Kevlar/GRP composite shell with head protection and deep lateral bolstering. Part code SF405. Sized for a 36" to 40" waist and listed as suitable for all driver heights, where the standard Revenge X (SF400) limits to drivers under 6ft.

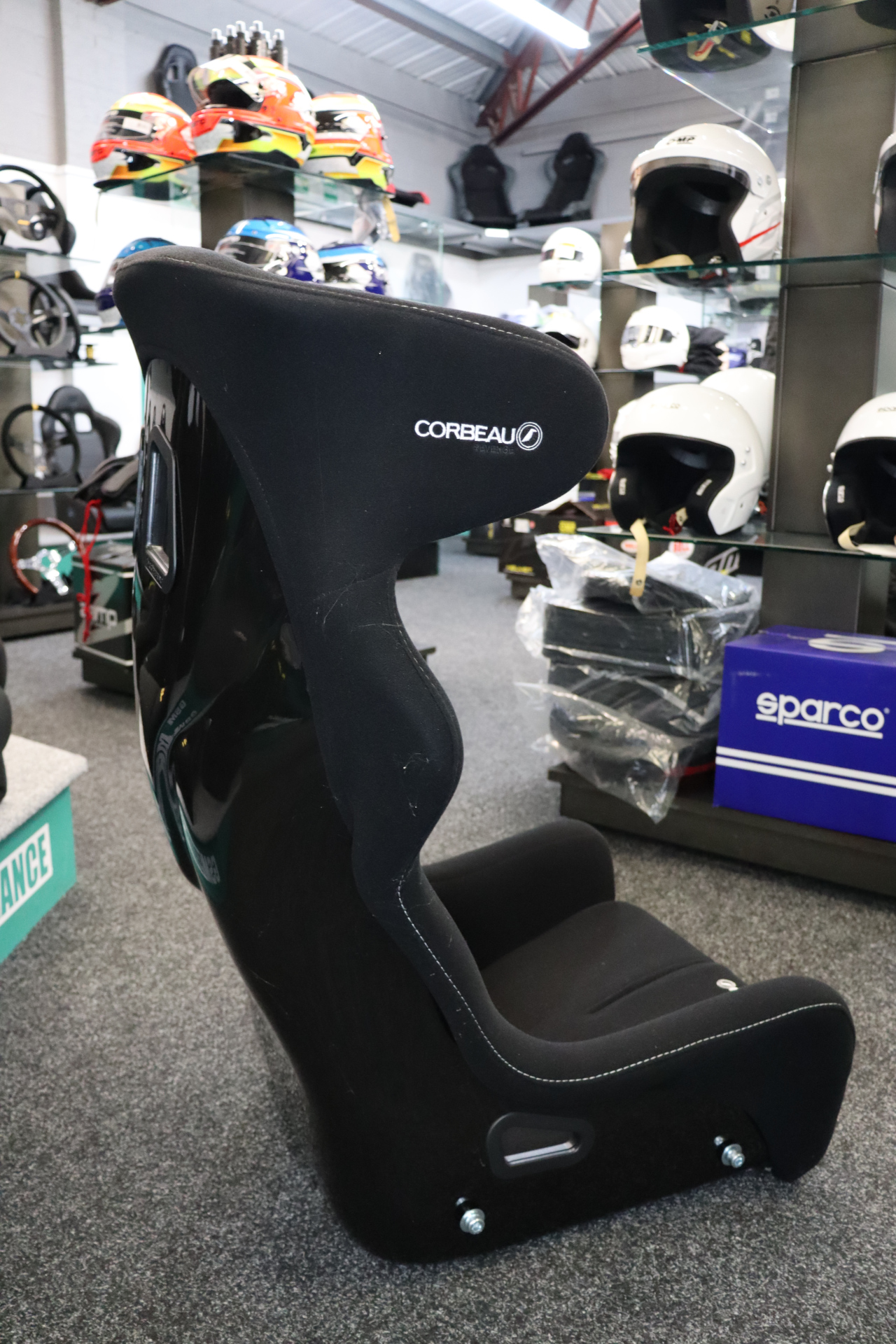

The Revenge X XL carries the same construction as the standard: deep side supports running to the head wings, energy-absorbing foam, two-piece thigh coil at the seat base, five harness slots compatible with 4-point and 6-point harnesses, and FIA 8855-1999 homologation. The XL shell is wider at the hips and through the bolsters.

The standard Revenge X (SF400) is £20 less and fits a narrower waist. The Revolution XL (SF305) offers full peripheral vision head protection at the same price, but is 6-point harness only and suits a different use case where forward visibility matters.

Gel coat colour options on the shell exterior. Side mount. Price is for one seat. Brackets are not included.

Additional information

Approval	FIA 8855-1999
Brackets included	Seat only
Brand	Corbeau Seats
Construction	Fibreglass seats
Driver Height	All heights suitable
Driver Waist Size	36" – 40" waist
Fixing Type	Side mount
Harness compatibility	4 point compatible, 6 point compatible
Mechanism Type	Fixed Back Seats
Product Colour	Black, Black and Blue, Black and Grey, Black and Red
Protection Type	With head support
Trim Material	Fabric
Coloured Shell	Black, Blue, Grey, Orange, Other (Please confirm RAL code), Purple, Red, White, Yellow

Corbeau seat size guide

Corbeau size their composite buckets Standard or XL, and the rule for choosing is one line long. The System number is the shell material, not the size.

How Corbeau size their seats

Corbeau’s own guidance for the Sprint X, Pro-Series X, Revenge X, Revolution X and RXC X is Standard up to a 34 inch waist and XL from 34 inch. Our product pages band them as Standard 32 to 36 and XL 36 to 40, which is the same rule with room either side. A 34 to 36 inch waist is the crossover: if you carry your weight on your hips take the XL, if you are tall and lean the Standard.

System 1, 3 and 5 are the shell layup. System 1 is GRP and Kevlar, System 3 Kevlar and carbon, System 5 full carbon. The shape and the sizes are the same across all three, so pick the size first and the System on weight and budget.

The Sportline reclining seats (RRS, RRB, SVR, VLS, Dakota and the rest) are one size for a 32 to 38 inch waist. The Classic bucket comes in Standard and Excel width, the Excel being the wider shell.

Which Corbeau fits you

Model	Waist band	Driver height	Shell	Approval
Motorsport, FIA 8855-1999
Sprint X System 1, 3, 5	Standard 32 to 36 / XL 36 to 40	Under 6 ft	GRP-Kevlar, Kevlar-carbon or carbon	FIA 8855-1999
Pro-Series X System 1, 3, 5	Standard 32 to 36 / XL 36 to 40	Under 6 ft (System 3 all heights)	GRP-Kevlar, Kevlar-carbon or carbon	FIA 8855-1999
Revenge X System 1, 5	Standard 32 to 36 / XL 36 to 40	Standard under 6 ft, XL all	GRP-Kevlar or carbon	FIA 8855-1999
Revolution X System 1, 5	36 to 40 (both sizes)	Under 6 ft	GRP-Kevlar or carbon	FIA 8855-1999
RXC X System 1, 3, 5	Standard 32 to 36 / XL 36 to 40	Under 6 ft	GRP-Kevlar, Kevlar-carbon or carbon	FIA 8855-1999
Hexa System 1 / System 3	36 to 40 / 32 to 36	All heights	GRP-Kevlar / Kevlar-carbon	FIA 8855-1999
LE Standard, LE Driver, LE X (Lotus)	32 to 36	All heights	Composite	Track
LE Pro System 1, 3, 5 (Lotus)	28 to 36	All heights (System 3 under 6 ft)	Composite	Track
Sportline reclining
RRS, RRS Elite, RRS Limited, RRS Low Base	32 to 38	All heights	Steel frame	Road and track
RRB, SVR, VLS, VLS Limited, VLS Low Base	32 to 38	All heights	Steel frame	Road and track
Dakota, Boss Evo 2, PSR, Sportsman	32 to 38	All heights	Steel frame	Road and track
Classic
Classic and Alpine	Standard or Excel width, all sizes	All heights	Steel frame	Road and track
GT4 Retro, GT8 Highback	All sizes	All heights	Steel frame	Road and track

Low Base versionsThe RRS Low Base and VLS Low Base are the same shell on a lower frame. Choose them for headroom, not for width.

All the X-range buckets mount through Corbeau Pro-Team side mounts with M10 12.9 fixings. The side mounts come in four angles (35 degree, 90 degree, 90 degree extended and restricted space), which is the car’s decision rather than the driver’s.

Measure yourself first

Four numbers decide whether a seat fits. Take them in the clothes you drive in, and write them down before you compare models.

AWaistAround your natural waist, not your trouser size. Trouser sizes usually run an inch or two under the real figure, and the waist bands on our product pages use the real one.

BSeated hip widthSit on a hard chair with your feet flat and measure straight across the widest point of your hips with a rule or a straight edge, not a tape that follows the curve. This is the number that decides whether a fixed shell is tight.

CShouldersStraight across the back at the widest point. Fixed back seats hold you here, so a shell that is narrow at the shoulders is uncomfortable long before it is unsafe.

DHeight and torsoYour height, and if you are over 6 ft whether that is mostly leg or mostly body. A long body needs a taller shell with the head support set higher.

Before you order

Check the car, not only the driver. Transmission tunnels, door cards and B pillars are what stop a wide shell going in. Our seat mounting and fixing points guide covers what to measure.
Side mount and base mount shells are not interchangeable. Which one you need depends on the car and the subframe, so pick the brackets at the same time as the seat.
If you run a HANS or plan to, filter on HANS friendly. The shoulder openings are cut to clear the collar.
FIA seats carry an expiry date on the homologation label. Check what your championship accepts and how long the seat has left, particularly on discounted older stock.

Send us your measurementsWaist, seated hip width, height and the car. We have fitted a lot of Corbeau seats and will tell you honestly if the one you have picked is going to be tight. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Waist bands and heights are our product data, checked 6 September 2026. The Standard to 34 inch, XL from 34 inch rule and the System layups are from corbeau-seats.com, read the same day.

Have you written anything about this exact product?
Yes, we have covered this exact product: Which Is Right For You? Corbeau Revenge VS Revolution, and Corbeau Revenge VS Cobra Sebring. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will I fit in this seat?

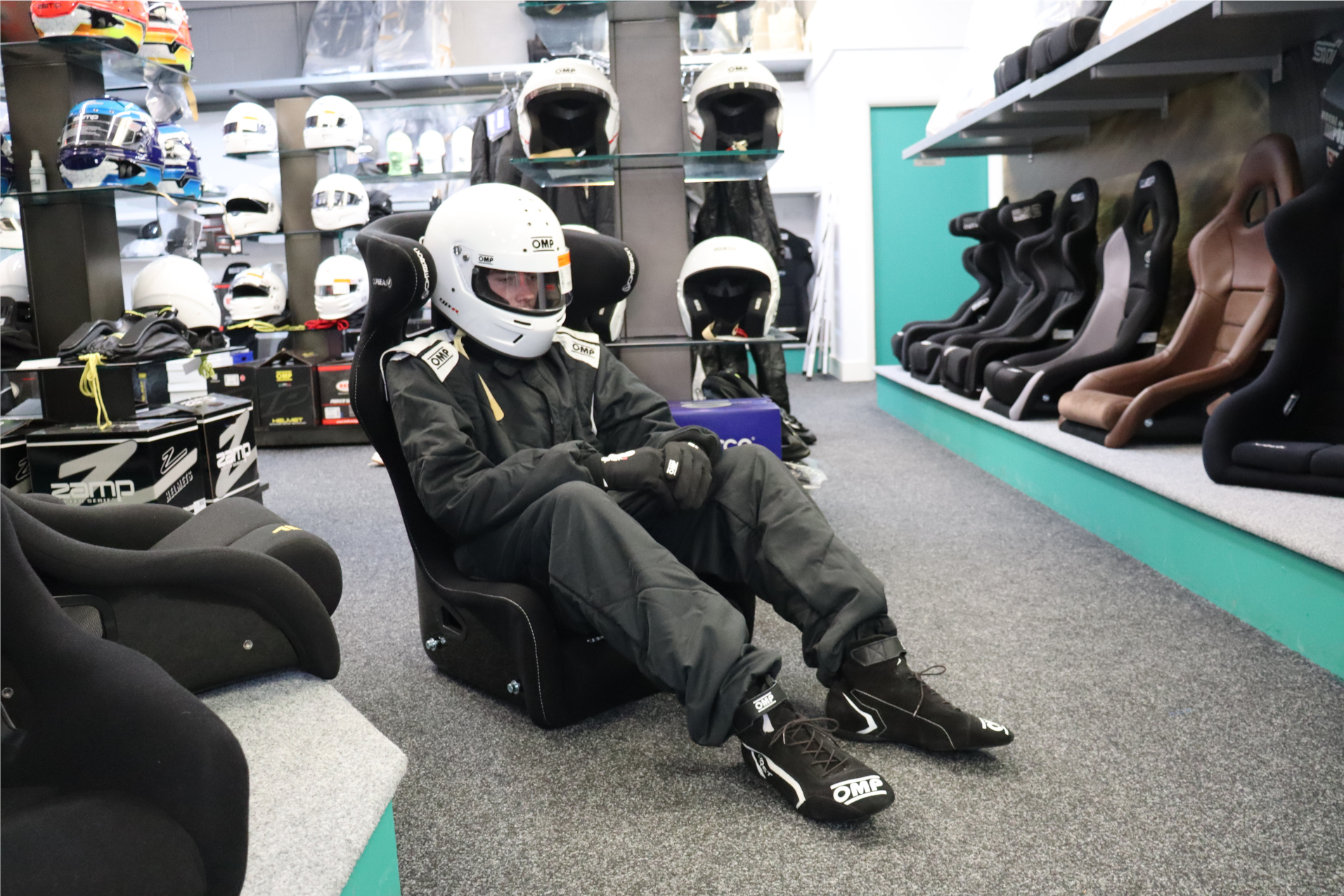

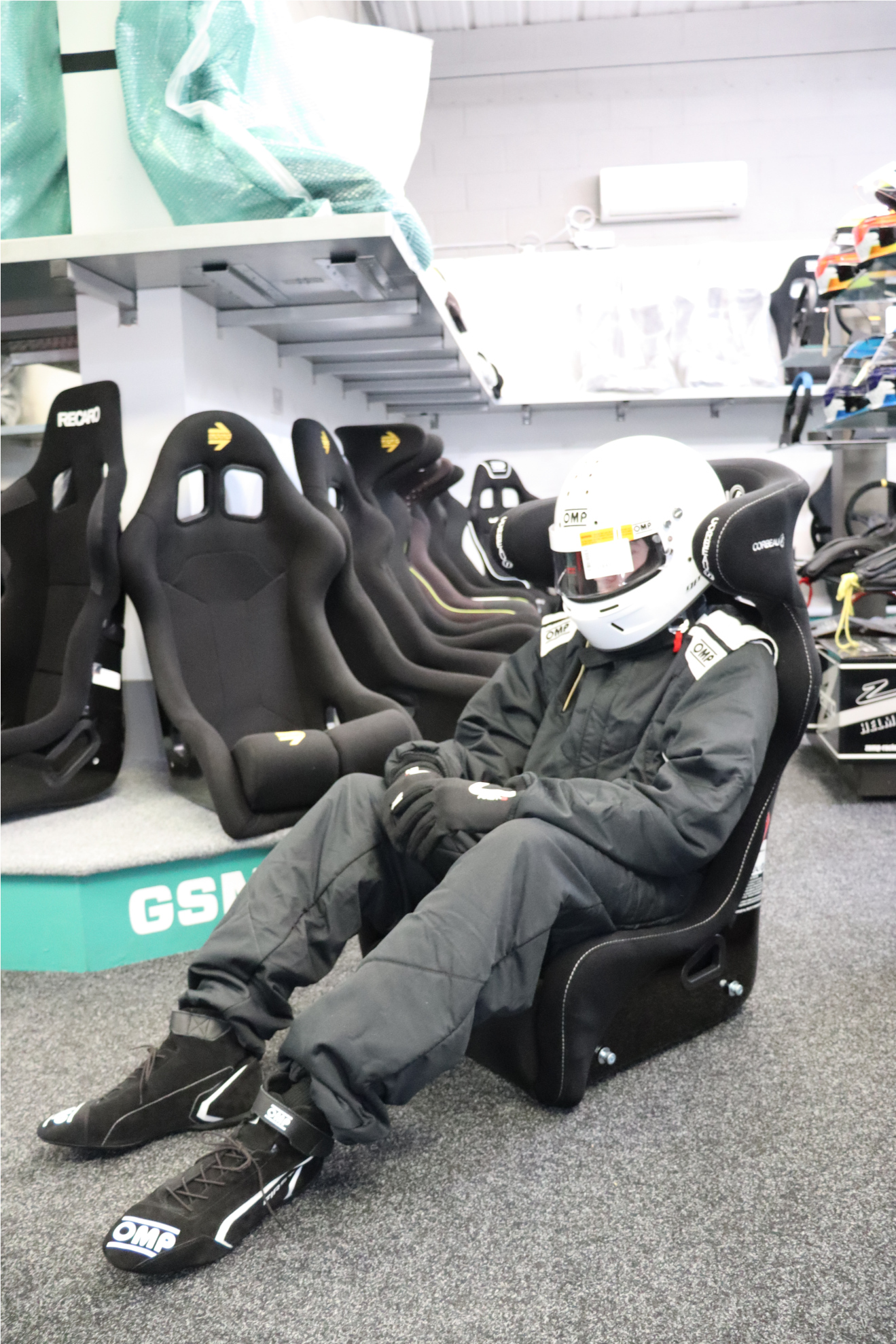

The maker sizes this seat for drivers with a 36in to 40in waist. Those are the paper numbers; how a seat actually feels to sit in and climb out of is a different question, and our showroom team sit in these seats every day, so call us with your height and waist and we will give you the honest answer.

Is it FIA approved, and for how long?
Yes, it carries FIA 8855-1999 homologation. Every FIA seat has a not-valid-after year printed on its homologation label, and that label date is what a scrutineer checks, so look at the label on the seat you receive and check it against your championship regulations. Buying new means you get the freshest label the maker currently produces.

What do I need to fit it to my car?
This is a side-mount seat: it hangs between side brackets, the motorsport-style stack with fine height and angle control. You will need the car-specific frame, and a sliding runner if you want fore-and-aft adjustment. Our guide on base mount versus side mount walks through the whole stack, and tell us your car and we will quote the full kit.

Does it work with harnesses and a HANS device?
The shell takes 4 point compatible and 6 point compatible. If you are planning the full seat, harness, and HANS setup, tell us the car and we will spec it end to end.

How do I know it will feel right, not just fit on paper?
Fair question, because makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike in the car. We keep the ranges on display in the Nottingham showroom, you are welcome to come and sit in them, and if you cannot get to us, call and describe your build, as the team sit in these seats every day. Our head support measurements guide shows the kind of real-world data we collect.

Availability

Corbeau seats are handcrafted here in the UK

FIA bucket seats are built to order, typically 3 to 7 days from the day you order. Kevlar and carbon shells take longer, so ask us if you are working to a date.

Reclining sport seats are also made to order in your chosen trim, and run to a similar timescale.

Made to your specification

Seats built to a specification you have chosen are made for your order, so our special order terms apply once production has started.

Tell us the car and how it is used and we will confirm the right shell and trim before you commit.
