Customer Car: BMW E39 With Bucket Seats Fitted Using Planted Technology Subframes

Customer cars, August 2025

One of our customers has upgraded the front seats in a BMW 5 Series E39, using Planted Technology seat brackets from us. The seats and runners came from elsewhere, but the brackets gave a strong, secure base that bolts straight to the car's own seat mounting points.

The E39 is a big car inside, so there was plenty of room for the new seats, and the brackets let our customer keep the factory seat belt buckles. It was not entirely without a snag, and our customer's notes on that are useful for anyone planning the same job.

  • Car: BMW 5 Series E39
  • Brackets: Planted Technology SB186 for the E39 (1995 to 2003)
  • Seats and runners supplied by the customer
  • Factory seat belt buckles kept, using tabs on the brackets
  • Two holes drilled in each bracket to suit the customer's runners

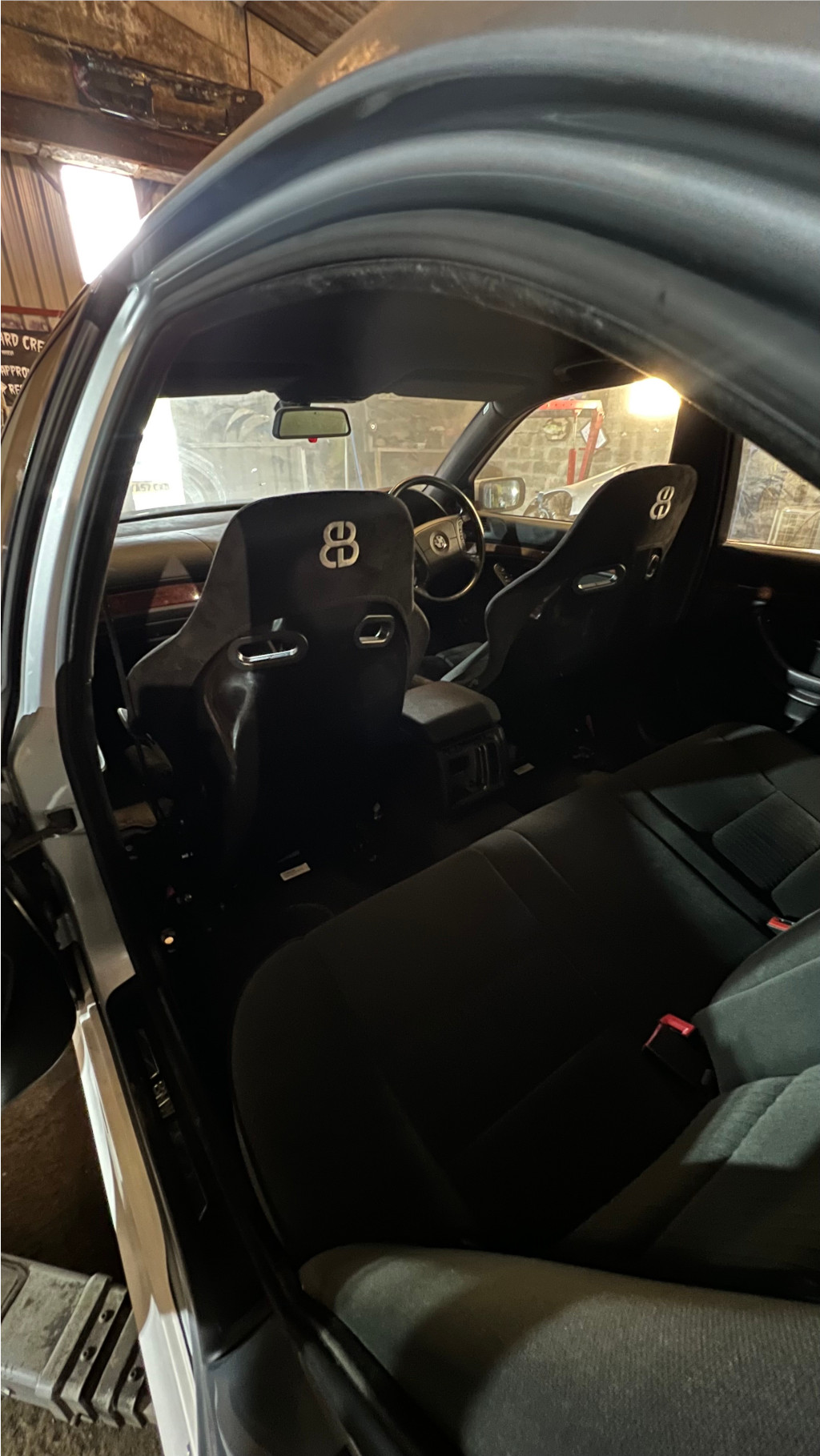

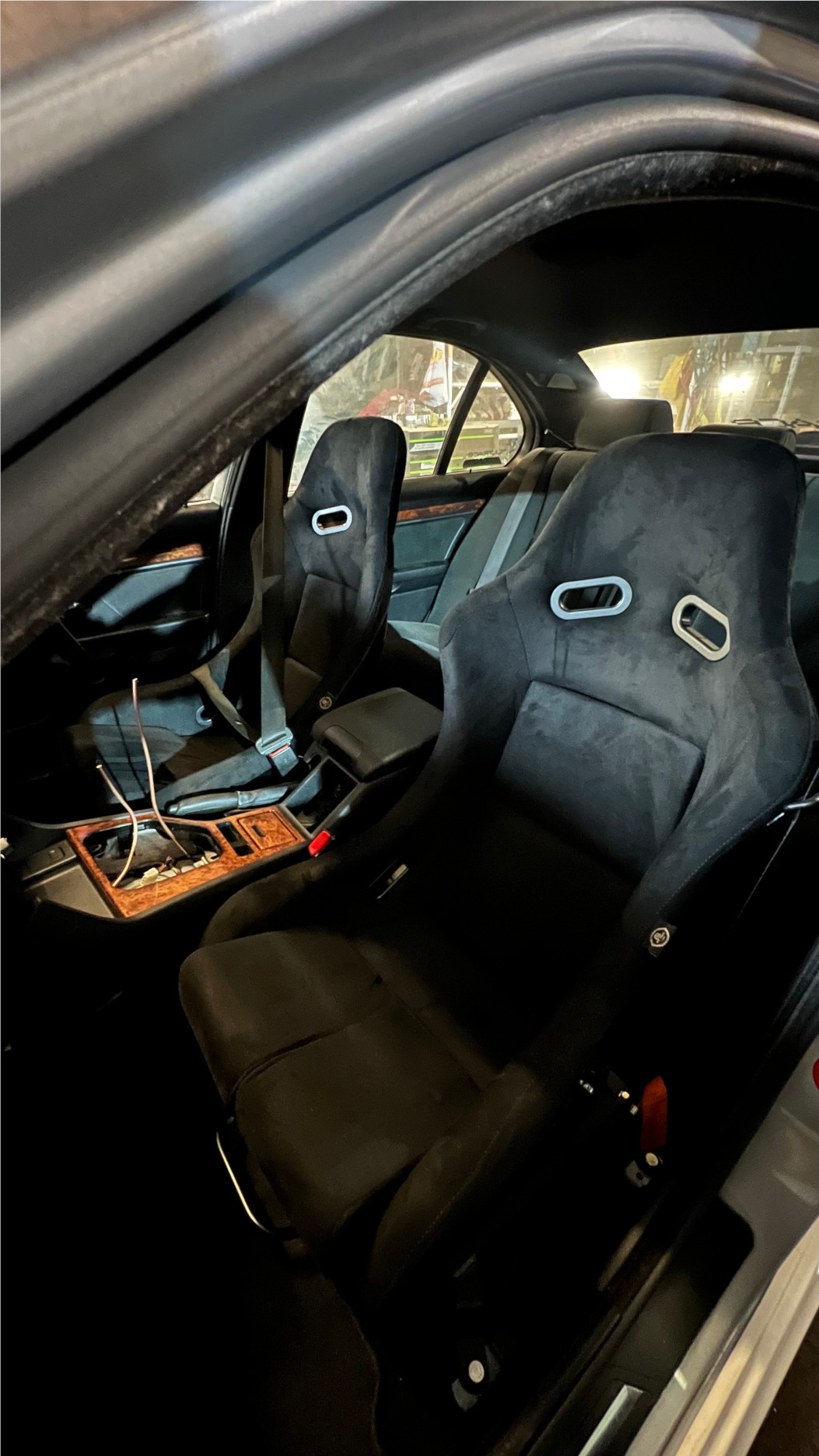

Two black suede-trimmed bucket seats fitted in the front of a BMW E39 5 Series, seen through the open door
Our customer's BMW E39 with the new bucket seats on Planted Technology brackets.

Why Planted Technology brackets?

Planted Technology brackets are made for each car, so they bolt to the factory mounting points in the floor with no cutting or fabrication. For the E39 that is part SB186, which covers the car from 1995 to 2003. The E34 before it and the E60 after it use different brackets, so the chassis code is what decides the part.

Planted brackets are drilled for the common aftermarket patterns, 291mm, 345mm and 405mm, so the same bracket can take a compact recliner or a wide bucket, depending on the runners or side mounts you put on top. They also have tabs for the car’s factory seat belt buckle, so a road car can keep its standard belts. They are steel, finished in black powder coat.

Here is the bracket in the car. It bolts to the E39's standard mounting points, and you can see the raised tabs at the corners.

The E39's cabin is roomy, so shell width is less of a constraint than in a 3 Series. What matters more is how far back you end up once a bucket seat goes in, as the steering wheel is set fairly far forward. Tell us your height and we can talk it through.

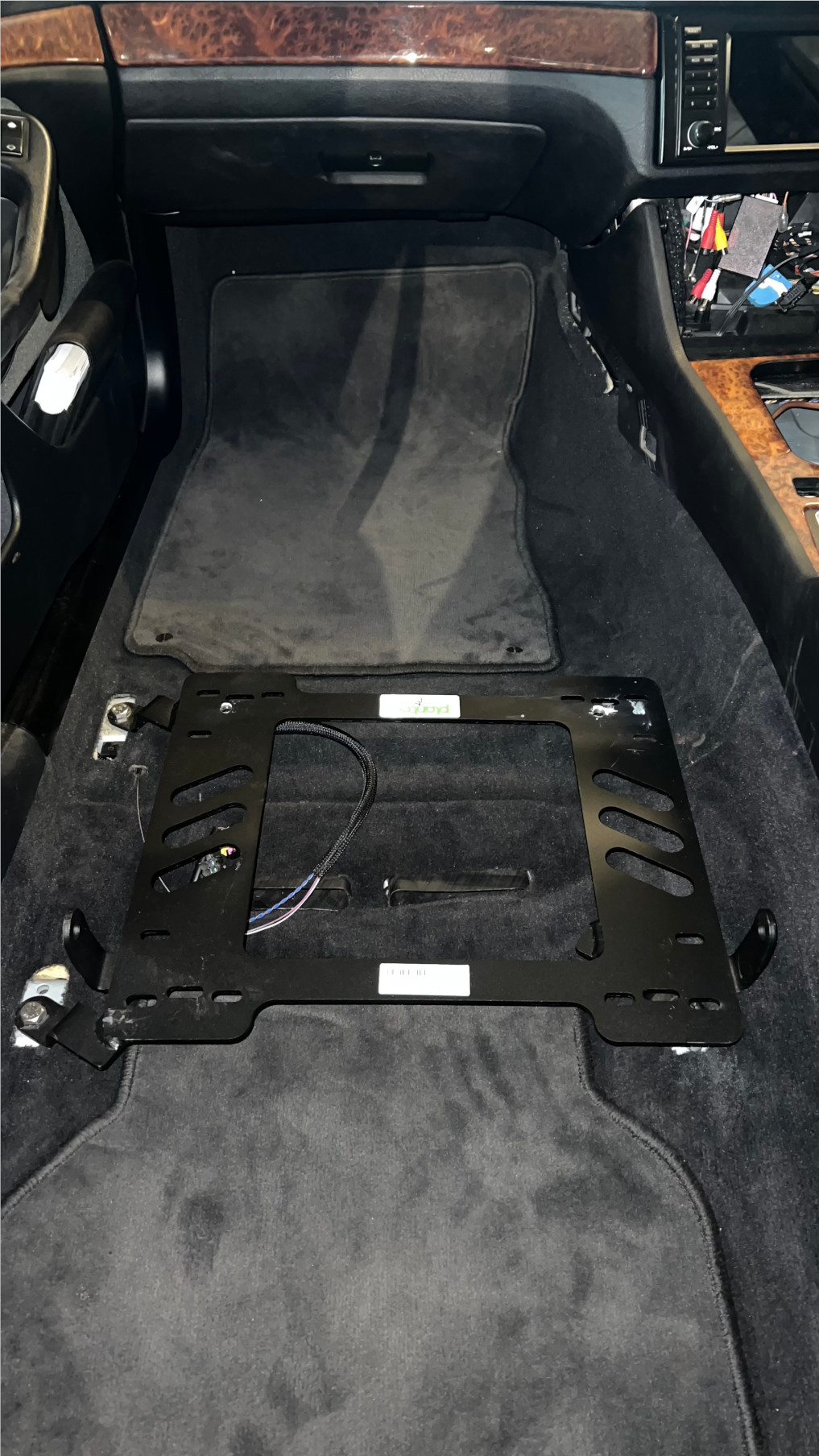

A black Planted Technology seat bracket bolted to the floor mounting points of a BMW E39, with the seat wiring passing through the middle
The Planted bracket bolted to the E39's floor mounting points, before the seat went on.

Our customer's notes

Our customer sent us these notes after fitting:

“The seat brackets work great and fit perfectly, only thing I had to do is drill two holes up front in each bracket as my seat rails were about 1cm shy of reaching the holes in the rails, other than that everything was perfect and also they were very easy to install. Love the fact that they have ears to accommodate the standard BMW buckles and seat belts, as that made it so much simpler to install as well.”

The runners our customer used were just short of the bracket’s holes, so two extra holes were needed at the front of each bracket. That can happen with runners of a different length. The simplest way to avoid it is to choose runners or side mounts that match the bracket’s patterns and your seat, and to ask us if you are not sure before you start.

Runners and side mounts for Planted brackets

The right runner depends on your seat’s base pattern, and the brand matters too, so match the runner to the seat as well as to the bracket:

  • 291mm: Cobra 291 seat sliding runners, for Cobra base-mount seats
  • 345mm: Sparco seat sliding runner kit, for seats on the 345mm pattern
  • 405mm: Corbeau 405mm seat sliding runners, for Corbeau seats on the 405mm pattern

For a side-mount bucket seat, side mounts go on top. The Endurance Motorsport steel M8 side mounts and multi-point M8 side mount brackets both give plenty of holes for adjusting the seat’s height and tilt.

Our seat bolt patterns guide maps the patterns across the brands we sell, and our guide to universal seat sliding runners explains the runner options.

Before you start

The E39 is getting on, so lift the carpet and check the metal around the seat mounting points before you order. Many E39s have side airbags and occupancy sensing in the seats, so tell us about those before the old seats come out. And if the car is an M5, keep the original seats and their fixings safe and labelled, as a matching pair is not cheap to replace.

A worthwhile upgrade

We only supplied the brackets for this E39, but they show how one good part makes the rest of the job easier: a solid base on the car’s own mounting points, with the factory belts kept. Apart from the small tweak for the runners, our customer found it straightforward. If you are planning something similar for an E39, or any car Planted cover, Garreth and the team can help you put the full set of parts together.

Part SB186, for the E39 5 Series from 1995 to 2003.

Yes. The brackets have tabs for the standard BMW belt buckles.

The runners they used were about 1cm short of the bracket’s holes. Choosing runners that match the bracket and seat avoids this.

They are drilled for the common 291mm, 345mm and 405mm patterns, with runners or side mounts on top to suit your seat.

💬
The base of the jobPlanted SB186

A bracket made for the E39 that keeps the factory belt buckles.
