Hundreds Of Products Ready Today. Dispatch/Collection Sparco seat brackets: what do you actually need?
Start at the car floor and work upwards. The vehicle frame, runners, side mounts and seat each have a different job. A part can match one interface and still be wrong for the next, which is why Garreth and Cameron ask for every part number before saying yes.
Sparco sells vehicle-specific frames, runners and several kinds of support, but the name on all three parts does not remove the need to check the exact seat. Check the exact listing for what is included, confirm whether the seat is base or side mounted, and count the parts per seating position. Do not order from a brand-wide bolt-pattern table.
Bolt width does not confirm front-to-rear spacing, thread, runner travel, handle clearance, seat height, belt-buckle position or structural suitability. We have removed the old blanket pattern table because it turned one measurement into a fitting promise.
Build the full fitting stack
Write down the owner and part number of each layer.
Vehicle floor and original fixings
Confirm the exact model, year, body style and seating side. Look for captive nuts, original cross-members and anything shared with the belt buckle.

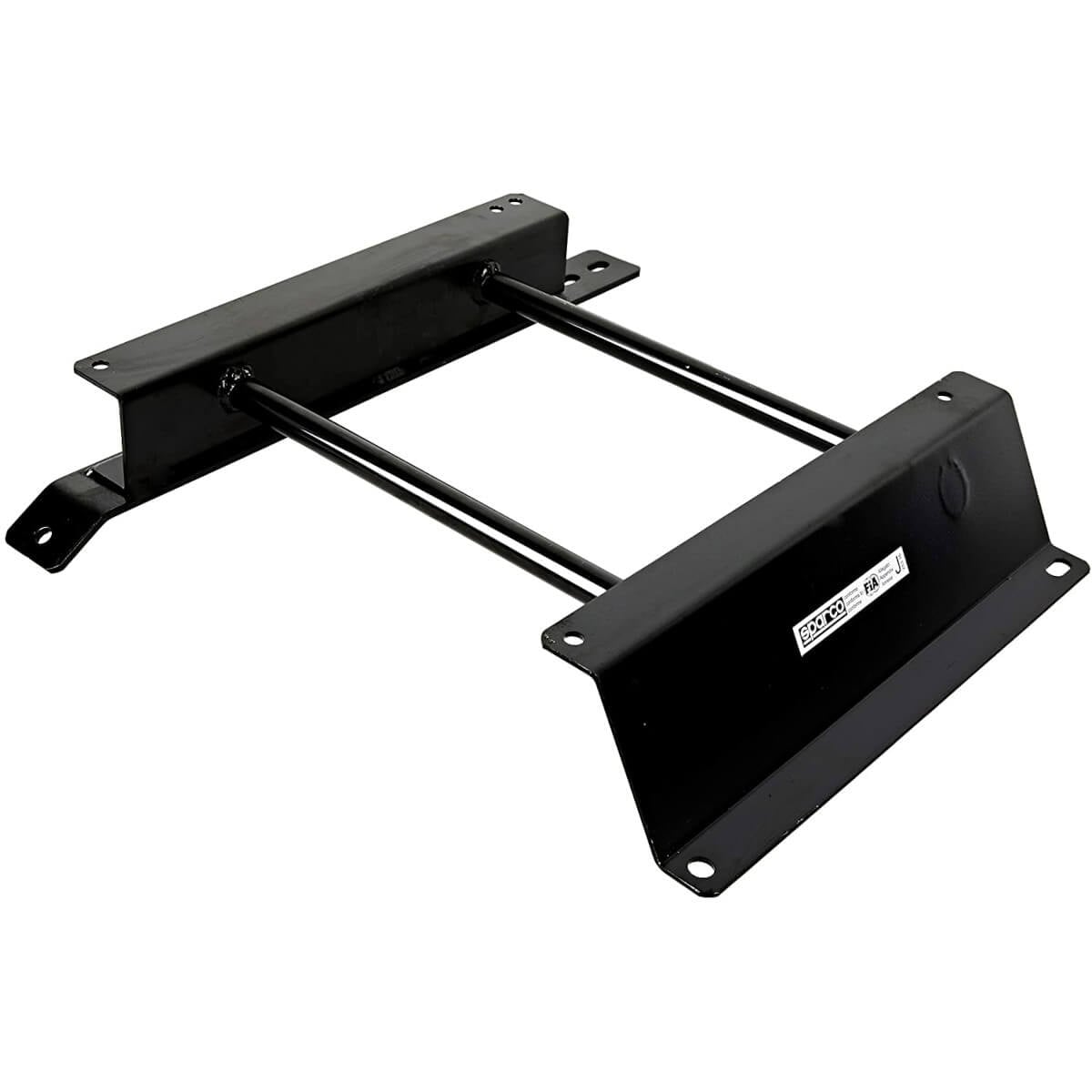

Vehicle-specific frame
This bridges the original floor points to the aftermarket system. It may be a complete frame or a set of adaptor brackets, so the product photograph alone is not enough.
Runners, if used
A runner set gives one seat fore-and-aft adjustment. Check the kit contents, hole centres, locking action and handle clearance.
Side mounts, if required
A side-mounted shell needs a left and right bracket around that one seat. Confirm the permitted supports and their adjustment range.
The exact seat
Finish with the manufacturer drawing, mounting type, thread and dimensions for the actual model and version.
Some kits combine two layers or reuse an original runner. That is fine where the instructions say so. The point is to identify every interface, not to force every car into the same diagram.
Base mounted or side mounted?
Look at the seat instructions and shell, not the upholstery name.
Base-mounted seat
UnderneathThreads or mounting points in the seat base- May bolt to runners or an approved fixed base
- Common on reclining seats and some steel-frame buckets
- Still needs the exact width, length, thread and clearance checked
- Not proved by calling the seat a recliner
Side-mounted seat
Both sidesHorizontal threads in the shell sides- Needs a left and right support for each seat
- Supports set height, recline and fore-and-aft position
- May use runners beneath the side mounts where permitted
- Generic brackets are not approved for every shell
Some seats offer both routes, but that does not make every combination interchangeable. Use the route permitted for the event and the vehicle frame. A conversion bracket adds another interface and needs the same checks as everything else.
What is specific to Sparco
Separate the vehicle application from the seat interface.
01Vehicle frames
Choose by exact car, year and seating side. Sparco may supply a complete frame or an adaptor arrangement depending on the vehicle.
02Sliding runners
One runner set serves one seat. Confirm the mounting centres, handle, travel and whether the vehicle kit already includes it.
03Side supports
Steel and alloy options have different hole ranges and heights. Check the seat homologation and final driving position.
The old guide treated 345 mm as the answer for every Sparco base-mounted seat and roughly 290 mm as the side-mount answer. Those figures may appear on individual products, but Cameron checks the drawing for the exact seat and runner. Current ranges and revisions are not a safe place for one permanent brand-wide number.
Count everything by seating position
Most incomplete orders are one frame or one pair of side mounts short.
| Part | One base-mounted seat | Two base-mounted seats | Two side-mounted seats |
|---|---|---|---|
| Vehicle-specific frame | 1 | 2, normally one per side | 2, normally one per side |
| Runner set, if used | 1 set | 2 sets | 2 sets if the design uses sliders |
| Side mounts | None | None | 2 pairs, one pair around each seat |
| Seat | 1 | 2 | 2 |
| Buckle or approved bracket | Check 1 seating position | Check both sides | Check both sides |
Driver and passenger frames can be handed, and the options on one product page can lead to different parts. Add each side deliberately. Do not assume quantity two of a driver-side selection turns one of them into the passenger part.
A product described as a pair of side mounts normally contains the two brackets needed around one seat. Two side-mounted seats therefore need two pairs unless a complete two-seat kit explicitly says otherwise.
Check the restraint system and the road car
Seat fitment is not isolated from the belts, airbags or driving controls.
Check before ordering
- Seat label and permitted supports
- Buckle and pretensioner mounting
- Occupancy and position sensors
- SRS warning implications
- Final height, eyeline and helmet clearance
- Harness routes and anchorages
Stop rather than improvise
- Holes do not align
- Frame rocks on the floor
- Runner will not lock on both rails
- Buckle sits behind a high bolster
- Wiring would be cut or bypassed
- Seat or shell touches hard structure
The DVSA MOT manual checks the security of the driver’s seat, required belt mountings, buckle operation, pretensioners and the SRS warning. Passing an MOT does not approve an improvised competition installation, but these checks cannot be left until test day.
Checked against the DVSA seat-security checks, the DVSA restraint checks and the current FIA seat lists on 4 August 2026.
Sparco fitting equipment examples
Use the part page for the current kit contents and applications. These examples do not make a universal fitting kit.
Common Sparco bracket questions
Will a Sparco frame fit a seat from another brand?▾
Do not assume it will. A vehicle frame is designed around a particular range, mounting route and position. Give us the frame part number and the exact seat. If the listing or manufacturer does not approve the combination, matching-looking holes are not enough.
Do I need runners?▾
Only if you want or need fore-and-aft adjustment and the chosen frame and seat accept them. Some vehicle kits include runners, some reuse part of the original assembly and some need a separate runner set. Read the exact kit contents.
How many parts do I need for two seats?▾
Normally two vehicle frames, two runner sets if sliders are being used, and two pairs of side mounts if both seats are side mounted. A pair of side mounts usually supports one seat, one bracket on each side.
Can I drill the frame or elongate a hole?▾
Stop and check first. Do not treat drilling, slotting or bending safety hardware as a normal fitting step. Ask the manufacturer or have the complete installation assessed by a competent vehicle fabricator.
How do I measure a bolt pattern?▾
Measure centre to centre between the relevant threaded holes, then check front-to-rear spacing and thread size as well as width. Measure the actual seat or use its current drawing; do not rely on a brand-wide number from an old guide.
Can I keep the factory seat-belt buckle?▾
Often it needs a model-specific bracket or approved mounting point. Check buckle height, belt path, pretensioner wiring, occupancy sensors and the SRS warning before the original seat comes out.
Are side mounts FIA approved?▾
Approval depends on the exact seat, support and regulations. Newer and advanced FIA seat standards can specify the supports homologated with the seat. Read the technical-list entry and the seat instructions.
What should I send for a compatibility check?▾
Send the car make, model, year and seating side, plus links or part numbers for the seat, vehicle frame, runner and side mounts. Add photographs if any original part is being reused.
We will check each interface
Give us the Sparco seat, frame, runners and side mounts, plus the car year and seating side. Garreth or Cameron can then tell you what joins up and what is still missing.
