Tillett B9 Carbon Race Car Seat

From £2,275.56 Incl. VATFrom £1,896.30 Excl. VAT

Seat Cover Options

Headrest + Back & Cushion Panels

Headrest Cushion Only

Rolled Edges Option

43cm Width with rolled edges cut off

44cm with rolled edges left on

Clear

Tillett logo colour

Found this product at a lower price?

Add to wishlist

Size/Fitting guide

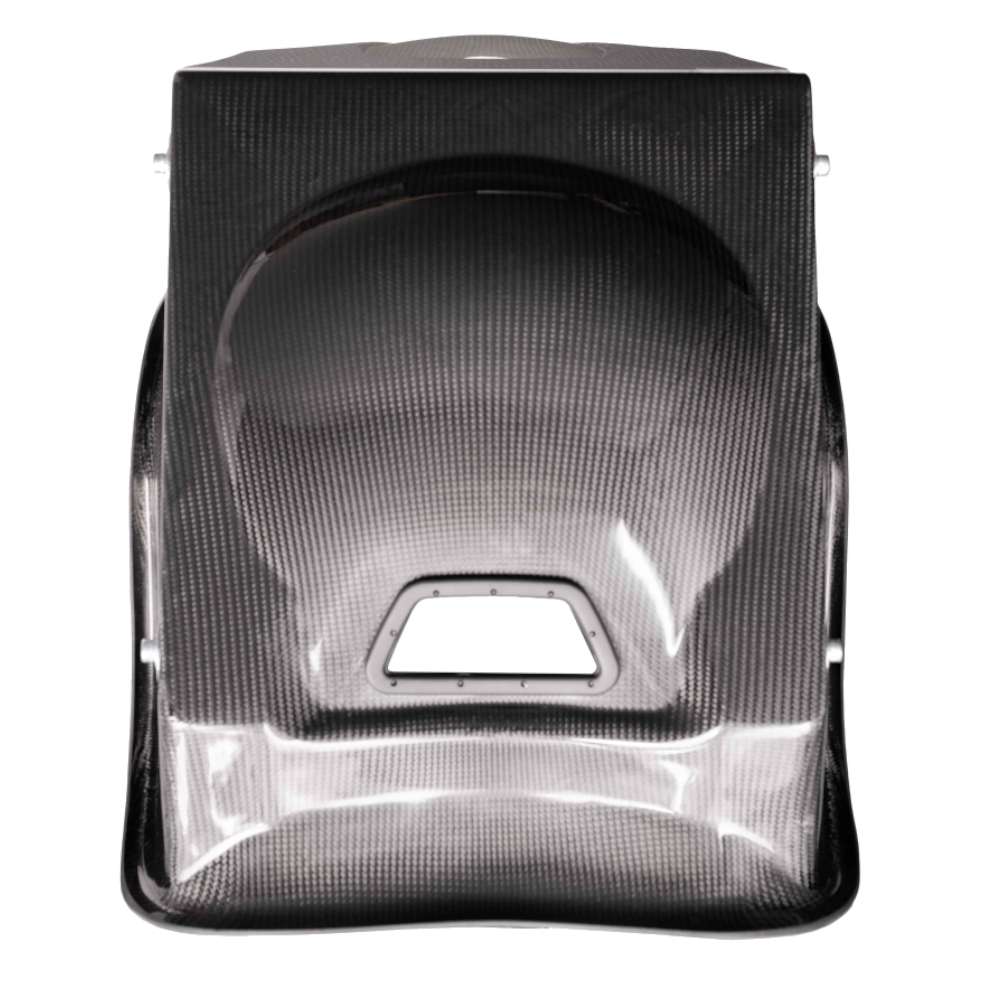

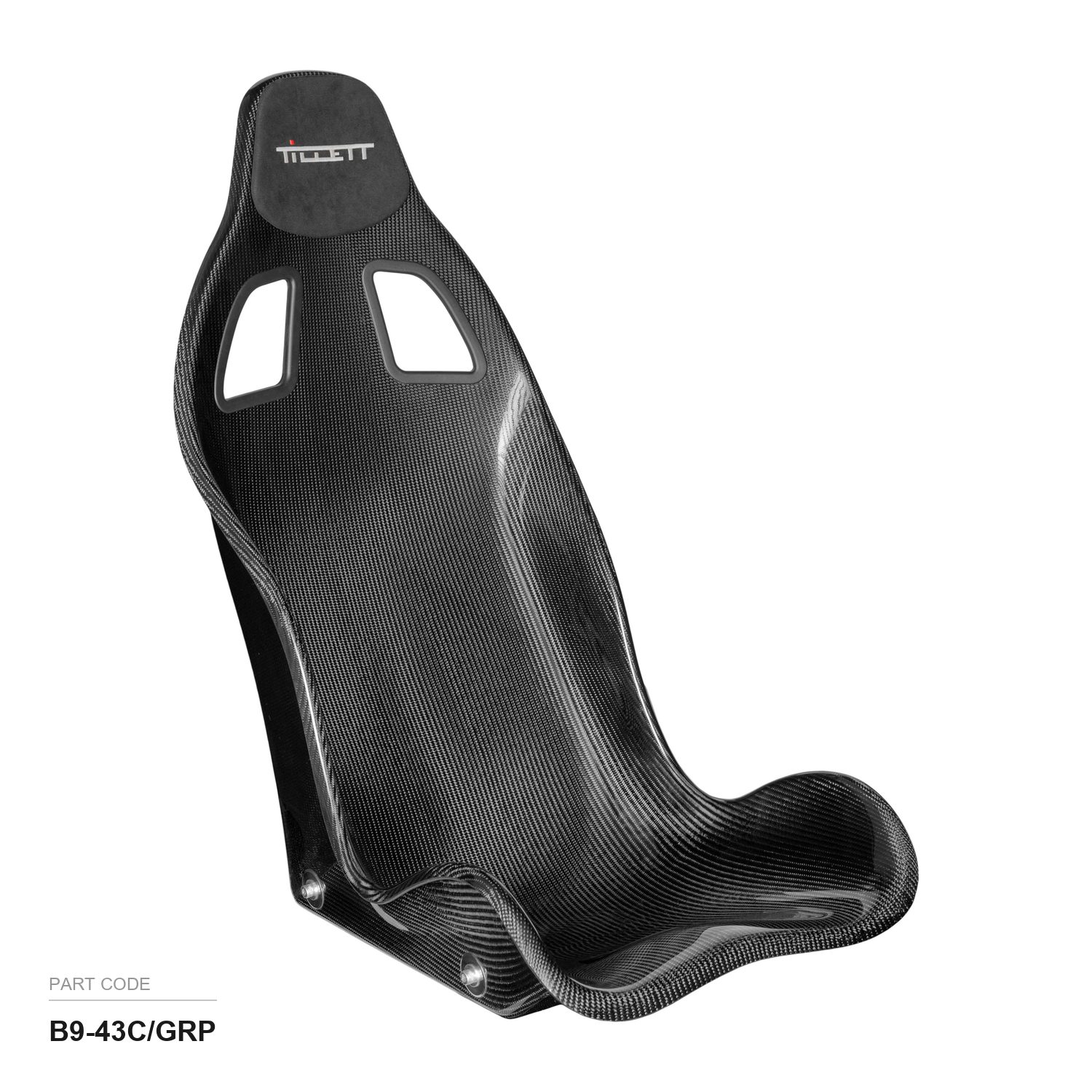

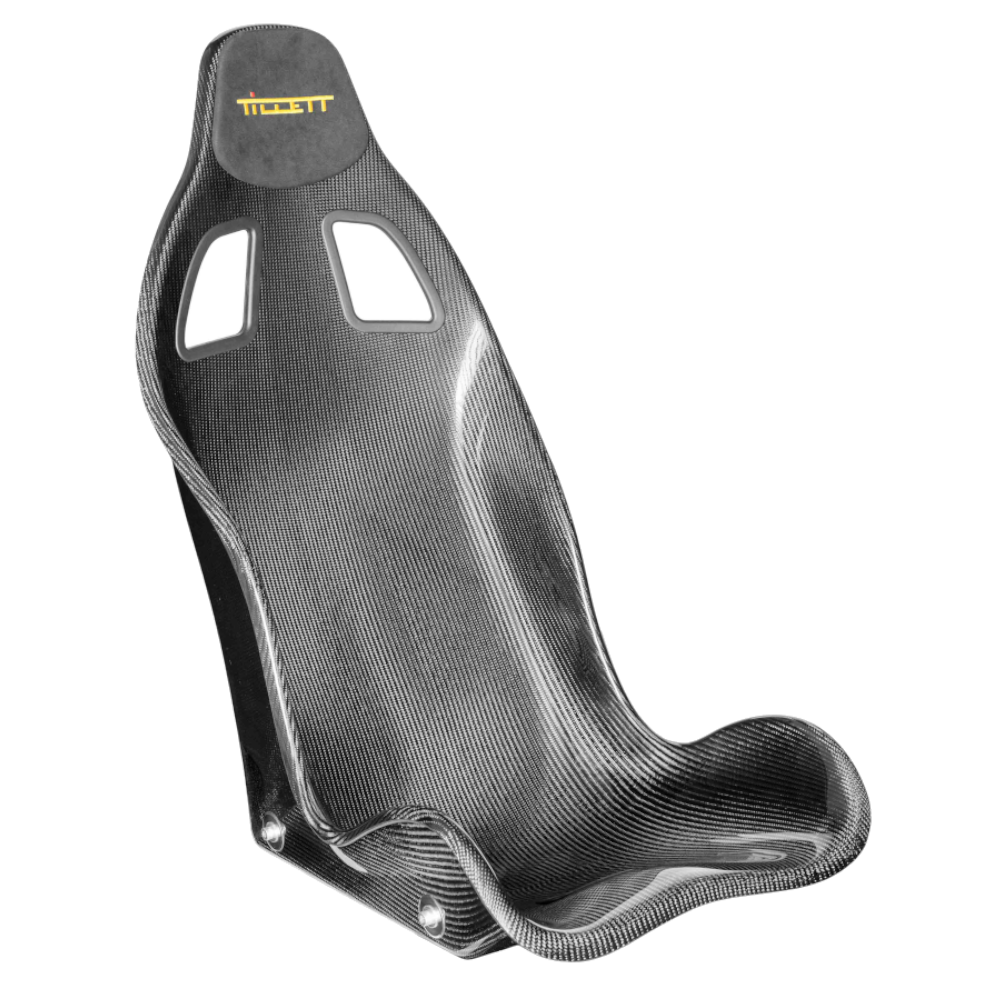

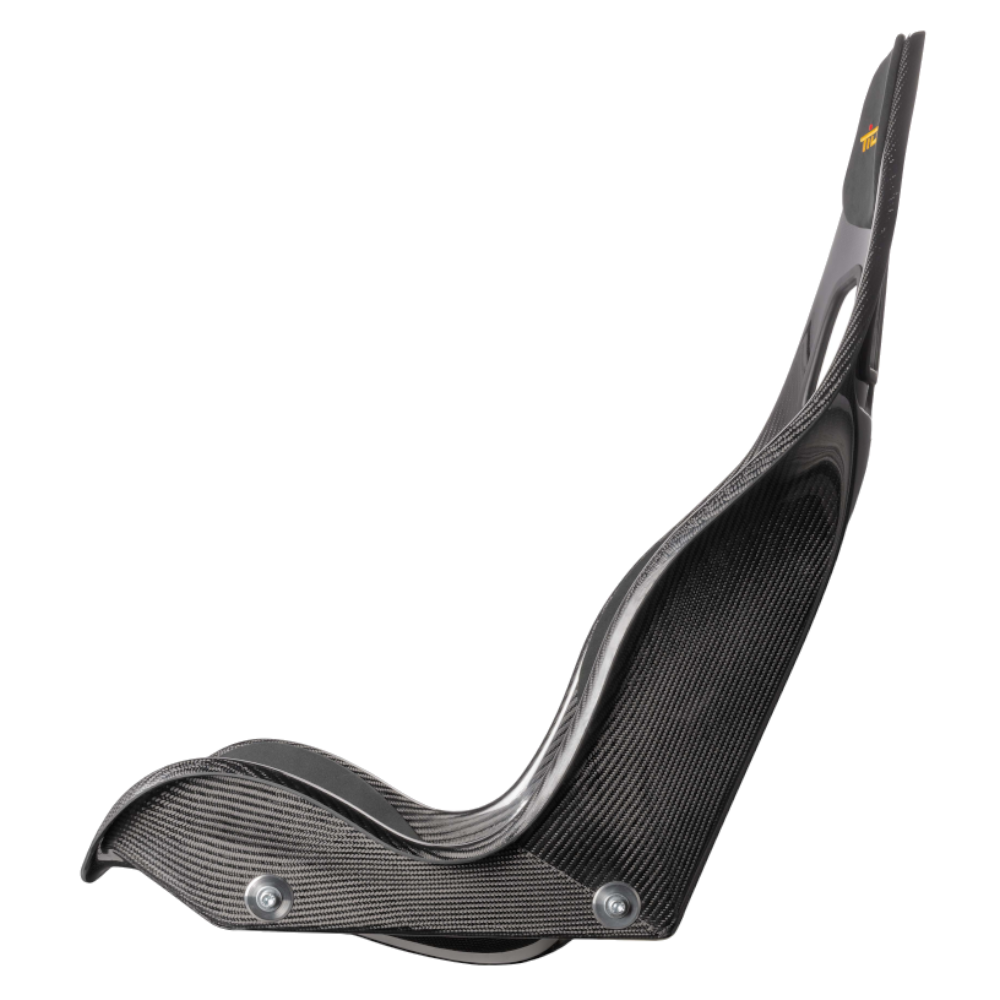

The B9 is a lightweight carbon fibre road or track seat with a beautiful high gloss finish. The B9 model updates the popular B1, which was first released in 2002. The B9’s twin moulding construction is rigid, strong and super lightweight at 3.35 kg. New updated side mounting points, as used on our FIA homologated seats, add to the strength and the new shape allows the use of all our 2° bracket sets. This strength and adaptability make the B9 ideal for a cockpit without a bulkhead, benefiting from the additional strength.

The new option of a narrow-cut B9-43 will suit cars with restricted cockpit space, such as the Elise/Exige. The body contact area on the B9 is so carefully sculptured it is comfortable without padding, making the seat ideal for open-topped sports cars. The millimetre perfect ergonomic shape gives ultimate feel and feedback, essential in a performance seat.

Not FIA approved

Key Features:

Ultra-lightweight bucket seat.
Approximate weight of 3.2 Kg.
Ideal for use in saloon cars.
When being used for Lotus Elise/Exige the “edges off” option must be selected.
Swept away hip area allows for either a standard 3-point seat belt, or full racing harness.
Body mirroring shape.
20° Hans device compatible.

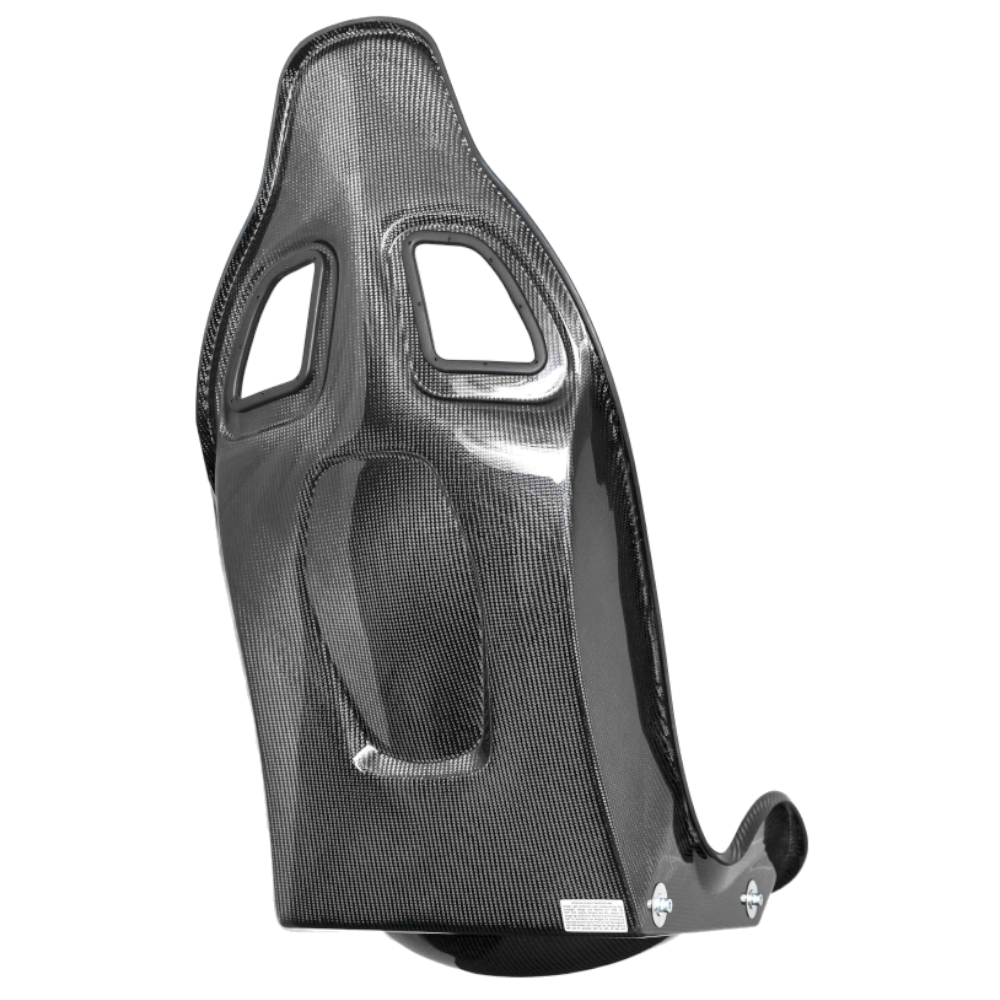

The rigid twin moulding construction makes the seat safer, whilst also offering excellent driver support and feedback.

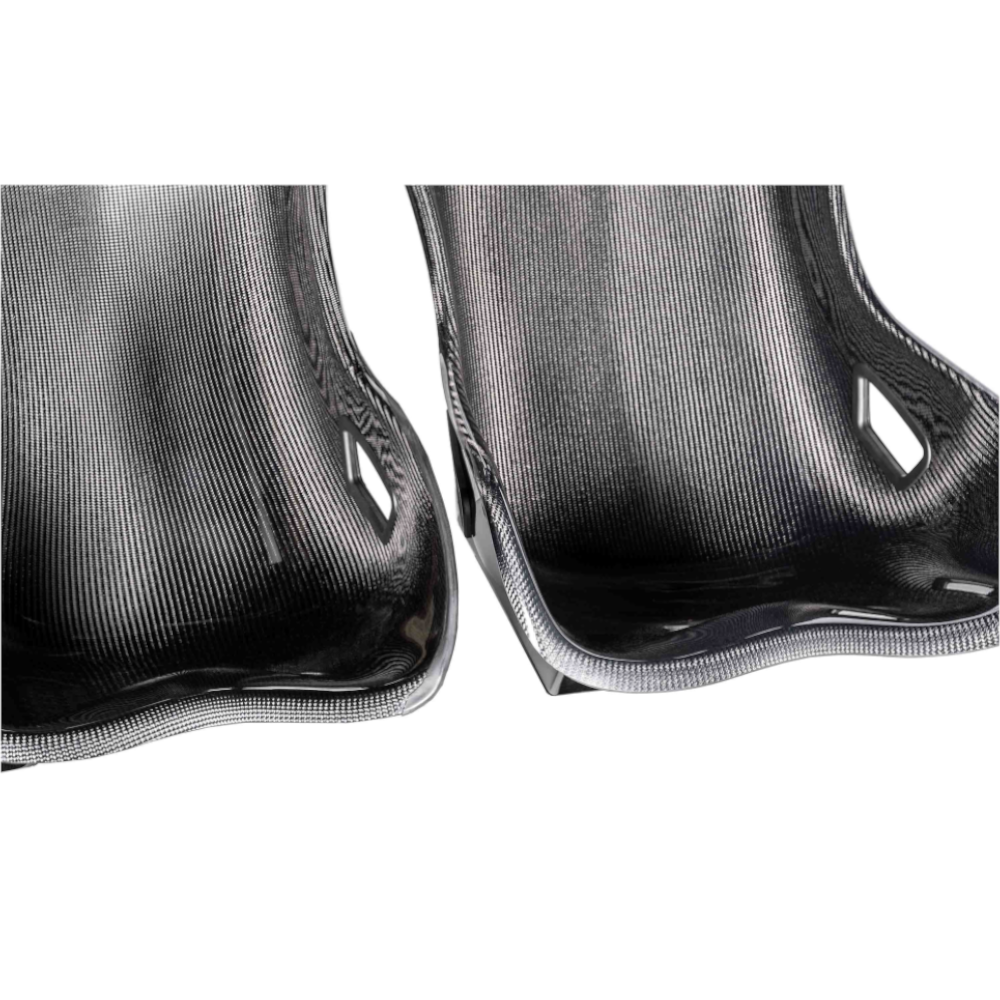

Two edge cut options for reducing external widths across the leg area, “edges on” 44.5cm or “edges off” at 43cm.
Uses the same specifications as other Tillett high strength FIA approved seats.
The B9 is comfortable to use with or without padding.
Comes as standard without padding.

Weight	3.75 kg
Brand	Tillett Seats
Brackets included	Seat only
Coloured Shell	Carbon
Construction	Carbon Fibre seats

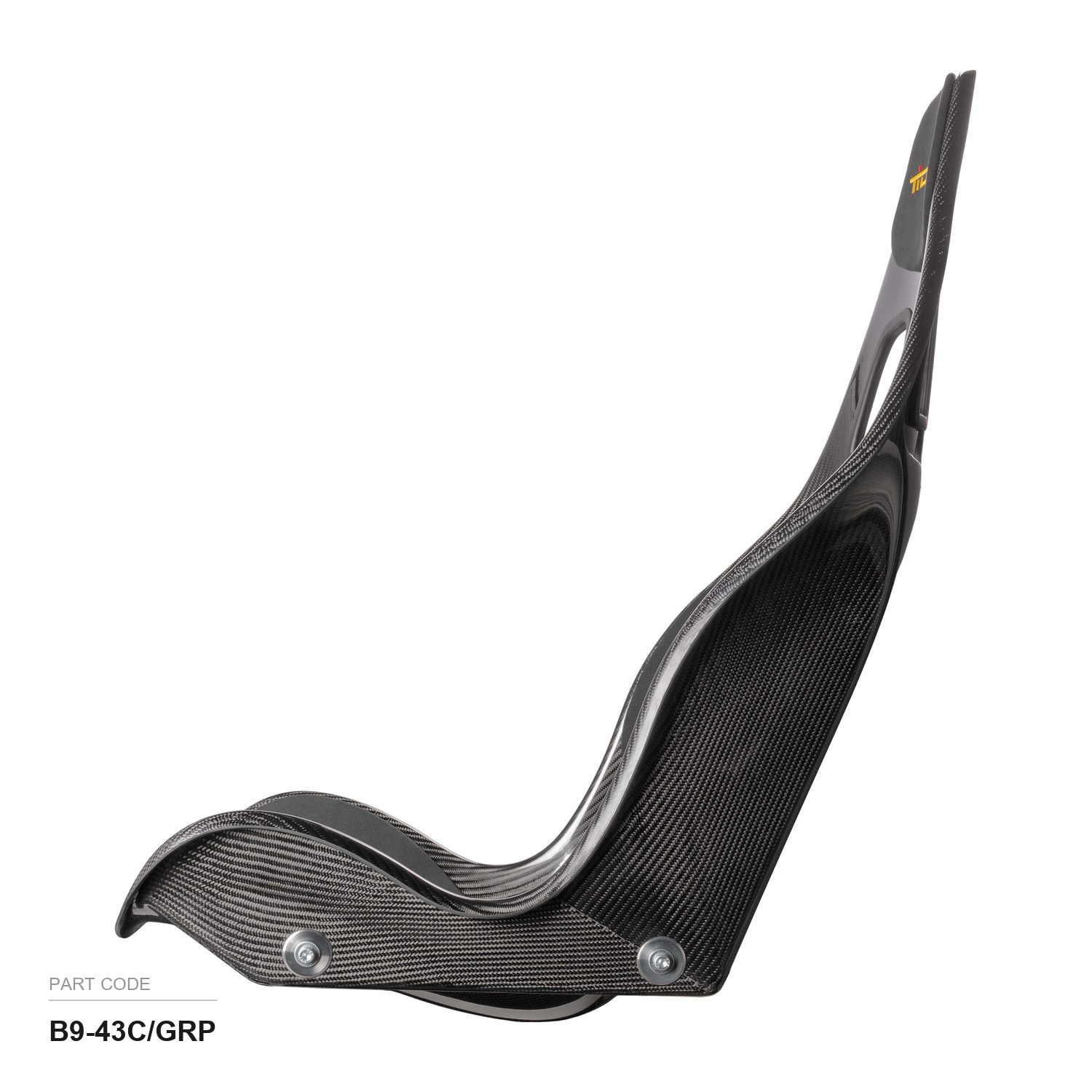

Fixing Type	Base Mount, Side mount
Harness compatibility	6 point compatible
Mechanism Type	Fixed Back Seats
Product Colour	Black
Protection Type	No head support

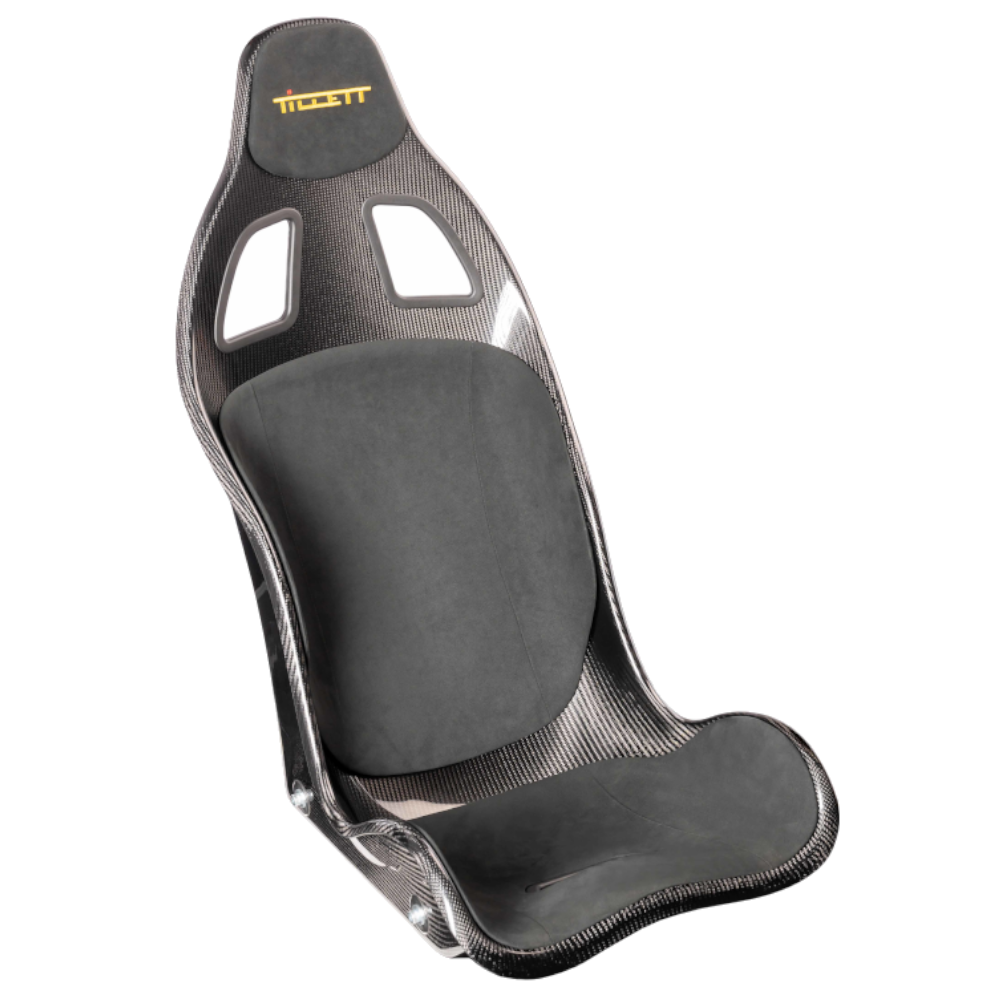

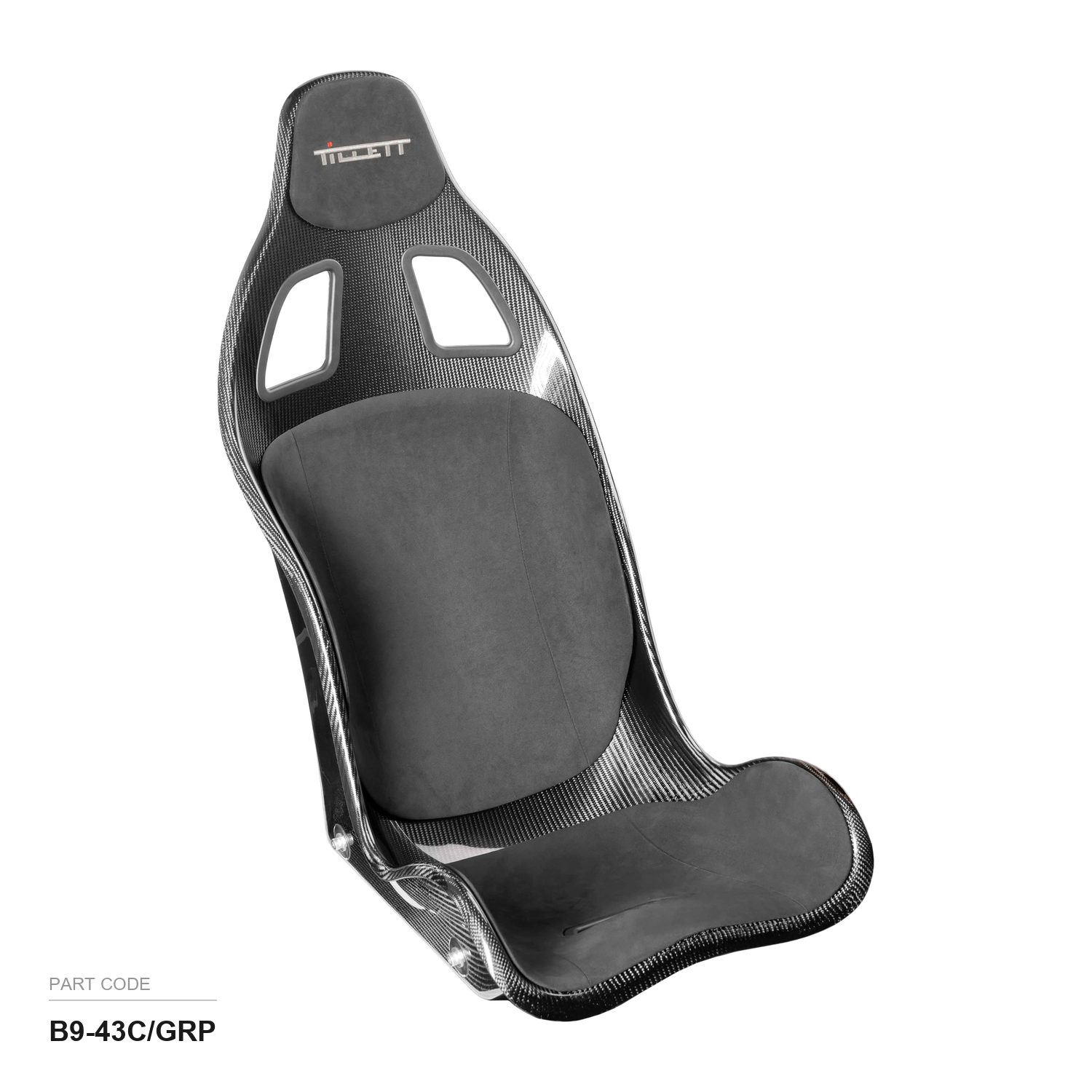

Seat Cover Options	Headrest + Back & Cushion Panels, Headrest Cushion Only
Rolled Edges Option	43cm Width with rolled edges cut off, 44cm with rolled edges left on
Approval	Road & Track

In-store displays:

We have a premium range of over 125 seats from brands including: Bimarco, Cobra, Corbeau, Sparco, OMP, Recaro, GP-Race, and Bride to name just a few brands we work with.

Alongside this, we also stock and display HANS devices, harnesses, race-wear, race-suits, FIA helmets and various other safety equipment. If you are looking to visit us to see and try any particular seat or product, please contact us in advance and we’ll be happy to help.

In-Store appointments:

Due to the specialist nature of our services, we do ask that you please contact us in advance to book an appointment. We have multiple slots available each day including selected availability at the weekend.

Working by appointment allows us to dedicate our time with you and provide a personal and professional service. We’ll always ensure you leave with the right equipment for your needs.

Slice it in 3: (option 1)

Available on orders over £50.00

Spread the cost in 3 equal card payments.
No fees, no interest and no credit check. No impact on your credit score!
Simply add your products to your basket and checkout.
Choose Slice it in 3!

Pay later finance: (option 2)

Available on orders over £300.00

Spread the cost of your purchase into equal monthly payments.
Available over 12, 24 or 36 months at just 12.9% interest
Simply add your products to your basket and checkout.
Choose Klarna finance!

Fast delivery lead times:

If you require fast delivery, please contact us in advance of ordering and we’ll happily check stock allocation and availability for you. We carry a large amount of stock at our showroom and across multiple distribution hubs. This allows us to provide immediate dispatch across a huge number of brands from Corbeau and Cobra through to Sparco and OMP. (Does not apply to all items)

Due to the niche market we work in, some products are custom hand made to order, or special order from manufacturers like PCI Racing and Planted Technology. If you want to know how fast a product will be dispatched. Simply drop us a message through our Contact us form.

Addtional lead time notes:

Quick dispatch: Stocked products are dispatched within 24-48 hours with Parcel Force.
Sparco roll cages: We can only deliver these to a registered (LTD) company address.
In-store collection: Please contact us in advance to book an in-store collection appointment.

Availability

Tillett seats are custom-made to order due to the specialist nature of the products. These stunning Carbon seats are handcrafted here in the UK. We do not currently stock or display them in our shop as they are special order items.

Current lead times: Tillett seats are currently average delivery times of 8-14 weeks due to hand demand and production capacity. Dispatch times vary and will depend on constantly rotating stock. Please contact us for precise lead times prior to order.

Need them fast? Please contact us in advance to check our stock and product availability. If we have excess stock of some models, we may be able to dispatch them within a shorter lead time. Speak to us in advance to find out how we can assist.

Off road seat size guide

Off-road seats are sized on your waist like any other bucket seat. What sets them apart is that head support is close to standard rather than optional, and that the range is split almost evenly between side mount and base mount.

Head support comes as standard hereNearly every seat in this range has an integrated headrest or includes one. Across our circuit bucket seat range it is closer to a coin flip. Rough ground moves your head about in a way a smooth circuit does not, and the seats are built accordingly.

Measure yourself sitting

1Sit on a hard, flat chairFeet flat, knees together, back straight. No cushion.

2Measure across your hipsThe widest point, side to side, sitting down.

3Measure in what you drive inOveralls and a jacket add real bulk. Take the wider seat if it is close.

Waist bands

Band	Notes
28 to 32 inch	Narrow. Ring us, the choice is very limited
32 to 36 inch	The standard size and most of the range
36 to 38 inch	A half step wider
36 to 40 inch	The wide shells
All sizes suitable	Generously cut, mostly the reclining ones

Around half of these suit all heights and a good number are listed as under six foot, so if you are tall, filter on height first. The tall end of this range is thin.

Fixed back or reclining

Most of these are fixed back and a smaller number recline. Fixed back is the right answer for competition and for anything where you are strapped in with a harness and staying there. Reclining suits a green laner, a trials car or anything you drive to the event, where being able to sit up and see out matters more than the last bit of lateral support.

Mounting

This range splits close to evenly between side mount and base mount, which is unusual. Our circuit bucket seats are overwhelmingly side mount and our road sport seats overwhelmingly base mount, so do not assume off-road follows either. Check the fixing type on the seat before you order any brackets.

Nearly all of these are sold as the seat only, so budget for brackets and a subframe on top. Our seat mounting and fixing points guide covers which is which.

Approval

Close to half of these carry FIA 8855-1999 and the rest are Road and Track. That is a much higher proportion of FIA seats than the road sport range, which reflects how many of these end up in competition cars. If you are running in a championship, check the approval on the product and check what your regulations require.

What to look for in a seat that gets used off-road

Drainage and trim

An open car and a wet field are hard on a seat. Vinyl and neoprene shrug off water and mud and wipe clean. Velour and suede do not, and they hold the smell of both. If the car has no roof, that decides it.

Getting in and out

High side bolsters are what stop you sliding around, and they are also what you have to climb over every time. In a car with a cage and a narrow door aperture, a slightly lower bolster is worth the small loss in support because you will be in and out of it all day.

Harness holes

Check the seat takes the harness you plan to run. Most here take a four point and a good number take a six point, and it is listed on every product. On rough ground the sub straps are what stop you sliding forwards under the lap belt, so a six point is worth having if the seat and the car allow it.

Tell us what the car doesCompetition, green laning, trials or a bit of everything, plus your seated hip measurement and whether the car has a cage. It changes the answer more than the measurement does. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Based on our product data for the off-road seat category, checked 2 August 2026.
