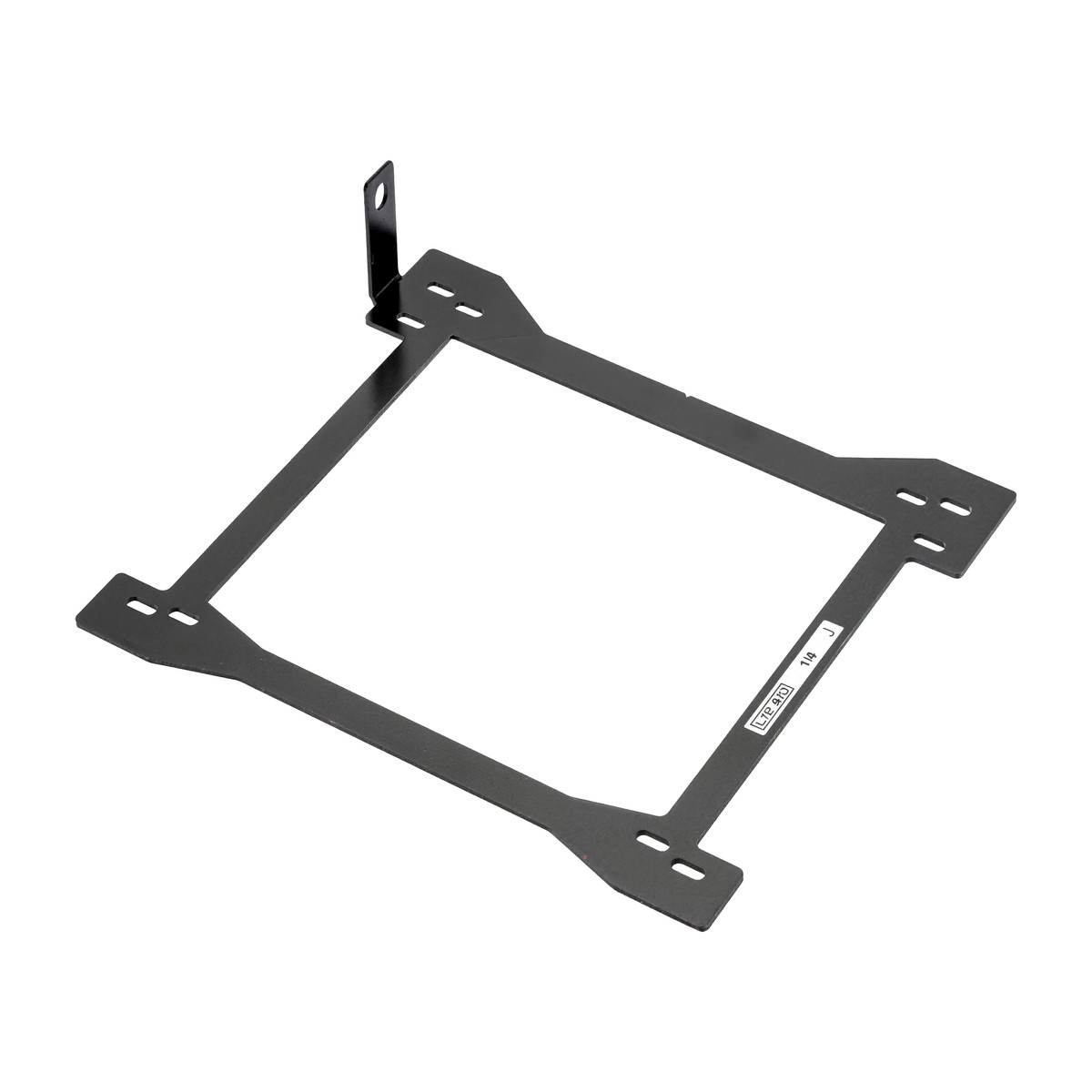

A Sparco direct fit sub-frame for the Porsche 911. Part number 00499112.
Read the year question first. The 911 has run for sixty years across generations that share a name and very little else, and the floor mounting points are not the same across them. Before you order this, send us the registration or the model year and we will confirm the frame is cut for your car. We would much rather answer that than have a frame arrive that does not line up.
Keep the originals
On a 911 the seats are worth money and they are worth keeping. A direct fit frame is a reversible installation: the factory seats and their runners come out intact and go back in when you sell the car or when it goes to a show. Fabricating brackets and drilling the floor is not reversible, and on this car that is a real cost.
Fitment
Steel, on the 345mm by 271mm base mount pattern, taking Sparco, OMP and Corbeau base mount seats.
Side mount shells need side mounts or adaption bars over the frame.
One frame per seat, handed. Choose RHD driver or RHD passenger and order twice for a pair. Tell us the seat when you order, and the year, and we will confirm the whole combination before it ships.
Have you written anything useful for my car?
Yes: Top 5 reclining seat choices for your classic Porsche 911, including our fitting guide, and Top 5 reclining seat choices for your Porsche 911 991, including our fitting guide. Those are written around the same car, from real fittings and customer questions, so they are worth a look before you decide.
Will this fit my car?
This frame is made for the Porsche 911. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.
Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern). The Compatible seats tab above lists what bolts straight on. If your seat is not listed, tell us what you run and we will confirm the fit.
Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on Sparco frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.
Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.
Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
