OMP – Toyota Yaris 1.0 direct Fit Subframes

From £106.26 Incl. VATFrom £88.55 Excl. VAT

Seat fitting hardware for the Toyota Yaris 1.0. Mounting stacks are specific to the seat pattern, so tell us your seat and car and we will confirm the complete kit.

Sport Seat Position

Clear

Add a sliding runner:

Add to wishlist

SKU: HC799 Category: OMP Car Specific Fitting Frames

Save to Pinterest

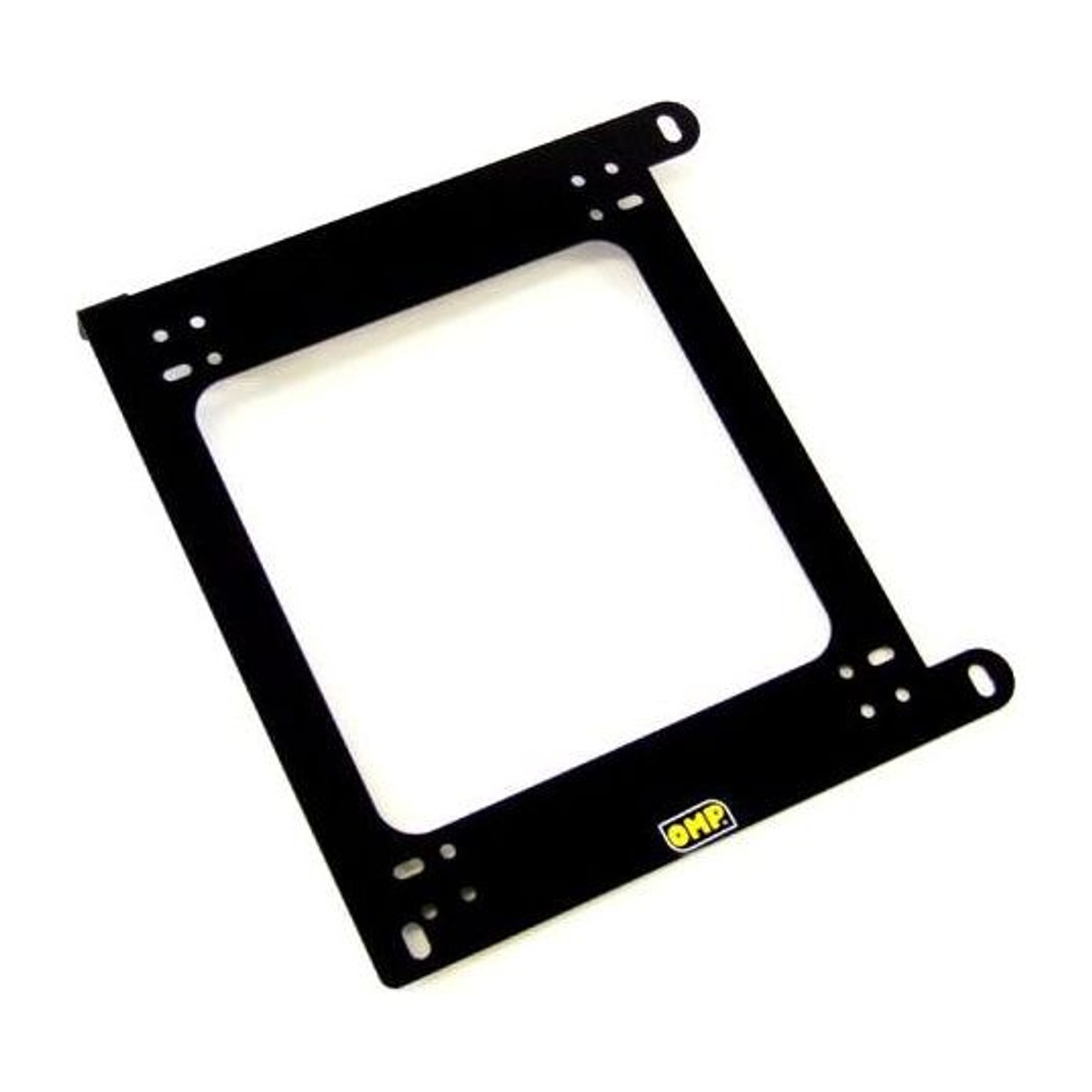

An OMP direct fit subframe for the Toyota Yaris 1.0. Part number HC799.

The 1.0 qualifier is worth checking

Our listing specifies the 1.0, which suggests the frame is cut for a particular version rather than the whole range. Before you order, send us the registration and we will confirm it against your actual car rather than have you assume from the model name.

Why a Yaris gets seated

They are light and cheap and there is a real club scene around them, particularly where cost per lap matters more than outright pace. The standard seat is comfortable and offers nothing laterally.

Space is the constraint

A Yaris is small and tightly packaged inside. Shell width matters as much as the subframe does, so tell us your height and build and we will make sure the seat fits the car and you rather than let you find out on the day.

What else you need

Side mounts and the seat. Two bolt patterns, not one. Sparco, OMP and Corbeau base mount seats share the 345mm by 271mm spacing and bolt straight on. Recaro use 405mm by 290mm and the frame carries that as well. Cobra sit on their own 291mm by 330mm pattern, so those need multi hole side mounts.

Order twice for a pair. If the car is being built to a class rulebook, tell us the class.

Additional information

Brand	OMP Racing
Sport Seat Position	RHD Driver Side, RHD Passenger Side
Make & model	Toyota Yaris 1.0
Fixing Type	Base Mount
Fixing Bolt Pattern	345mm x 271mm, 405mm x 290mm
Construction	Steel
Compatible Seats	Corbeau base mount seats, OMP base mount seats, Recaro base mount seats, Sparco base mount seats
Sold As	Single

What's included?

Photos are for illustration: It is very important to point out that the main product photos are entirely for illustration only. With over 1000 different frames available for different vehicles and applications, the manufacturer images provided are entirely illustration. What you receive may differ from this image.

What will be in the box? There are several types of seat frames which may be supplied depending on the vehicle and application. You may receive 1 of the following 4 types. If you are using them with a certain seat, please contact us in advance for professional advice.

#1. A full replacement frame with a sliding runner and resisitor kit
#2. A full replacement frame with a sliding runner
#3. A full replacement frame only
#4. An adaption bracket kit

Additional seat belt brackets: Each seat frame can be used for a variety of applications including road car reclining seats throuh to Motorsport FIA seats. Seat belt brackets are not required in a range of application so manufacturers generally do not supply them with their frame kits. If you require seat belt brackets please contact us in advance

NOT SUITABLE FOR OEM/FACTORY seats removed from other vehicles

Bolt point tolerances:

Please note that OMP, Sparco and various other brands have a +/- 10mm tolerance on the bolt point locations on each of their sub-frames. This means that when installing the equipment into your vehicle, you may find that one or more of the bolt points may need extending for a perfect fit.

This is normal and, when installed by a skilled professional, it may only add five minutes to the total installation time. A prime example is the OMP Renault Clio MK3 frames and the BMW E46 frames as two bolt points need extending by 5mm in 75% of installations.

Drilling of frames and equipment may be required to complete your installation.

Matching seats and frames:

There are over half a dozen different bolt patterns in the industry for base mounted seats. There are over 30 different bolt patterns for side mounted seats. Aftermarket frames from different brands will have different bolt location points.

Seats and frames are not a direct fit between brands. Seat frames are also not suitabled for OEM seats (Fitted into a vehicle from the factory) Please ensure to contact us for professional advice before purchasing your seat frames. We will be able to provide you a recommendation as to which seat frame is right for which seat.

Will I fit in this seat?
Send us your height and waist size and we will confirm the fit. how a seat actually feels to sit in is a different question, and our showroom team sit in these seats every day, so call us and we will give you the honest answer.

What do I need to fit it to my car?
The car-specific frame for your vehicle, plus a sliding runner if you want fore-and-aft adjustment. Our guide on base mount versus side mount walks through the whole stack, and tell us your car and we will quote the full kit.

How do I know it will feel right, not just fit on paper?
Makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike. We keep the ranges on display in the showroom, you are welcome to come and sit in them, and our head support measurements guide shows the kind of real-world data we collect.

Availability

OMP deliveries arrive every two weeks

OMP produce in batches and we receive their products on a fortnightly basis, so their most popular seats, harnesses and equipment are generally available for quick dispatch.

Reclining sport seats and less common trims are brought in to order, so those take longer.

If you have a date

Tell us when you order and we will confirm the current lead time before you commit, rather than leaving you to find out afterwards.

In-store displays:

We have a premium range of over 125 seats from brands including: Bimarco, Cobra, Corbeau, Sparco, OMP, Recaro, GP-Race, and Bride to name just a few brands we work with.

Alongside this, we also stock and display HANS devices, harnesses, race-wear, race-suits, FIA helmets and various other safety equipment. If you are looking to visit us to see and try any particular seat or product, please contact us in advance and we’ll be happy to help.

In-Store appointments:

Due to the specialist nature of our services, we do ask that you please contact us in advance to book an appointment. We have multiple slots available each day including selected availability at the weekend.

Working by appointment allows us to dedicate our time with you and provide a personal and professional service. We’ll always ensure you leave with the right equipment for your needs.
