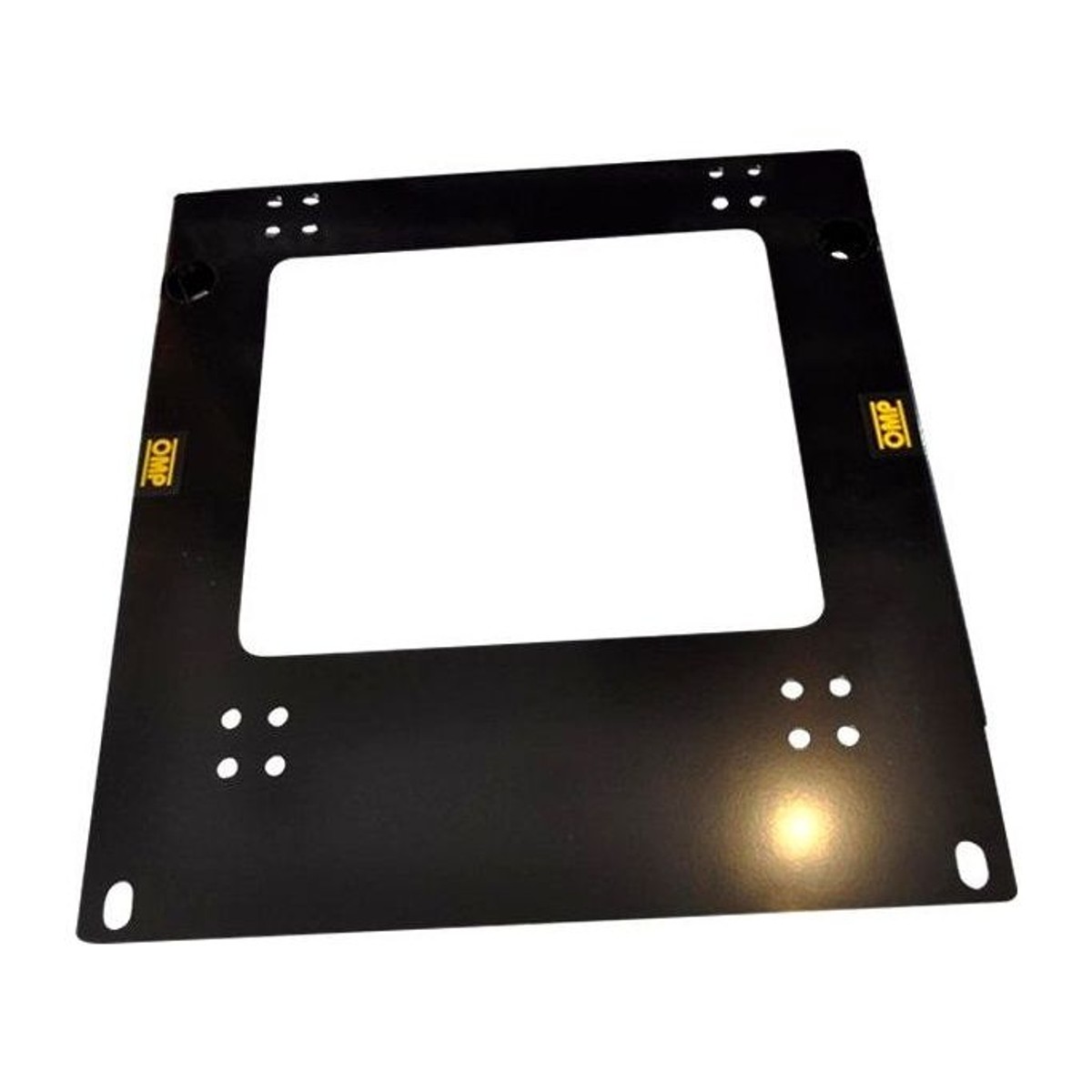

An OMP direct fit subframe for the Ford Fiesta ST180. Part number HC891-ST180.
The ST180 specifically
Not the standard Fiesta of the same generation, which is a different frame. Check which you have before ordering, because the two are easy to confuse on a car where the badge is the main external difference.
Why this car in particular
The ST180 gets seated far more often than the ordinary Fiesta, and for a specific reason: it is quick enough, and its chassis lively enough, that the driver ends up bracing against the door card to stay in place.
Once you are holding yourself in with your left leg against the tunnel, you are not using that leg to brake properly. That is the real argument for a bucket in a car like this, and it is worth more than any lap time claim.
The factory Recaros are good seats. They are also built around a three point belt, so they stop making sense the moment a harness goes in.
Keeping the originals
ST Recaros hold their value and are wanted by other owners. A direct fit frame bolts to the mounting points Ford already provided, so they come out undamaged and go back in for sale.
The detail
Steel, base mount, nothing drilled. Two bolt patterns: 345mm by 271mm for Sparco, OMP and Corbeau, 405mm by 290mm for Recaro. Sold singly and handed.
Have you written anything about this exact product?
Yes, we have covered this exact product: Top 5 reclining seat choices for your Ford Fiesta ST180, including our fitting guide. That is first-hand coverage from our own builds and showroom, not brochure copy.
Will this fit my car?
This frame is made for the Ford Fiesta ST180. Chassis code and years matter more than the badge, as floor pans change between generations, so if your car sits near a changeover year, send us the registration and we will confirm before you order.
Which seats does it take?
It takes seats drilled 345mm x 271mm (the Sparco and OMP seat pattern) and 405mm x 290mm (the Recaro seat pattern). If your seat is not listed, tell us what you run and we will confirm the fit.
Do I keep fore-and-aft adjustment?
Only with a sliding runner between the frame and the seat, which is a separate part on OMP frames. If more than one person drives the car, budget for the runner. Our guide to sliding runners explains the options and widths.
Base mount or side mount, and does it matter?
This is a base-mount frame: the seat bolts down through its base, the simpler stack that suits seats with a flat bottom and keeps the install low-fuss. Our guide on base mount versus side mount explains the whole fitting stack.
Is this for the driver or passenger side?
Both sides are available on this listing, pick driver or passenger side at the point of order (sides listed are for right-hand-drive cars). Left-hand-drive car? Ask us, as the sides swap over and availability varies by model.
