The JP Porsche 997 GT3 Style Clubsport Cage is an ideal choice for Porsche drivers looking for a lightweight and reliable roll cage that fits using existing mounting points in the car, eliminating the need to weld parts in. JP has designed this cage to replicate the popular GT3 cage but with slight adjustments and changes such as using Curved gussets, an X-centre with harness bars, and an X-rear made using BS4-T45 steel.
Key Features:
- JP Cages use only the best materials for their cages.
- Available in a range of colours.
- Available with or without harness bar
Fitting Process:
- Remove the Front seats
- Remove the rear seats
- Remove Rear trims and cut a slot 50mm from the step forward and 25mm above the top edge of the step ( request we send you the fitting video ) and refit once done.at
- Remove the rear trim which covers the strut tops
- Remove the nuts from the rear strut tops
- Remove B pillar hooks
- Remove Seat Belt covers on B pillar
- Place the 25mm spacer into the slot at the bottom of the B pillar for the front mounts of the cage.
- Place cage in the car through the passenger door by laying it face down with the rear legs pointing up, until the inner cage legs have cleared the centre console, then tip the cage back and push the rear of the cage behind the struts as far as possible to give clearance for the B pillar Hooks to go back on.
- Pull the cage forward dropping the rear mounts into place and loosely fit the nuts.
- Now you have the cage in place you can locate the front mounts and bolt them in tight before tightening the nuts at the back.
- Fit the plastic tube caps and refit all the relevant trim.
- Fit the seats and Enjoy.
Weight:
- Approximately 17KG
PLEASE NOTE.

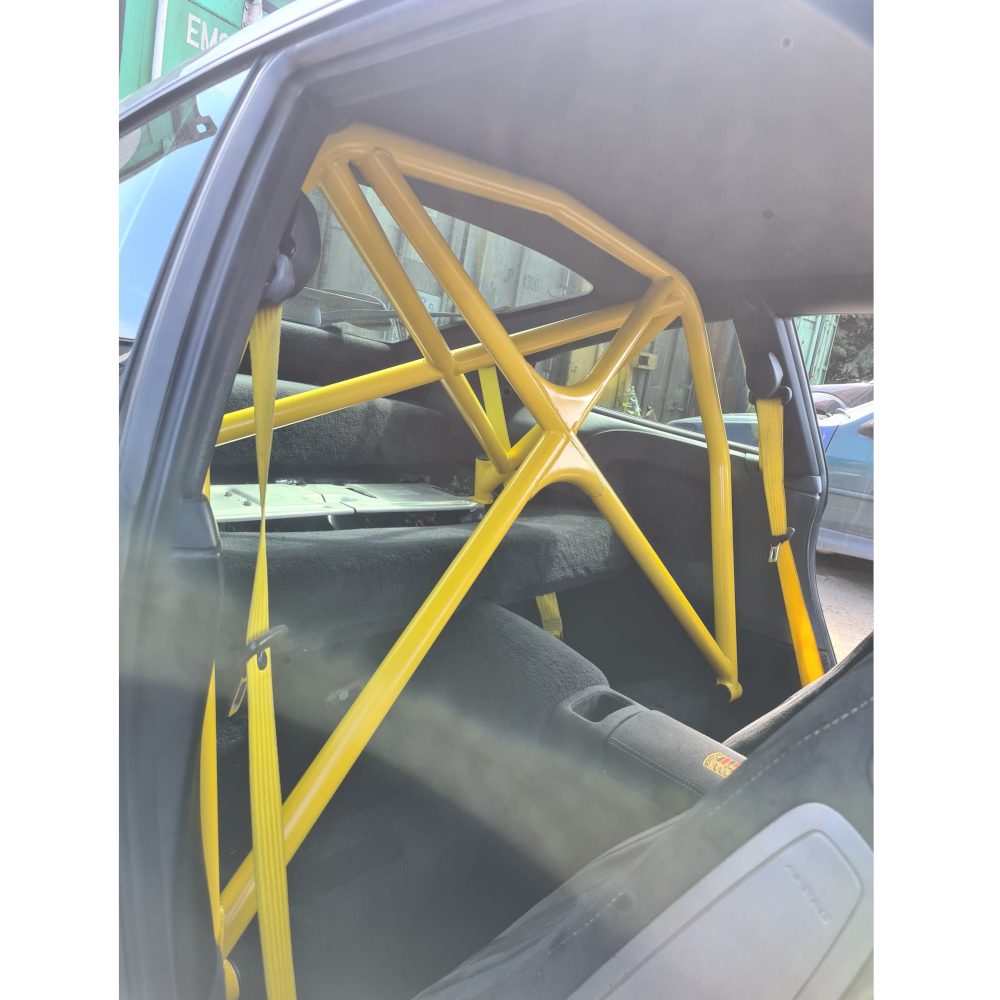

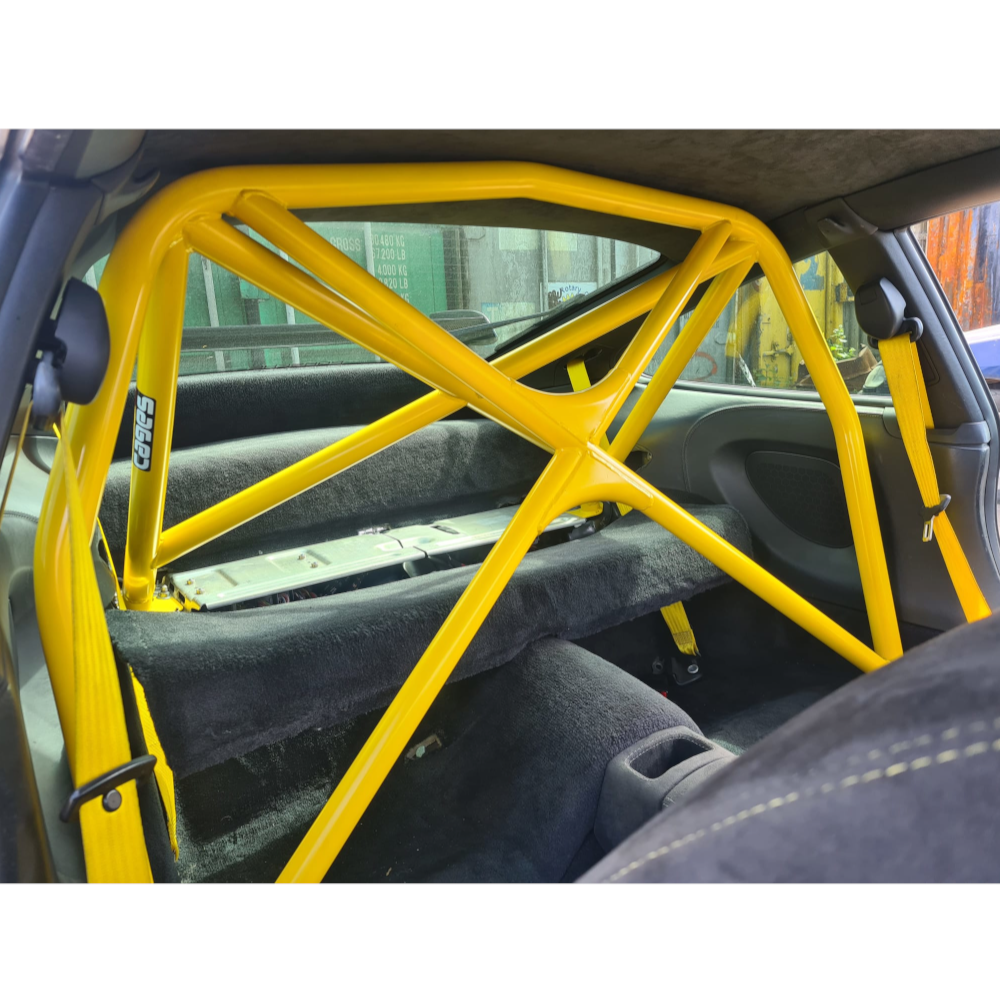

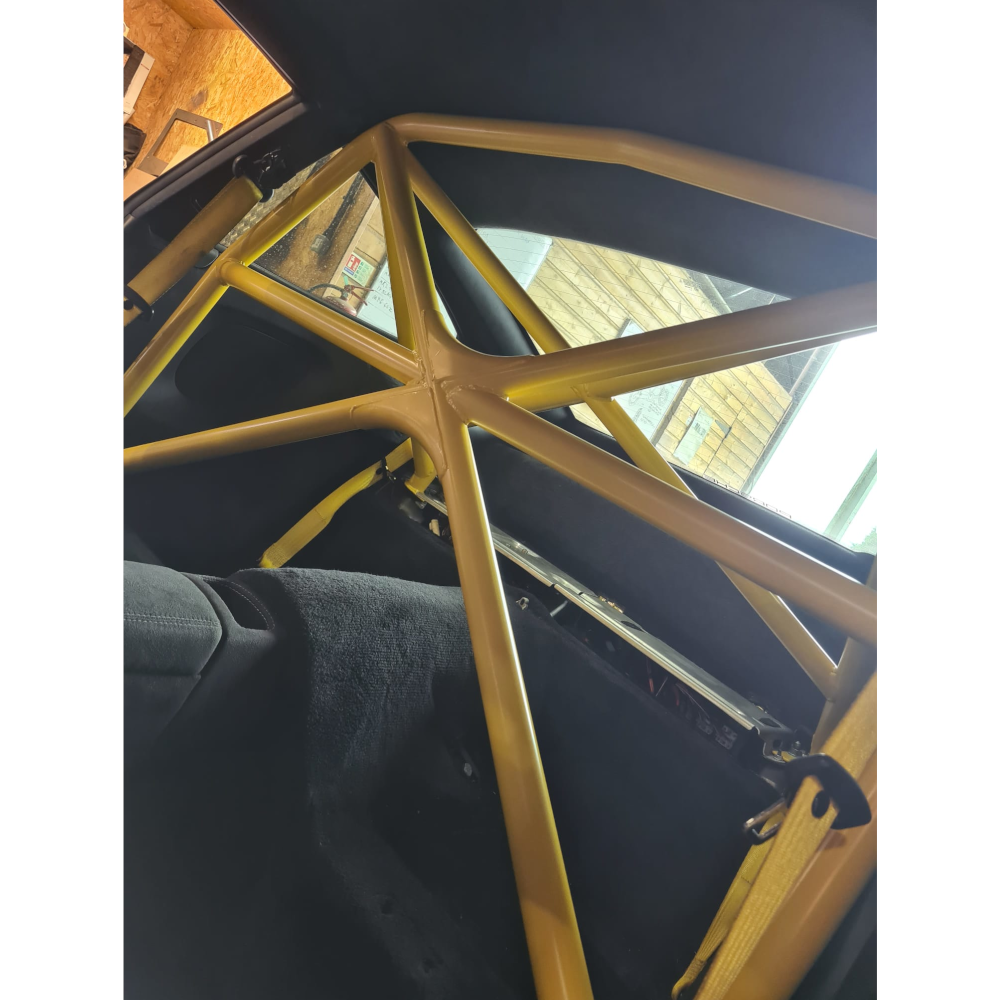

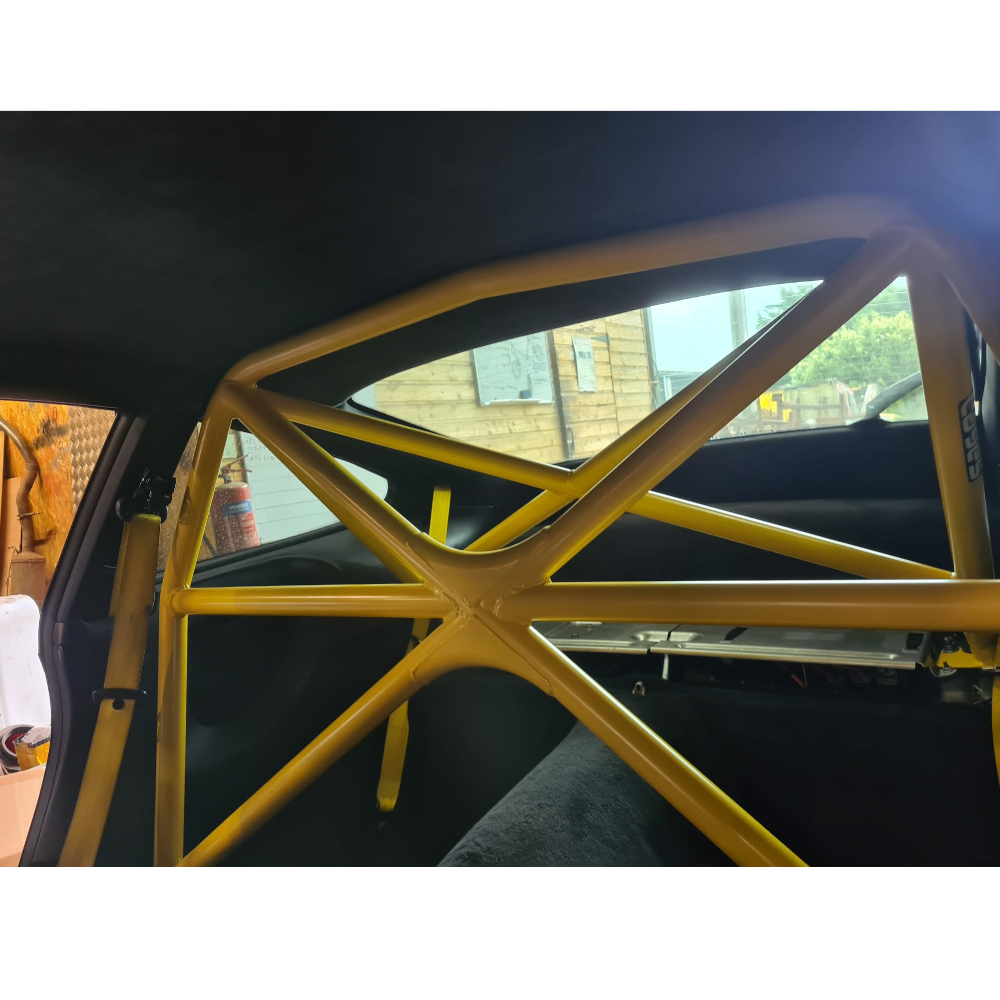

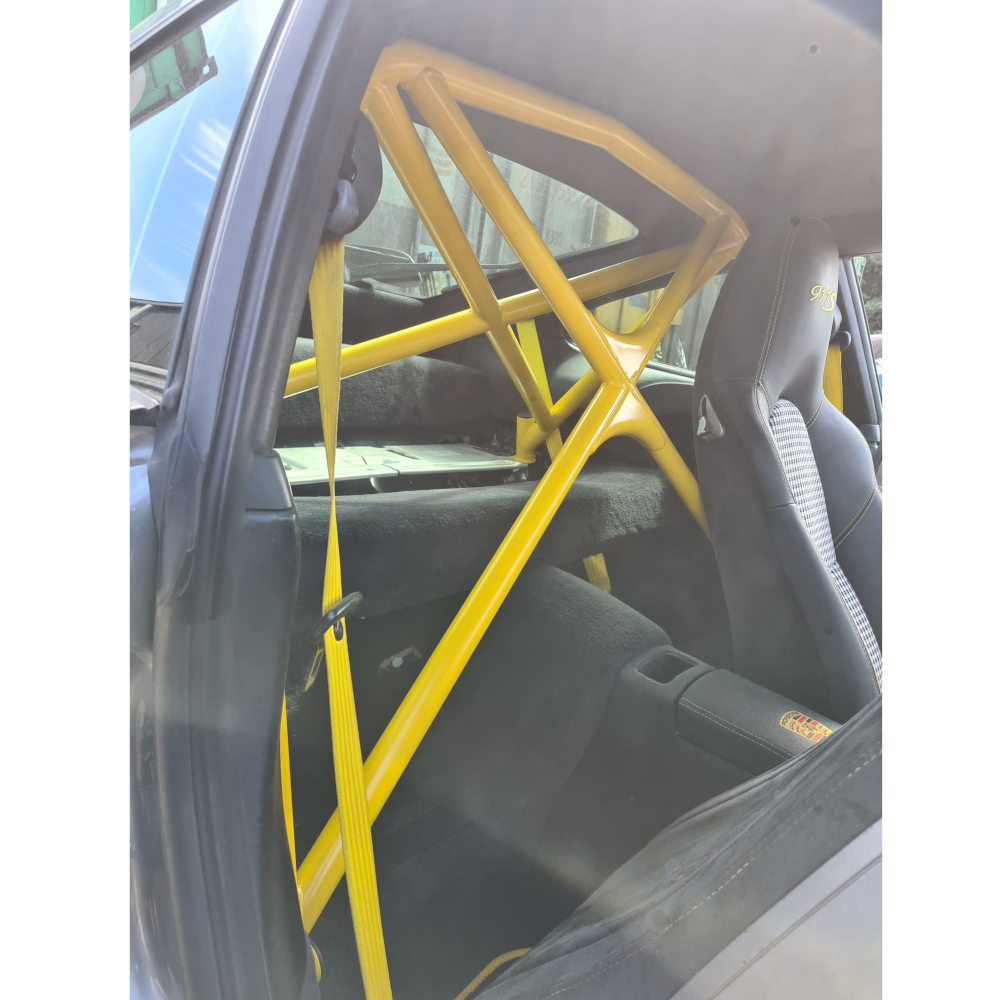

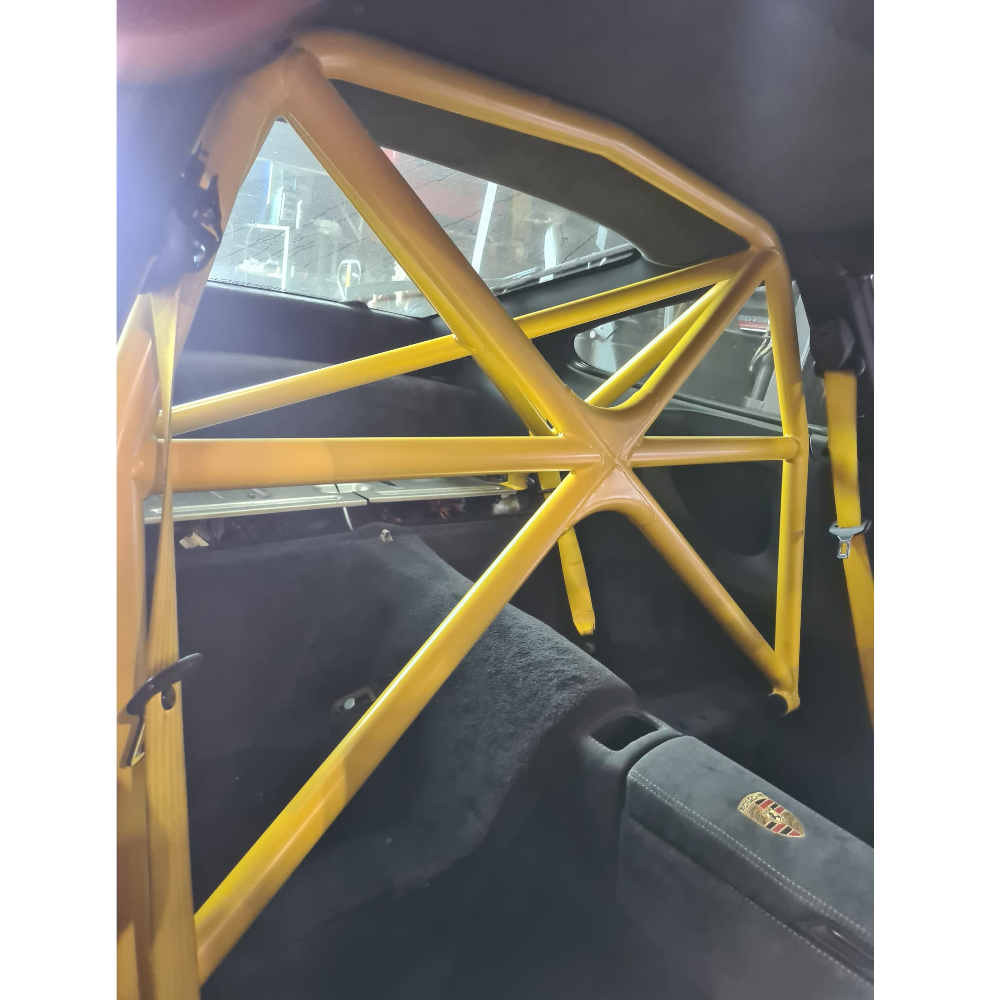

IMAGES OF THE FITTED CAGE ARE TO SHOW FITMENT ONLY! THE UNFITTED CAGE IS WHAT YOU WILL RECEIVE!
