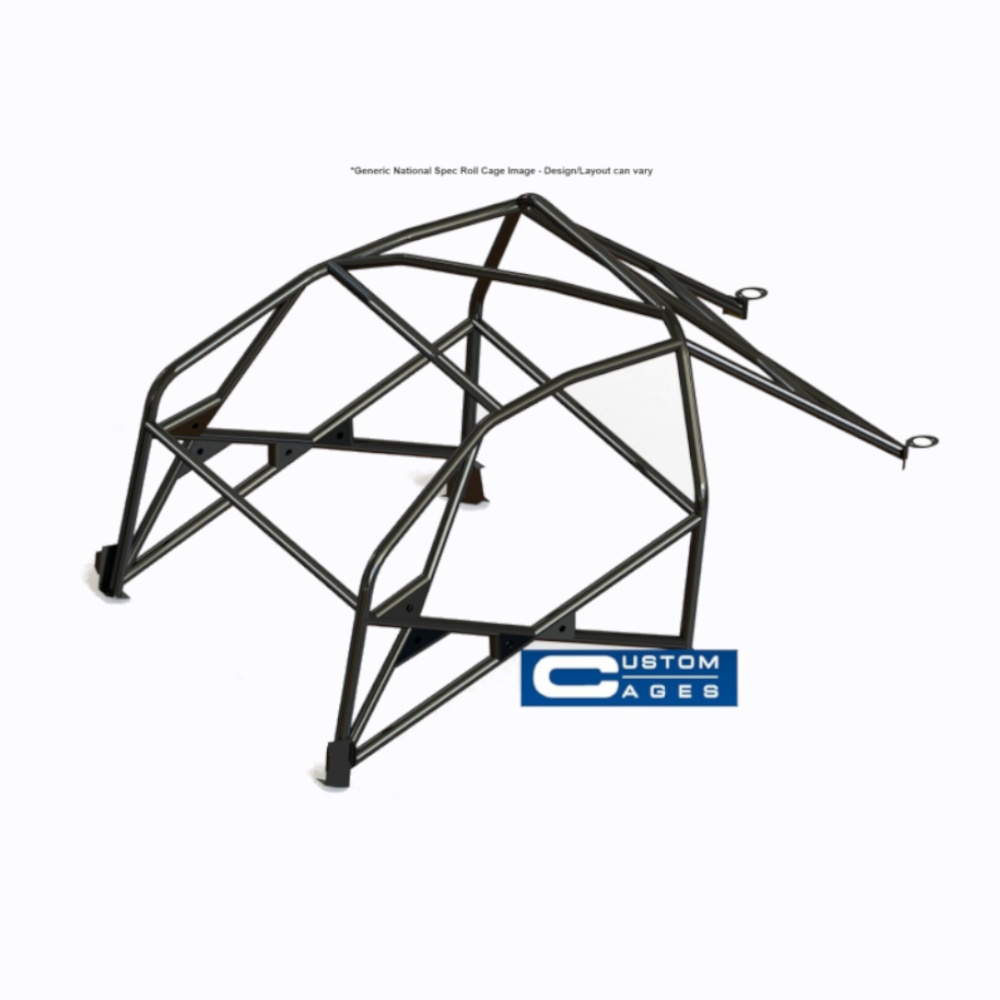

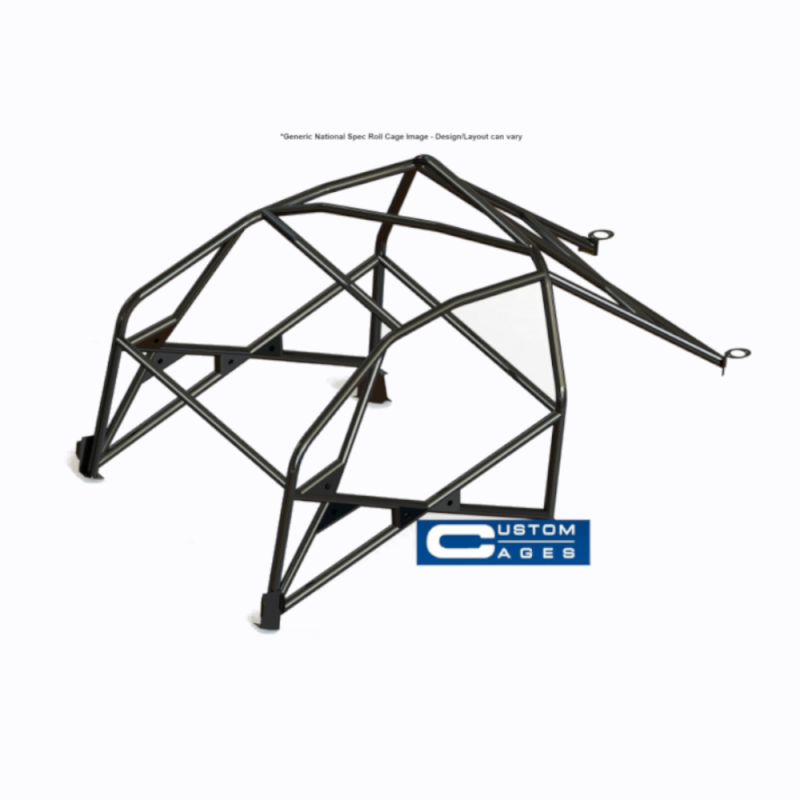

The Custom Cages Nissan 300ZX 6 Point National Spec CDS Roll Cage kit is ideal for use in Hillclimb events, Rallying, Rallycross, Sprints, Time attack, and Track days. This roll cage kit is FIA and MSUK Compliant. Your roll cage will arrive shrink wrapped in durable black plastic and will include:
- CNC formed tubes for the main hoop, A pillar hoops etc with square and profiled ends are necessary.
- Straight tubes with profiled ends ready for welding into place.
- Set of footplates.
- Check list (every tube has an identifying sticker) so you can be sure you have a complete kit (we will have already have checked that you have the right tubes twice before the kit is packed).
- Instructions sheet.
- CD showing the fully fitted roll cage.
This roll cage is designed for use in the following models:
- Nissan 300ZX
National Range (6 Point Roll Cage):
Our ‘National’ cages are fully MSUK compliant for both Race and Rally (and just about all other disciplines as well).
A simpler and more cost-effective safety cage than our FIA-certificated or Multi-point cages but with our second-to-none quality and fit.
The drawbacks would be they are heavier than an FIA / MSUK certificated design (average 15 to 20 kgs) and don’t add as much bodyshell stiffness as there are fewer mounting points.
These are manufactured from high-quality CDS (Cold Drawn Seamless) tube with a minimum tensile strength of 510 Mpa (although T45 can be specified at extra cost).
- The 6 point National spec. roll cage exceeds MSUK requirements.
- Based on our full multipoint cage design to ensure quality of fit.
- Weld-in for reduced weight and improved stiffness compared to a bolt-in cage.
- All tube is high quality CDS (510 Mpa) steel tube – 45 x 2.5mm.
- Hoop Lateral tube and Dash bar for improved side impact protection.
- Driver and co-driver harness tubes.
- A Pillar supports complete with gussets and Rear diagonal.
- Crossed door bars complete with gussets.
- Roof diagonal (or cross as an option).
- Kit includes all footplates.
- Simpler to install than full multipoint cage.
- Customers may have to check seat belt angles and trim harness tubes accordingly. Recommended angle of belts as per MS UK Blue Book specifications.
A roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test. Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity. Additional samples may be requested, and Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificates
