Auto Style Type BH Bucket Seat

From £230.40 Incl. VATFrom £192.00 Excl. VAT

Auto Style Type BH Bucket Seat by Auto Style Racing. Brackets included: Seat and sliders. Brand: Auto Style Racing. Construction: Steel frame seats.

AutoStyle Trim Material

Clear

Perfect add-ons!

Choose any extras you would like added to this product.

TRS Clubman Clip In 4 Point Harness Belt

Choose an option

£100.00

Add to wishlist

Size/Fitting guide

Save to Pinterest

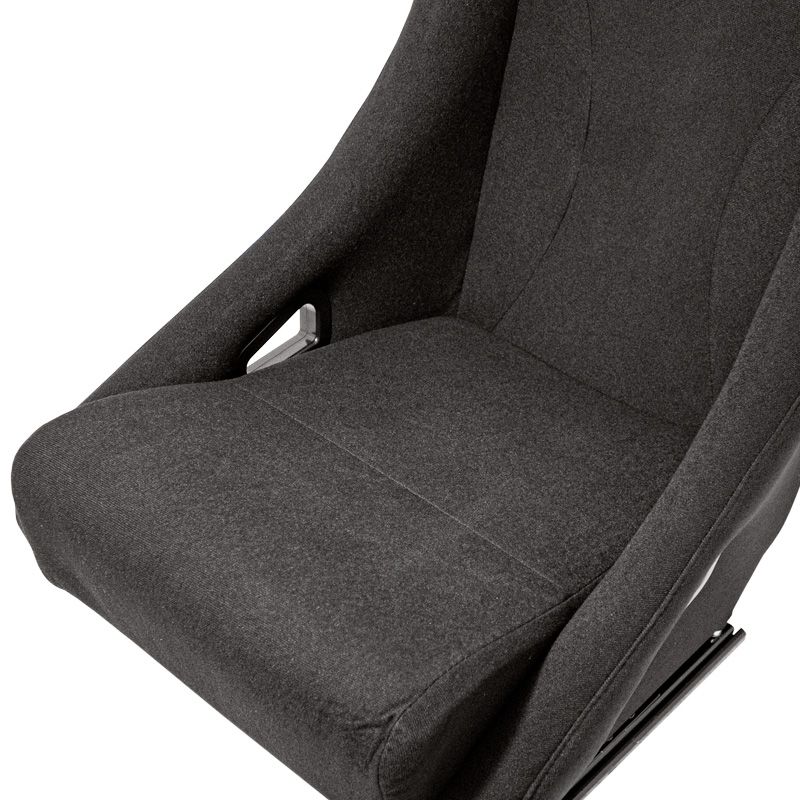

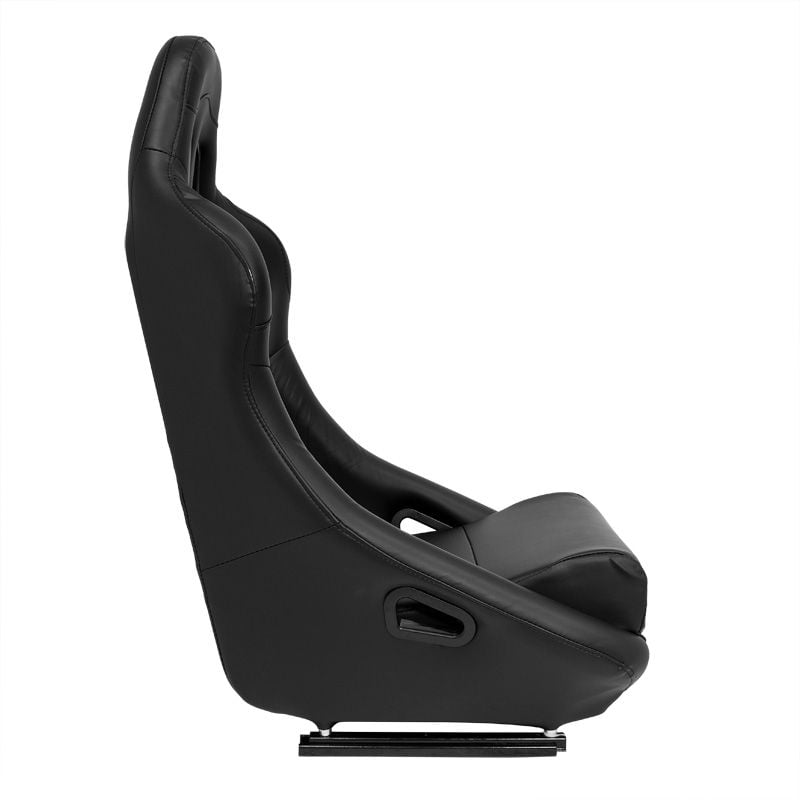

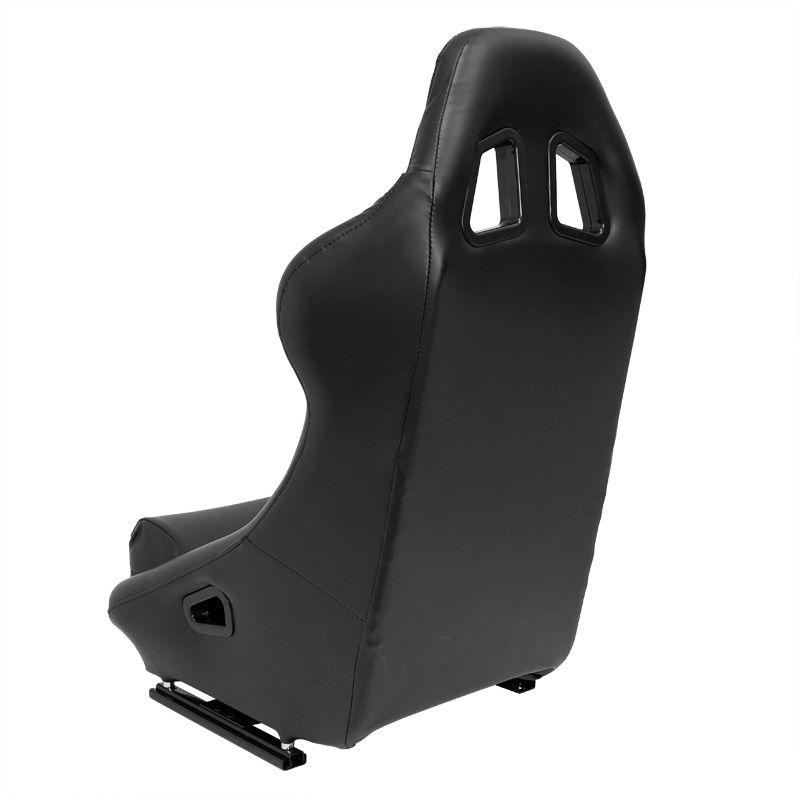

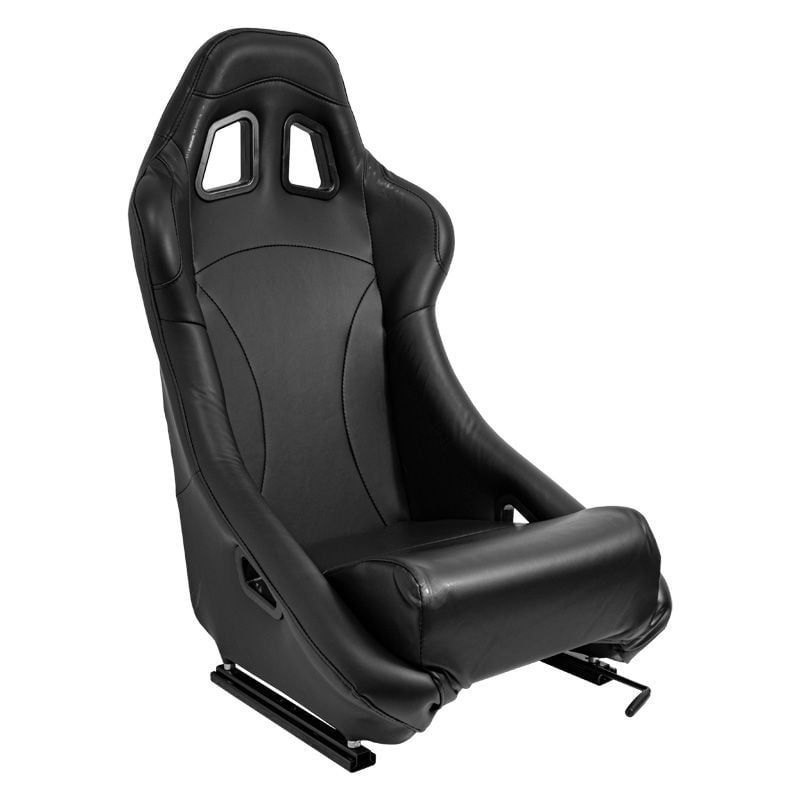

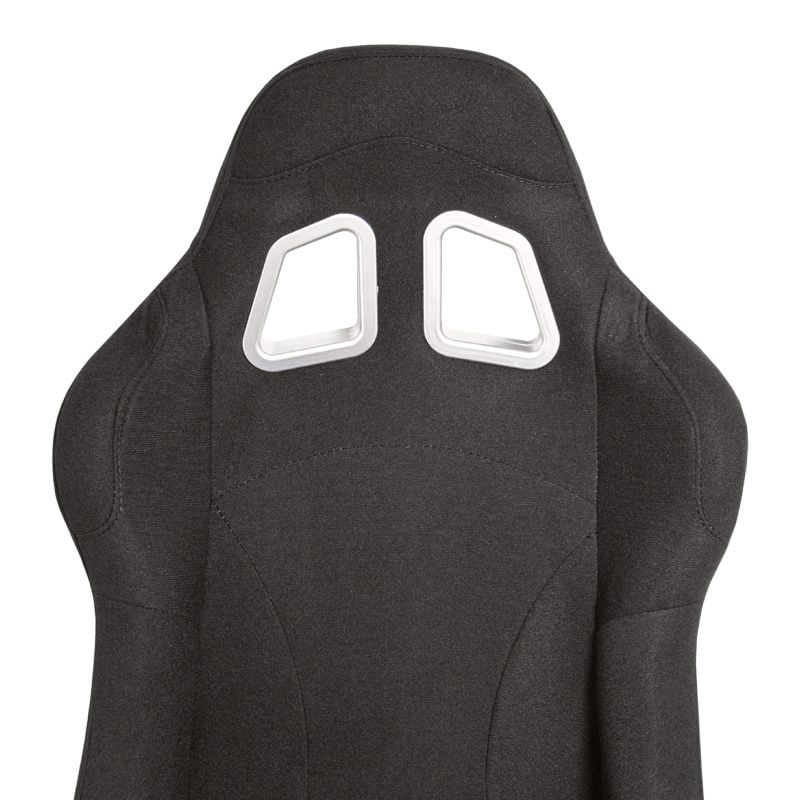

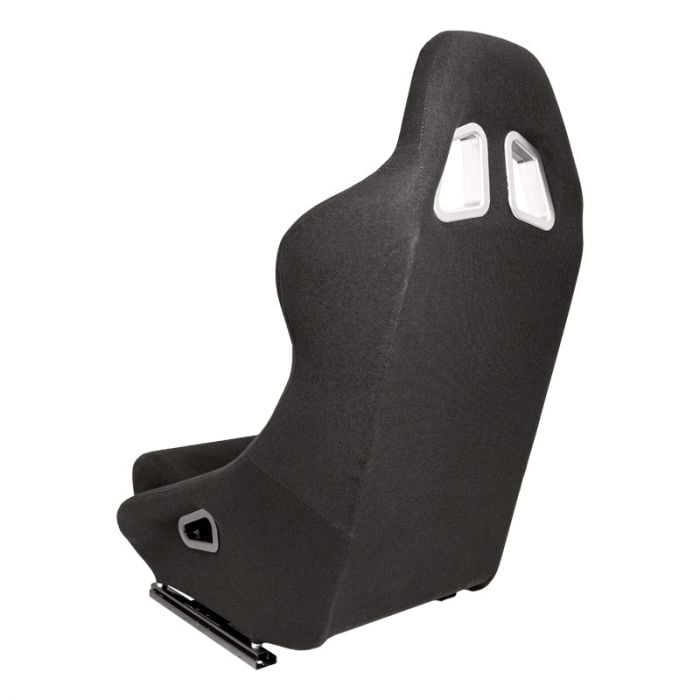

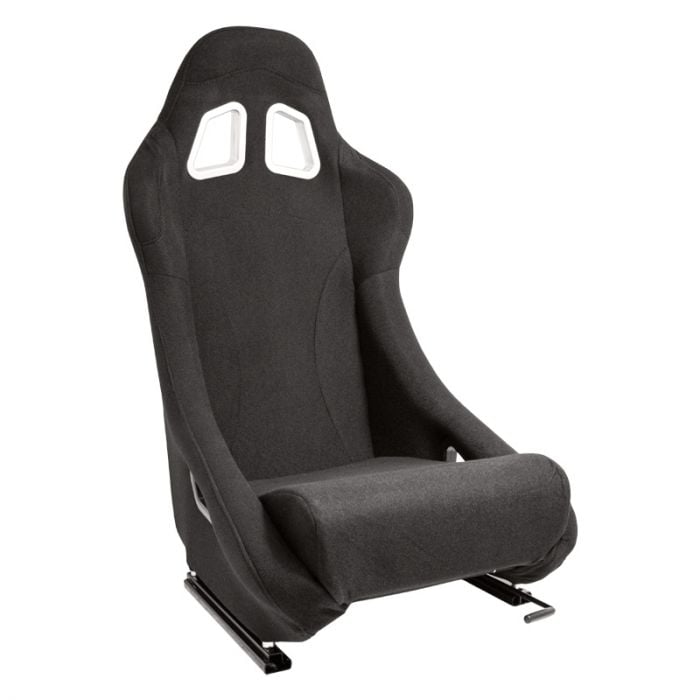

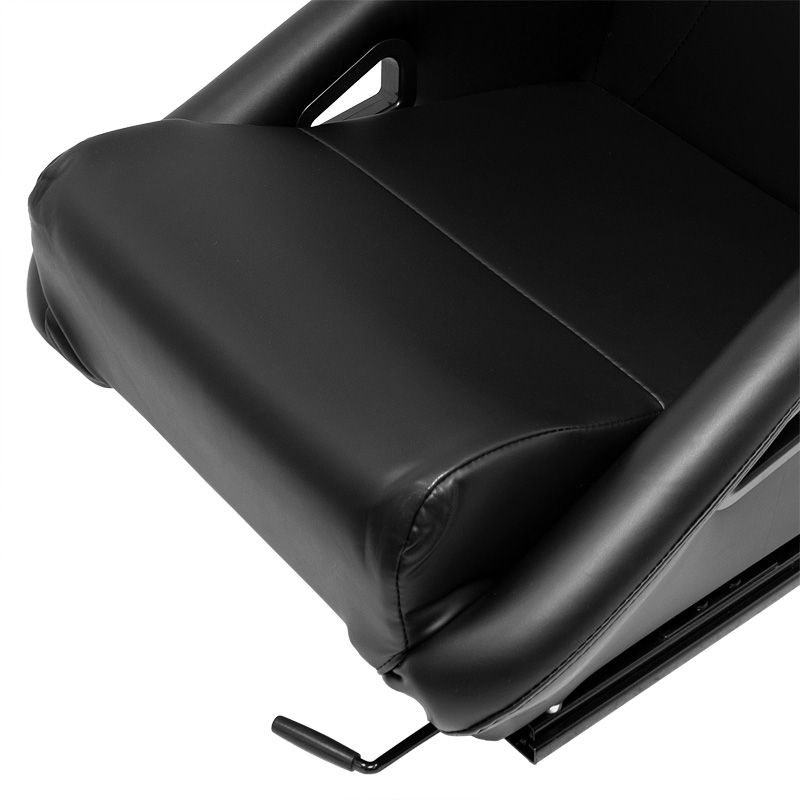

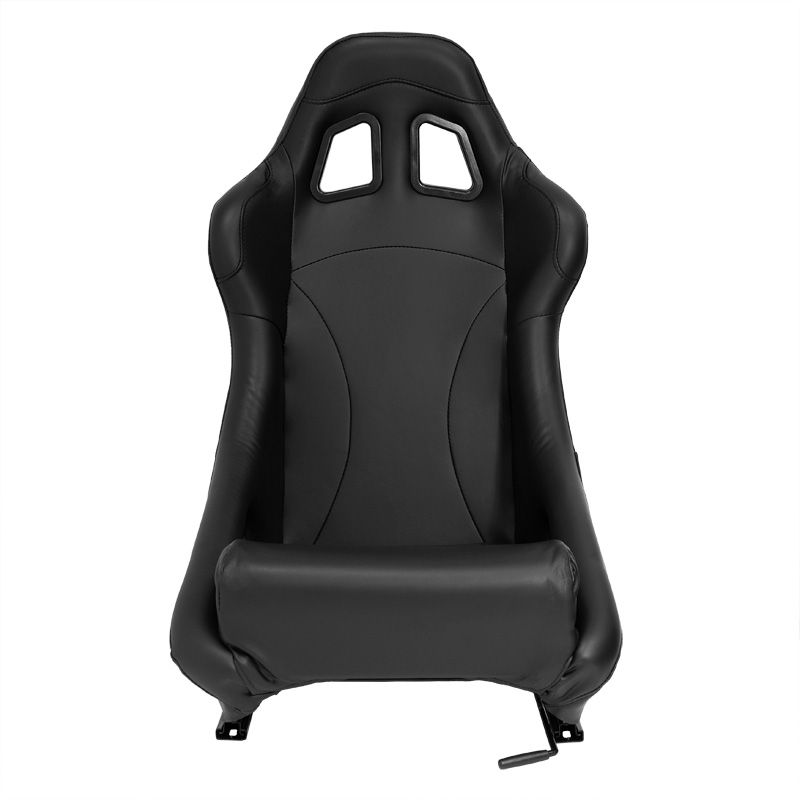

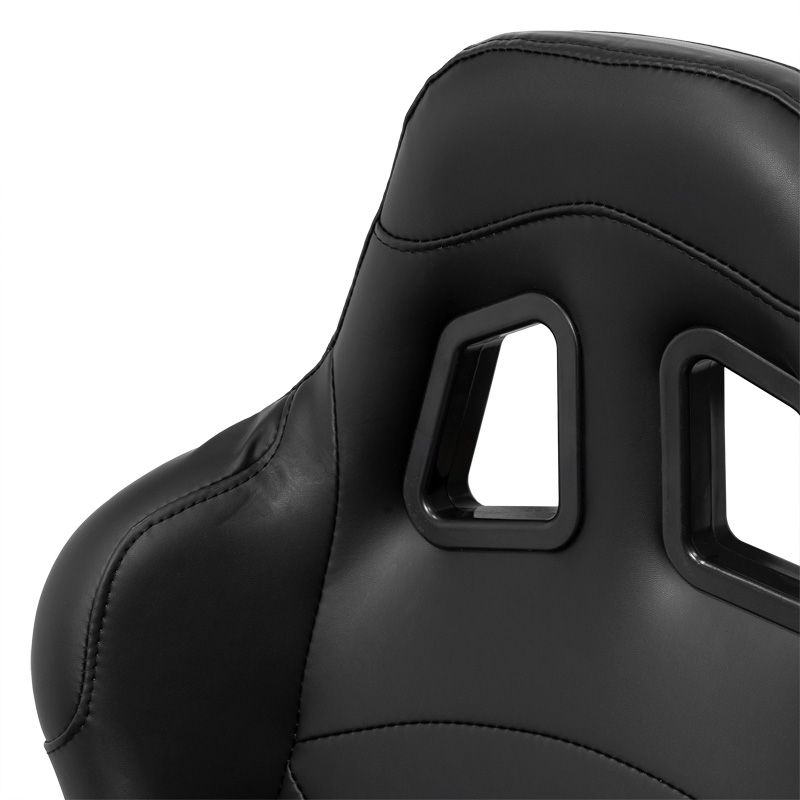

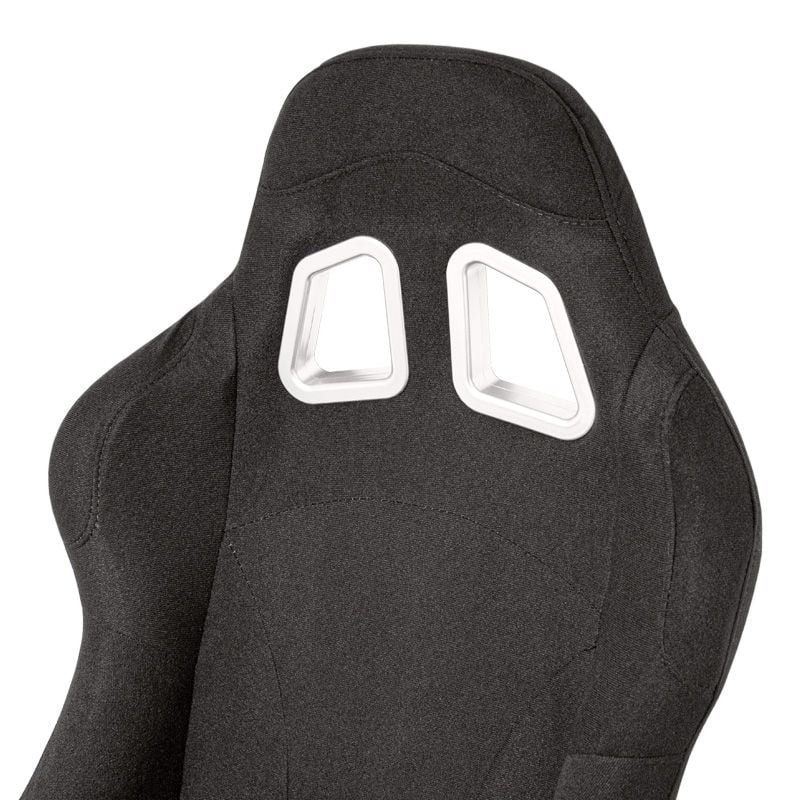

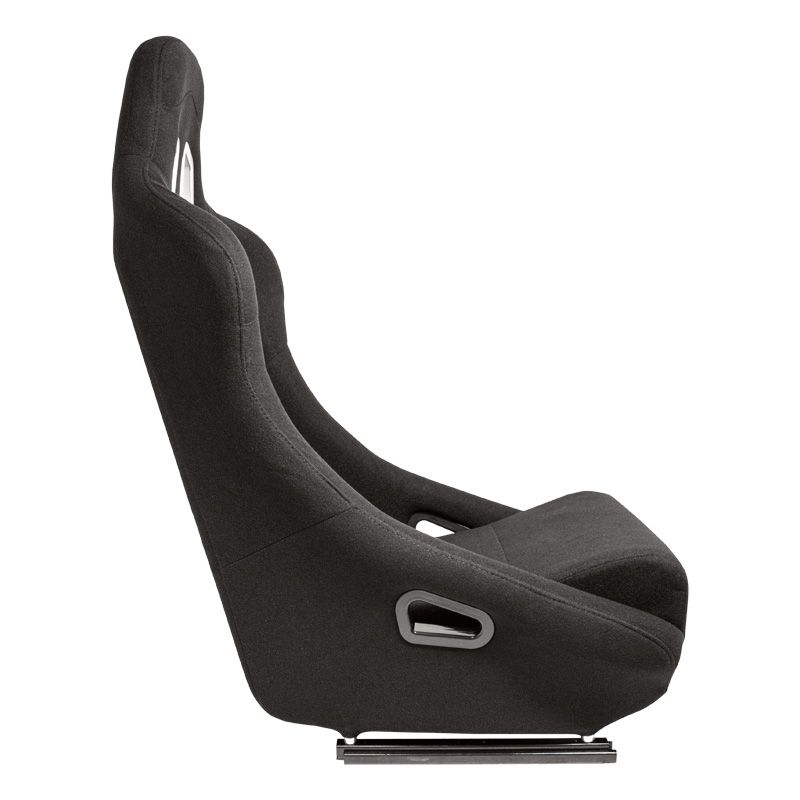

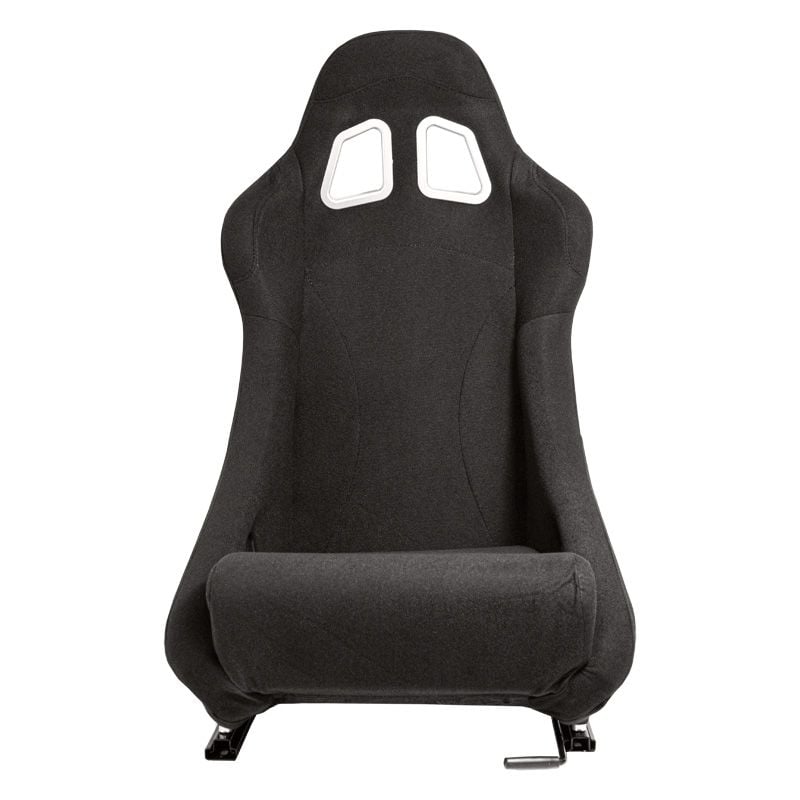

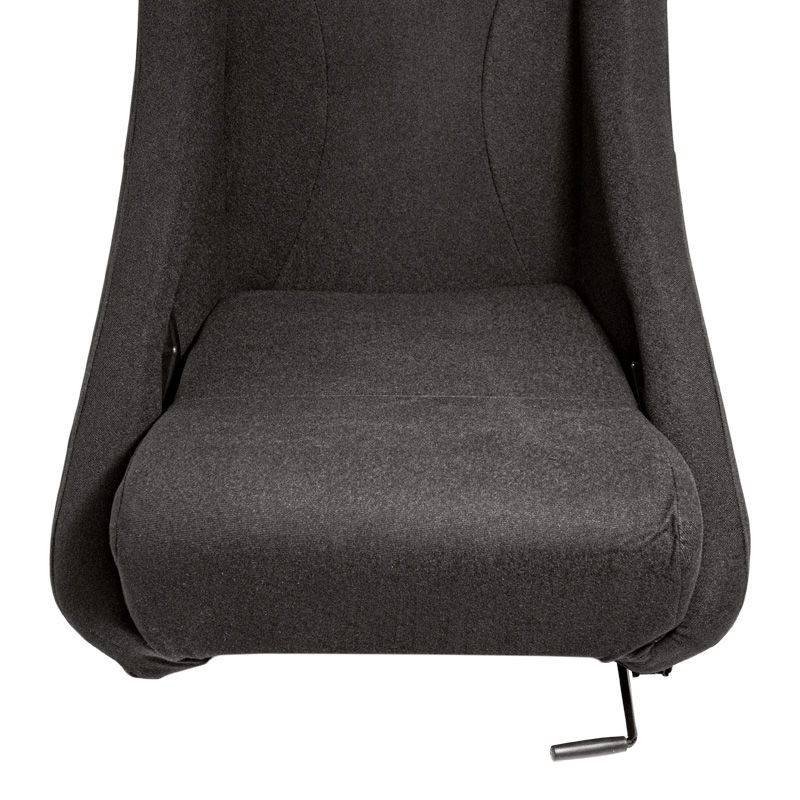

The Type BH (SS 83) is a fixed-back steel-frame bucket seat sized for a 32 to 36-inch waist. That is a firm constraint: outside it the seat will not hold a driver correctly, so measure before ordering. Inside that range it is a black base-mount seat available in textile fabric or vinyl, with sliders included. No headrest. 4-point harness compatible.

The 32 to 36-inch window places the BH in the middle of the waist range across the Auto Style lineup. Slimmer drivers who suit a 28 to 32-inch waist should look at the K5 (SS36). Drivers who fall into the BH range but prefer a seat with no waist restriction will find most of the reclining range works for them; the BH trades the reclining backrest for a stiffer fixed shell at a similar price.

At £192 the BH sits between the Classic Fabric (SS52Z at £189.95) and the RT fibreglass (SS79ZG at £254.60). If the 32-36 inch fit is confirmed and a fixed-back steel seat is what you need, the BH is the practical option. Fitting frame purchased separately. No FIA competition approval. Part number SS 83.

Additional information

Weight	25 kg
Dimensions	80 × 60 × 120 cm
Brackets included	Seat and sliders
Brand	Auto Style Racing
Construction	Steel frame seats
Driver Height	All heights suitable
Driver Waist Size	32" – 36" waist
Fixing Type	Base Mount
Harness compatibility	4 point compatible
HANS Compatibility	Not HANS compatible
Mechanism Type	Fixed Back Seats
Product Colour	Black
AutoStyle Trim Material	Textile Fabric, Vinyl

Auto Style seat size guide

Auto Style make one size of every seat. The buckets suit a 32 to 36 inch waist, the two small ones go down to 28, and the recliners take most drivers.

How Auto Style size their seats

There are no Standard and XL versions. Each bucket is one shell and our product data bands it: nearly all of them at 32 to 36 inch, with the Type K5 and the Type K12 Small at 28 to 32 for slimmer and younger drivers. The Type BS7 is the tall bucket for drivers over 6 ft; the BS6, BS8, K5, K12 and Zandvoort suit drivers under 6 ft.

The reclining range is all one size and suits all heights. Three of them have published dimensions: the Eco Lux is 510 mm across the base, 540 mm across the shoulders, 550 mm deep and 910 mm tall; the RS6-II is 530 mm across the base and 560 mm across the shoulders; the Pro Luxury is 470 mm across the base and 600 mm across the shoulders.

Which Auto Style fits you

Model	Waist band	Driver height	Shell	Approval
Fixed bucket
Type BS1, BW, FS, JJ, LV, MO, RR, RT	32 to 36	All heights	Fibreglass	Road and track
Type BS6, BS8	32 to 36	Under 6 ft	Fibreglass	Road and track
Type BS7	32 to 36	Over 6 ft	Fibreglass	Road and track
Type BH	32 to 36	All heights	Steel frame	Road and track
Type K12, Zandvoort	32 to 36	Under 6 ft	Steel frame	Road and track
Type K5, Type K12 Small	28 to 32	Under 6 ft	Steel frame	Road and track
Reclining
Type GT, AK, BS2, C, DS, Eco, Eco Lux, GK, JW, LH	All sizes	All heights	Steel frame	Road and track
Type MR, MS, Pro, RK, RS6 II, T, T Eco, TN, VGR, Z	All sizes	All heights	Steel frame	Road and track
Type BS5	All sizes	Under 6 ft	Steel frame	Road and track
Classic
Type Classic, Headrest, II, RS, Retro, Retro II	All sizes	All heights	Steel frame	Road and track

Price pointAuto Style seats are the entry to the range and the bolsters are softer than a Cobra or Corbeau at the same waist. If you are at the top of a band and want to be held, look at the BS7 or step up a brand.

Measure yourself first

Four numbers decide whether a seat fits. Take them in the clothes you drive in, and write them down before you compare models.

AWaistAround your natural waist, not your trouser size. Trouser sizes usually run an inch or two under the real figure, and the waist bands on our product pages use the real one.

BSeated hip widthSit on a hard chair with your feet flat and measure straight across the widest point of your hips with a rule or a straight edge, not a tape that follows the curve. This is the number that decides whether a fixed shell is tight.

CShouldersStraight across the back at the widest point. Fixed back seats hold you here, so a shell that is narrow at the shoulders is uncomfortable long before it is unsafe.

DHeight and torsoYour height, and if you are over 6 ft whether that is mostly leg or mostly body. A long body needs a taller shell with the head support set higher.

Before you order

Check the car, not only the driver. Transmission tunnels, door cards and B pillars are what stop a wide shell going in. Our seat mounting and fixing points guide covers what to measure.
Side mount and base mount shells are not interchangeable. Which one you need depends on the car and the subframe, so pick the brackets at the same time as the seat.
If you run a HANS or plan to, filter on HANS friendly. The shoulder openings are cut to clear the collar.
FIA seats carry an expiry date on the homologation label. Check what your championship accepts and how long the seat has left, particularly on discounted older stock.

Send us your measurementsWaist, seated hip width, height and the car. We have fitted a lot of Auto Style seats and will tell you honestly if the one you have picked is going to be tight. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Waist bands and heights are our product data, checked 6 September 2026. The Eco Lux, RS6-II and Pro Luxury dimensions are Auto Style’s own listings.

Have you written anything about this exact product?
Yes, we have covered this exact product: Discover the Auto Style Type AK Reclining Sports Seat, and Auto Style Type Classic Bucket Seats Now Available to View In-Store. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will I fit in this seat?
The maker sizes this seat for drivers with a 32in to 36in waist. Those are the paper numbers; how a seat actually feels to sit in and climb out of is a different question, and our showroom team sit in these seats every day, so call us with your height and waist and we will give you the honest answer.

What do I need to fit it to my car?
This is a base-mount seat: it bolts down through its base, the simpler stack for road cars. You will need the car-specific frame, and a sliding runner if you want fore-and-aft adjustment. Our guide on base mount versus side mount walks through the whole stack, and tell us your car and we will quote the full kit.

Does it work with harnesses and a HANS device?
The shell takes 4 point compatible. This shell is not shaped for HANS use, so if you run a head and neck device, look at the HANS-friendly seats in the range instead. If you are planning the full seat, harness, and HANS setup, tell us the car and we will spec it end to end.

How do I know it will feel right, not just fit on paper?
Fair question, because makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike in the car. We keep the ranges on display in the Nottingham showroom, you are welcome to come and sit in them, and if you cannot get to us, call and describe your build, as the team sit in these seats every day. Our head support measurements guide shows the kind of real-world data we collect.
