The Ford Anglia 2 is a classic platform that continues to be a popular choice for track builds and motorsport projects. Known for its lightweight chassis and simple rear wheel drive layout, it is a car that rewards driver input and is often pushed far beyond its original factory setup.
However, one of the biggest challenges when upgrading a Ford Anglia is working within the limited interior space. Compared to modern cars, the cockpit is extremely tight, which makes fitting modern motorsport seats far more difficult than expected. This is often where many builds run into problems, especially when trying to install wider or more aggressive bucket seats.
In this build, our customer opted for a pair of OMP RS-PT2 fibreglass bucket seats. These seats bring a much higher level of support compared to standard options, especially with their integrated head protection and deep bucketed shape. At the same time, they remain compact enough to physically fit within the Anglia’s restricted cabin space.
What makes this setup particularly interesting is that it shows how a more serious motorsport seat can still be made to work in a classic car without major modifications. With the right seat choice and careful positioning, it is possible to achieve a proper driving position that suits both the car and the driver.
This build is a good example of how planning ahead and choosing the correct seat dimensions can make all the difference, especially in a car where space is one of the biggest limitations.
The Ford Anglia has a very narrow and compact interior, which makes seat selection one of the most important parts of any build. Unlike modern cars, there is very little spare room between the centre tunnel, door cards, and B-pillar area, especially once a roll cage is installed.
Because of this, not every motorsport seat will fit, even if it looks like it should on paper. Wider seats can quickly run into clearance issues at the shoulders, while deeper bucket designs can make positioning more difficult. This is where many builds can become frustrating, as small differences in seat dimensions can have a big impact on fitment.
It is not just about getting the seat into the car either. You also need to think about driving position, steering wheel alignment, and how easily you can get in and out of the car. A seat that technically fits but sits too far off centre or too close to the door can make the car uncomfortable or awkward to use.
Choosing a seat with the right shape and proportions makes the process much easier. Seats with a more compact shell and controlled shoulder width, like the RS-PT2, give you more flexibility when positioning them inside the car. This allows you to avoid contact points and achieve a better overall setup.
In a car like the Ford Anglia, taking the time to choose the right seat from the start can save a lot of effort later on. It reduces the need for modifications and helps ensure the final result works properly both on track and when getting in and out of the car.
The OMP RS-PT2 is a fibreglass FIA-approved motorsport seat designed for drivers who need a high level of support and safety, particularly in more serious track and competition environments. It sits towards the more aggressive end of the spectrum, thanks to its integrated head support and deep bucketed shape, which are both aimed at keeping the driver as stable as possible under load.
One of the key features of the RS-PT2 is its built-in head restraint. This adds an extra layer of protection and helps reduce upper body movement during high speed cornering or sudden impacts. Combined with the high shoulder and leg bolsters, the seat creates a very secure driving position that allows you to focus on driving rather than bracing yourself.
Despite its motorsport-focused design, the RS-PT2 has been built with a compact chassis. This is what makes it suitable for smaller cars like the Ford Anglia, where space is extremely limited. It offers strong support without becoming overly wide, unlike some head-supported seats.
The seat is trimmed in velour fabric, which provides a good balance between comfort and grip. This helps keep you planted in the seat during driving, while still being comfortable enough for longer sessions. The removable back, base, and leg cushions also allow you to fine-tune the seating position and support to suit your preferences.
Because the RS-PT2 is FIA approved, it is designed to work with multi-point harness systems, including 6-point setups. The harness slots are positioned to guide the belts correctly, ensuring both safety and comfort when properly installed.
Key features
At first glance, the RS-PT2 looks like a large and aggressive seat due to its integrated head support and deep bucketed shape. In reality, it is surprisingly compact for a head-supported motorsport seat, which is what makes it a viable option for tighter interiors like the Ford Anglia.
With a shoulder width of 565 mm, the RS-PT2 sits below the average size of most fibreglass bucket seats, which often measure closer to 580 mm or more. This slight reduction in width makes a big difference in a car like the Anglia, where every millimetre counts. Even with this more compact design, the fit is still very tight, which highlights just how limited the available space is inside the Mk2 chassis.
In this particular build, the customer had already stripped the interior, which helps free up a bit more room compared to a fully trimmed car. The seats were then positioned carefully, mounted as close to the centre tunnel as possible. This avoids contact with the door cards and clears the roll cage at the B-pillar, especially around the shoulder support area.
From our experience, the Mirco RS2 is one of the larger bucket seats that can be made to fit inside this car, a great seat alternative, offering a more spacious option for drivers who need additional room. The Mirco RS2 measures 580mm wide at the shoulder, wider compared to the OMP RS-PT2, which is 560mm wide at the shoulders. However, due to its wider overall dimensions, it does require more space within the cockpit compared to slimmer seat options.
Because of this, we generally recommend only fitting larger seats like the Mirco RS2 in cars that are not running roll cage door bars. The added width can cause clearance issues when door bars are present, making installation difficult or restricting seating position. For builds with door bars, a narrower seat is usually the better choice to ensure proper fitment and usability.
Although the seat is compact externally, the internal width measures around 395 mm, which creates a snug and supportive fit around the driver. This is ideal for maintaining control during driving, but it does mean the seat is better suited to slimmer drivers.
Main measurements:
Driver fitment:
We recommend the OMP RS-PT2 for drivers with a 30 to 34-inch waist. This provides a snug and secure fit for motorsport use, helping to keep the driver properly supported without excess movement.
Like most fibreglass motorsport seats, the OMP RS-PT2 is side-mounted only. This gives a lot more flexibility when it comes to positioning, which is essential in a car like the Ford Anglia where space is extremely limited and every adjustment matters.
Because there are no off-the-shelf vehicle-specific subframes available for the Anglia, our customer opted for a fixed mounting setup by side mounting the seats directly to the floor. This is a common and effective solution in classic motorsport builds, especially when aiming for the lowest possible seating position and maximum headroom.
To achieve this, they used our Endurance multi point side mounts. These are particularly useful in tighter builds as they feature a wide range of mounting holes, allowing for fine adjustments in height, angle, and positioning. This made it much easier to dial in the exact seating position needed to clear the door cards, centre tunnel, and roll cage, while still maintaining a comfortable driving position.
Mounting the seat directly to the floor also improves rigidity, which is important for motorsport use. A fixed setup removes any potential movement that can come from sliding mechanisms, giving a more solid and connected feel when driving.
For customers looking to build a more road-friendly setup, it is still possible to run sliding runners for adjustability. However, this will require additional fabrication work. You would need to either create a custom subframe that acts as a base for the runners or modify the original mounting points to work with the standard 345 mm aftermarket bolt pattern used by the RS-PT2 and most side mounts.
It is also worth considering that adding sliders will increase the overall seat height slightly, which can be a factor in a car like the Ford Anglia, where headroom is already limited. This is why fixed mounting is often the preferred option for track-focused builds.
Overall, this setup highlights how important mounting and positioning are when working with a compact interior. With the right components and a bit of planning, even a more aggressive motorsport seat like the RS-PT2 can be fitted cleanly and securely into a classic chassis like the Anglia.
This installation is a good example of how careful seat selection and setup can make a big difference in a classic car like the Ford Anglia.
Even with a more aggressive, head-supported seat like the RS-PT2, it is still possible to achieve a clean fit without modifying the car, as long as the dimensions are right and the installation is planned properly.
It also shows how limited the space is in these cars, and why choosing the right seat from the start is so important.
Fitting modern motorsport seats into a Ford Anglia is not always straightforward, but this setup shows that it can be done with the right approach.
The OMP RS-PT2 offers strong support, FIA approval, and a compact enough design to work within the tight confines of the Anglia. With careful positioning and the right mounting setup, it delivers a proper motorsport driving position without compromising the car.
If you are planning a similar build, taking the time to choose the right seat and understanding the space you have to work with will make the process much smoother.
A 3 inch and a 2 inch FIA harness are not two versions of the same belt. The shoulder width decides whether you can run it without a frontal head restraint, and the lap width is a separate choice again. Here is how to pick, with the OMP, Sparco, TRS, Schroth and Willans ranges laid out side by side.
Every universal seat sliding runner we sell, with the handle widths, the three bolt patterns behind them, the 25mm they add to your seat height, and which seats each one goes under.

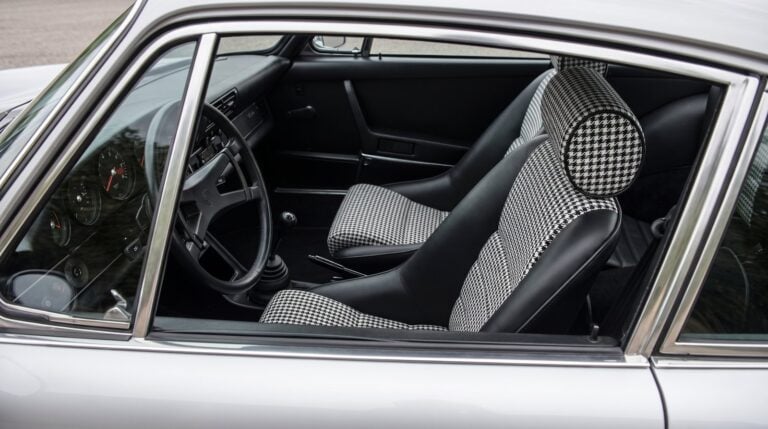

The five reclining sport seats we rate for the air-cooled Porsche 911, 1966 to 1998, with the Cobra, Sparco and Planted Technology frame routes split by build year.
