How To Install A Bucket Seat Using Original Brackets: Lexus IS200
Seat fitting guide
Fitting a bucket seat to a Lexus IS200 usually means buying side mounts and a subframe. There is another route: adapting the car's own seat rails so the new seat bolts to them, which keeps the cost down and, on a car with electric seats, can keep the electric adjustment.
YouTuber Lee Lockwood did exactly that with a Cobra bucket seat in his IS200, and the video below shows the whole job. Here is what it involves, what you gain, and what to weigh up before you pick up a grinder.
- The original rails can be adapted to take a bucket seat
- It saves the cost of a subframe and runners
- On an electric seat car it can keep the electric adjustment
- It takes time, tools and some grinding
- A home made mounting is only as strong as the work that went into it

What is on this page
The IS200 install on video
The aim of the project was simple: get a bucket seat into the IS200 without buying any new fitting equipment. Lee’s video follows the job from the standard seat coming out to the new seat going in on the modified rails.
What the job involves
The standard seat comes out first. On an IS200 with electric seats, that means unplugging the wiring and removing the plastic trims before the seat can be lifted out. Once it is out, the electric rails underneath can be unbolted from the seat itself.
The rails then have to be adapted to the bolt holes in the bucket seat. In the video that takes some cutting and grinding until the new seat sits on the original rails, which then go back onto the factory mounting points in the floor.
The pros and cons of using the original brackets
The case for it is cost. There is no subframe, runners or side mounts to buy, and keeping the factory rails can keep the electric adjustment, which is handy if more than one person drives the car.
The case against is time, tools and strength. It is not a quick job, and it needs someone confident with a grinder and drill. The factory rails were designed for the factory seat, so the height and position of a bucket seat on them will not always be ideal. Most importantly, a seat mounting is only as strong as the work that went into it, and a seat that moves in an accident is a real danger.
The other route: side mounts and a frame
The usual way to fit a bucket seat is with side mounts bolted to the seat shell, runners if you want to slide it, and a subframe made to line up with the car's floor mounts. It costs more, but every part is made for the job, and you can set the height where you want it.
Garreth's advice is to tell us the car and the seat before you buy anything, so we can check what is available for it. Our guide to base mount and side mount fitting explains how the parts fit together.

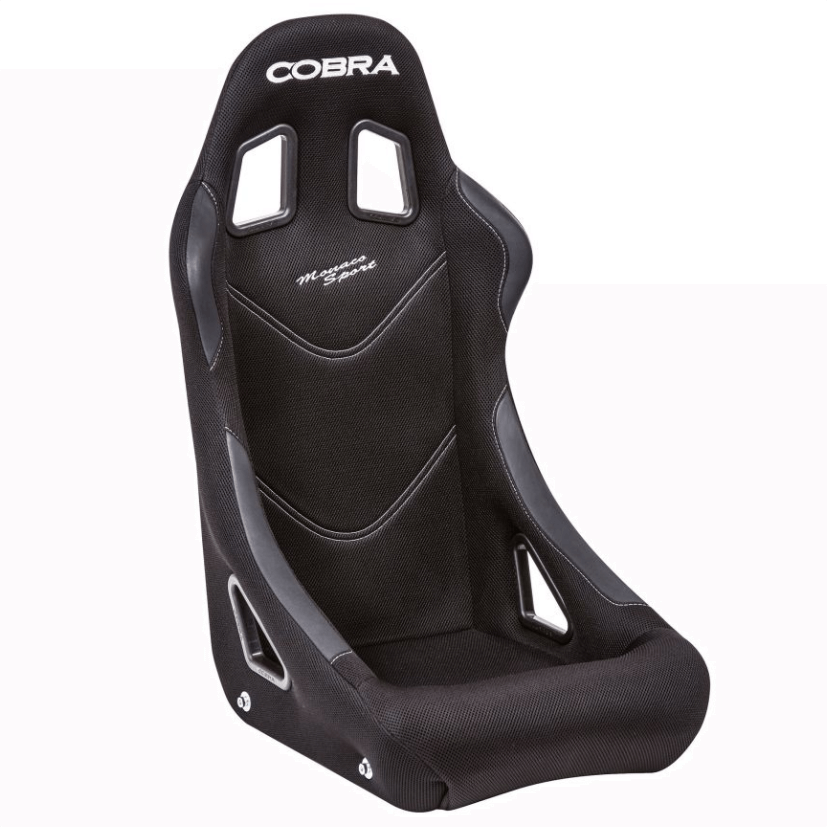

Cobra Monaco seats
The seat in the video is a Cobra, and the Monaco family is one of the most popular bucket seats we sell. The M-Sport Edition is FIA 8855-1999 approved, fully steel plated, and can be base mounted or side mounted, with slots for a 4 or 6 point harness. For an IS200 that is also used on track, SW Motorsports make a bolt-in IS200 half cage built for this shell.
-
From £269.00 Incl. VATFrom £224.17 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £474.00 Incl. VATFrom £395.00 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
-
From £264.00 Incl. VATFrom £220.00 Excl. VATPayPal CreditKlarna ReadySelect options This product has multiple variants. The options may be chosen on the product page
Can a bucket seat be fitted to the original IS200 seat rails?
Yes, it can be done by adapting the factory rails to the seat, as the video shows, but it takes cutting and grinding.
Do you keep the electric adjustment on the original rails?
Keeping the factory electric rails can keep the electric adjustment, which is one of the main reasons to do it this way.
Is using the original brackets safe?
It depends on the quality of the work, so if you are not confident with the fabrication, use side mounts and a frame made for the job.
Can the Cobra Monaco M-Sport be base mounted?
Yes. Our listing shows it can be base mounted or side mounted.
💬
