The Lotus Esprit has one of the most distinctive interiors of any classic performance car. Its low roof, narrow floorpan, deep centre tunnel, and tapered cabin shape create a driving position like no other. These same features also make it one of the most challenging cars on the market for upgrading to aftermarket seats. We are regularly asked which reclining sport seats will fit the Esprit, and the honest answer is that the cockpit size and layout rule out almost every conventional seat option.
This guide walks through the struggles of fitting seats inside the Esprit, the seats we do not recommend, and the very limited range of seats that have a realistic chance of fitting the car with the right preparation and modifications.
The Challenges of Installing Seats in a Lotus Esprit
The Lotus Esprit was never designed with aftermarket seating in mind. Its interior is extremely compact, even compared with other classics of the same era. The combination of a very low roofline, a tight centre tunnel, and a narrow cabin at the B pillars means there is almost no spare room around the seat area. The factory seats sit very low and follow the shape of the cockpit closely, and any alternative seat needs to follow the same strict footprint.
Because of this, owners should be prepared for the possibility of needing interior modifications when fitting new seats. This includes tunnel clearance adjustments, carpet trimming, or fabricating a bespoke sub frame to drop the seating height low enough for the roofline. These challenges apply whether you choose a reclining seat or a bucket seat, and they are far more pronounced than in most classic sports cars.
In our experience, installing aftermarket seats in an Esprit is one of the most challenging seat fitment jobs in the industry. The cockpit is simply too narrow for standard designs, and even specialist engineering companies have struggled with models that usually fit compact cars with ease. The tight B pillar area, the curved door trims, and the raised tunnel all work against a conventional seat installation.
Why Reclining Sport Seats Do Not Fit the Esprit
We do not recommend any reclining sports seats for the Lotus Esprit. The reclining mechanisms on these seats sit further outward than the seat base itself, which makes them too wide for the Esprit’s cockpit. Even the most compact reclining seats we stock, including the Corbeau SVR, have been tested in the Esprit by two specialist engineering companies who modify these cars. Both attempts failed due to the mechanism contacting the tunnel or door trim. If a seat as small as the SVR cannot fit, no other reclining seat will.
This is why reclining seats are not a practical or safe choice for the Esprit. The combination of width at the lower frame, added thickness of the reclining mechanism, and the lack of lateral cabin space means they will not sit correctly, cannot be bolted down securely, and will not offer proper driving ergonomics.
Why Standard Bucket Seats Do Not Fit Either
You might expect that fixed-back bucket seats would be easier to install, but the Esprit presents the same issues. We do not recommend any steel frame or standard-sized fibreglass bucket seats for this car. Seats such as the Sparco Rev, OMP Champ R, Sparco Sprint, or Cobra Monaco Pro are popular compact bucket seats, but all of them are far too wide at the shoulders and lower bolsters to work with the profile of the Esprit.
The base design of these bucket seats is still too square and wide for the Esprit’s narrow floorpan. The shoulder wings also flare too far outward to sit between the B pillar and the centre tunnel. Even with modifications, these seats will not provide a suitable fit, and forcing them into place would compromise the vehicle’s structure and reduce cockpit safety.
Got a question about the equipment we sell?
Why Choose Garreth And Cameron At GSM Performance?
We listen to every customer, constantly develop the advice that we provide based on customer feedback, and only provide the parts we know will do the job you require.
Recommended Seats for the Lotus Esprit

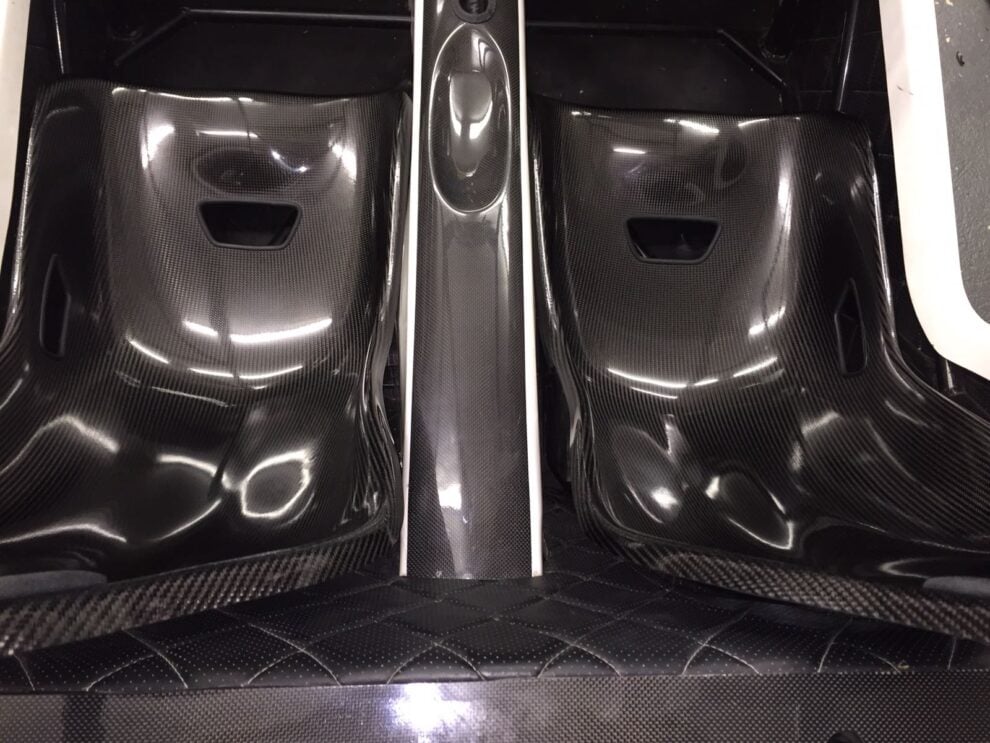

The only realistic seating options for the Esprit come from the Tillett range. Tillett produces some of the narrowest bare shell fibreglass and carbon fibre bucket seats available, with designs that taper significantly at the base and shoulders. These characteristics give them the best chance of fitting inside the Esprit’s confined interior.

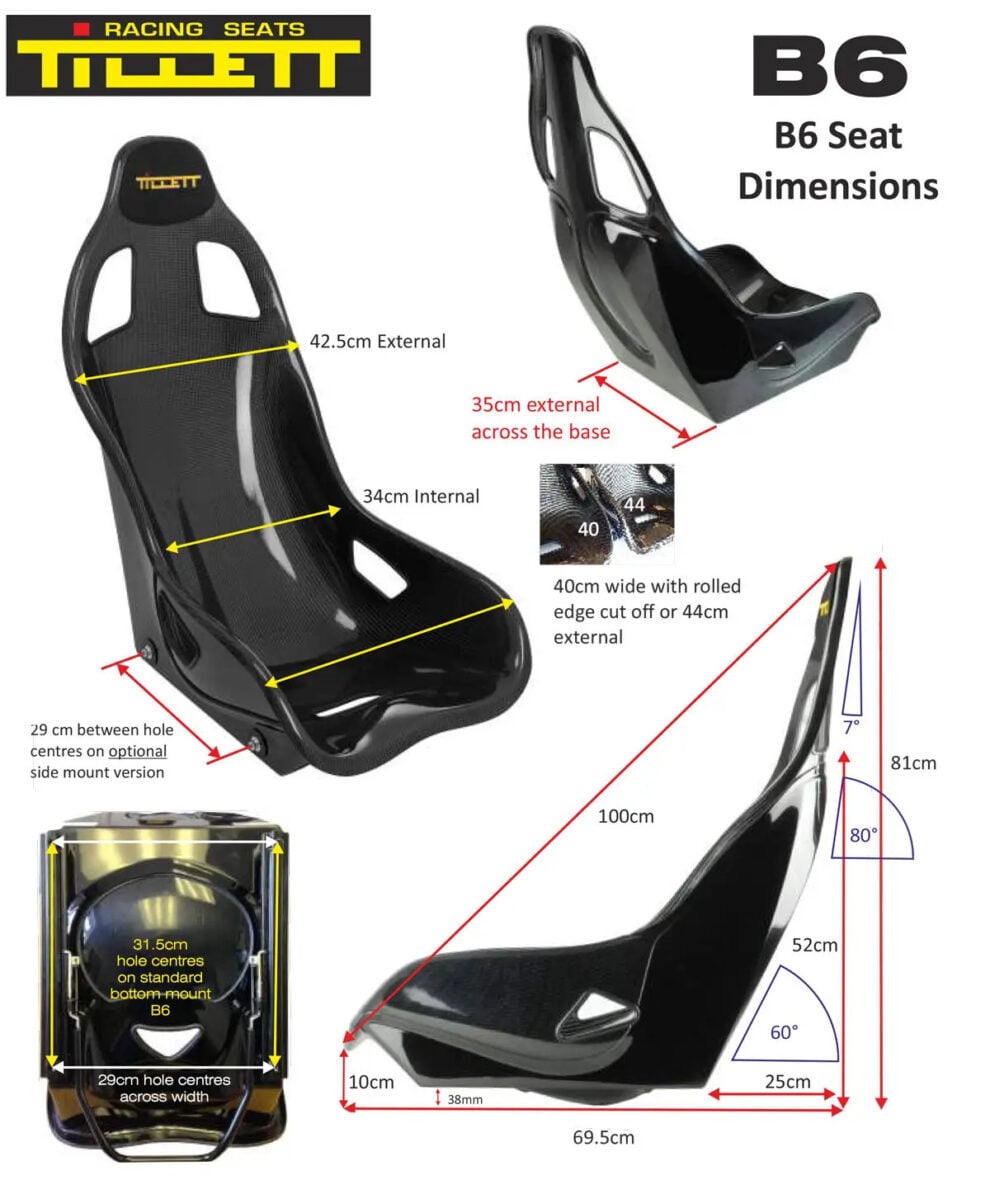

We recommend the Tillett B4, B5, and B6 models. These seats offer the narrow footprint and shell profile that the Esprit demands, but even then, some level of modification should be expected. Depending on the model year and interior condition of your Esprit, you may need minor tunnel clearance adjustments, carpet trimming, or bespoke bracket fabrication. Because the Esprit has such a low roofline, a custom subframe may also be required to mount the seat lower than standard.
Avoid the XL versions of these seats, as they will be too wide for the car. The standard-width B-series seats are the only ones suited to the dimensions of the cockpit.
Given the challenges of this installation, we strongly recommend using a specialist garage or fabricator who is experienced with classic Lotus models. The Esprit needs precise seat positioning for comfort, safety, and correct driving ergonomics, and a trained professional will be able to carry out any required modifications to a safe and high standard.
-
From £1,014.30 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £793.80 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £1,050.68 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £967.99 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £848.92 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £908.46 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Final Thoughts: Only Ultra Narrow Seats Work in the Esprit
Ultra Compact Seats Only: No Recliners Fit the Lotus Esprit
Across the last decade of customer enquiries and engineering tests, the conclusion has always been the same. No reclining sport seat fits the Lotus Esprit due to the cockpit’s extreme narrowness, angled tunnel, and low roofline. Standard compact bucket seats also fail to fit, as they are still too wide at the shoulders and too square at the base for the car’s interior.
The only seats with a realistic chance of fitting are the ultra narrow Tillett B4, B5, and B6 shells, and even these typically require modifications to the interior and a custom mounting solution. With careful planning and professional installation, the Tillett seats offer the closest match for the Esprit and give owners a safer and more supportive seat option while respecting the unique proportions of this iconic Lotus cockpit.
