Which Bucket Seats Will Fit My Fiesta ST150?

The Ford Fiesta ST150 is one of the most loved hot hatches in the UK. With sharp handling, punchy performance, and lightweight agility, it’s a go-to choice for anyone who wants big fun in a small package. But while the performance is solid from the factory, the driving experience can be taken to another level with the right interior upgrades — and that starts with the seats.

Many drivers find that the factory seats, while supportive enough for daily driving, start to fall short when pushing the car hard through corners or spending extended time on track. The stock seats just don’t offer the bolstering or body support needed to stay locked in under high-G cornering or heavy braking. This is where upgrading to a motorsport-style bucket seat makes a massive difference.

With a fixed-back or sport reclining bucket seat, you get improved support, a more stable driving position, and a much deeper connection with the car. It reduces driver fatigue, helps you concentrate on inputs, and makes your interior look much more purposeful. Whether you’re building a weekend track car, a daily with more edge, or a dedicated motorsport build, a seat upgrade is one of the best modifications you can make to your ST150.

Why Upgrade Your Fiesta ST150 with Bucket Seats?

The Fiesta ST150 already comes with plenty of punch from the factory, but if you’re taking it on track or just enjoy performance driving, you’ll quickly feel the stock seats fall short. The standard seats don’t offer enough lateral support under hard cornering, which can leave you shifting about mid-apex.

Installing a set of proper bucket seats gives you:

A lower and more stable seating position
Improved driver feedback and car connection
Far superior lateral support
A more motorsport-inspired interior (and let’s be honest — it just looks cooler)

Whether you’re chasing lap times or just want to feel more planted on back roads, upgrading to a fixed-back or recliner bucket seat is one of the most impactful mods you can make.

Can Large Bucket Seats Fit in a Fiesta ST150?

Surprisingly, they can. The OMP WRC-R XL is one of the widest seats we offer, measuring 670 mm at the shoulders and 540 mm across the base – and it fits. That means any bucket seat with similar or smaller dimensions should work too, giving you more options than you might expect when upgrading your Fiesta ST150’s interior.

This car can comfortably accommodate a range of popular XL-sized motorsport seats from brands like OMP and Sparco. We’ve successfully fitted the following wide-body models:

OMP TRS-E XL
OMP WRC-XL
Sparco Sprint L
Sparco Evo XL

Each of these seats offers excellent lateral support, high backs for safety, and proper harness compatibility. Just make sure to measure carefully and always double-check your interior space. If you’re unsure, we’re always here to help guide you through the options.

Amazing value

Sparco Sprint L FIA Motorsport Bucket Seat 2025
£237.00 Incl. VAT£237.00 Excl. VAT Add to basket
SALE
Klarna Finance

Sparco Evo XL QRT FIA Motorsport Bucket Seat
£525.00 Incl. VAT£525.00 Excl. VAT Add to basket
OMP TRS-E XL Velour FIA Motorsport Seat
£232.50 Incl. VAT£232.50 Excl. VAT Add to basket
SALE
Klarna Finance

OMP WRC-R Fibreglass XL FIA Motorsport Seat
£515.00 Incl. VAT£515.00 Excl. VAT Add to basket

Steel Frame vs. Fibreglass Seats — Which Is Right for You?

Choosing between steel and fibreglass-framed bucket seats comes down to how you’re using the car.

Steel Frame Bucket Seats

Great for fast-road and occasional track days
Base or side-mount compatible (depending on seat brand)
Generally heavier, more affordable, and less rigid than fibreglass shells

Fibreglass Bucket Seats

Designed for motorsport and track use
Side-mount only
Lightweight, rigid, and FIA-homologated (depending on model)

Both types can be fitted in the Fiesta ST150, but choosing the right mounting hardware is essential, especially for side-mounted fibreglass models.

Installation Guide – Choosing the Right Sub-Frame

To fit aftermarket bucket seats in your Ford Fiesta ST150, picking the correct sub-frame is essential. Each brand’s frame offers different bolt patterns that match specific seats. The Cobra sub-frame features a 291mm bolt pattern, ideal for base-mounted Cobra steel frame seats and recliners, but it’s not compatible with every other seat brand unless adapter brackets are used.

The OMP sub-frame offers even more flexibility with both 345mm and 405mm bolt patterns, which are common universal bolt patterns used by most aftermarket base and side-mounted seats. We recommend these OMP frames for larger XL bucket seats that need to use the wider 405mm bolt pattern, like the OMP WRC-XL or Sparco Evo XL.

OMP frames don’t provide any additional mounting points for your factory seat belt, as they are designed for pairing up with a racing harness for full motorsport use. If you want a sub-frame more road and track day friendly, and that you can use daily with a factory seat belt, you can either fabricate your own sub-frame with a seat belt mount or use the Cobra frame that provides the additional mount. Adaptation plates will be needed if it’s not a Cobra-branded seat. Whether you’re going for a slimline bucket or a wide racing seat, there’s a sub-frame to make your install as smooth and secure as possible.

New for 2025

Cobra Seats – Ford Fiesta Mk5 ST150 Direct Fit Subframes
From £193.05 Incl. VATFrom £193.05 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
New for 2025

OMP Ford Fiesta MK5 ST150 Direct Fit Subframes
From £92.50 Incl. VATFrom £92.50 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Perfect add-on

Endurance Motorsport Adaption Bars
£32.50 Incl. VAT£32.50 Excl. VAT Add to basket

Roll Cage Options for the Ford Fiesta ST150

If you’re taking your Fiesta ST150 to the next level—whether it’s for track use, fast-road setups, or show car builds—a roll cage is a key upgrade to consider. At GSM Performance, we offer a selection of bolt-in and weld-in roll cages specifically designed to fit the ST150, supplied by some of the most trusted names in the motorsport industry.

These cages are designed to integrate cleanly with the Fiesta ST150’s body, offering improved safety, structural rigidity, and that aggressive motorsport look. Most setups are compatible with bucket seats and harnesses, making them the perfect complement to your interior upgrade.

New for 2025
UK Made
Klarna Finance

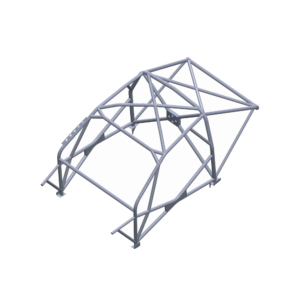

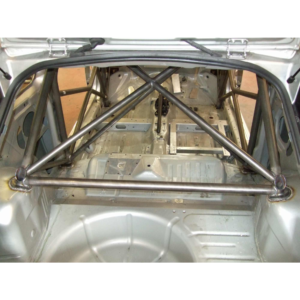

Custom Cages Ford Fiesta MK5/6 (Inc ST150) International Multipoint T45 Roll Cage Kit
£1,395.00 Incl. VAT£1,395.00 Excl. VAT Add to basket
Klarna Finance

JP Ford Fiesta MK5 Half Cage
From £461.00 Incl. VATFrom £461.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Klarna Finance

JP Ford Fiesta MK5 Bolt In Multipoint Competition Roll Cage
From £681.50 Incl. VATFrom £681.50 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Klarna Finance

Safety Devices Ford Fiesta Mk5 And Mk6 CDS Weld-In Roll Cage
£1,667.00 Incl. VAT£1,667.00 Excl. VAT Select options
UK Made
Klarna Finance

Custom Cages Ford Fiesta Mk5 2004 International Multipoint T45 Roll Cage
£1,397.93 Incl. VAT£1,397.93 Excl. VAT Add to basket
UK Made
Klarna Finance

Custom Cages Ford Fiesta Mk5 Bolt-In Roll Cage
£1,341.36 Incl. VAT£1,341.36 Excl. VAT Select options

Finding the Perfect Fit for Your Ford Fiesta ST150

Upgrading your Fiesta ST150 with a set of bucket seats is one of the most rewarding modifications you can make, both for daily driving enjoyment and on-track performance. Whether you’re aiming for lightweight fibreglass racing seats or the affordability and versatility of steel-frame options, the ST150’s interior offers enough space to accommodate a wide variety of seat styles and sizes.

By understanding the differences between seat construction, bolt patterns, and choosing the right sub-frame, you can confidently select a setup that not only fits your car but also supports your driving goals. From slimline Sparco Evo seats to wider OMP WRC-XL buckets, and from basic steel-frame installs to FIA-approved fibreglass builds—our full range has something for every driver. Need help picking the right combo? Drop by our showroom or get in touch, we are always happy to help.
