SW Motorsports Subaru Roll Cages Updated For 2024
Roll cage news, February 2024
With the 2024 season coming, we have updated our SW Motorsports roll cages for Subaru. Each cage now has up to date information on its specification, its approval and the Subaru it is built for, with more colour and configuration options.
The Subaru range covers a bolt-in half cage for the BRZ and a full bolt-in cage for the Impreza GD, so there is an option for track days and one for competition.
- Our SW Motorsports Subaru roll cages updated ready for 2024
- A bolt-in half cage for the Subaru BRZ, with no welding
- A full bolt-in cage for the Impreza GD, built to Motorsport UK tube sizes
- 45mm x 2.5mm CDS tube for the main structure
- A range of powder coat colours on both cages

What is on this page
What has changed on the Subaru cages
Our SW Motorsports Subaru listings have been checked and rewritten for the new season. Each one sets out the specification of the cage and the shell it is built for, and the colour and configuration options have grown.
SW Motorsports bolt-in cages suit track day drivers and fast road cars. SW build them from the same materials they use for their own race cars, and they add a good level of protection in the event of a roll.
The BRZ half cage
The SW Motorsports BRZ half cage reinforces the rear of the car and does not use door bars, so getting in and out stays easy. It is a full bolt-in fit with no welding, designed to go in at home with a basic set of tools, and it comes with all the fittings and fixings needed.
It is made from 45mm x 2.5mm cold drawn (CDS) tube to the E355+N specification that the Motorsport UK Blue Book asks for, and can be powder coated in black, blue, green, red, white, yellow, anthracite or orange.

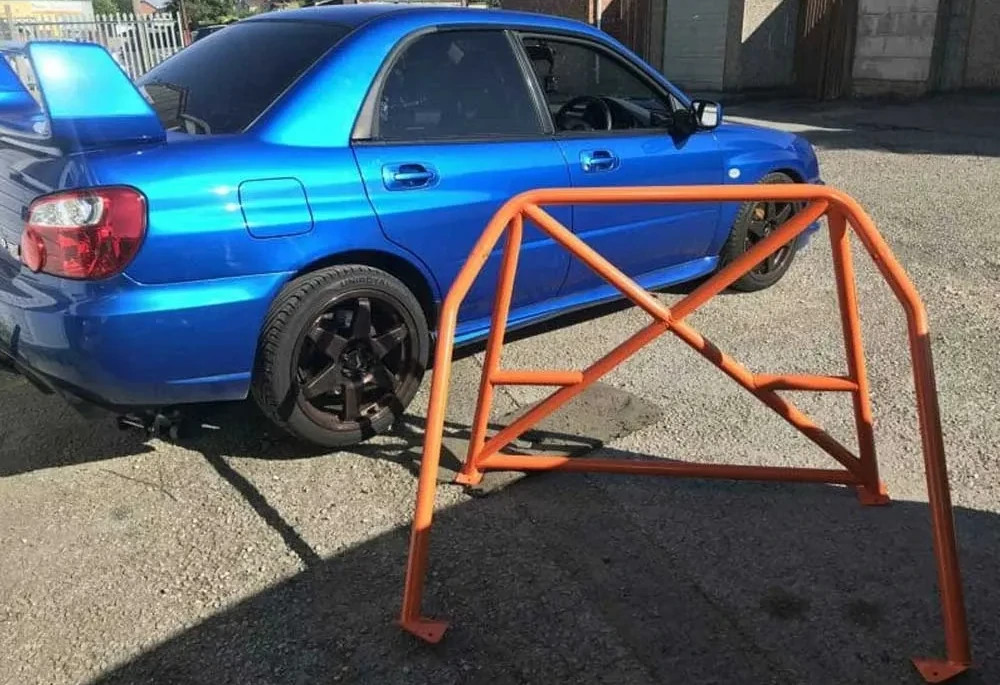

The Impreza GD full cage
For competition, the SW Motorsports Impreza GD full cage is built to the Motorsport UK recommended tube sizes: 45mm x 2.5mm CDS for the compulsory structure and 38mm x 2.5mm CDS for the optional bars.
The cage passes through the dash, which has to be cut and trimmed to fit, and it is not suitable for cars with a factory sliding sunroof. Garreth's advice is to read the listing closely and check the harness angles against the cage before ordering. Our guide to roll cage rules explains what is asked for.

The full SW Motorsports roll cage range covers other makes too, such as BMW, Ford and Honda.
SW side mounts in the showroom
In the showroom we hold SW Motorsports side mounts for cars such as the BMW E46 and the Renault Megane Mk2, ready to dispatch or collect. Each one is designed by SW around the floor of one car, so no changes to the car are needed when it is used with a suitable seat. Our wider SW Motorsports seat mount range covers many more cars.
-
From £80.40 Incl. VATFrom £67.00 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
-
From £106.24 Incl. VATFrom £88.53 Excl. VATPayPal CreditSpeed+ ServiceSelect options This product has multiple variants. The options may be chosen on the product page
-
From £120.00 Incl. VATFrom £100.00 Excl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
Which Subarus do the SW Motorsports cages fit?
Our range has a bolt-in half cage for the BRZ and a full bolt-in cage for the Impreza GD.
Does the SW BRZ half cage need welding?
No. It is a full bolt-in fit with all fittings and fixings included.
Does the Impreza GD cage need the dash cutting?
Yes. The cage passes through the dash, which has to be cut and trimmed to fit.
What tube is used in the Impreza GD cage?
45mm x 2.5mm CDS for the compulsory structure and 38mm x 2.5mm CDS for the optional bars.
💬
Ready for 2024SW cages for the BRZ and Impreza
A bolt-in half cage for track days and a full cage for competition.
