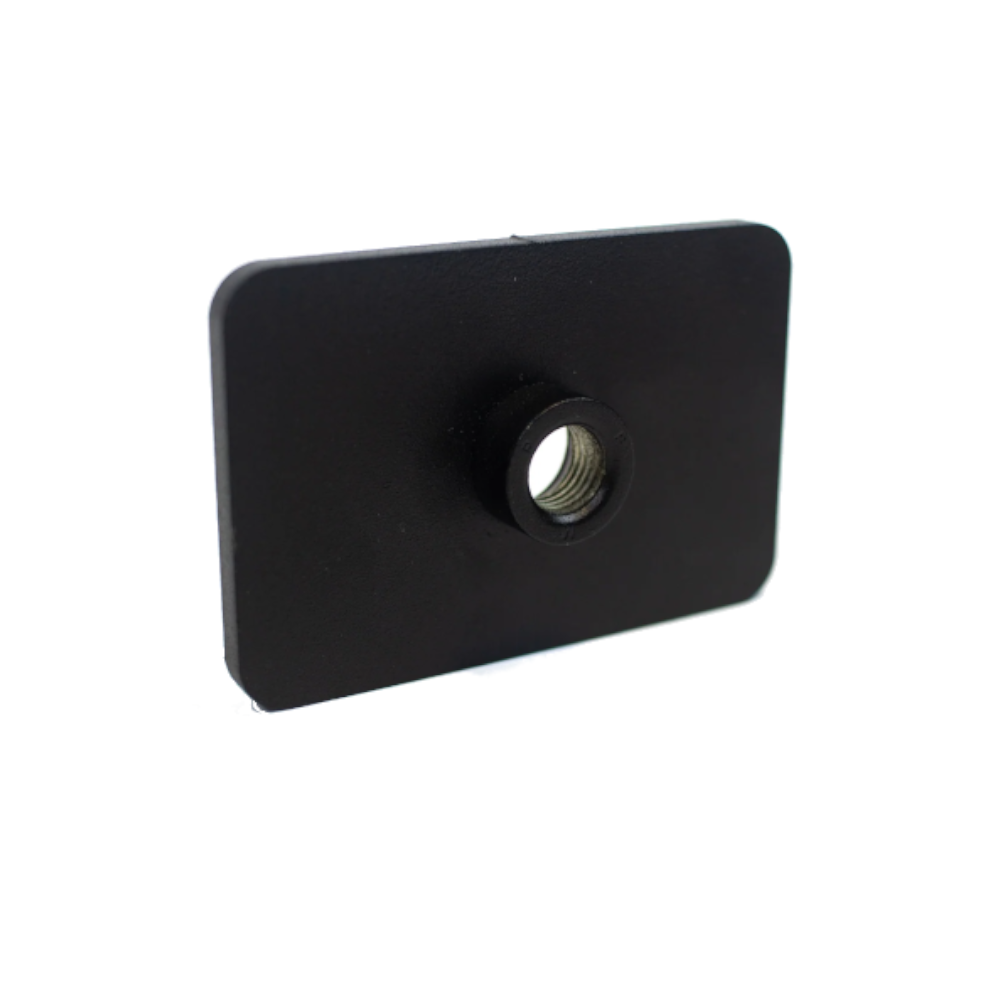

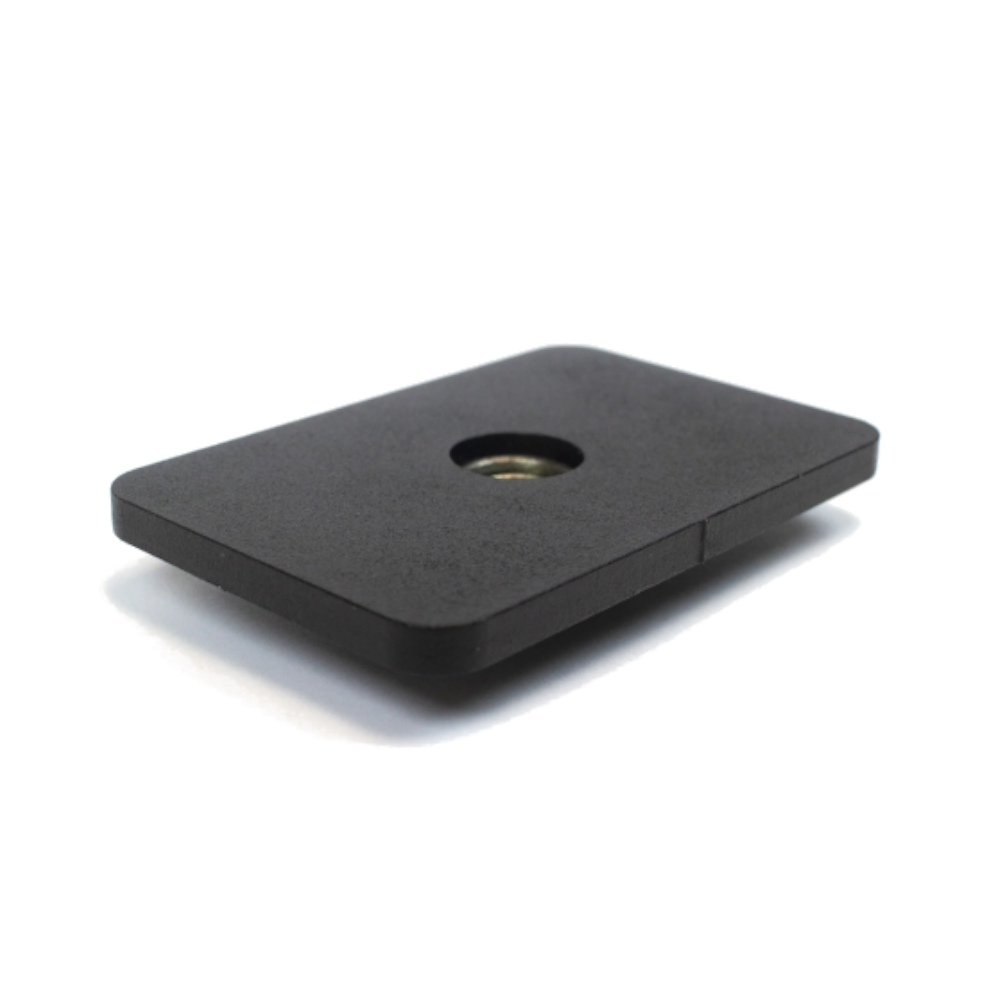

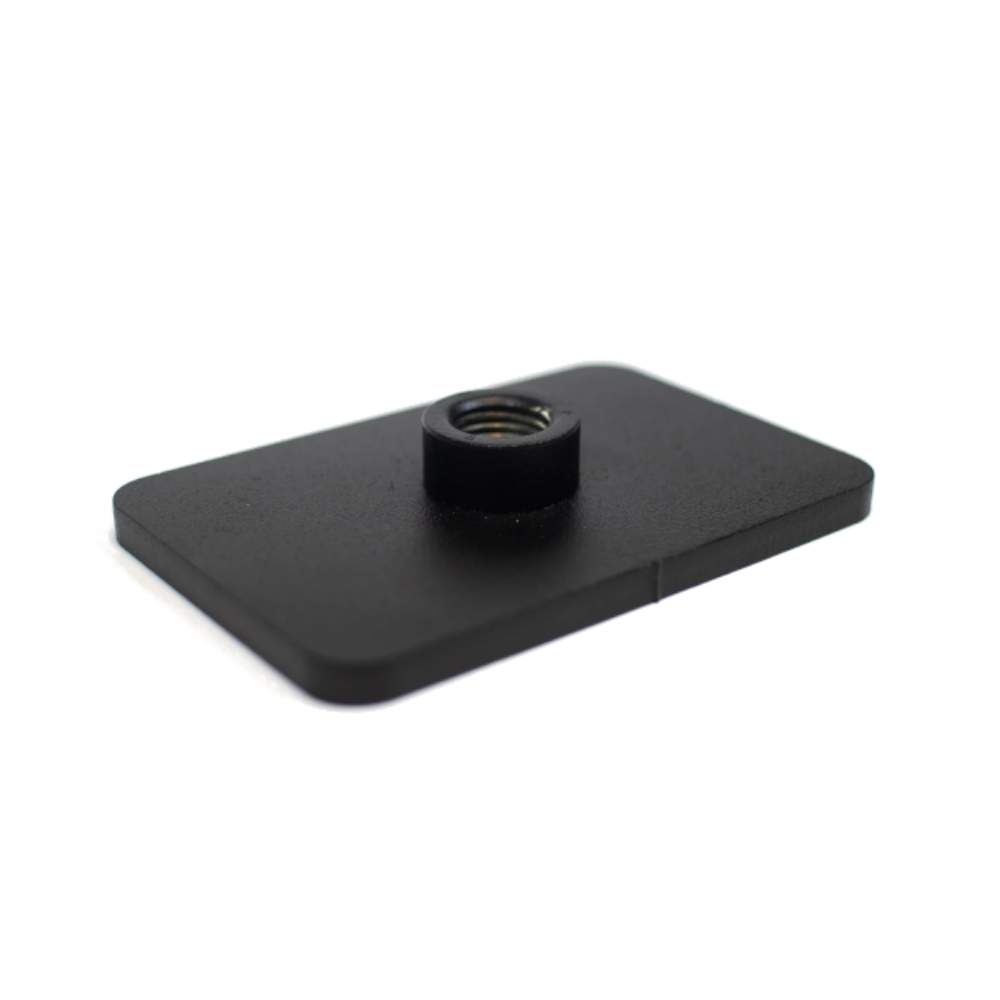

The Planted Reinforcement Plate is used to reinforce a bolt or eye-bolt mounting point; ideal for use when installing a harness in non-factory conditions. Reinforcing a harness mount point is essential when the location has not been engineered by the auto manufacturer. Mounting a harness to sheet metal requires a reinforcement plate underneath it to prevent the floor from being ripped out. The Planted Reinforcement plate weighs about 1/3 lbs and uses a 7/16″ – 20 nut which is welded to a 1/8th inch thick piece of steel, measuring 2 inches by 3 inches, and finished powder coated in black.
- Essential when installing a harness in a non-factory environment
- Bolts and eye bolts are not included
The Planted Reinforcement Plate weighs about 1/3 lbs and is sold individually.
