OMP HTE EVO VTR Fibreglass Seat OMP HTE EVO VTR Fibreglass Seat £1,456.80 Incl. VAT£1,214.00 Excl. VAT
Corbeau-Pro-Series-499×499 2 Corbeau Pro Series X System 1 FIA Motorsport Bucket Seats £1,452.00 Incl. VAT£1,210.00 Excl. VAT

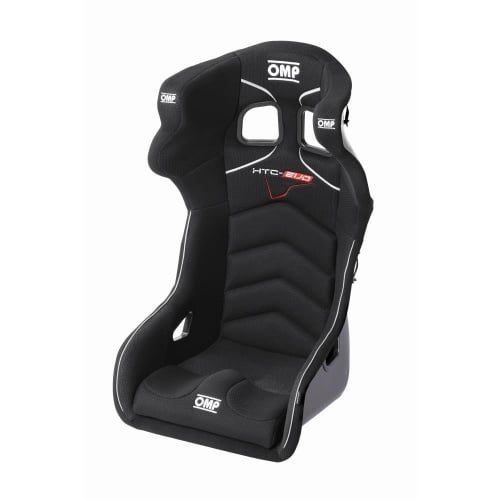

OMP HTC EVO VTR Fibreglass Seat

£1,351.20 Incl. VAT

OMP HTC EVO VTR Fibreglass Seat by OMP Racing. Brand: OMP Racing. Construction: Fibreglass seats. Approval: FIA 8855-2021.

Inc/Exc VAT

Perfect add-ons!

Choose any extras you would like added to this product.

TRS Magnum 6 Point FIA Harness Belt-Black-Edited-GSM Performance

TRS Magnum 6 Point FIA Harness Belt

£195.00
Add-ons subtotal£0.00
Add to wishlist
Size/Fitting guide
SKU: OMPHA0-0903-A01 Categories: , , , , ,
Save to Pinterest

Free UK shipping on all orders over £100

  • Personalized order tracking
  • Over 20 years of technical experience
  • In-store appointments available
Guaranteed Safe Checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

The OMP HTC EVO VTR, homologated to FIA 8855-2021. Part number OMPHA0-0903-A01.

Current standard rather than the 8855-1999 most competition seats still carry, which means stricter impact testing and a longer legal life. On a seat at this price that second point matters: it stays usable for more seasons than an equivalent 1999 seat, so the cost per season is closer than the ticket prices suggest.

Airtex trim

The trim is Airtex, which is a breathable technical fabric rather than velour or vinyl. In a closed car on a hot day that is a genuine difference rather than a marketing one: a velour seat holds heat against your back and an open weave moves air through it. Over a long stint that shows up as being less tired.

Specification

Fibreglass shell, fixed back, side mount, four and six point harness compatible, black. OMP list it for all heights with a 36 to 38 inch waist bracket.

Mounting

The 8855-2021 approval applies when the seat is on the correct side mountings, which are sold separately. Approved shell on unapproved brackets is not an approved installation.

You also need a vehicle specific sub-frame. Tell us the car and we will make sure the mounts and the frame are right.

Ask us to read the manufacture date off current stock before you order.

Additional information

Weight 12 kg
Dimensions 80 × 60 × 120 cm
Brand

Construction

Approval

Driver Height

Driver Waist Size

Fixing Type

Harness compatibility

,

Product Colour

Trim Material

Mechanism Type

Protection Type

HANS Compatibility

OMP seat size guide

OMP publish a full dimension table for every shell, which makes them the easiest brand to size from a measurement. Most models are one size, with XL versions on the HTE-R, WRC-R, HRC-R and TRS-E.

How OMP size their seats

OMP quote external width at the shoulders, external width at the base, overall height and, the useful one, the inner width at the belt holes. Compare that inner width with your seated hip measurement: you want 20 to 40 mm of room, no more. The XL shells add 20 to 45 mm of inner width and 30 to 60 mm of height.

The HTE-R is the mid-size shell at 390 mm inside; the HTE-R XL and WRC-R XL go to 415 mm; the TRS-E XS is the slim one at 330 mm. Carbon versions of the same model are a little narrower than the fibreglass ones, which is worth knowing if you are at the edge.

OMP dimensions

From OMP’s race seat size guide. All figures in mm; weight is the complete seat, plus or minus 10 percent.

Model Shoulder width Base width Height Inner width Weight
Fibreglass
HTE-R 560 515 880 390 9.4 kg
HTE-R 400 560 515 880 390 10.2 kg
HTE-R XL 580 530 920 415 10.5 kg
HRC-R Fibreglass Air 620 470 900 365 9.5 kg
HRC-R Fibreglass Air XL 610 490 980 400 10.3 kg
WRC-R 620 510 890 390 8.8 kg
WRC-R XL 665 520 920 415 10.7 kg
ARS-R 590 500 910 370 8.9 kg
RS-P.T.2 565 510 880 395 10.4 kg
Champ R 590 520 890 360 8.8 kg
First-R 620 510 890 390 8.9 kg
Carbon
HTE-R Carbon 545 465 880 370 6.6 kg
HTE-R Carbon XL 560 485 890 390 6.8 kg
HRC-R Carbon 615 460 890 365 5.8 kg
HRC-R Carbon Air 615 460 890 365 6.2 kg
HRC-ONE 615 455 900 365 9.2 kg
WRC-R Carbon 590 495 890 365 5.6 kg
ARS-R Carbon 585 480 890 360 5.8 kg
Tubular steel
TRS-E, TRS-E Plus, TRS-E Sky 585 510 890 390 10.3 to 10.8 kg
TRS-E XS 520 420 870 330 10.2 kg
TRS-E XL 625 540 950 415 12.3 kg

Which OMP fits you

Model Waist band Driver height Shell Approval
Competition, FIA
HTE R Standard 32 to 36 / Excel 36 to 38 All heights Fibreglass or carbon FIA 8855-1999
HTE R 400 32 to 36 All heights Fibreglass FIA 8855-1999
HTE EVO, HTE EVO VTR, HTC EVO VTR 36 to 38 All heights Fibreglass FIA 8855-1999 / 8855-2021 (VTR)
HGT / HGT Evo 36 to 38 All heights Carbon / fibreglass FIA 8855-1999 / 8855-2021
HRC R, HRC R Air 32 to 36 carbon, 36 to 38 fibreglass All heights Carbon or fibreglass FIA 8855-1999
HRC One 36 to 38 All heights Carbon FIA 8862-2009
WRC R 32 to 36 Under 6 ft Fibreglass FIA 8855-1999
WRC R XL 36 to 42 Under and over 6 ft Fibreglass FIA 8855-1999
ARS, ARS R 36 to 38 All heights Fibreglass FIA 8855-1999
RS PT 2, Champ R 32 to 36 Under 6 ft Fibreglass FIA 8855-1999
First R 32 to 38 Under 6 ft Fibreglass FIA 8855-1999
RT 32 to 36 All heights Fibreglass or carbon FIA 8855-1999
TRS E Sky 28 to 36 Under 6 ft Tubular steel FIA 8855-1999
Road and track
HTE EVO Off 32 to 36 All heights Fibreglass Road and track
Classic
1970s Revival, Brands Hatch, Silverstone All sizes All heights Steel frame Road and track
The WRC-R XL is the big oneAt 665 mm across the shoulders and 415 mm inside it is the widest OMP we list, and the only one we band to a 42 inch waist.

Every OMP shell in the table fixes through the side with four M8 8.8 bolts as a minimum. The TRS-E also takes bottom fixing.

Measure yourself first

Four numbers decide whether a seat fits. Take them in the clothes you drive in, and write them down before you compare models.

AWaistAround your natural waist, not your trouser size. Trouser sizes usually run an inch or two under the real figure, and the waist bands on our product pages use the real one.
BSeated hip widthSit on a hard chair with your feet flat and measure straight across the widest point of your hips with a rule or a straight edge, not a tape that follows the curve. This is the number that decides whether a fixed shell is tight.
CShouldersStraight across the back at the widest point. Fixed back seats hold you here, so a shell that is narrow at the shoulders is uncomfortable long before it is unsafe.
DHeight and torsoYour height, and if you are over 6 ft whether that is mostly leg or mostly body. A long body needs a taller shell with the head support set higher.

Before you order

  • Check the car, not only the driver. Transmission tunnels, door cards and B pillars are what stop a wide shell going in. Our seat mounting and fixing points guide covers what to measure.
  • Side mount and base mount shells are not interchangeable. Which one you need depends on the car and the subframe, so pick the brackets at the same time as the seat.
  • If you run a HANS or plan to, filter on HANS friendly. The shoulder openings are cut to clear the collar.
  • FIA seats carry an expiry date on the homologation label. Check what your championship accepts and how long the seat has left, particularly on discounted older stock.
Send us your measurementsWaist, seated hip width, height and the car. We have fitted a lot of OMP seats and will tell you honestly if the one you have picked is going to be tight. Call 0115 989 3488 or email Sales@GSMPerformance.co.uk.

Waist bands and heights are our product data, checked 6 September 2026. Dimensions and weights are from OMP’s race seat size guide.

Have you written anything about this exact product?
Yes, we have covered this exact product: OMP HTC EVO VTR Fibreglass Seat In-Store Showcase. That is first-hand coverage from our own builds and showroom, not brochure copy.

Will I fit in this seat?
The maker sizes this seat for drivers with a 36in to 38in waist. Those are the paper numbers; how a seat actually feels to sit in and climb out of is a different question, and our showroom team sit in these seats every day, so call us with your height and waist and we will give you the honest answer.

Is it FIA approved, and for how long?
Yes, it carries FIA 8855-2021 homologation. Every FIA seat has a not-valid-after year printed on its homologation label, and that label date is what a scrutineer checks, so look at the label on the seat you receive and check it against your championship regulations. Buying new means you get the freshest label the maker currently produces.

What do I need to fit it to my car?
This is a side-mount seat: it hangs between side brackets, the motorsport-style stack with fine height and angle control. You will need the car-specific frame, and a sliding runner if you want fore-and-aft adjustment. Our guide on base mount versus side mount walks through the whole stack, and tell us your car and we will quote the full kit.

Does it work with harnesses and a HANS device?
The shell takes 4 point compatible and 6 point compatible. If you are planning the full seat, harness, and HANS setup, tell us the car and we will spec it end to end.

How do I know it will feel right, not just fit on paper?
Fair question, because makers publish widths and weights, never feel, and two seats with identical numbers can feel nothing alike in the car. We keep the ranges on display in the Nottingham showroom, you are welcome to come and sit in them, and if you cannot get to us, call and describe your build, as the team sit in these seats every day. Our head support measurements guide shows the kind of real-world data we collect.

Availability

OMP deliveries arrive every two weeks

OMP produce in batches and we receive their products on a fortnightly basis, so their most popular seats, harnesses and equipment are generally available for quick dispatch.

Reclining sport seats and less common trims are brought in to order, so those take longer.

If you have a date

Tell us when you order and we will confirm the current lead time before you commit, rather than leaving you to find out afterwards.
