Our Customer's Ford Focus Mk3 With Corbeau Seats And Schroth Harnesses

Customer car, November 2025

We have just supplied a full seat and harness setup for a customer's Ford Focus Mk3, and the photos show how well it has come together. They chose a pair of Corbeau Sprint XL FIA bucket seats in black fabric and a pair of red Schroth Profi II-FE ASM four point harnesses, all on Planted Technology brackets made for the car.

The red harnesses run back to the rear cage and pick up the red stitching the Focus already has on its interior and steering wheel. Here is what went into the build and why each part was chosen.

  • Car: Ford Focus Mk3 with a rear cage
  • Seats: a pair of Corbeau Sprint XL FIA bucket seats in black fabric
  • Harnesses: red Schroth Profi II-FE ASM four point, FIA 8854-1998
  • Brackets: Planted Technology Focus Mk3 (2011 to 2018)
  • Side mounts: drilled for Corbeau's M10 bolts
  • The harness shoulder straps run back to the cage
Two black Corbeau Sprint XL bucket seats with red Schroth four point harnesses in a customer's Ford Focus Mk3, seen through the open driver's door with a rear cage behind
Our customer's Focus Mk3 with Corbeau Sprint XL seats and red Schroth harnesses.

The complete setup

Each part of this build was chosen to work with the others. The Planted Technology bracket for the Focus Mk3 bolts to the factory seat mounting points and gives the seats a solid base. The Corbeau Sprint XL seats sit on side mounts bolted to those brackets, and the Schroth harnesses anchor to the cage behind.

The detail that catches people out with Corbeau seats is the bolt size. Most FIA seats use M8 bolts through the side flanges, but Corbeau use M10, so the side mounts need to be drilled for M10. Our customer used side mounts made for Corbeau’s M10 thread, which bolt straight on with no grinding or re-tapping. Corbeau side mount seats also use their own bolt points, so they are not a straight swap onto every frame. Always tell us the seat when you order mounts.

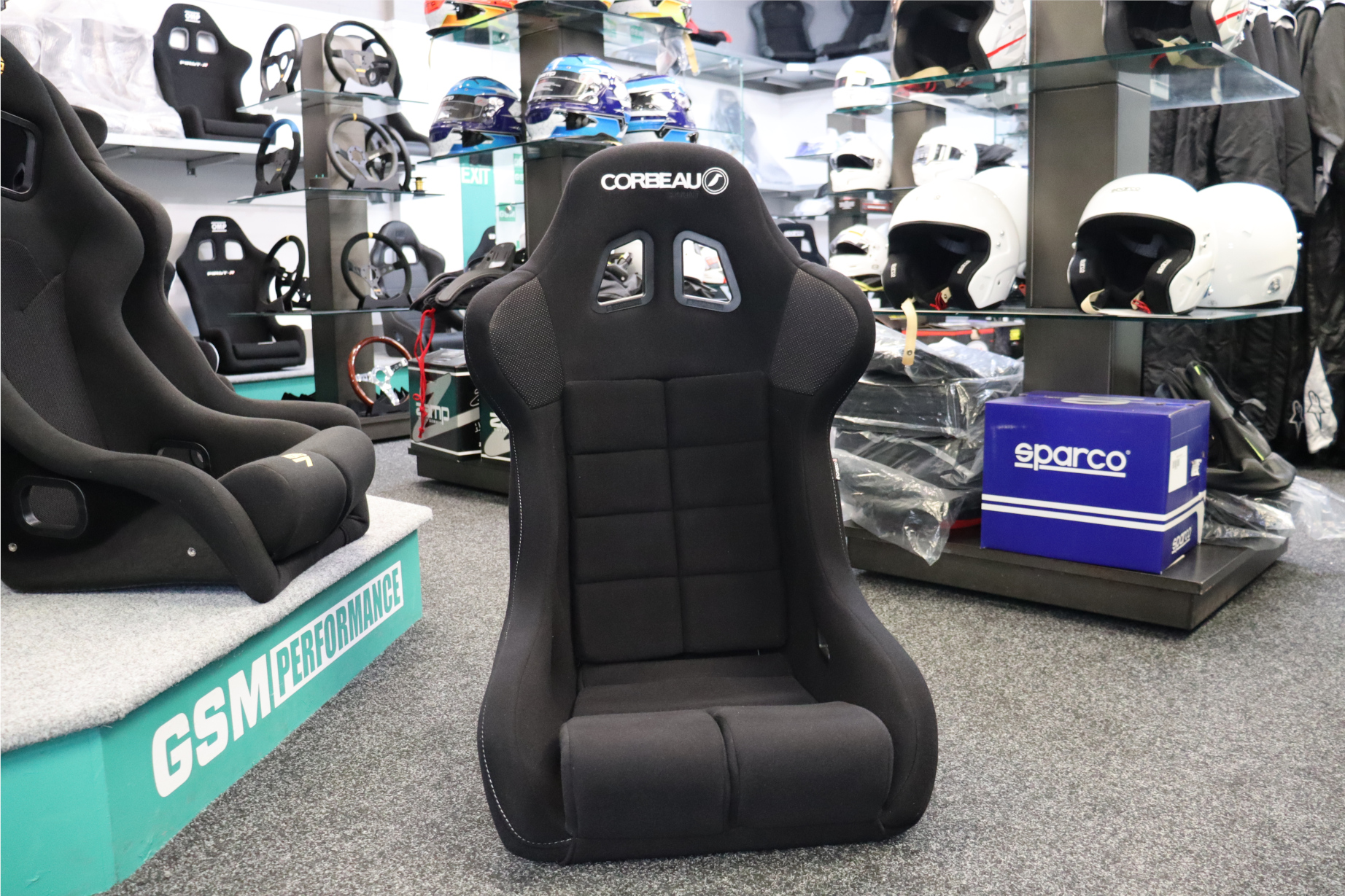

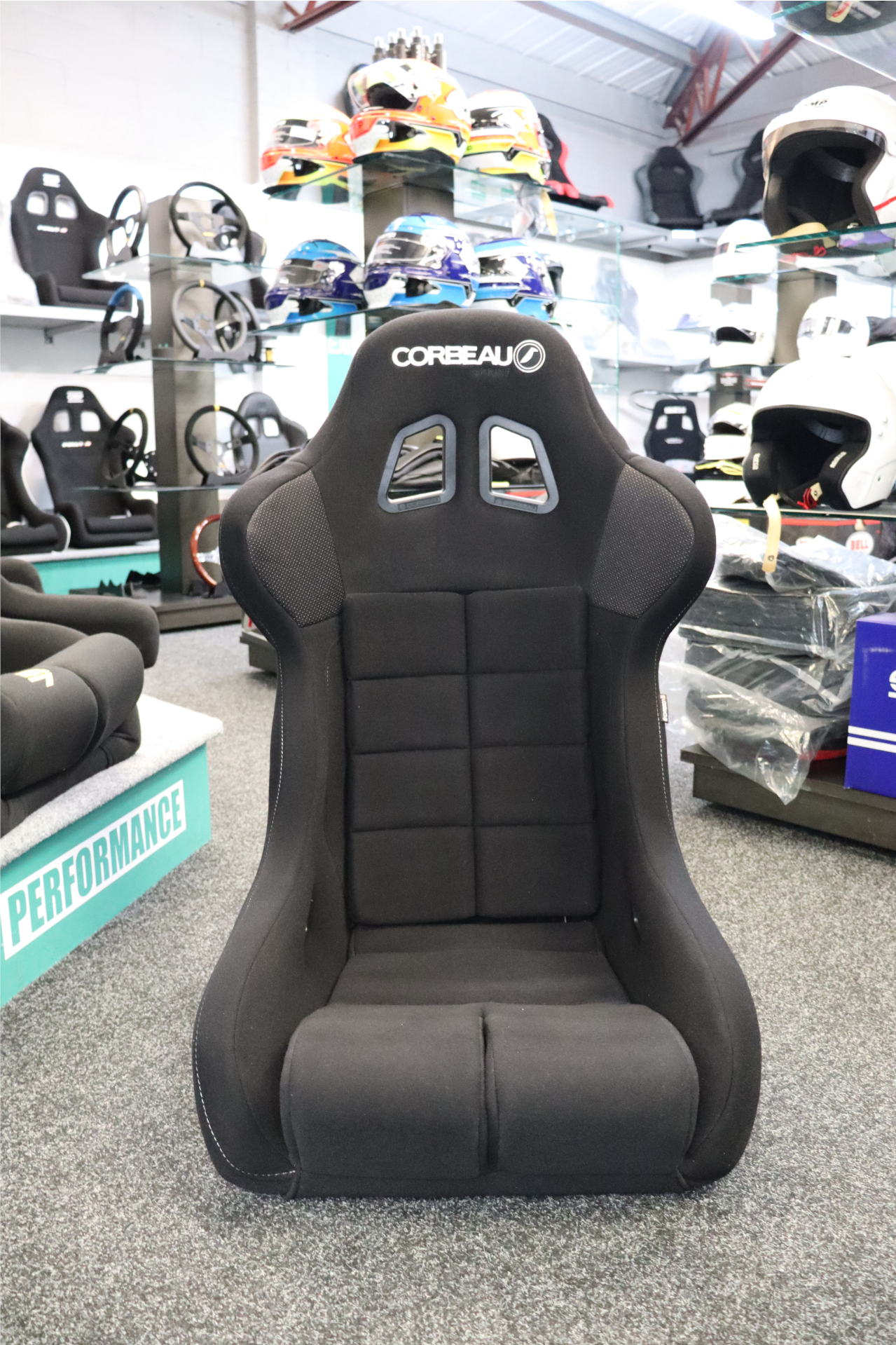

Corbeau Sprint XL seats

The Sprint is Corbeau's entry level FIA competition seat, homologated to FIA 8855-1999, with five harness slots and a side mount fitting. The XL shell is wider at the hips than the standard Sprint, and Corbeau list the Sprint X XL for a 36 to 40 inch waist and drivers under six feet.

Our customer went for black fabric, which grips well and stays comfortable on a long track day. The Sprint is also offered in vinyl, with coloured centre panels, and with a range of shell colours and shell materials, so it can be matched to almost any car.

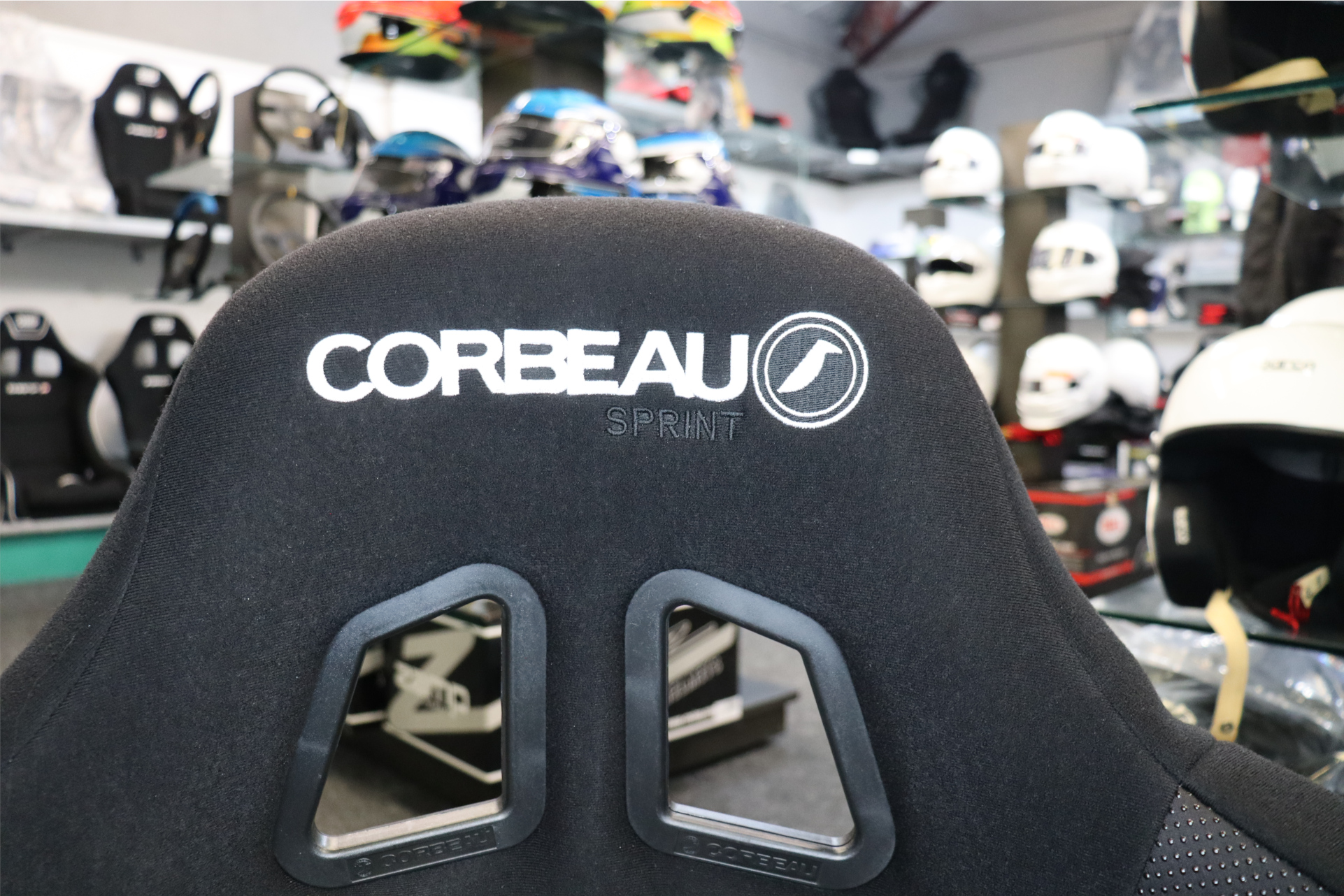

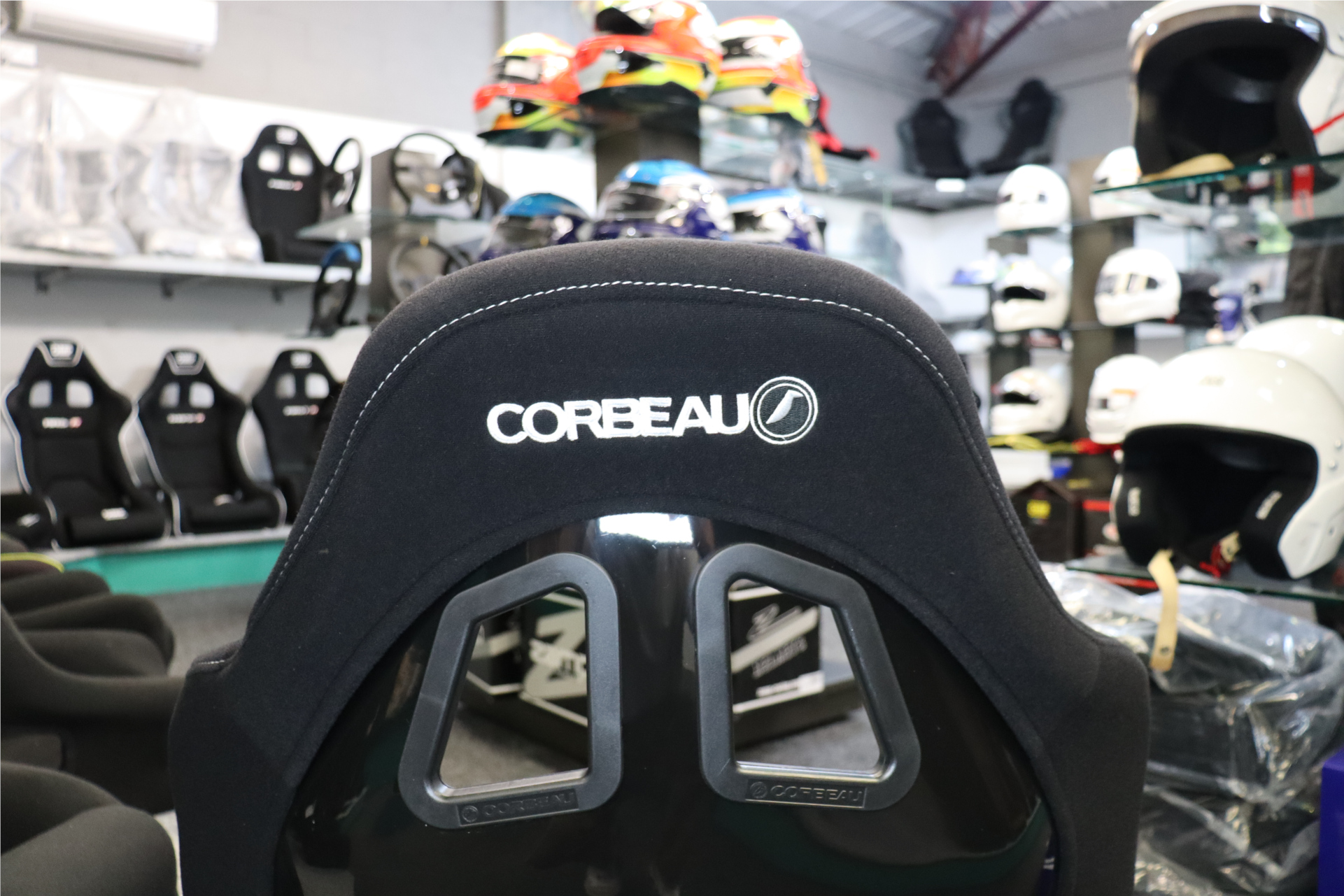

The top of a black fabric Corbeau Sprint seat with the Corbeau logo and harness slots, in front of the helmet display in the showroom
A Corbeau Sprint in our showroom, showing the harness slots and embroidered logo.

In the Focus the XL shell sits comfortably in the cabin, and it leaves plenty of room for the harness to run cleanly through the slots to the cage. If you are between the standard and XL sizes, send us your height and waist size and we will tell you which one to go for.

Schroth Profi II-FE ASM harnesses

The harnesses are Schroth’s Profi II-FE ASM, a four point harness approved to FIA 8854-1998. They have three inch shoulder straps, a two inch lap belt, lightweight alloy adjusters and Schroth’s ASM anti-submarining system, which is designed to stop the occupant sliding under the lap belt. The FE version uses a push button buckle. They are not HANS compatible, which is worth knowing if the car may be used for competition later.

Red webbing was the right call here: it ties the seats, the cage and the Focus’s own red detailing together. They are also made in black. Our guide on how to fit a motorsport harness covers the anchor points and angles.

How the build went together

The Planted bracket went in first, on the factory mounting points. A vehicle specific bracket like this keeps the seat square to the wheel and pedals and avoids drilling the floor. The Sprint XL seats were then fitted on the M10 side mounts, and the harness shoulder straps anchored to the rear cage.

Sliding runners can be added between a bracket and a seat if more than one person drives the car, but for a car used in competition a fixed seat is the stronger, simpler choice. Before any seats come out of a Focus Mk3, check for side airbags and occupancy sensing, and tell us what the car has.

Garreth’s advice for anyone planning a similar build is to choose the seat, harness and mounts together, so the slots, the anchor points and the bolts all line up first time.

A pair of Corbeau Sprint XL FIA bucket seats in black fabric.

Corbeau use M10 bolts through the side flanges where most FIA seats use M8, so the mounts must be drilled for M10.

Red Schroth Profi II-FE ASM four point harnesses, approved to FIA 8854-1998.

The Planted Technology Focus third generation bracket for 2011 to 2018 cars, part SB175.

No, they are not HANS compatible.

💬
Customer buildSprint XL, Schroth and Planted

A matched seat, harness and bracket setup that went together first time.
