Customer Question: What FIA Bucket Seats Are 6 Point Compatible?
One of the most common questions we hear from customers is: are FIA bucket seats compatible with 6-point harness belts? To put it simply, the answer is yes. All FIA-homologated bucket seats feature the correct harness slots to make them fully compatible with a 6-point racing harness. This isn’t optional – it’s part of the FIA standard.
Every FIA seat will have:
- 2 harness slots at the shoulders on the head support, for the shoulder straps.
- 1 harness slot on each side bolster at the legs, for the lap straps.
- 1 central harness slot in the base of the seat, designed to accommodate both crotch straps of a 6-point harness.
That makes five slots in total, which is the market standard for FIA approval. A seat cannot be homologated for motorsport use unless it includes these slots, as they are critical for both fitment and safety.
In this blog, we’ll walk through the details of what makes a seat 6-point compatible and explain how these harness slots are positioned. We’ll also look at the different types of FIA bucket seats available – from steel-frame to fibreglass models – and show where you’ll find the harness slots on each. Some seats leave the slots open and visible, while others hide them neatly under cushions and trim. Knowing where to look helps you choose the right seat and install your harness correctly.
What Makes a Seat Compatible with a 6 Point Harness?
For a bucket seat to be FIA-homologated, it must meet strict safety standards. One of these requirements is the inclusion of the correct harness slot layout, ensuring it can work with a 6-point harness system. This setup is not a bonus feature or an upgrade option – it’s a baseline requirement for FIA approval.
Here’s what that looks like on every FIA-approved seat:
- Two shoulder slots positioned at the top of the seat, guiding the shoulder straps over your shoulders and back to the harness mounting points.
- Two lap belt slots found low down on either side of the seat base, allowing the lap belts to run across your hips at the correct angle.
- One central slot in the seat base designed for the crotch straps. This slot is wide enough to accommodate two separate straps, so both belts pass individually through the same opening.
The key point is that each strap in a 6-point harness has its own guide slot, which keeps the belts aligned and prevents them from slipping or bunching under stress. This alignment is crucial in a crash, as it ensures the load is distributed correctly across your body. If straps were forced to share guides or route incorrectly, it could compromise the harness’s ability to keep you securely in position.

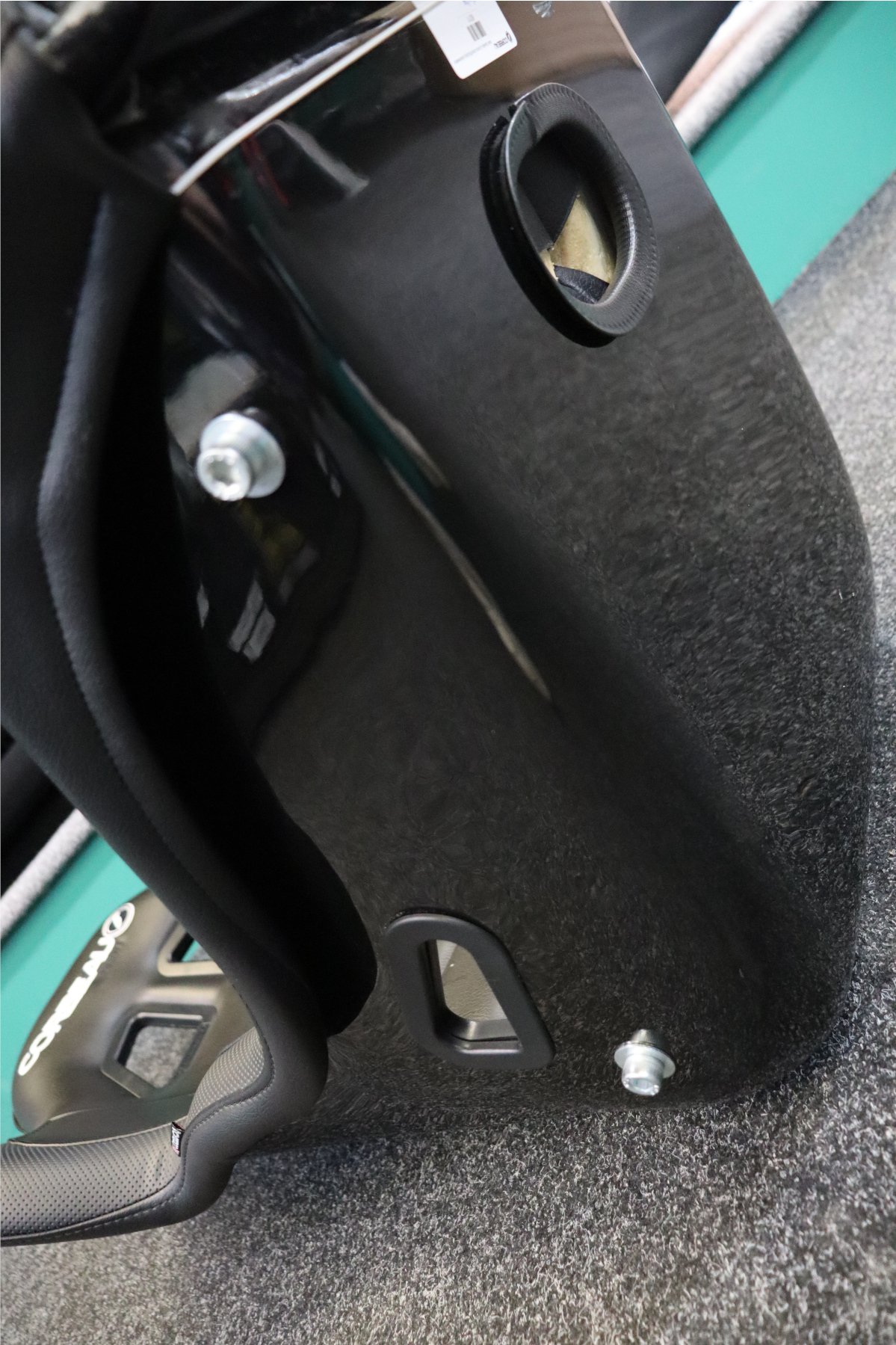

Another part of FIA approval is ensuring that these slots are reinforced and placed in the correct structural areas of the seat. The harness slots are built into the shell itself, not just cut into the padding, so they maintain strength even under extreme forces. That’s why pairing FIA-approved harnesses with FIA-approved seats is the safest choice – both products are designed and tested to work together.
In short, when you buy an FIA bucket seat, you can be confident it will be compatible with a 6-point harness. The only difference between models is how visible the slots are and whether cushions or trim partially cover them, which we’ll explore later in this blog.

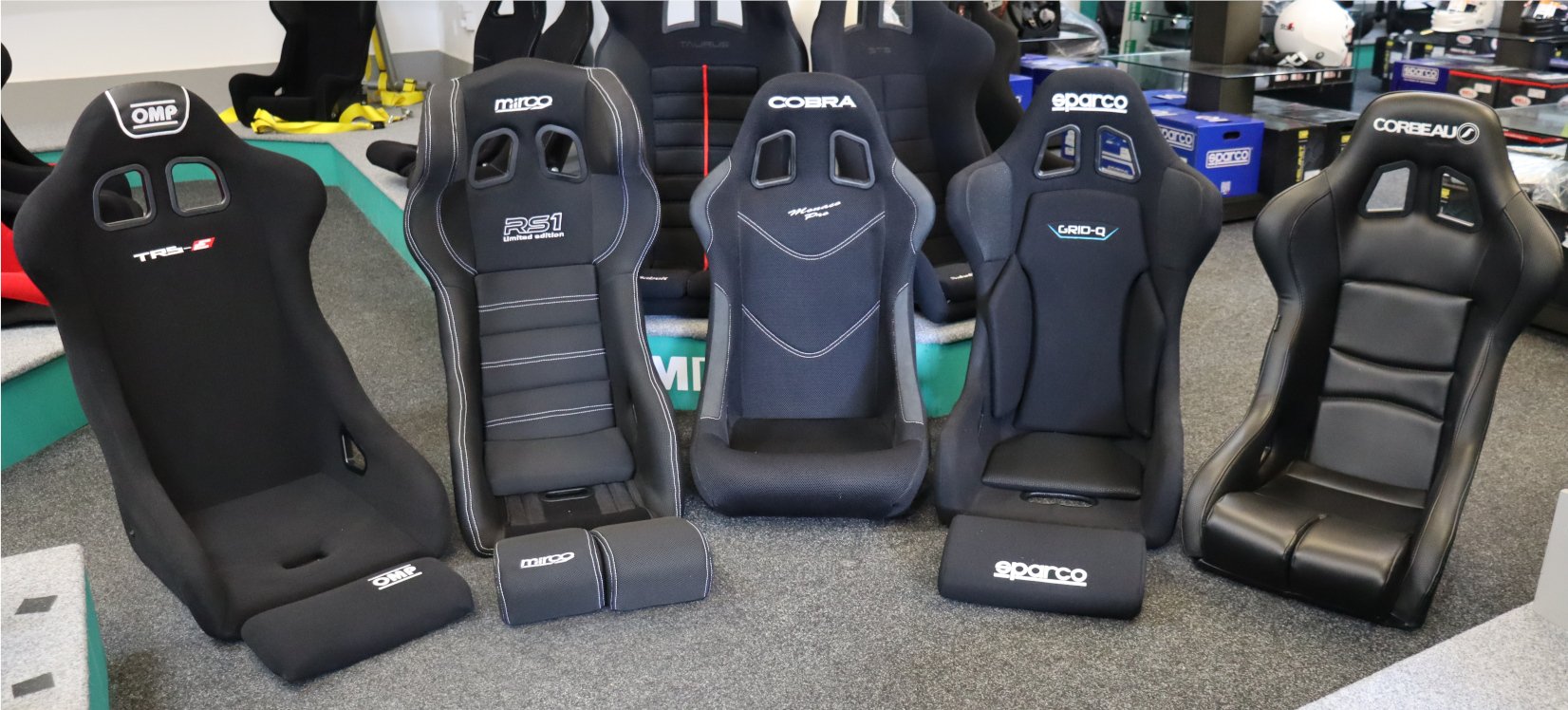

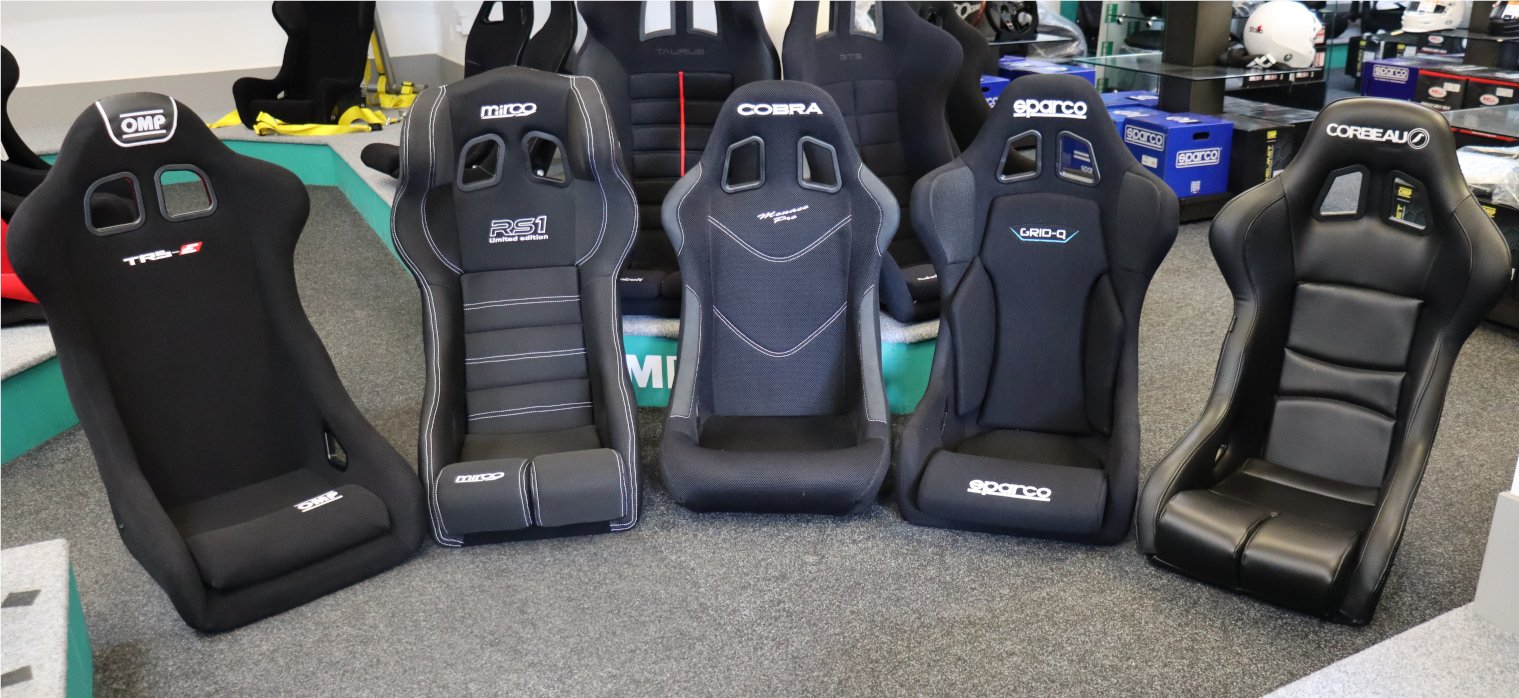

Our FIA Seat Display – Where to Find the Hidden Slots
One of the most common surprises we see when customers visit our showroom is that not all harness slots are immediately visible. The shoulder and lap slots are always clear to see, but the crotch strap slot can sometimes appear to be missing at first glance. In reality, every FIA seat has this slot, but in many models it’s hidden under cushions or integrated into the trim for comfort and aesthetics. This is especially true for fibreglass FIA seats, where the removable leg or knee cushions cover the slot. Customers often only realise it’s there once we take the cushions out to show them how the belts feed through.

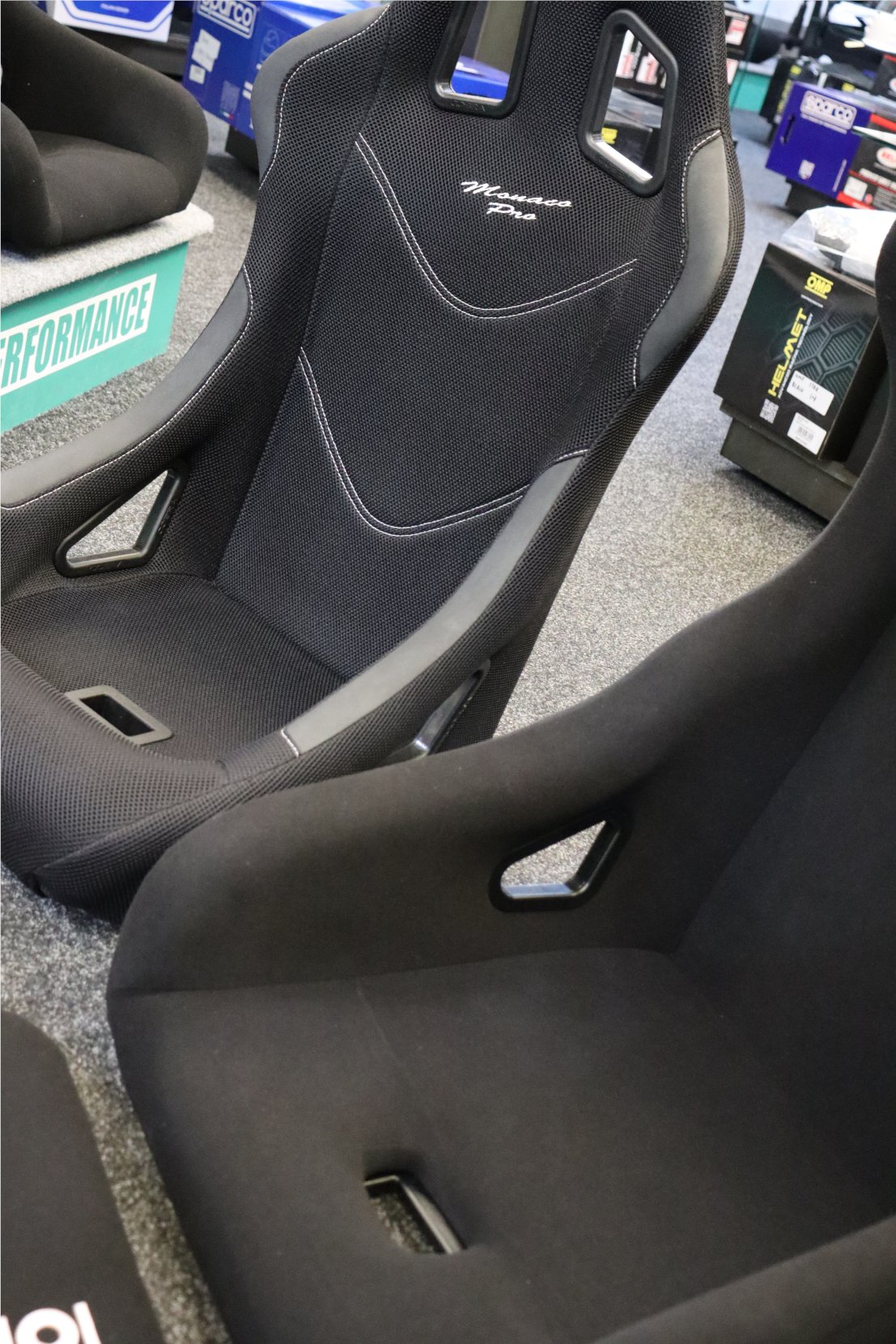

On the other hand, some steel-frame FIA seats leave the crotch slot open and exposed with a square cut-out at the base of the seat. This makes it very obvious where the harness straps should pass through, but it also means you lose some of the sleek, upholstered look you’ll find on fibreglass models. Neither approach is better or worse – it’s simply a design difference. Whether the slot is visible or tucked away under padding, every FIA seat is required to include it, so you can trust that the harness will have a proper route.
When customers try our seats in-store, we often remove the cushions and point out the hidden slots so they understand how the harness will be installed. This hands-on demonstration helps show the difference between seat types and reassures drivers that their 6-point harness will work as intended. It’s an important step in making sure you’re confident with your seat choice before committing to it.
Why You Shouldn’t Use a 6 Point Harness on a Non-compatible Seats
It’s important to understand that not every aftermarket bucket seat is designed for motorsport use. Non-FIA bucket seats may look similar to FIA-approved seats, but they can lack the structural requirements and the correct harness slot configuration to be safely paired with a 6-point harness. Classic and sports recliners are also not FIA approved and don’t feature crotch harness strap slots for a 6-point harness belt.Â
By contrast, non-FIA seats may:
- Have fewer harness slots, forcing two straps to share a single opening.
- Lack crotch slots altogether, leaving no correct path for the harness between the legs.
- Feature slot placements that are poorly aligned, which can cause the belts to pull at the wrong angle.
These issues pose a serious safety risk. A 6-point harness relies on each strap running through its own individual guide slot to hold the driver securely in position. Without the right slots, the harness cannot distribute forces evenly, which can lead to belt slippage, twisting, or concentrated pressure in the wrong areas. In a crash, this could result in the harness failing to keep you properly restrained.
The crotch straps of a 6-point harness are vital for keeping you from sliding forward under the lap belt (a phenomenon known as submarining). If they are routed incorrectly over the front of the seat instead of through dedicated slots, they won’t do their job properly. Worse still, they can ride up into sensitive areas, concentrating crash forces where your body is not designed to take them.
This is why pairing your harness with an FIA-homologated seat is critical. FIA seats are designed and tested to work with 6-point belts, ensuring that every strap is positioned and guided correctly. Using a non-FIA seat with a 6-point harness not only undermines the harness’s safety but also risks your own security behind the wheel.
Steel-Framed FIA Bucket Seats
Steel-framed FIA bucket seats are some of the most popular entry-level options for drivers who want FIA-approved safety without the higher cost of fibreglass shells. They are heavier than composite seats, but they remain strong, reliable, and budget-friendly. Because of their simpler construction, steel-frame seats also tend to make the harness slot layout more obvious.

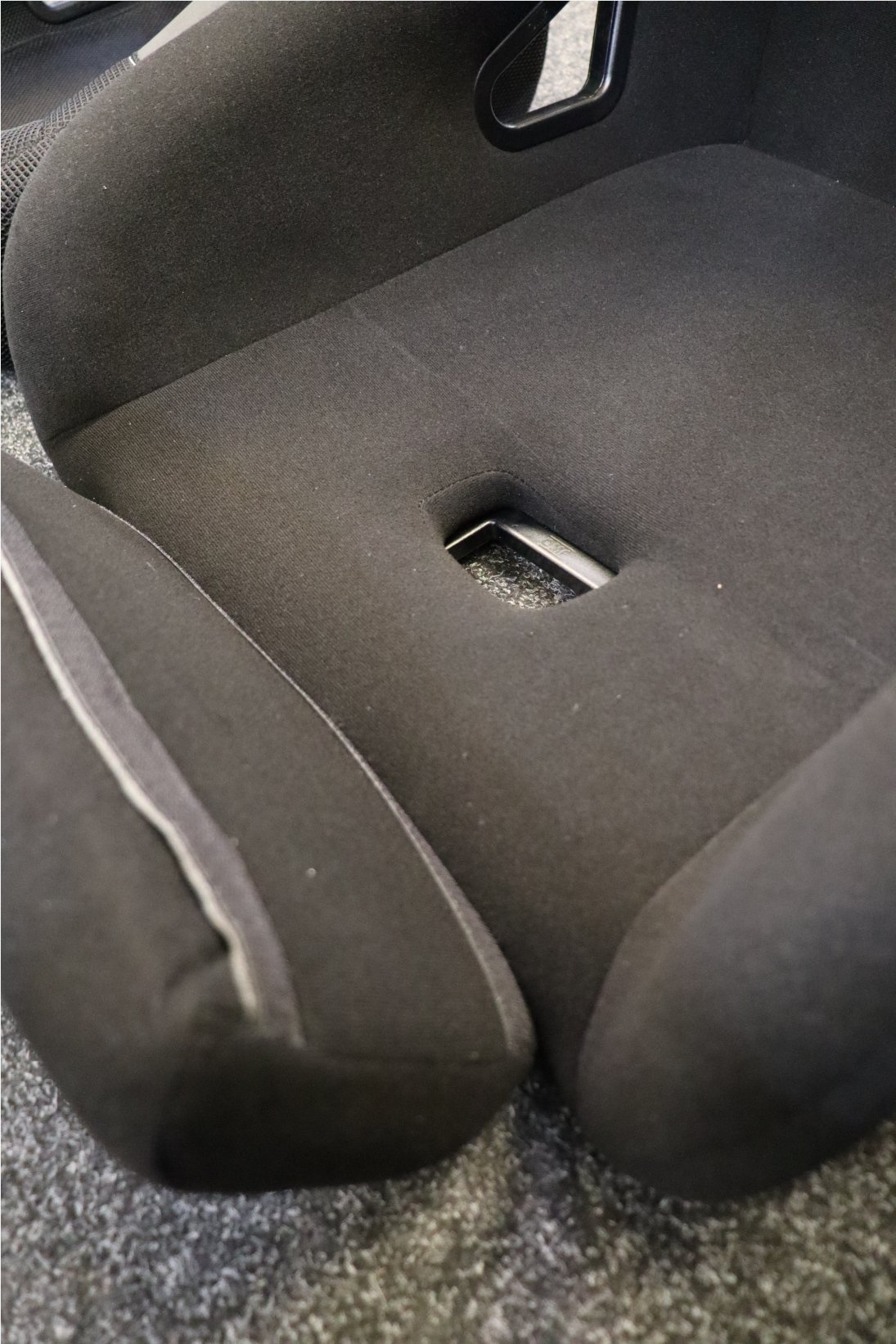

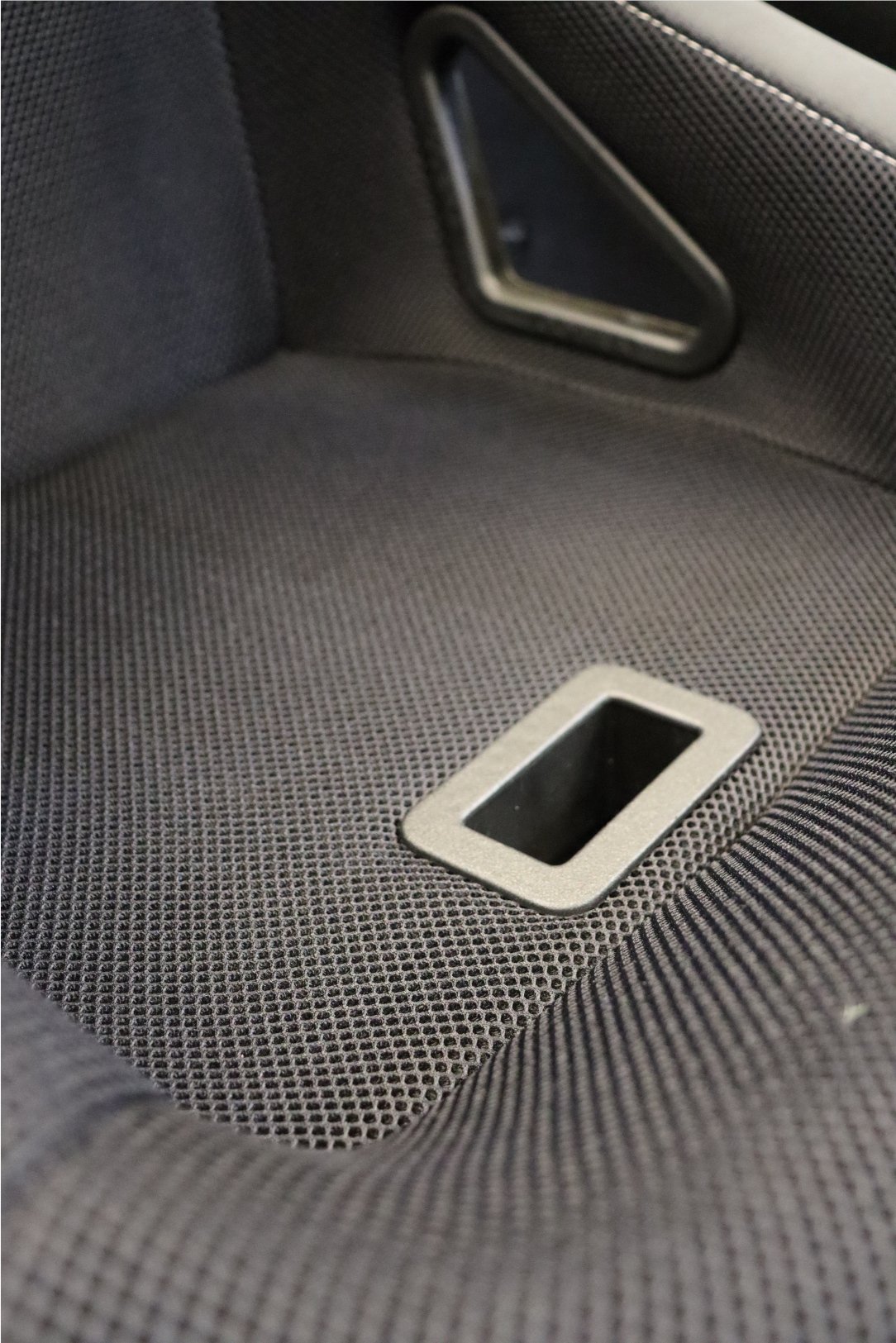

Most steel-framed seats feature a square or rectangular opening in the base of the seat to guide the crotch straps of a 6-point harness. This design makes it clear where the straps are supposed to pass through, with no need to move or adjust cushions. A good example is the Cobra Monaco Pro, which has a visible cut-out at the bottom of the seat so that the crotch straps can be routed quickly and securely. For many first-time motorsport drivers, this visibility is reassuring, as it avoids any confusion about where the harness should be positioned.

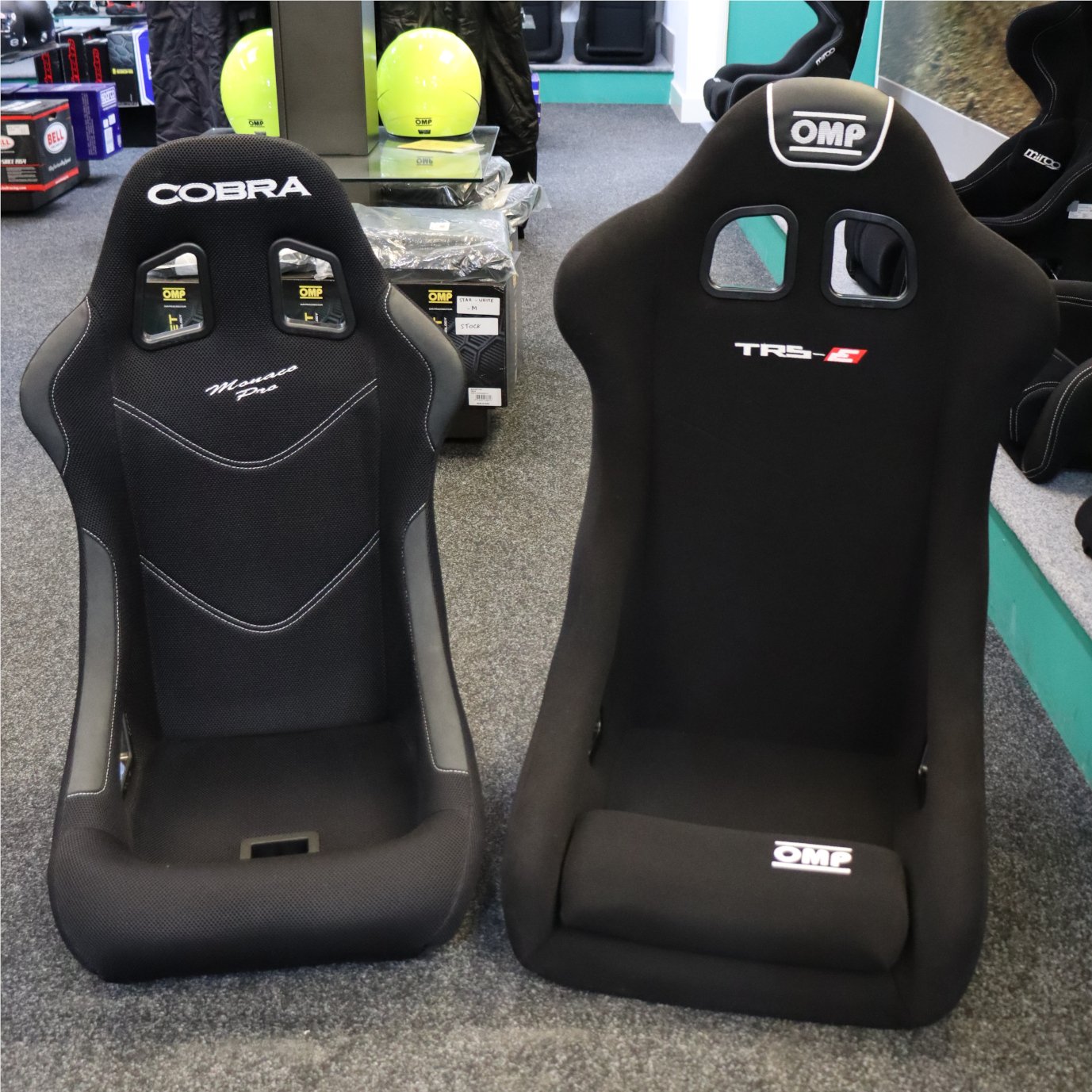

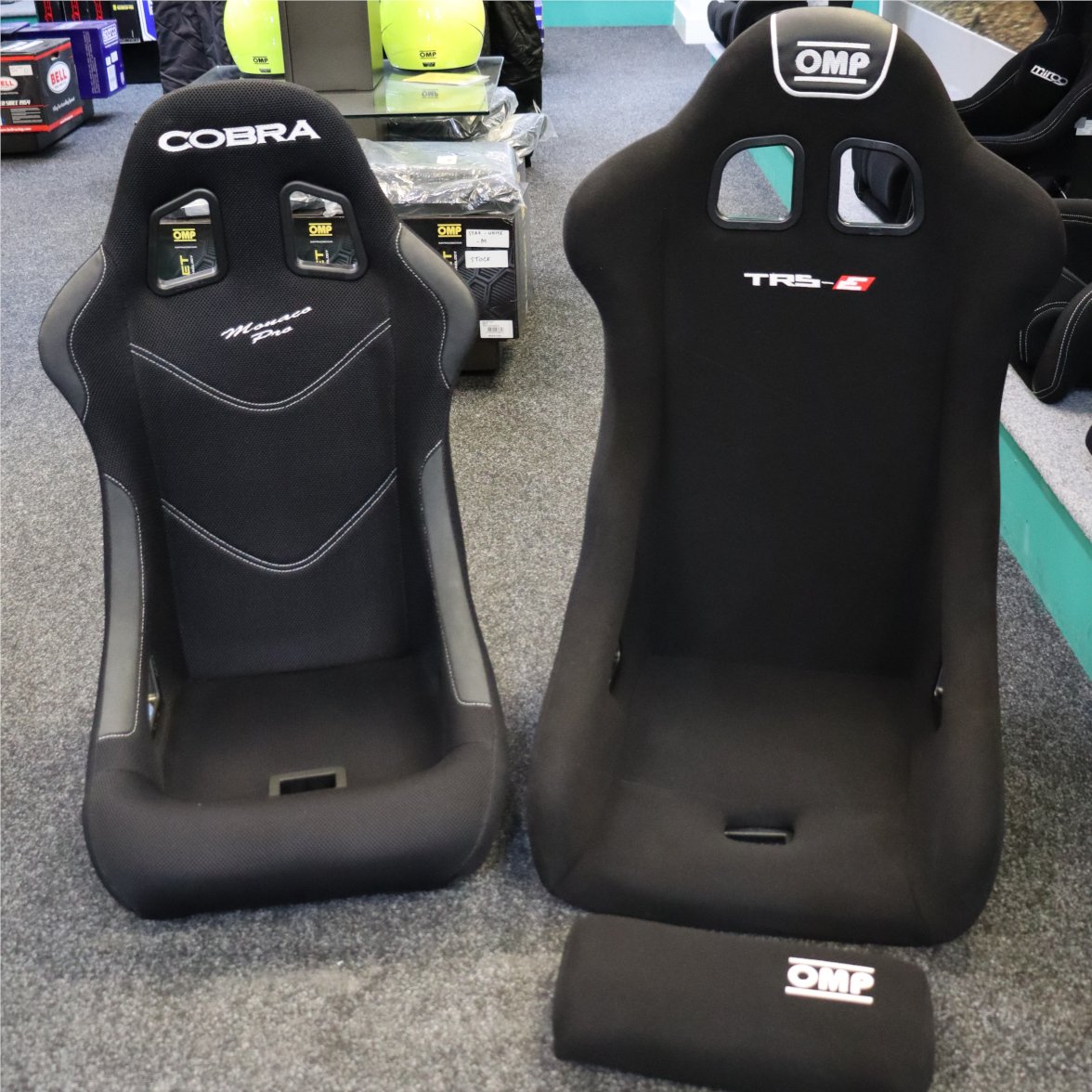

That said, not every steel-framed seat leaves the crotch slot exposed. The OMP TRS-E XL is a good example of a design that covers its base harness slot with a front knee cushion. At first glance, it can appear that the slot isn’t there at all. However, the cushion is velcro-secured, which means it can be lifted or adjusted to allow the crotch straps to pass through properly. Once the belts are in place, the cushion is pressed back down to preserve comfort for the driver’s legs. This design balances usability with comfort but can catch out customers who don’t know to check beneath the padding.
In short, steel-framed FIA bucket seats are straightforward and functional. They always meet FIA requirements for harness compatibility, but depending on the model, you may need to move a cushion to find the base harness slot. This is why we encourage customers to check seats in-store or remove the cushions before installation, ensuring the 6-point harness routes through the correct guides every time.
Fibreglass FIA Bucket Seats
Fibreglass FIA bucket seats are the next step up from steel-framed models, offering a stiffer shell, lower weight, and improved ergonomics. They’re the go-to choice for serious track day and competition drivers who want the combination of safety and performance. The design of these seats means that all the FIA-required harness slots are present, but in many cases the crotch strap slots are hidden beneath the leg or knee cushions.

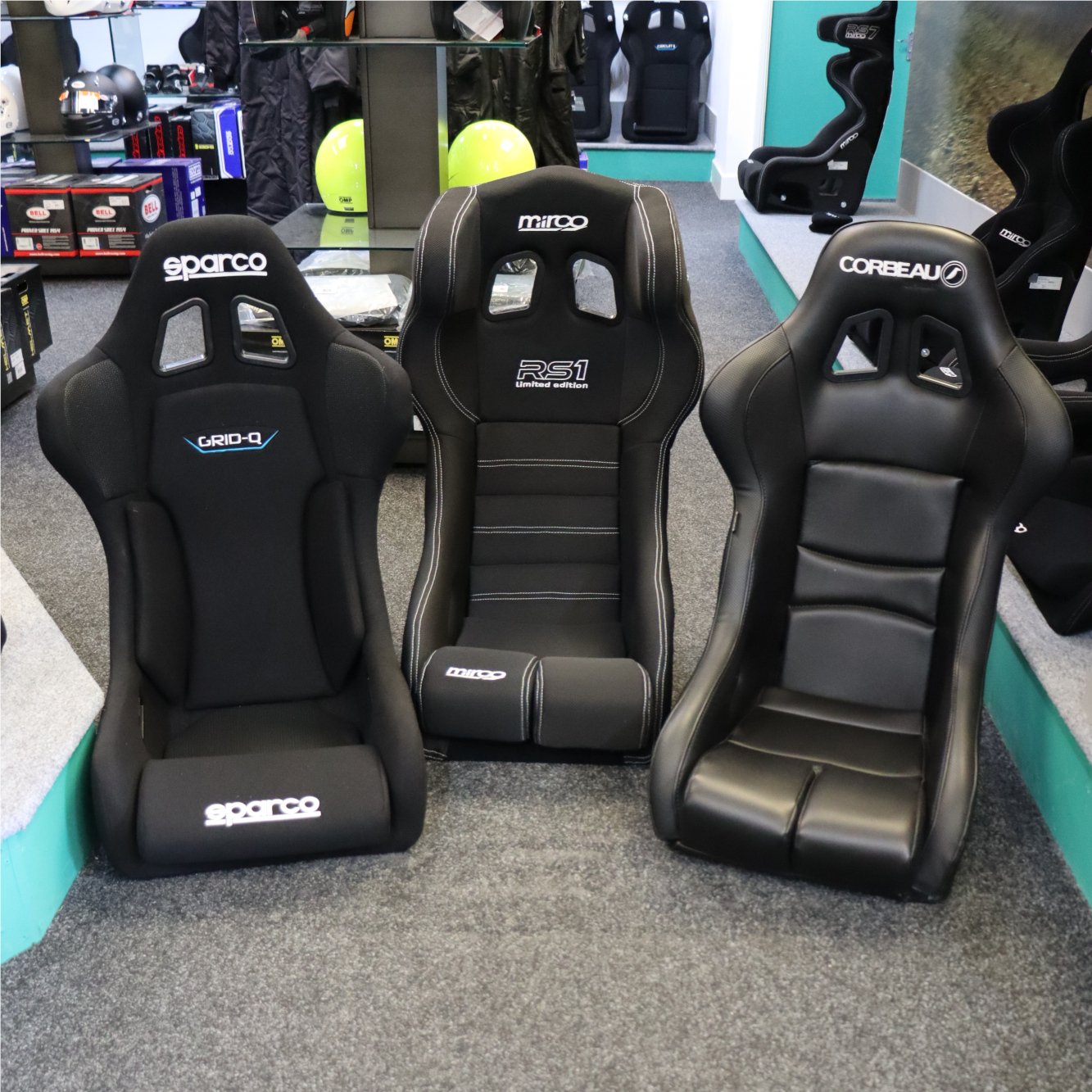

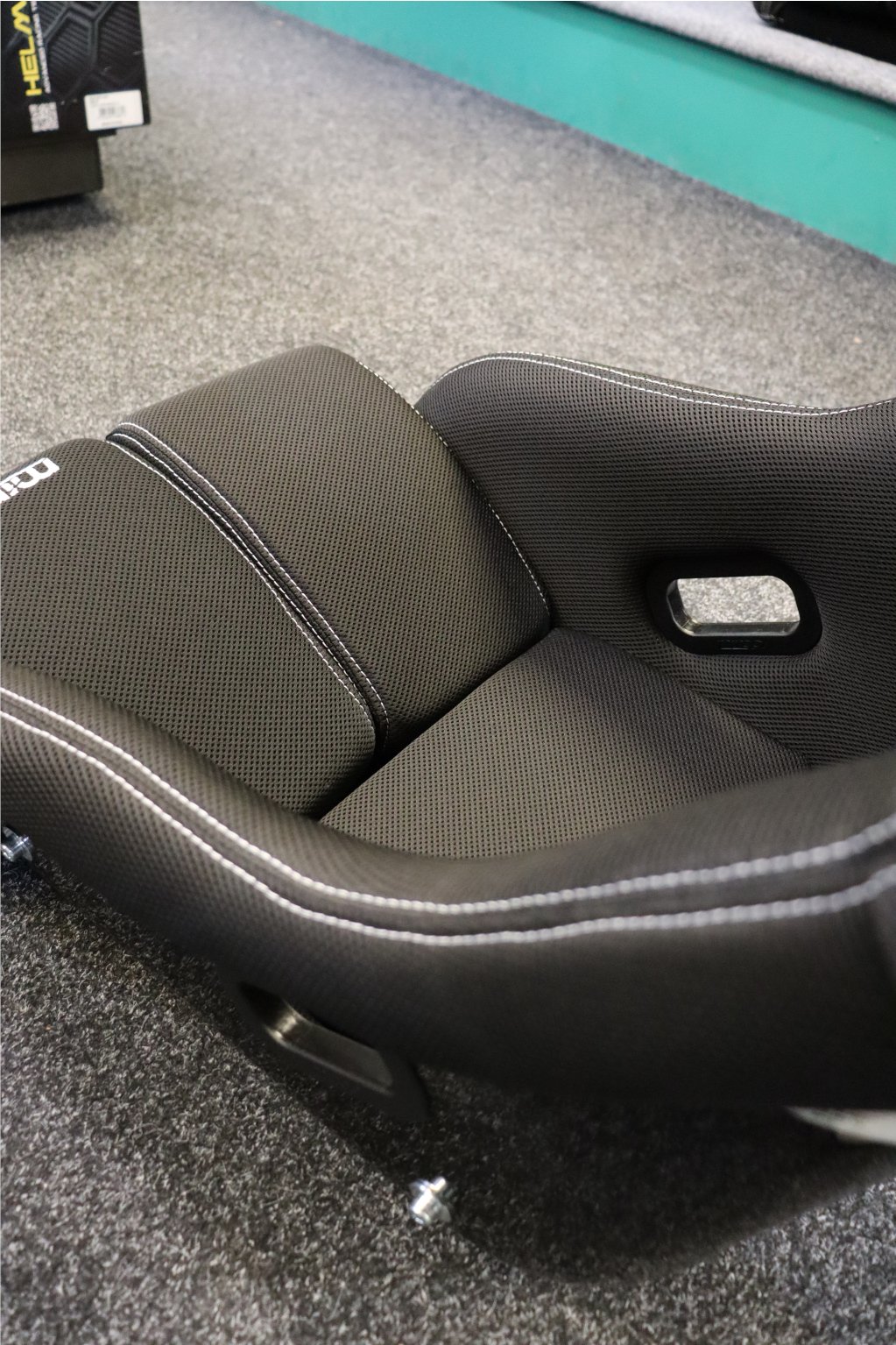

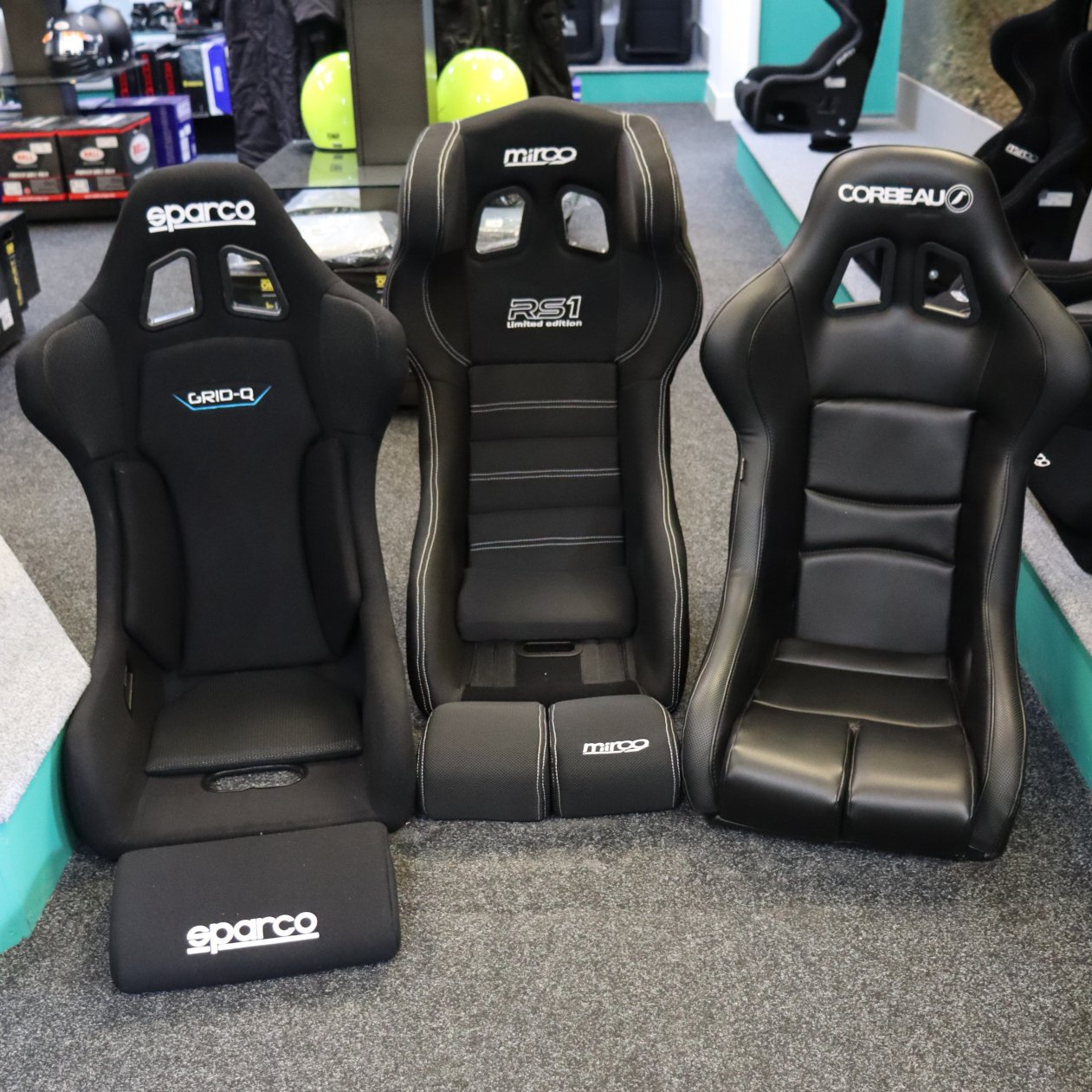

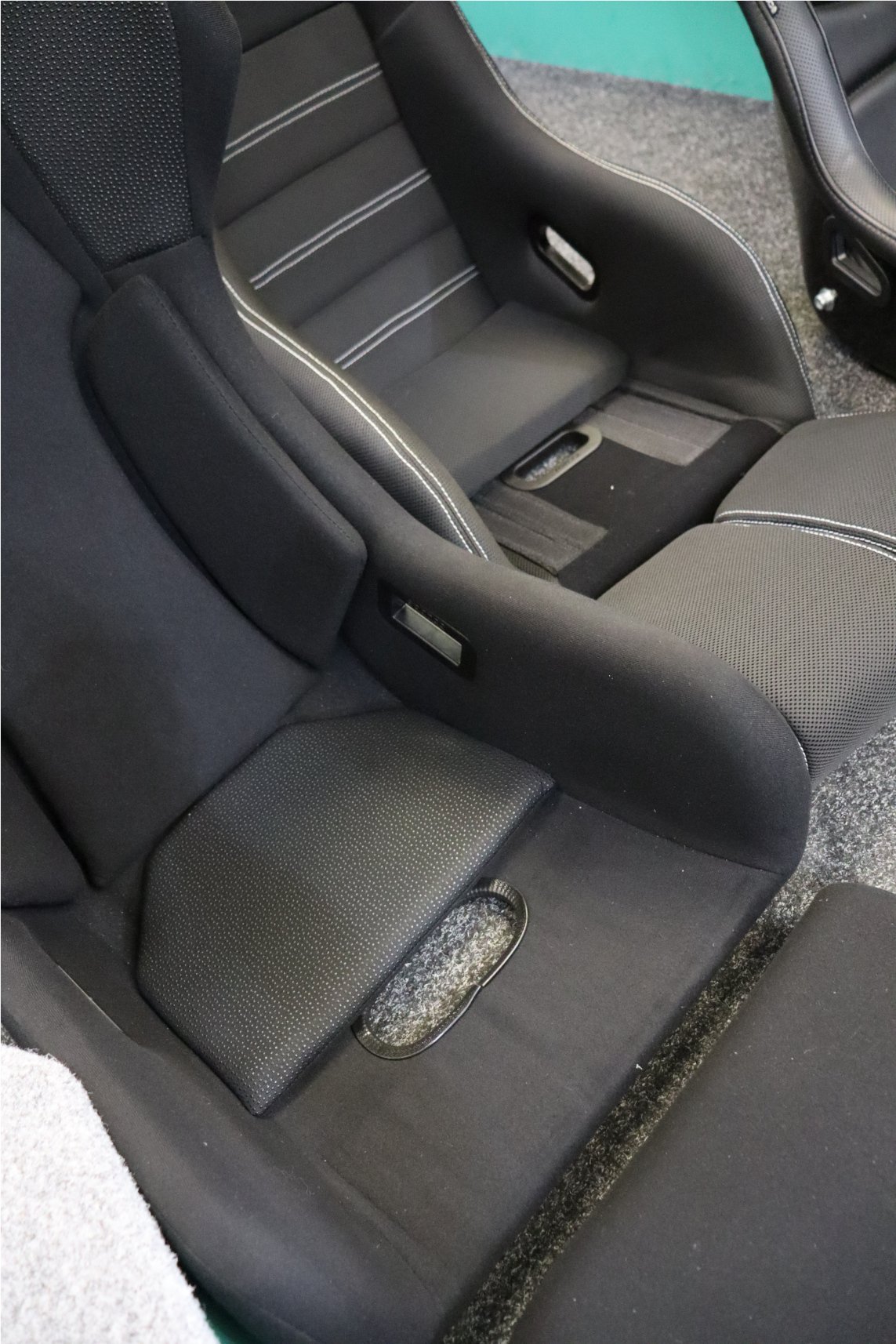

Brands like Sparco, OMP, and Mirco all follow a similar approach with their fibreglass shells. The lap and shoulder slots are always visible, but the crotch slots are integrated into the shell and then covered by removable cushions. Depending on the model, these cushions may be a single pad running across the base of the seat, or separate leg cushions that can be adjusted individually. For example, many of the Mirco seats feature split leg cushions, which makes it easier to adjust them for more space when routing the crotch straps. This allows the belts to be passed through without compressing the padding too much, while still giving the driver comfort during long stints.

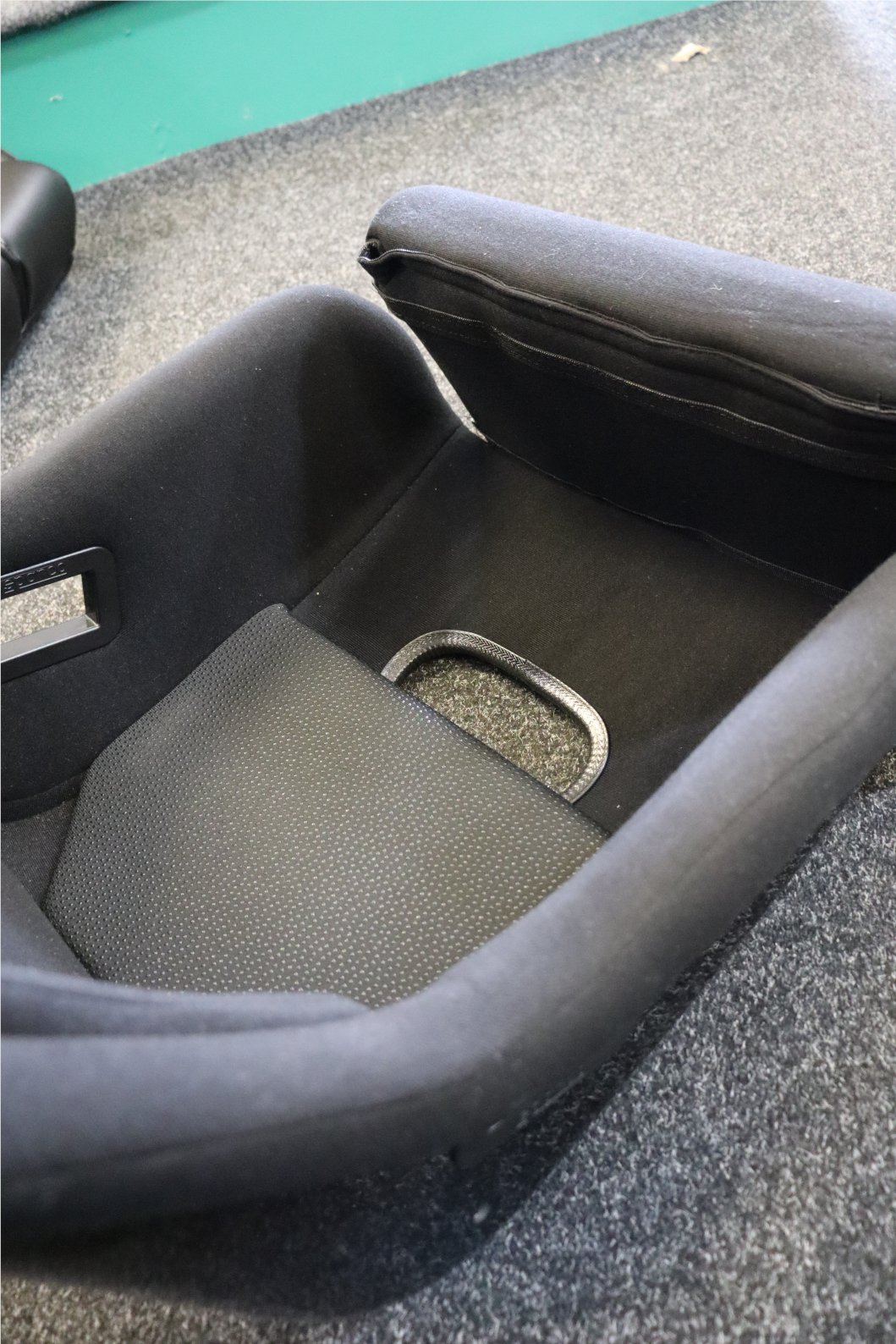

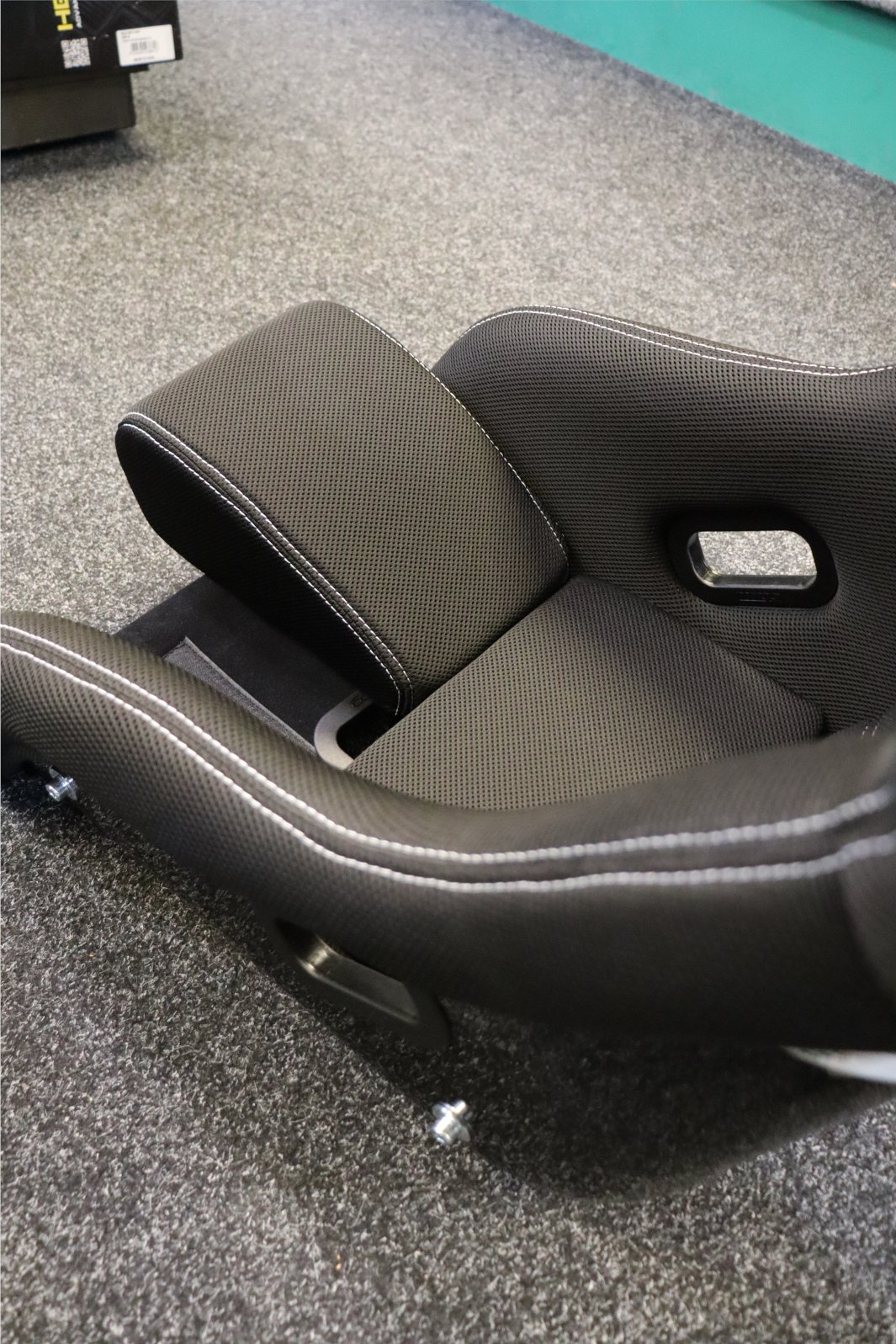

OMP and Sparco take a slightly different approach, with larger single-piece cushions. These are typically held in place with velcro, so they can be lifted or repositioned to thread the straps through the base slot. Once the belts are in place, the cushion is pressed back down, giving you a neat finish and ensuring comfort without compromising harness security.

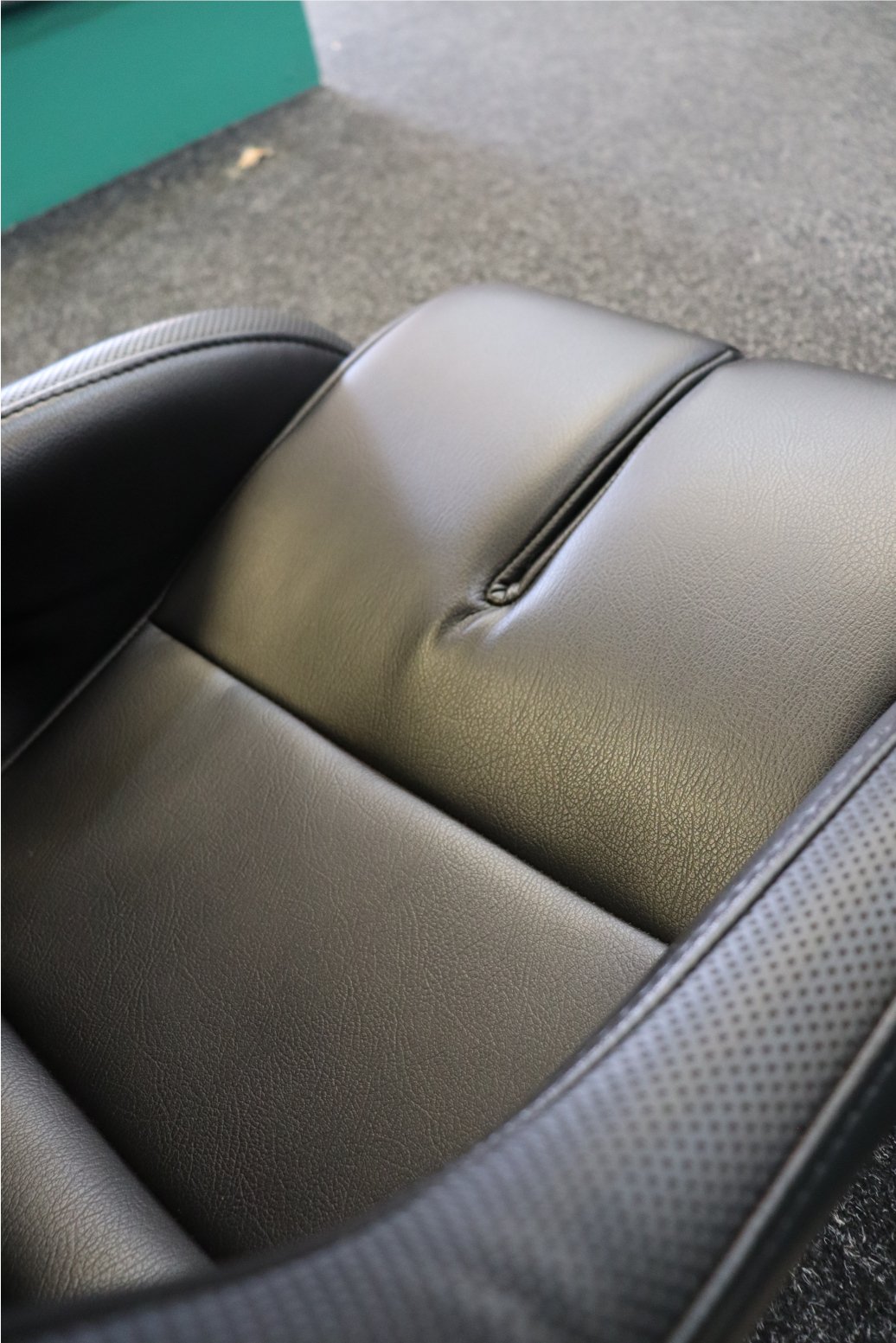

The Corbeau fibreglass range stands out because it doesn’t use removable leg cushions. Instead, these seats feature a central slit in the upholstery that lines up with the crotch strap slot underneath. This design allows the straps to pass cleanly through without the need to remove padding, although it doesn’t give the same adjustability as split or removable cushion setups.
While the details differ, the principle is the same across all fibreglass FIA seats: the crotch strap slot is always present and FIA-approved, even if it’s not immediately obvious. When fitting a harness, drivers should always take the time to remove or adjust the cushions, or check the upholstery carefully, to ensure the straps are routed through the correct slots. Failing to do so can compromise both comfort and safety.
Our FIA Bucket Seat Range
We stock a huge selection of FIA-homologated bucket seats, covering both fibreglass and steel-frame options.
- Explore our fibreglass FIA bucket seat range here: Fibreglass FIA Bucket Seats
- Explore our steel-frame FIA bucket seat range here: Steel Frame FIA Bucket Seats
Whichever you choose, you can be confident that every FIA seat is fully compatible with a 6-point racing harness.
Harness Recommendations – Our Top 6 Point Belts
Once you’ve chosen your FIA seat, you’ll need the right harness to go with it. At GSM Performance, we stock a full range of FIA-approved harnesses that will work perfectly with any fixed-back FIA bucket seat.
Top choices include:
- TRS 6-Point Harnesses – widely used in rally and track cars.
- Schroth 6-Point Harnesses – high-end, with advanced adjusters and features.
- Sparco 6-Point Harnesses – a balance of affordability and FIA-compliant safety.
Each of these harnesses is designed to pair seamlessly with FIA seats, using the correct slots to keep you secure.
-
From £183.50 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £202.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £180.40 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £168.89 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £209.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
-
From £195.00 Excl. VAT Select options This product has multiple variants. The options may be chosen on the product page
Final Thoughts – FIA Seats and 6 Point Compatibility
To answer the original question: all FIA bucket seats are 6 point compatible. This is not optional – it’s a requirement of FIA homologation. Every seat will have the five harness slots needed for a 6-point harness: two for the shoulders, two for the lap, and one wide slot in the base for the crotch straps.
The only differences you’ll find between seat models are in how visible those slots are and whether they’re covered by cushions. Steel-frame seats tend to leave them open, while fibreglass seats often hide them under padding. Either way, if it’s FIA-approved, it’s compatible.
Pairing the right FIA seat with a 6-point harness ensures maximum safety and control when you’re on track. It’s the system that modern motorsport relies on, and it’s the standard we recommend for all serious drivers.
