Can I Use Harnesses With My Retro/Classic Bucket Seat Without Belt Guides?
Harness fitting guide
A customer asked us a question we hear a lot from classic car owners: "I have a retro style bucket seat without harness guides. Can I still use a harness safely with it?" They wanted the extra support of a multi point belt without losing the period look of the interior.
The short answer is yes, with the right harness and a careful installation. A classic seat has no slots to hold the straps in place, so the routing, the anchor points and the strap angle all need more thought than they would with a modern bucket seat. This guide covers why modern seats have guides, what changes without them, how we set up our own showroom display, and which harnesses suit this kind of seat.
- A harness can be used with a classic seat that has no belt guides, with care
- We only recommend 3 point or 4 point road harnesses for these seats
- Most classic seats have no crotch strap hole, so 5 and 6 point belts are out
- Shoulder straps should run back level or angled down, no more than about 20 degrees
- This set up is for road, show and classic builds, not competition
- You can see the set up on classic seats in our showroom
Why modern bucket seats have harness guides
Modern FIA approved bucket seats are designed around a multi point harness. The slots in the upper backrest, and on many seats in the lap area too, are there to hold the straps in the right place, both in normal driving and in an impact. They do three jobs:
- They keep the shoulder straps on the shoulders. The straps cannot slide outwards and off under load.
- They hold the strap angle. The belt leaves the seat at the height the seat maker intended.
- They stop the straps moving about. Less movement under hard cornering and braking.
Retro and classic bucket seats, and many retro recliners, were never built with those slots. So if you fit a harness to one, the job the slots would do has to be done by the way the harness is routed and anchored. Get that wrong and the belt may not work as it should in a crash.
Can you use a harness with a seat that has no guides?
Yes, but there are things to get right. The main worry with a classic seat is that without slots the shoulder straps may not sit properly on the shoulders, which puts the body in the wrong position in an accident.
To keep the set up safe:
- Anchor the shoulder straps properly behind the seat. A harness bar behind the seats is the usual way to hold the straps at the right height and spacing.
- Watch the angle. The shoulder straps must not drop away too steeply behind the seat, as that can compress the spine in a crash.
- Use a 3 point or 4 point harness. Most retro seats have no crotch strap hole, so a 5 or 6 point belt cannot be fitted properly.
- Look at seats with slots if you need more. Some classic style seats are made with harness slots, which gives you the look with proper routing.
The risks to keep in mind are the straps spreading apart and sliding off the shoulders, the wrong strap angle, and a loose harness twisting or moving under load. All three come down to routing and tension.
How we set up our classic seat display

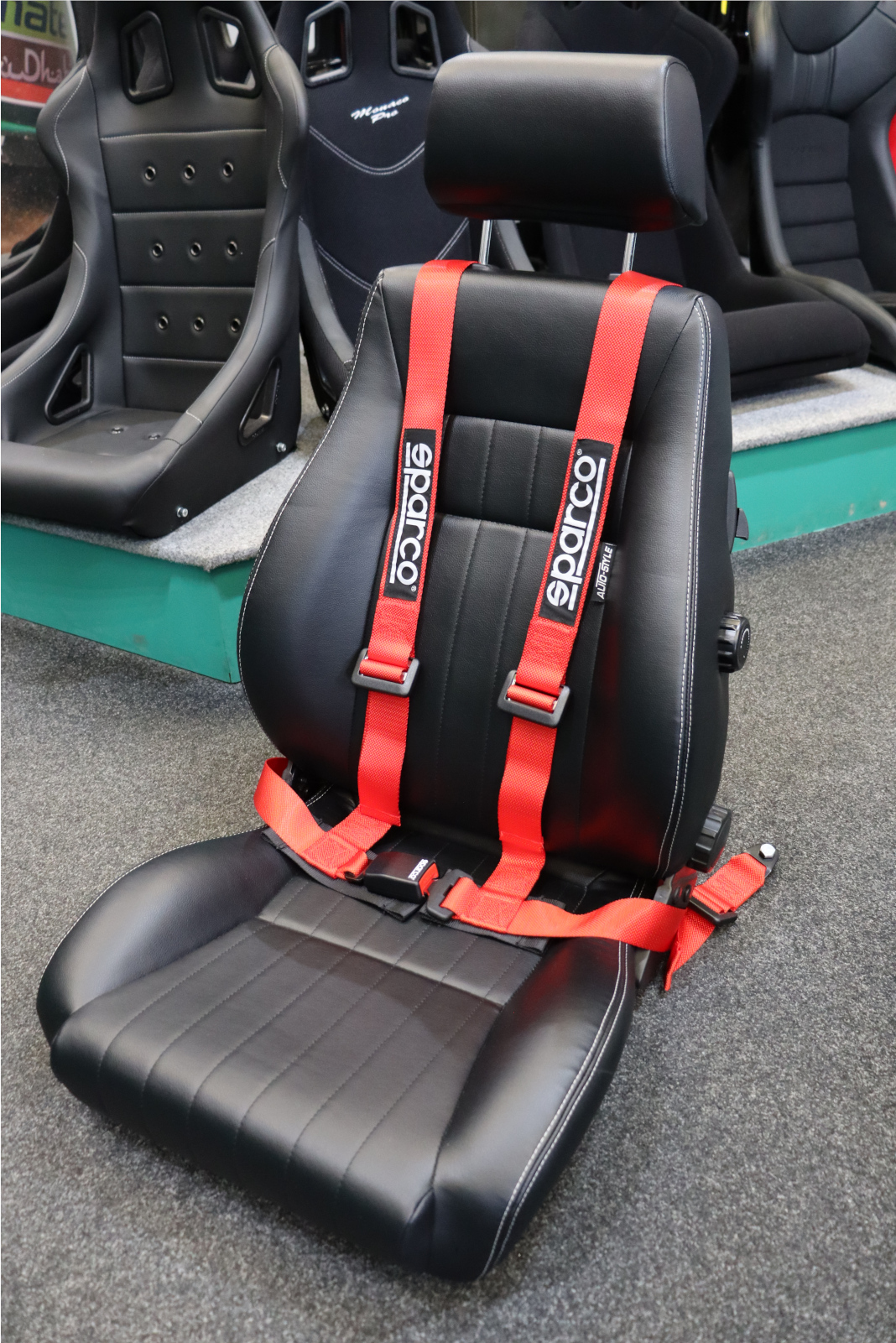

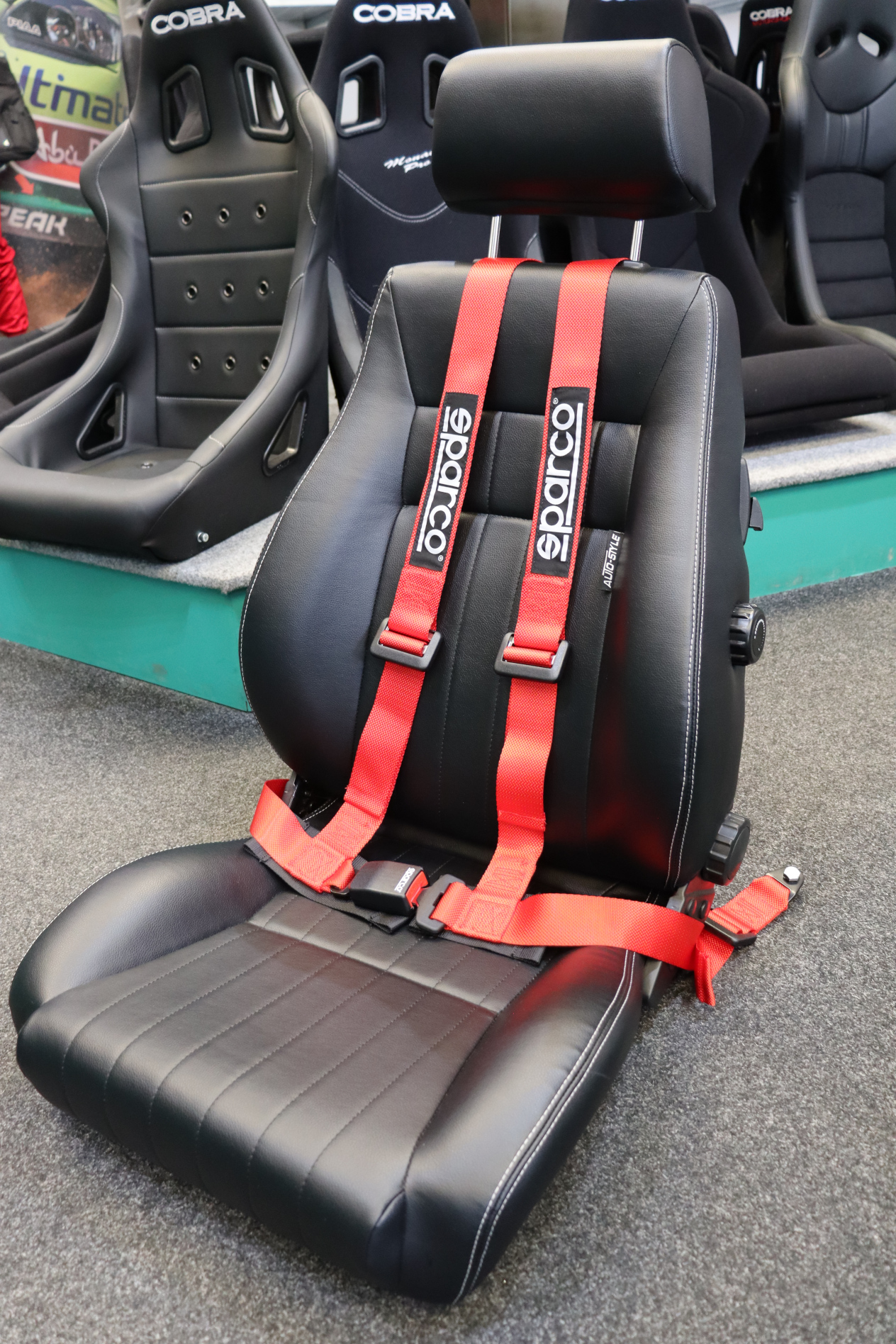

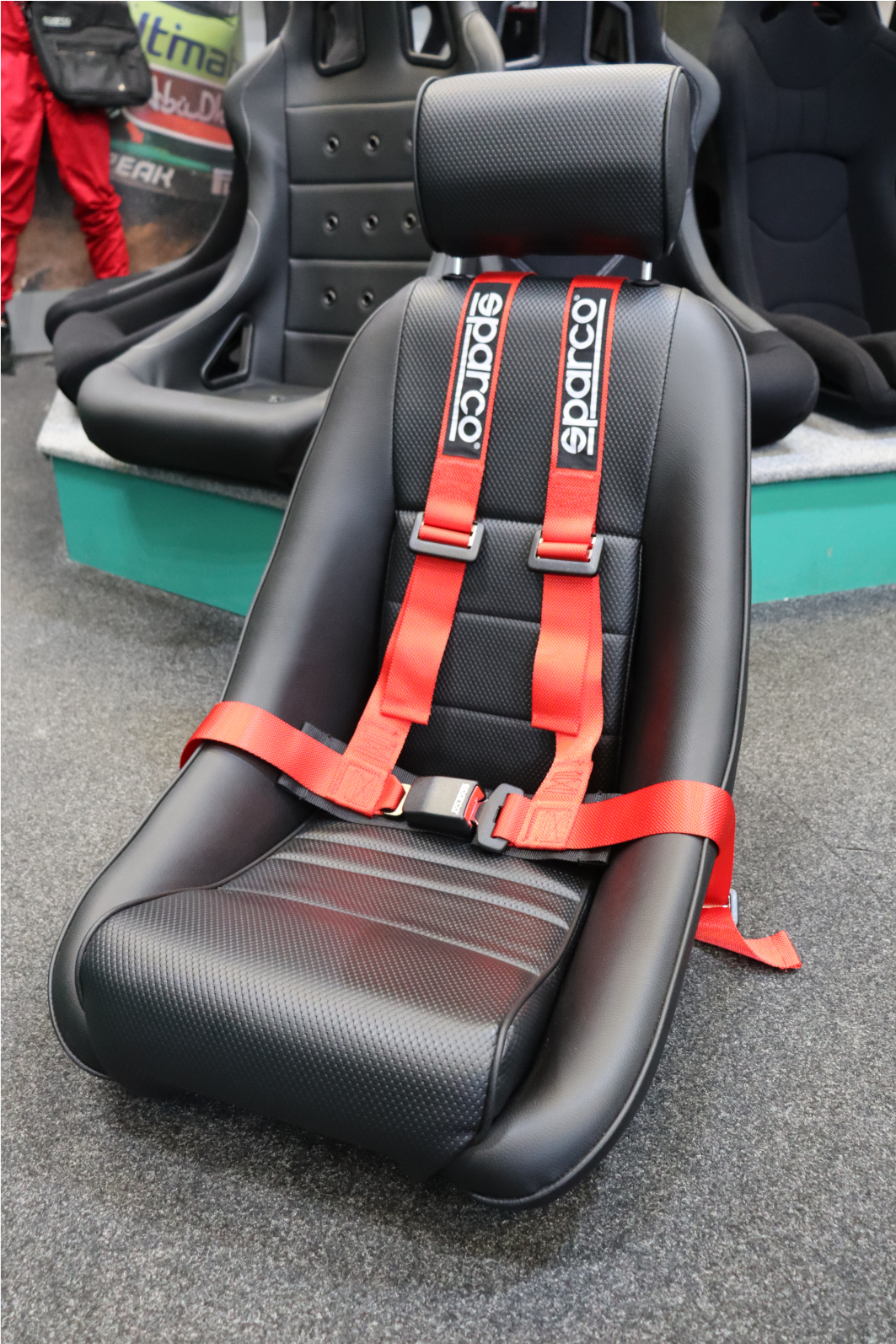

In our showroom there is a display of classic bucket seats and retro recliners, including the Auto Style Type Retro and the Cobra GT3, set up with 4 point road harnesses to show how a belt can work without harness slots.

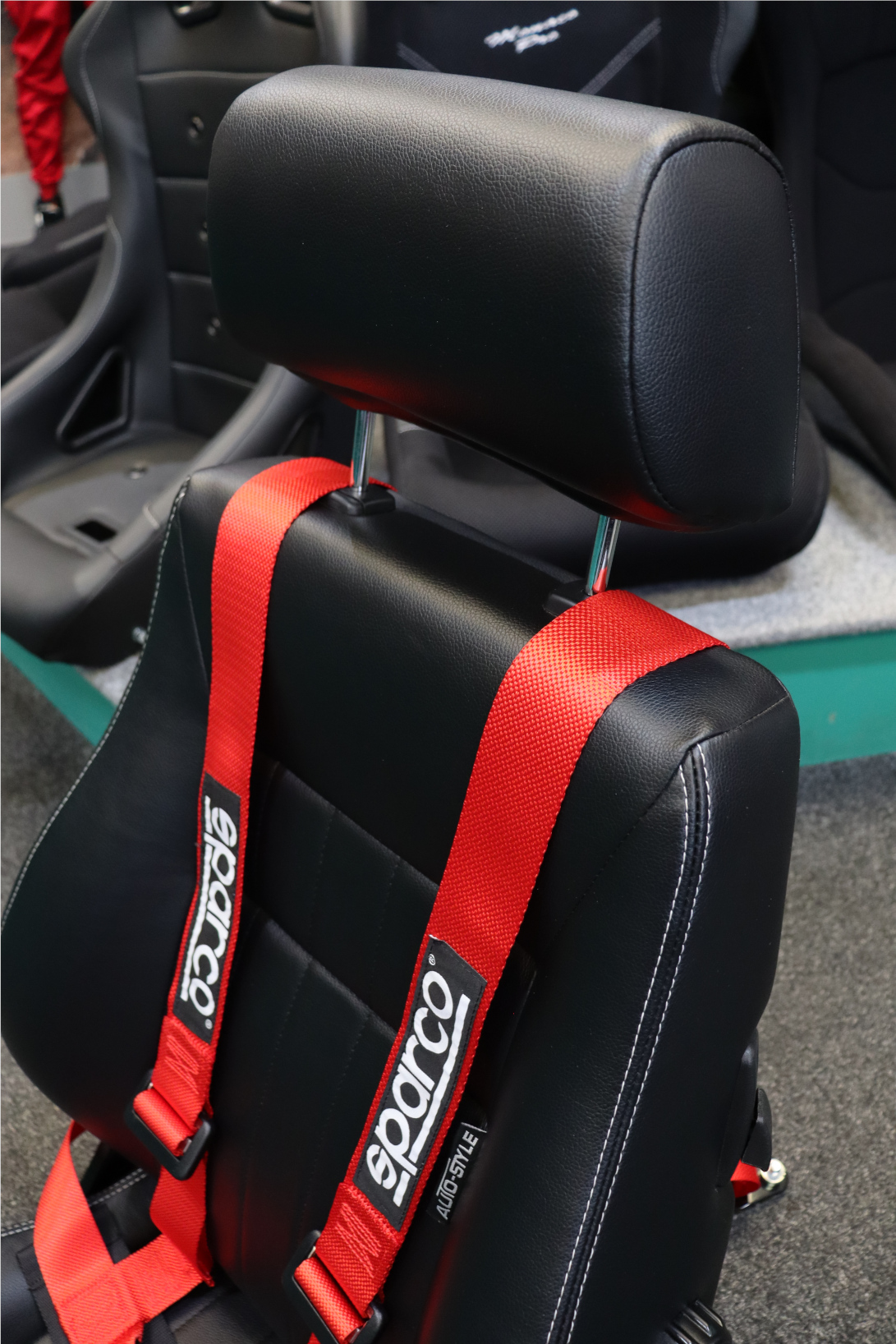

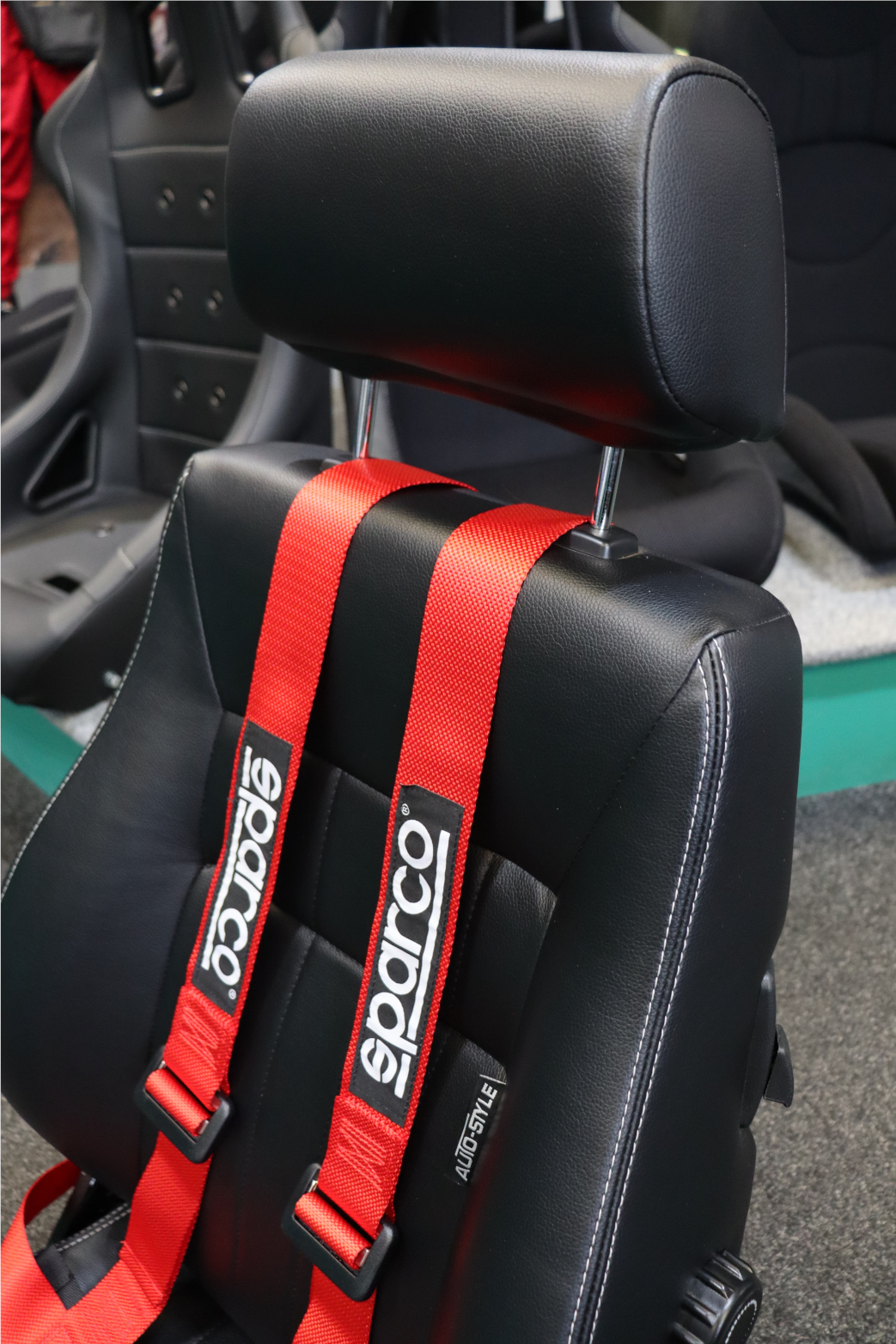

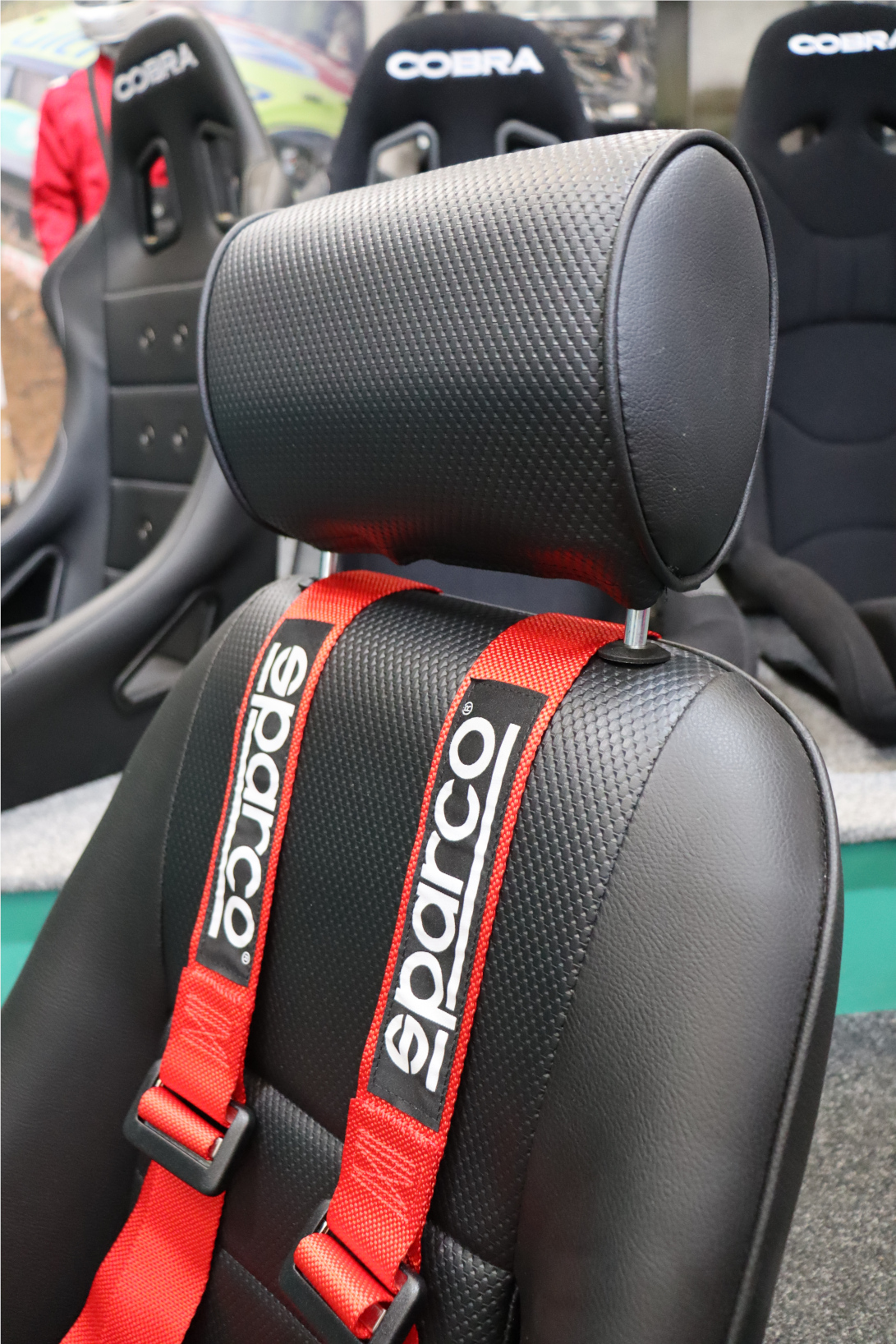

These seats have fixed headrest supports and no shoulder belt guides, so the headrest becomes part of the routing. The straps either pass through the gap between the headrest posts or run around them, with the aim of keeping the belts over the shoulders at a sensible angle.
This does not reproduce the belt geometry of an FIA race seat. What it does give is more upper body support than a standard factory 3 point belt, with the motorsport look many classic owners are after. We use a 4 point harness on the display because these seats have no crotch strap slot, so 5 and 6 point belts are not suitable.
What works well:
- You can use a harness with a vintage or retro seat.
- It gives more upper body support than a normal seat belt.
- The interior keeps its classic style.
- The seat does not need to be modified.
What to bear in mind:
- It is not an FIA approved set up for competition.
- It will not hold you as well as a seat with built in harness slots.
- The strap angle needs checking carefully, for comfort and for correct tension.
- It is not suitable for 5 or 6 point harnesses.
This kind of routing is best for show cars, classic builds and fast road use. Garreth’s advice is to come in and try the seat and harness together, and to talk us through the car’s layout so we can help you get both the fit and the anchor points right.
Harnesses for classic seats without belt guides
Because classic seats cannot take a 5 or 6 point set up, we only recommend a 3 point or 4 point harness for them. We also do not recommend FIA approved competition harnesses here: those are made for full motorsport use in an FIA approved seat with proper harness routing.
For a road car with a classic seat, a good quality road harness is the right choice. It gives better support without needing a full race seat. These are some of the road harnesses that work well with a classic seat that has no harness guides.
-
From £97.20 Incl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
-
From £106.46 Incl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
-
From £120.00 Incl. VATPayPal CreditAmazing valueSelect options This product has multiple variants. The options may be chosen on the product page
-
From £105.60 Incl. VATPayPal CreditSelect options This product has multiple variants. The options may be chosen on the product page
How to install a harness in a classic car without guides
With no slots in the seat, the installation carries more of the load. Take it step by step:
- Use a harness bar or proper mounting points. A harness bar behind the seats keeps the shoulder straps at the right height and stops them sliding off. If a bar is not an option, use the car’s belt mounting points or properly reinforced brackets.
- Check the shoulder strap angle. The straps should run back from the shoulders level or angled slightly down, no more than about 20 degrees below horizontal, which is the limit harness makers such as Schroth set in their fitting guides. Always follow the angle given in your own harness’s instructions.
- Get the fit tight. Adjust the harness snugly to the body so it does not shift under hard driving.
- Add harness pads if you need them. Classic seats often have less padding than modern ones, and shoulder pads make longer drives more comfortable.
Our guide to fitting a harness, angles and anchor points goes into the mounting in more detail, and if the car has no cage, read running a harness without a roll cage first.
What we recommend
A classic seat without harness guides can be used with a harness, as long as the set up is done properly. Anchor the shoulder straps to a harness bar or reinforced mounting points, choose a 3 or 4 point road harness, and make sure the straps run at the right angle. If the car will be used in competition, it needs an approved seat and harness set up to your championship’s rules, so check with your scrutineer before you buy.
If you are not sure which way to go, contact us or visit the showroom and we will talk it through with you.
Can I fit a harness to a classic seat with no belt guides?
Yes, with a 3 or 4 point road harness, a harness bar or proper mounting points, and the shoulder straps set at the right angle.
Can I use a 6 point harness on a retro bucket seat?
Usually not. Most classic seats have no crotch strap hole, so we only recommend 3 or 4 point harnesses for them.
What angle should the shoulder straps be at?
Level or angled down behind the seat, no more than about 20 degrees below horizontal, and always as your harness’s own instructions say.
Is a classic seat and harness set up FIA approved?
No. It suits show, classic and fast road cars. For competition, check your championship’s rules with your scrutineer.
Can I see a classic seat with a harness before I buy?
Yes. We have classic seats set up with 4 point road harnesses on display in our showroom.
💬
