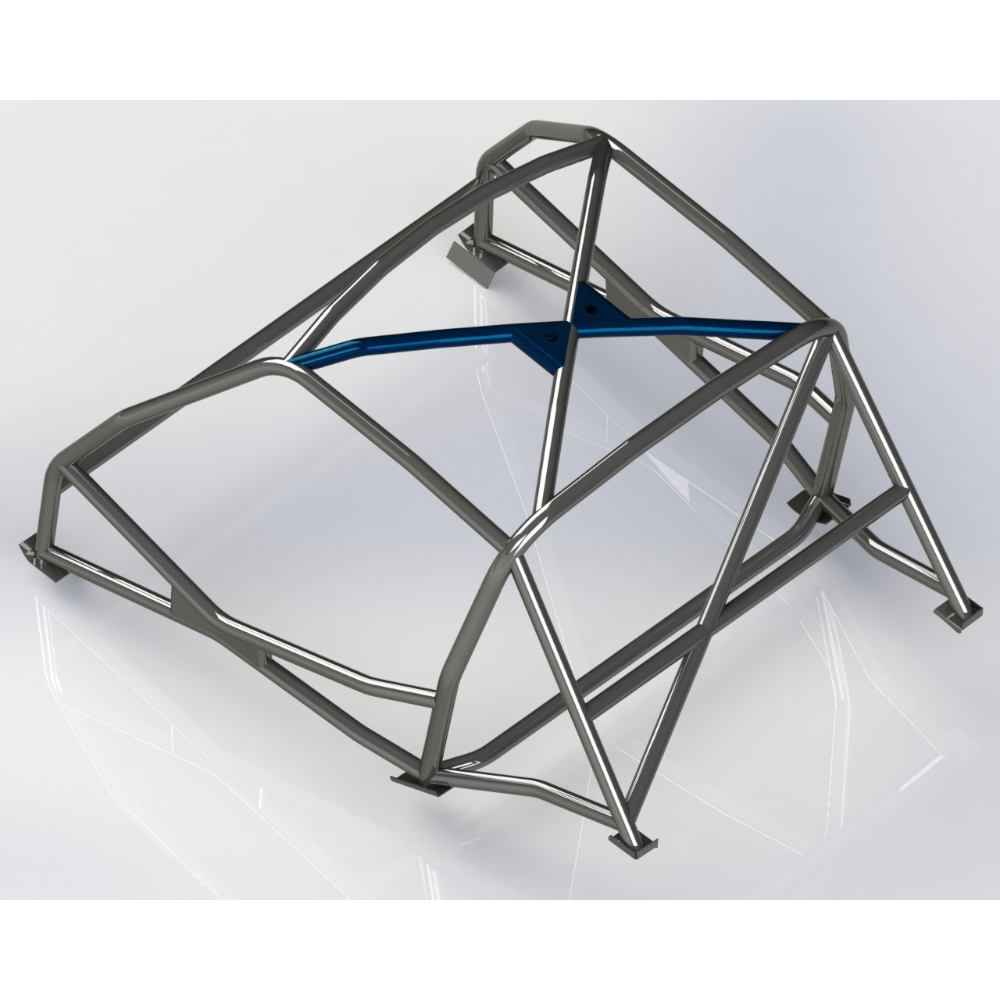

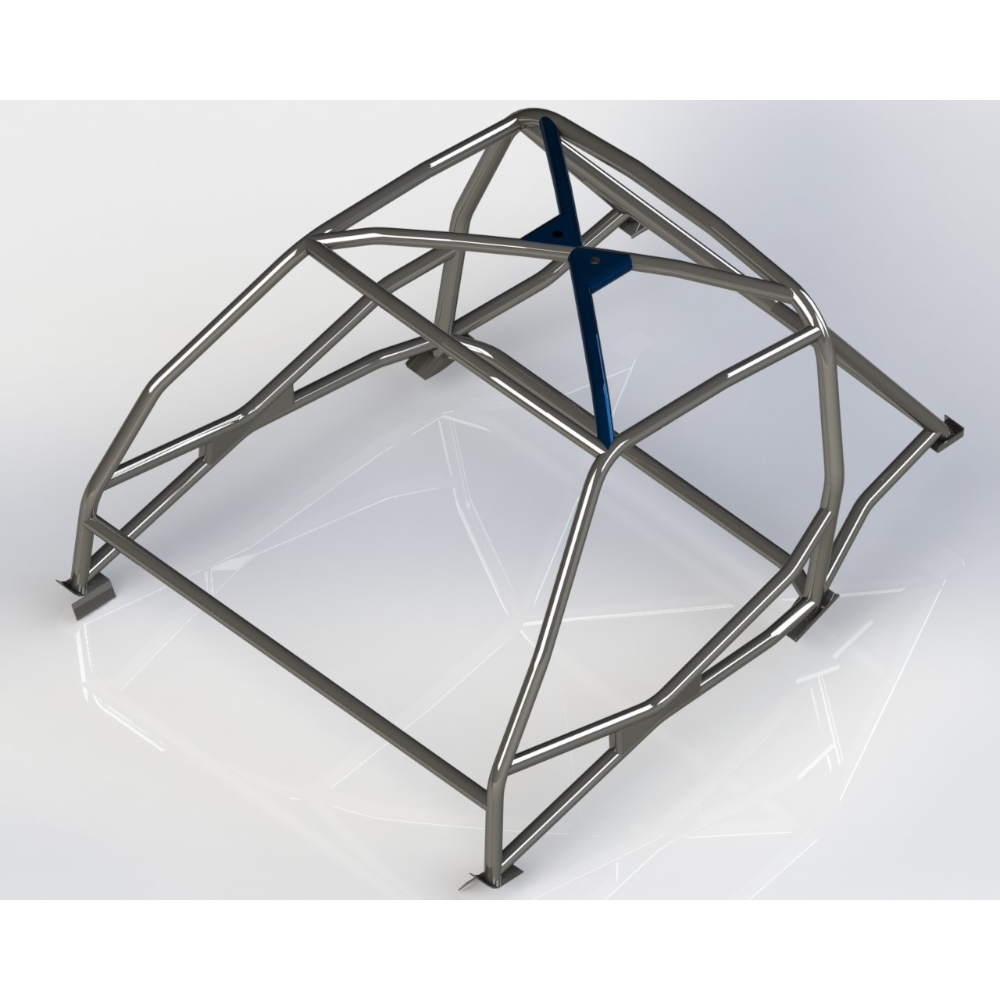

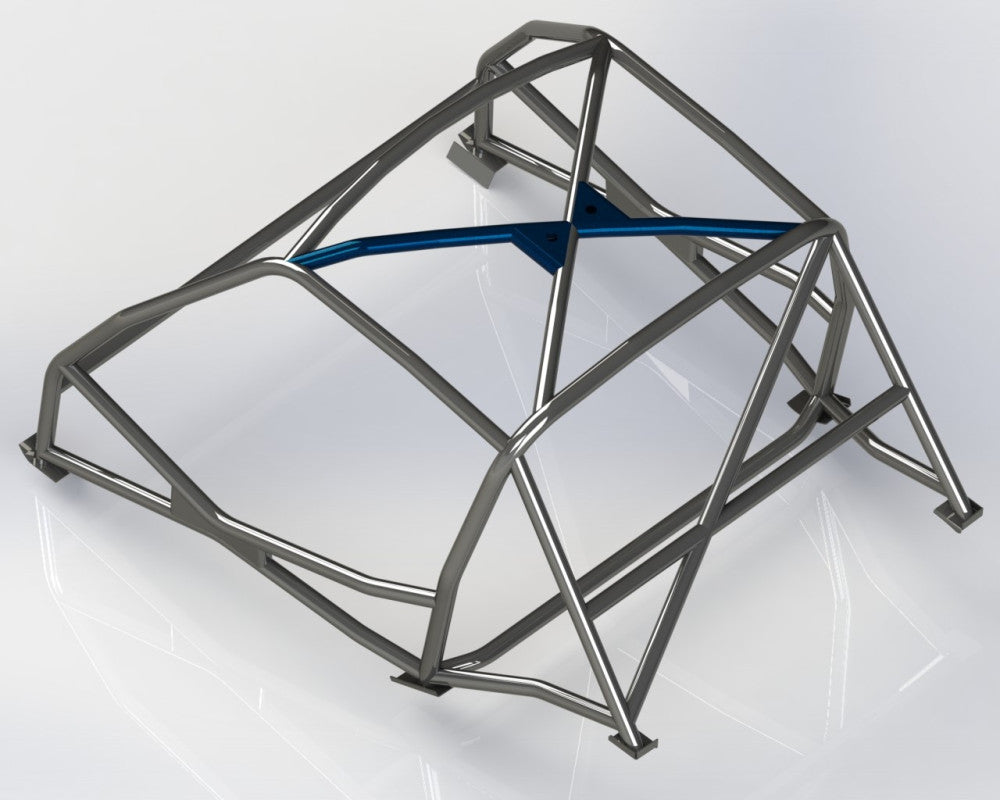

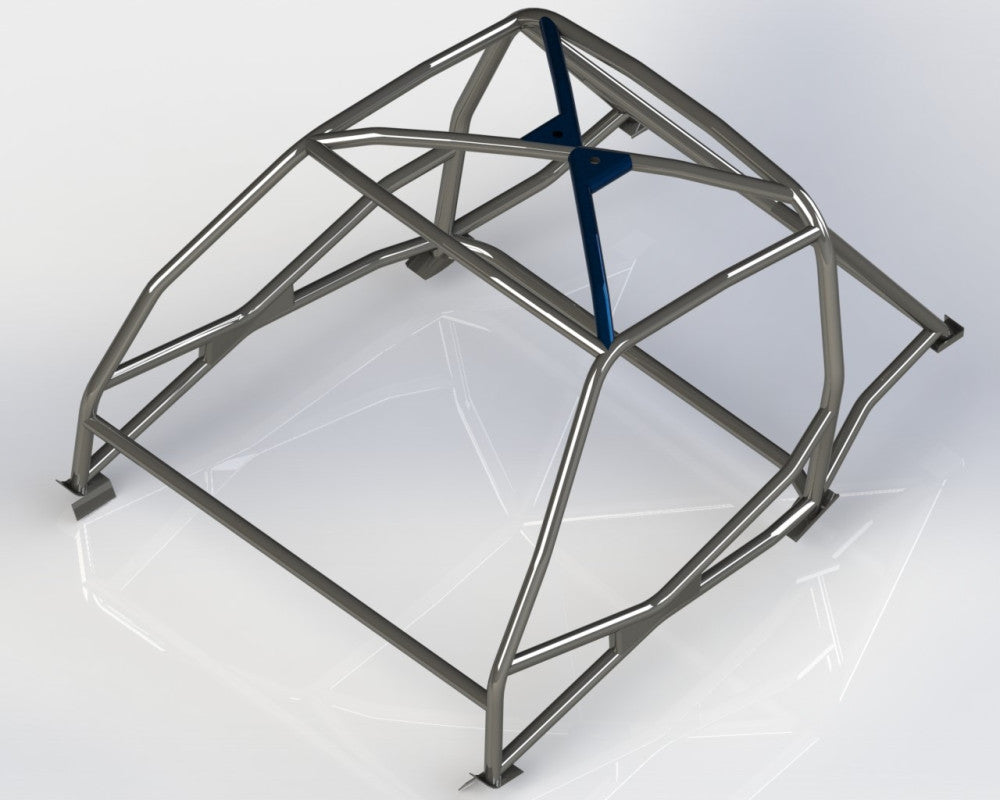

The Custom Cages Porsche 911 Historic T45 Roll Cage Kit is ideal for use in Hillclimb, FIA Sanctioned Events, Historic Events, Race, and Track Days. This cage is FIA, and MSUK Compliant. Your roll cage will arrive shrink wrapped in durable black plastic and will include:
- CNC formed tubes for the main hoop, A pillar hoops etc with square and profiled ends are necessary.
- Straight tubes with profiled ends ready for welding into place.
- Set of footplates.
- Check list (every tube has an identifying sticker) so you can be sure you have a complete kit (we will have already have checked that you have the right tubes twice before the kit is packed).
- Instructions sheet.
- CD showing the fully fitted roll cage.
Key Features:
The definitive Porsche 911 Historic cage – Eligible for all FIA historic events and is fully certificated on FIA/MSUK Historic paperwork.
- Can be used in race or rally.

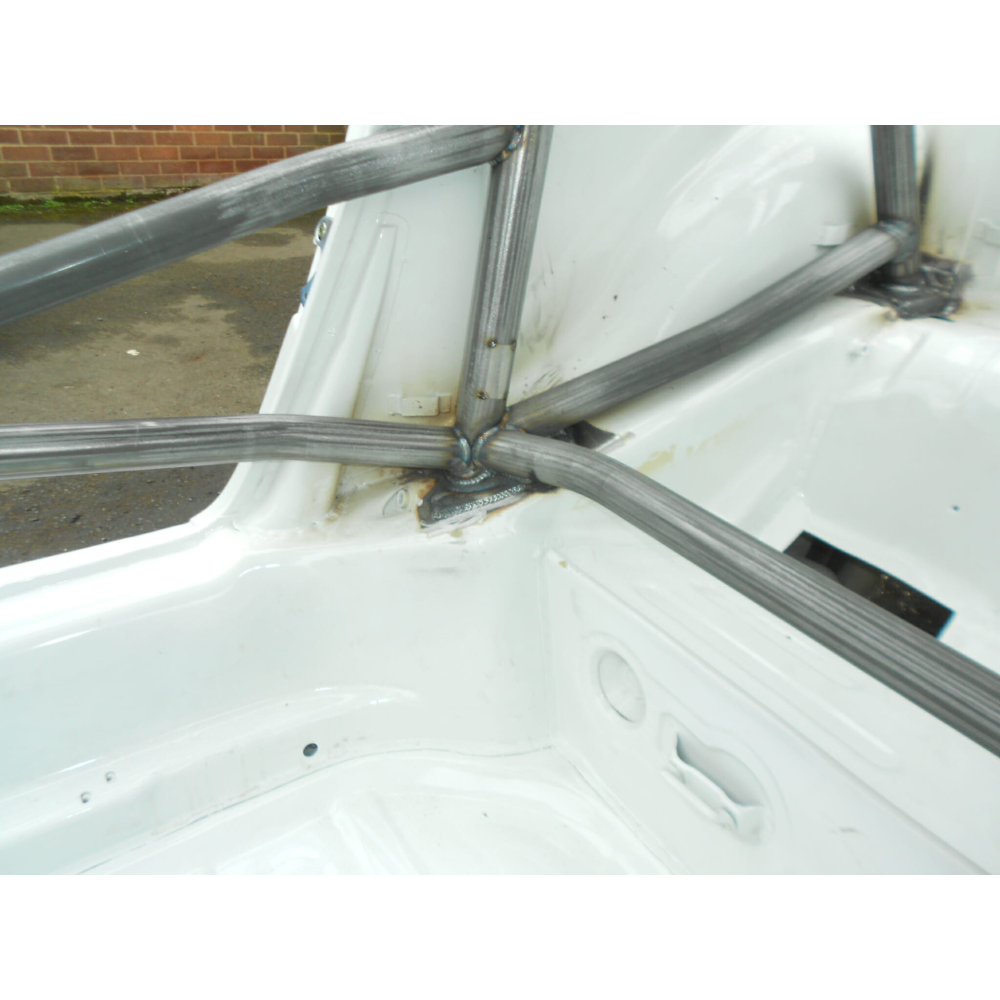

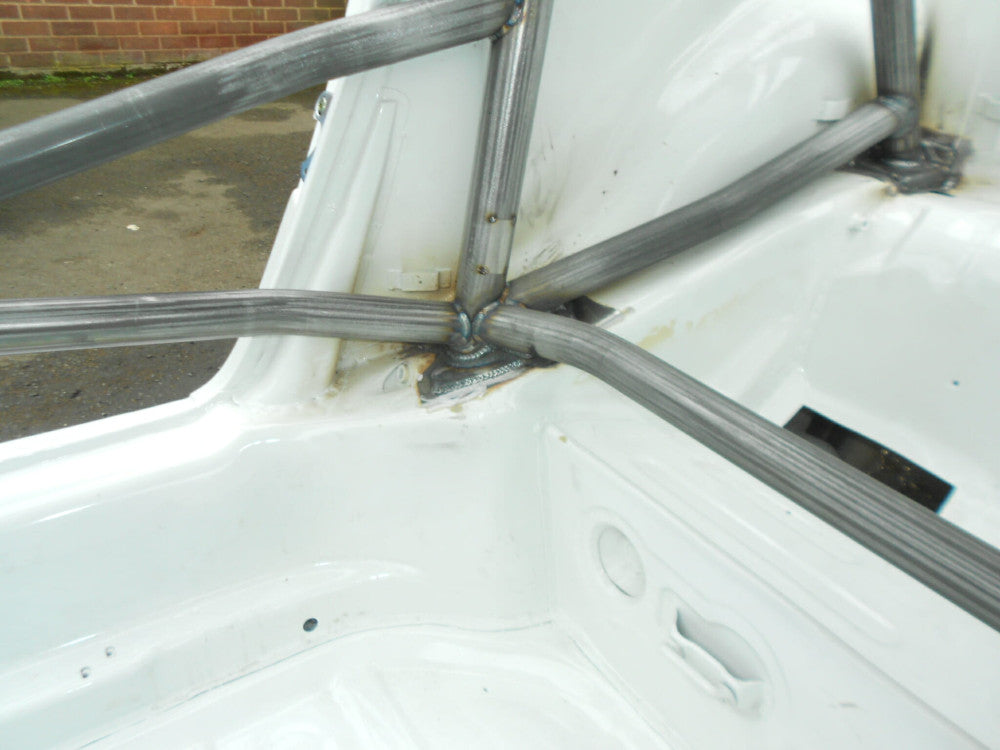

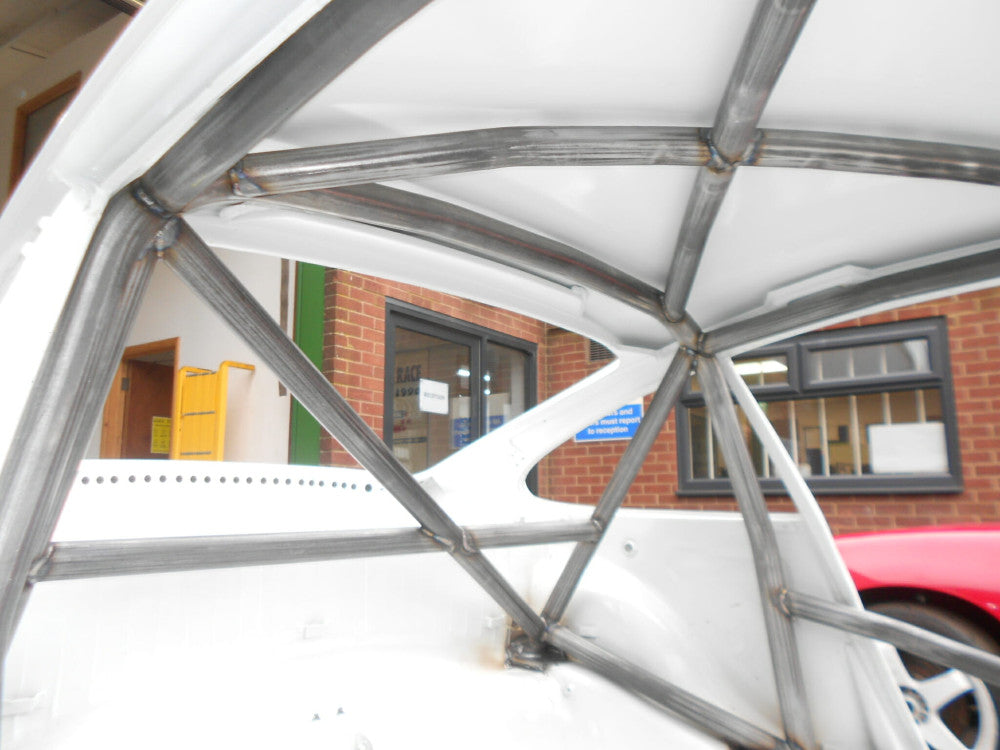

- This is a weld-in roll cage to give maximum strength, stiffness and safety without the surplus weight of bolt-in fixings.

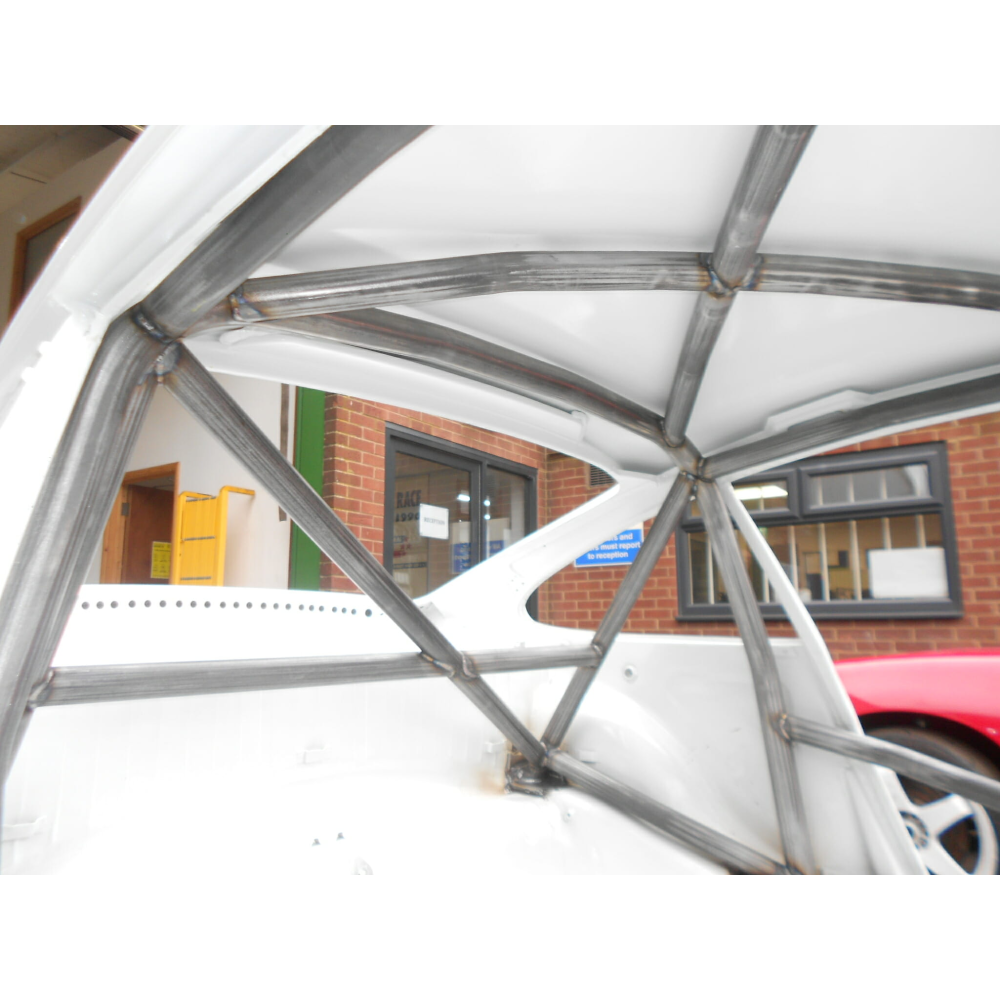

- Manufactured in T45 high tensile steel it is extremely close fitting to optimise strength and occupant safety.

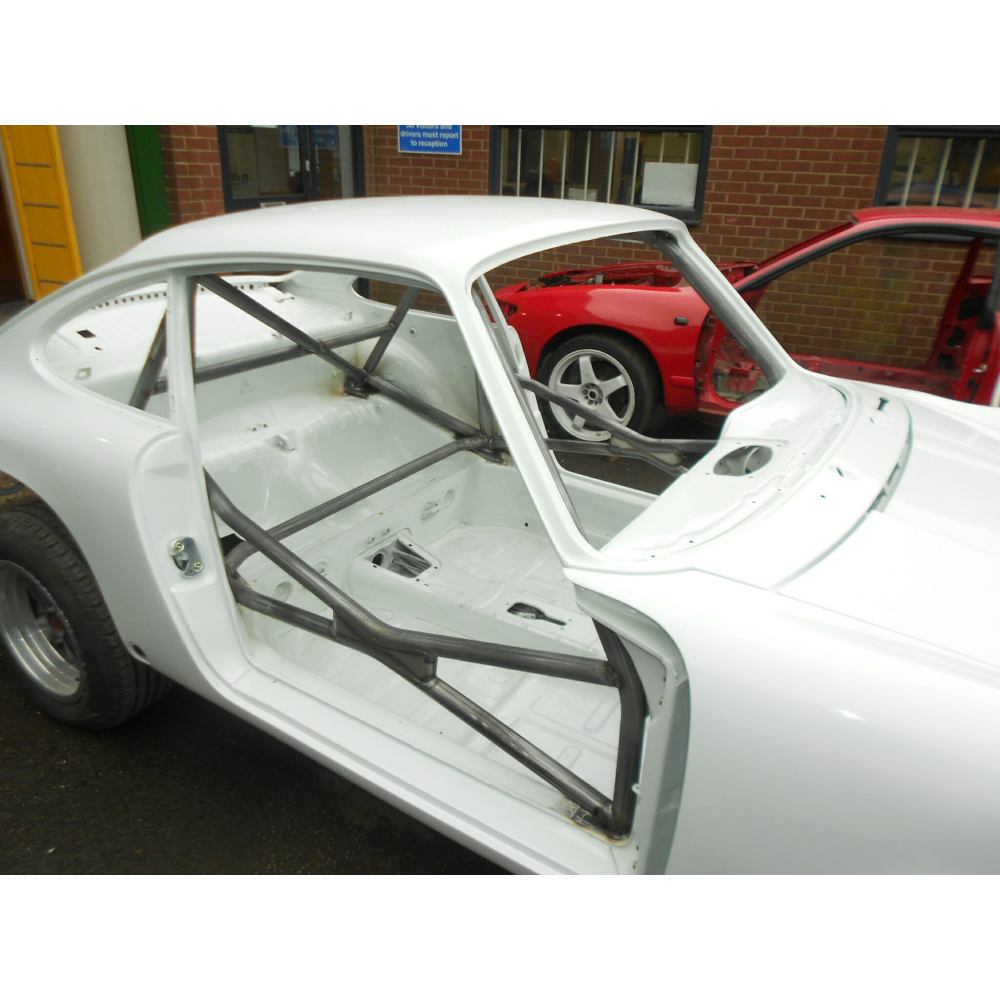

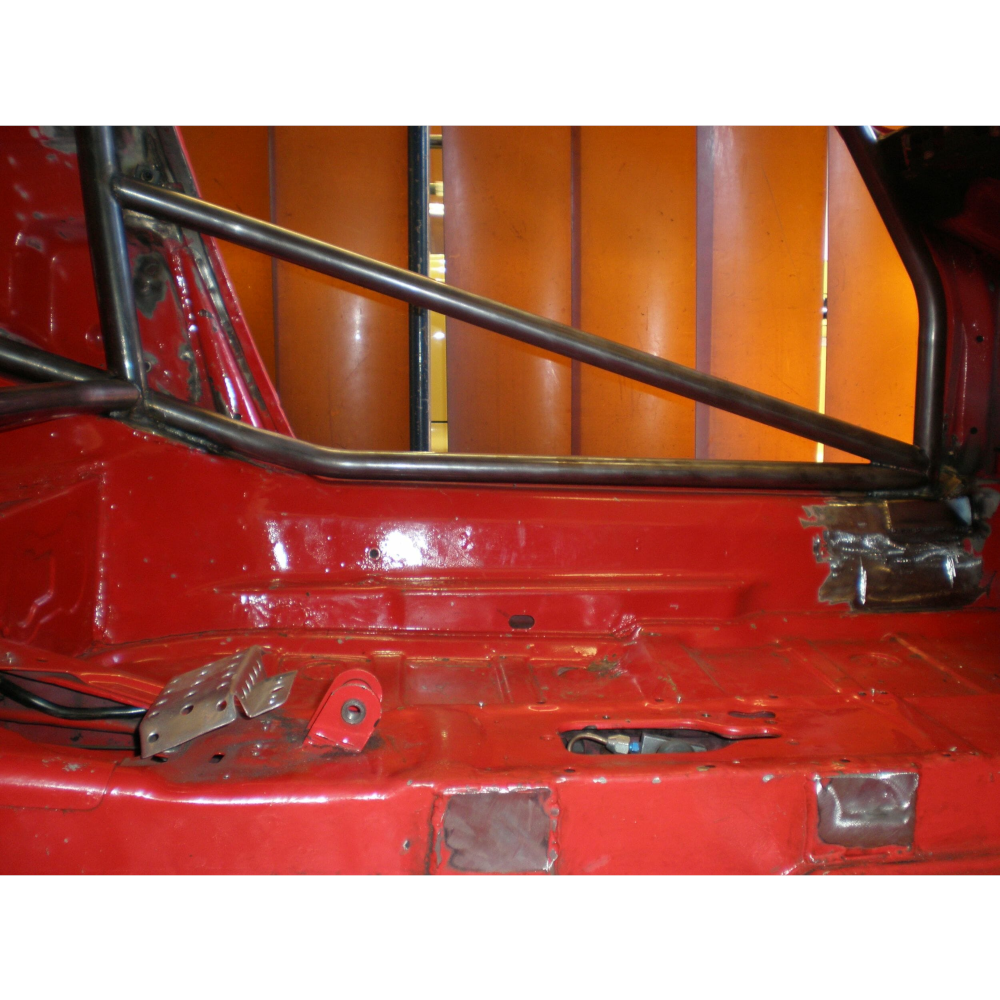

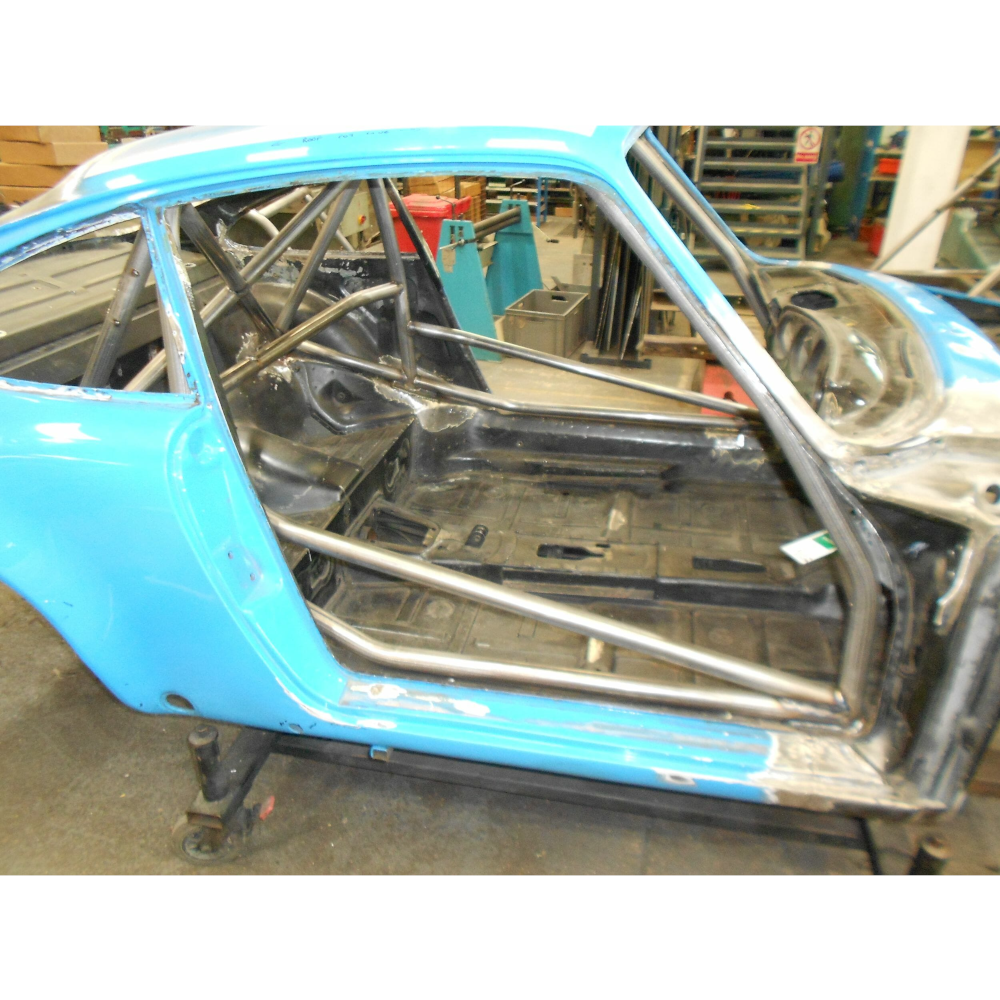

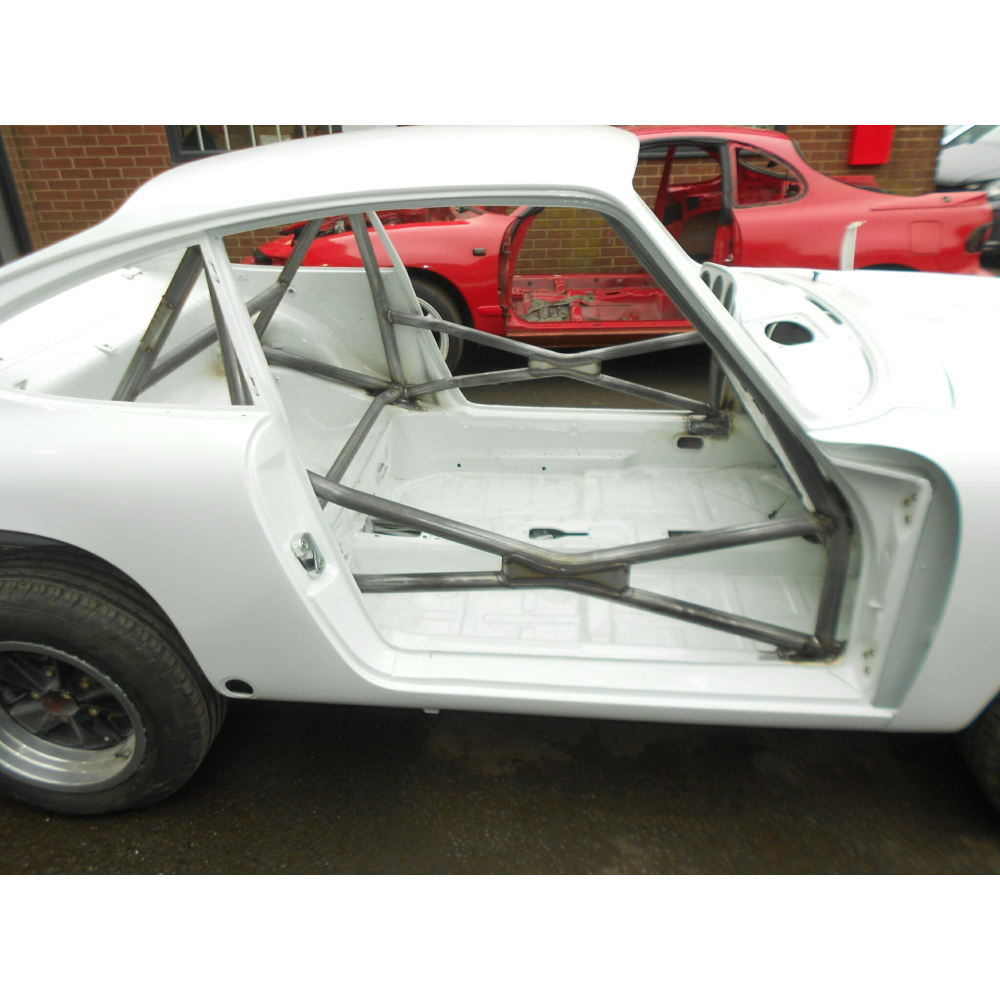

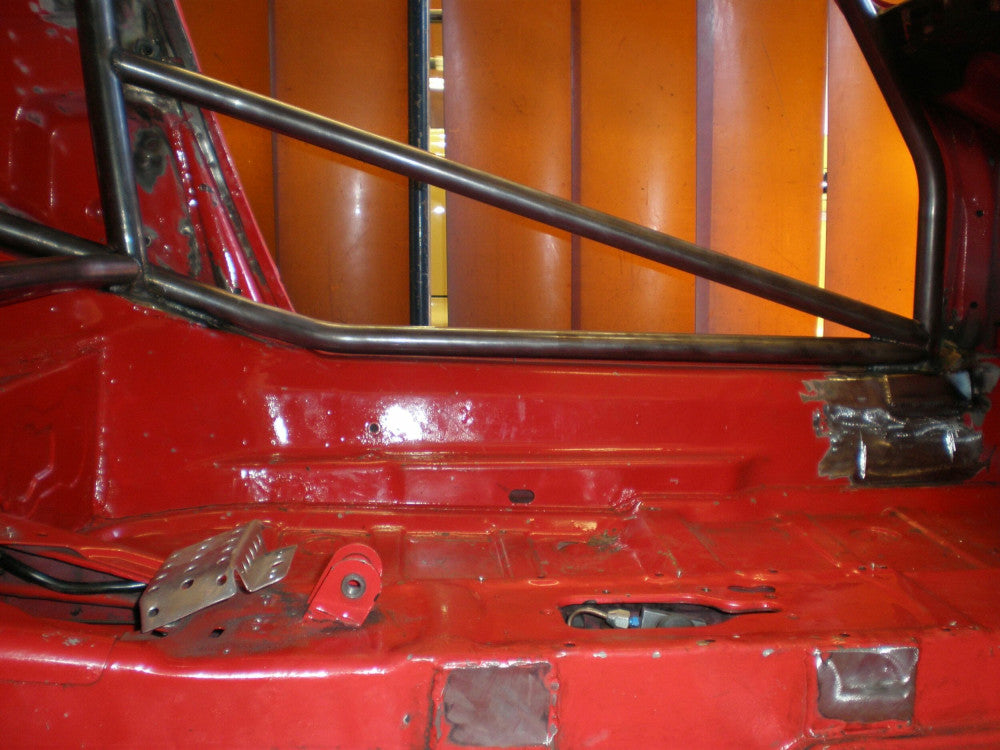

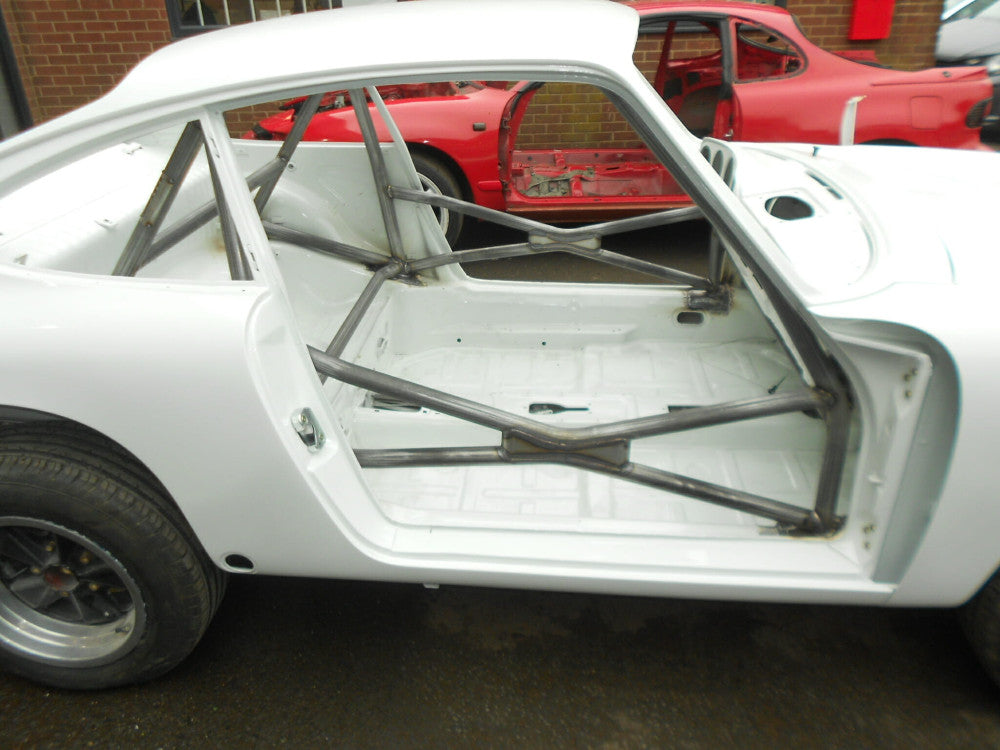

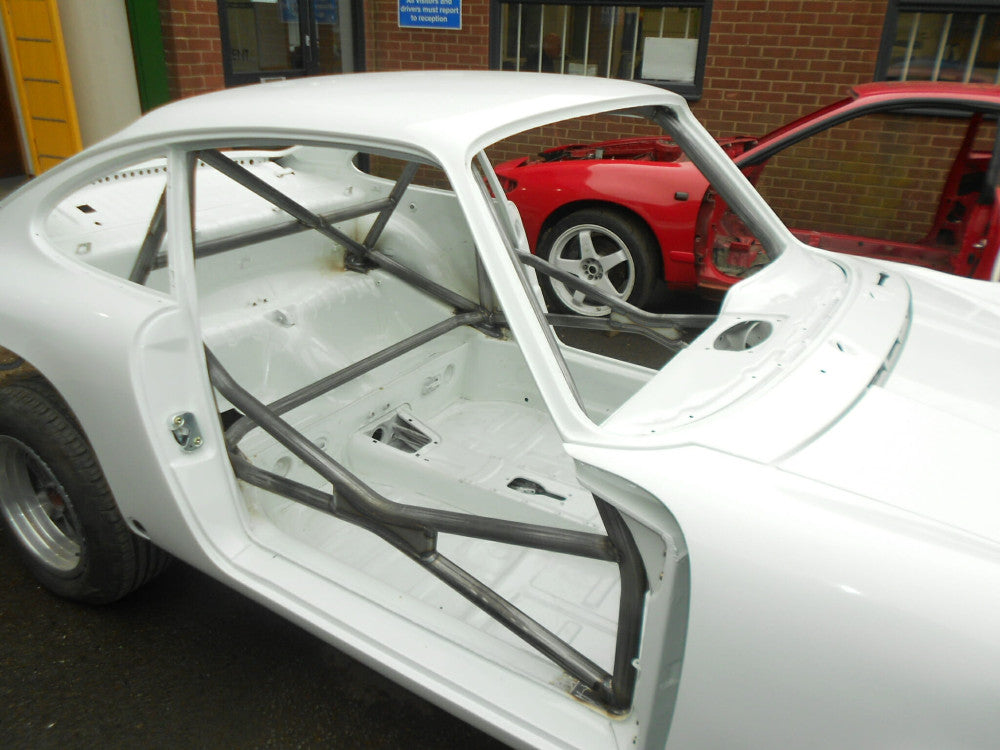

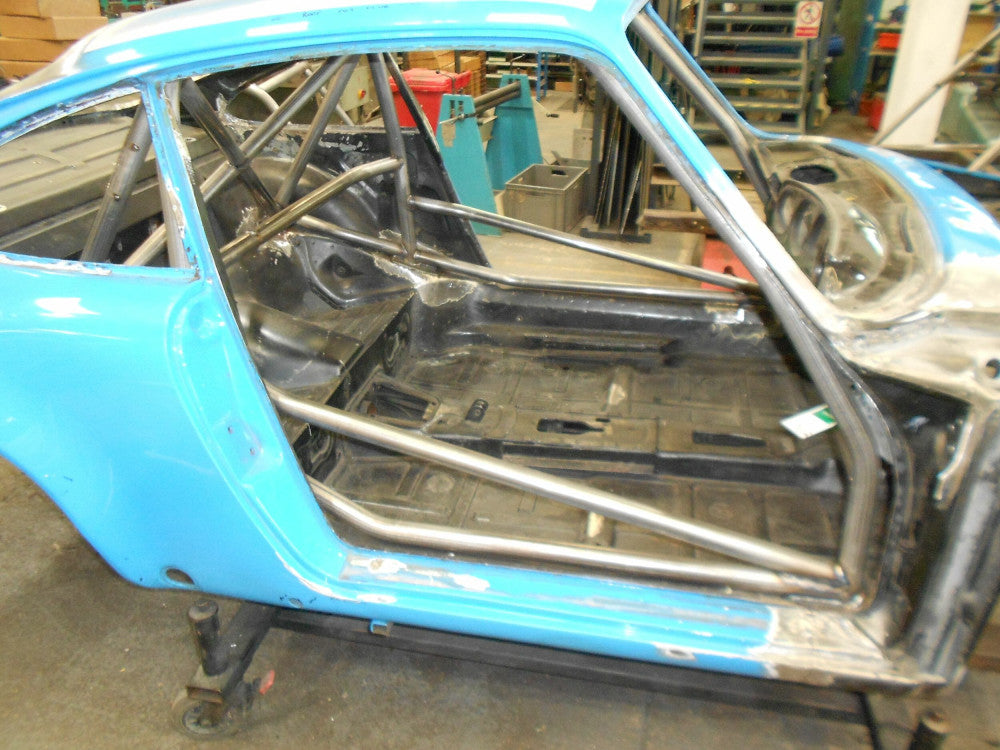

- Crossed door bars give improved side-impact protection along with the hoop lateral tube and dash bar.
- Single door bar and sill bar option available  – call for part number and details.
- All tubes CNC laser profiled and CNC bent for superb accuracy and fit.
- Various Safari specific optional tubes available on request.
This roll cage is designed for use in the following models:
- Porsche 911
Historic (Weld-in) Roll Cages:
- Traditionally these would be a ‘6-point’ design and significantly simpler than most ‘multi-point’ cages.
- Keeping to the spirit of the period is the key to most of the designs, which is why we try to replicate the original geometry.
- Current FIA regulations (Appendix K) allow for effectively full modern cages, but these often don’t reflect the designs of the day.
- Weld-in cages are perfectly acceptable and legal, although the number of fixings and mounting points is restricted.
A roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test. Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity. Additional samples may be requested, and Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificate.
