The Custom Cages Ford Mustang International Historic T45 Roll Cage Kit is ideal for use in FIA sanctioned events, Historic events, Racing, and Track days. This roll cage kit is FIA Certified, and MSUK Compliant. Your roll cage will arrive shrink wrapped in durable black plastic and will include:
- CNC formed tubes for the main hoop, A pillar hoops etc with square and profiled ends are necessary.
- Straight tubes with profiled ends ready for welding into place.
- Set of footplates.
- Check list (every tube has an identifying sticker) so you can be sure you have a complete kit (we will have already have checked that you have the right tubes twice before the kit is packed).
- Instructions sheet.
- CD showing the fully fitted roll cage.
The cage is fully stress tested and certificated and can be used in any FIA regulated international discipline. Ideal for historic events and racing.
- Optimised tube sizes and geometry to give best weight to strength ratio.
- Made in T45 high tensile tube.

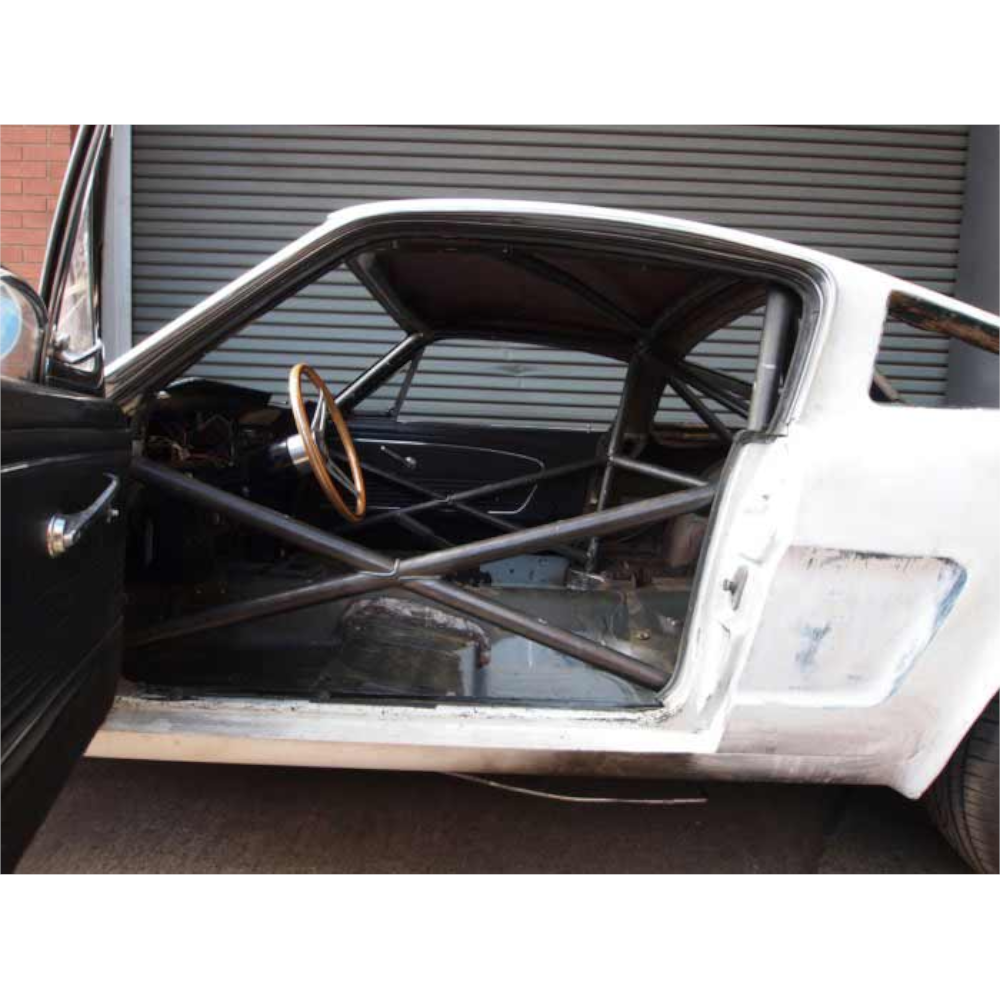

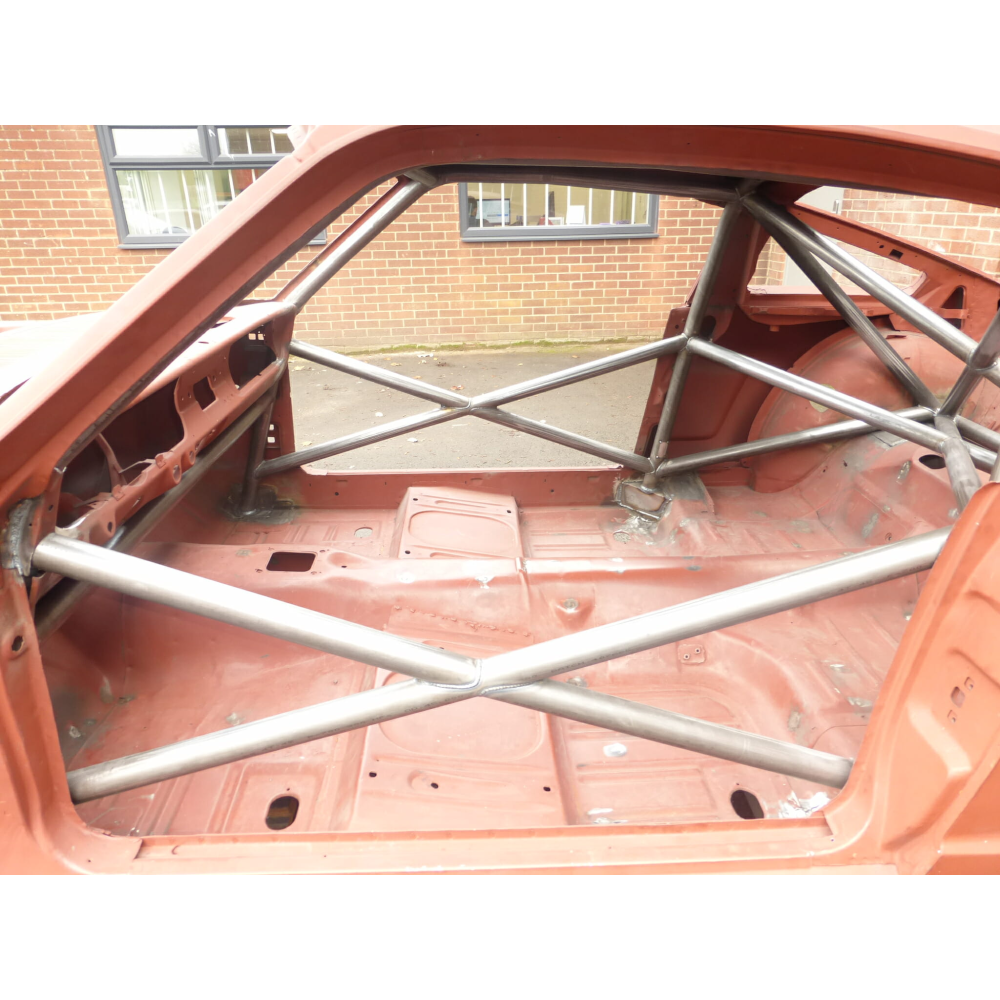

- Door bar gussets have been increased in size to better dissipate side impacts.

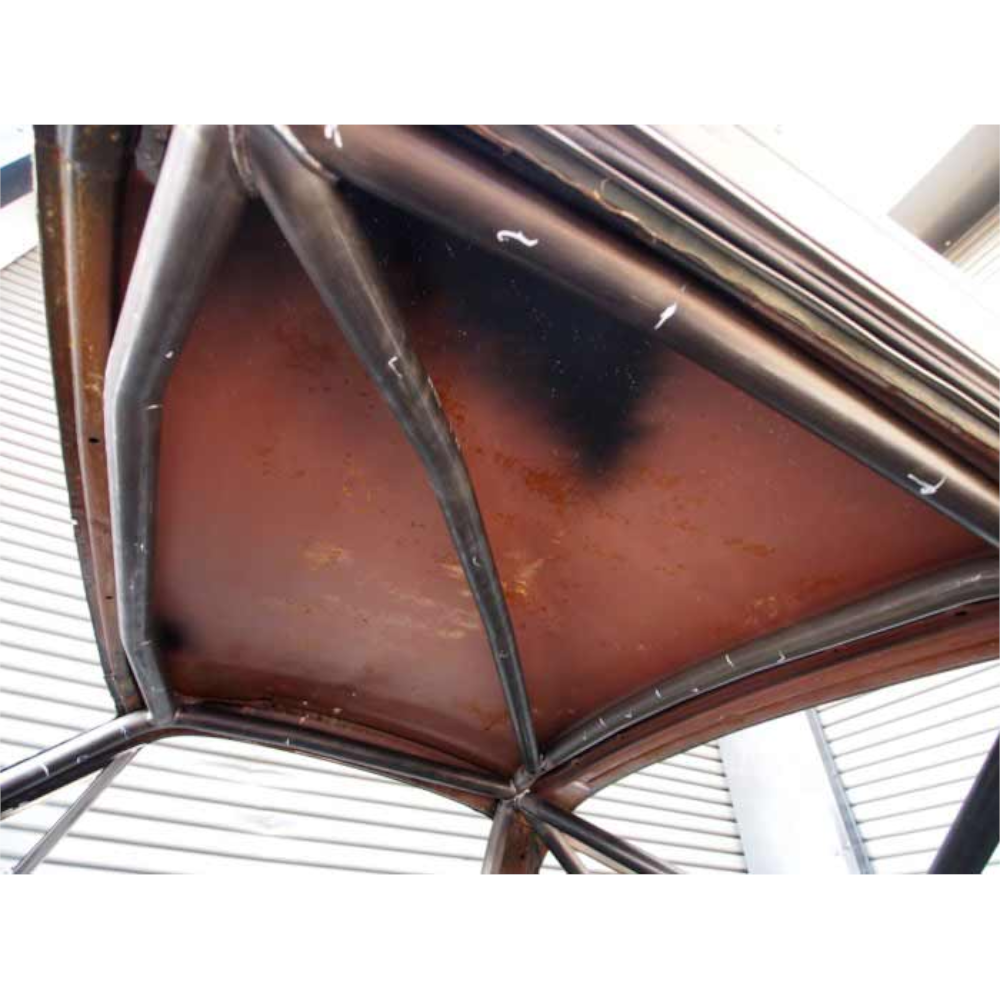

- A-pillar geometry improved to better support front of roof.

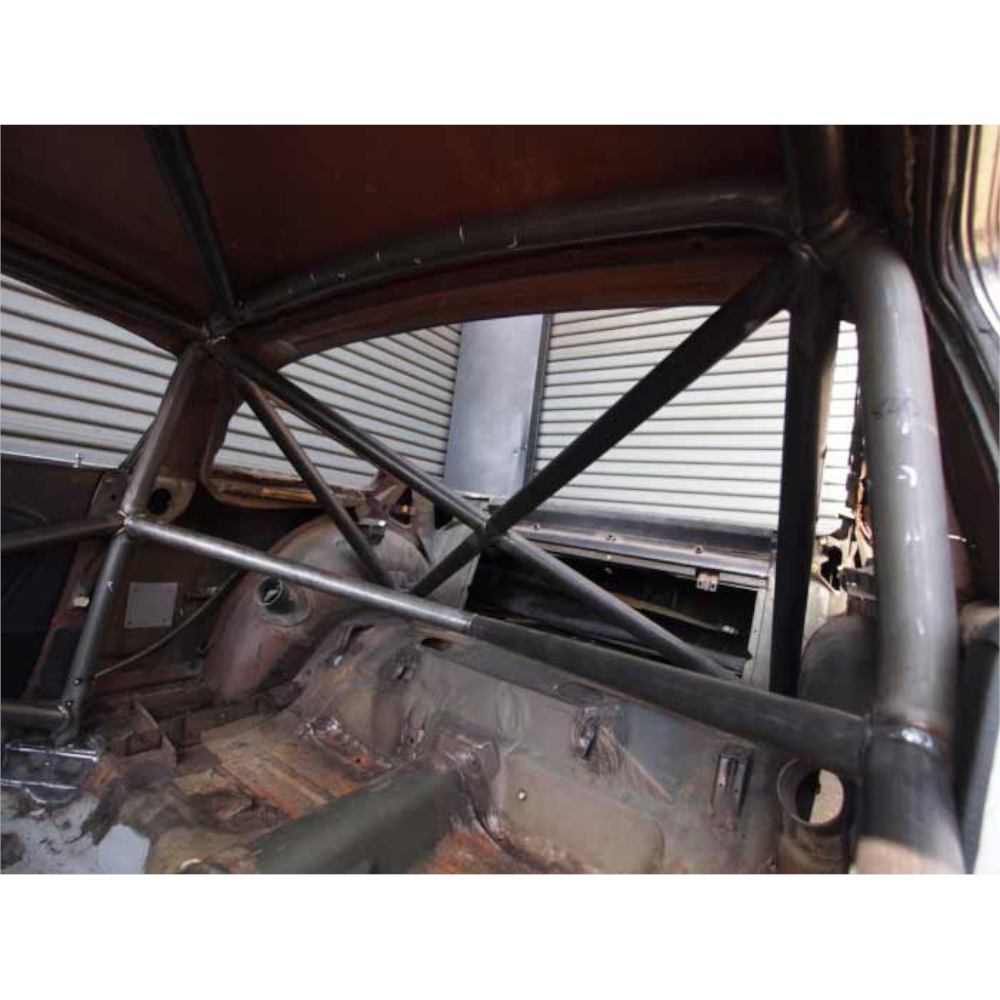

- Integral harness bars in hoop give improved side impact protection.

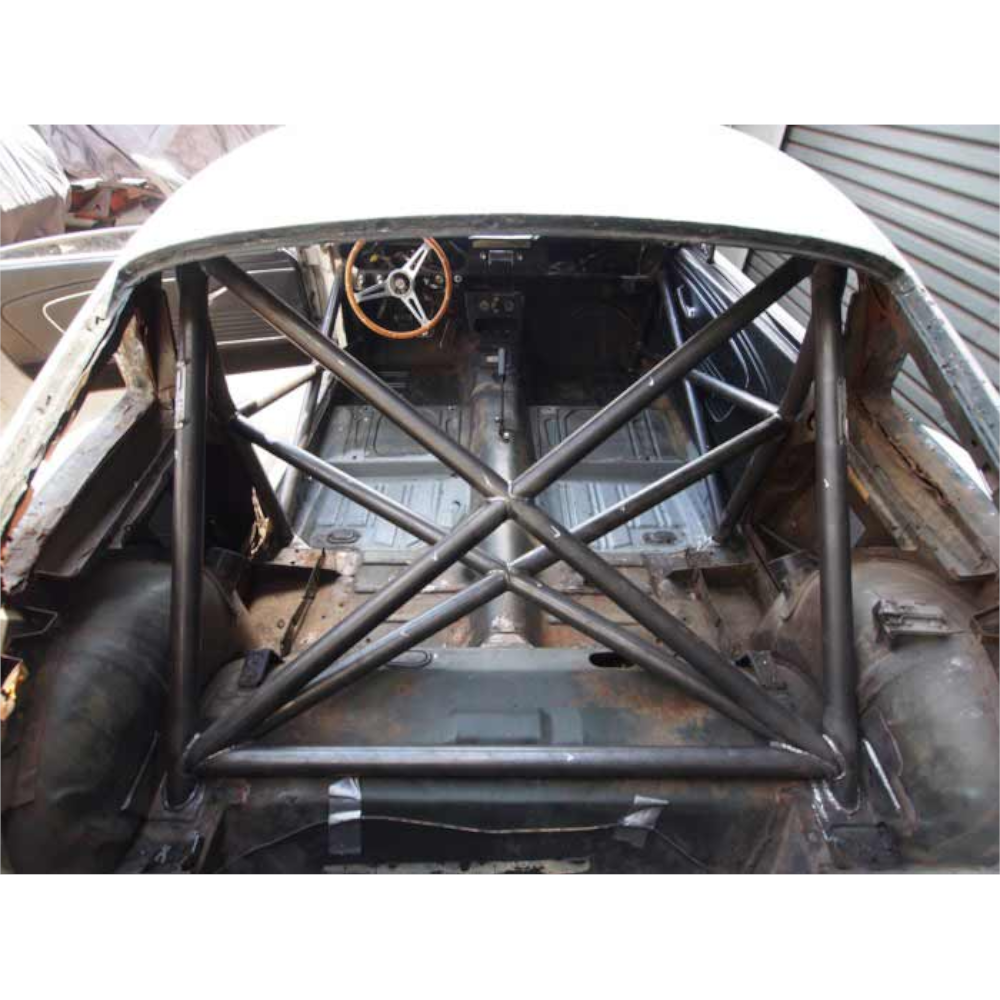

- Revised rear turret mount gives better damper top support.
- FIA Hologram sticker issued on certification.

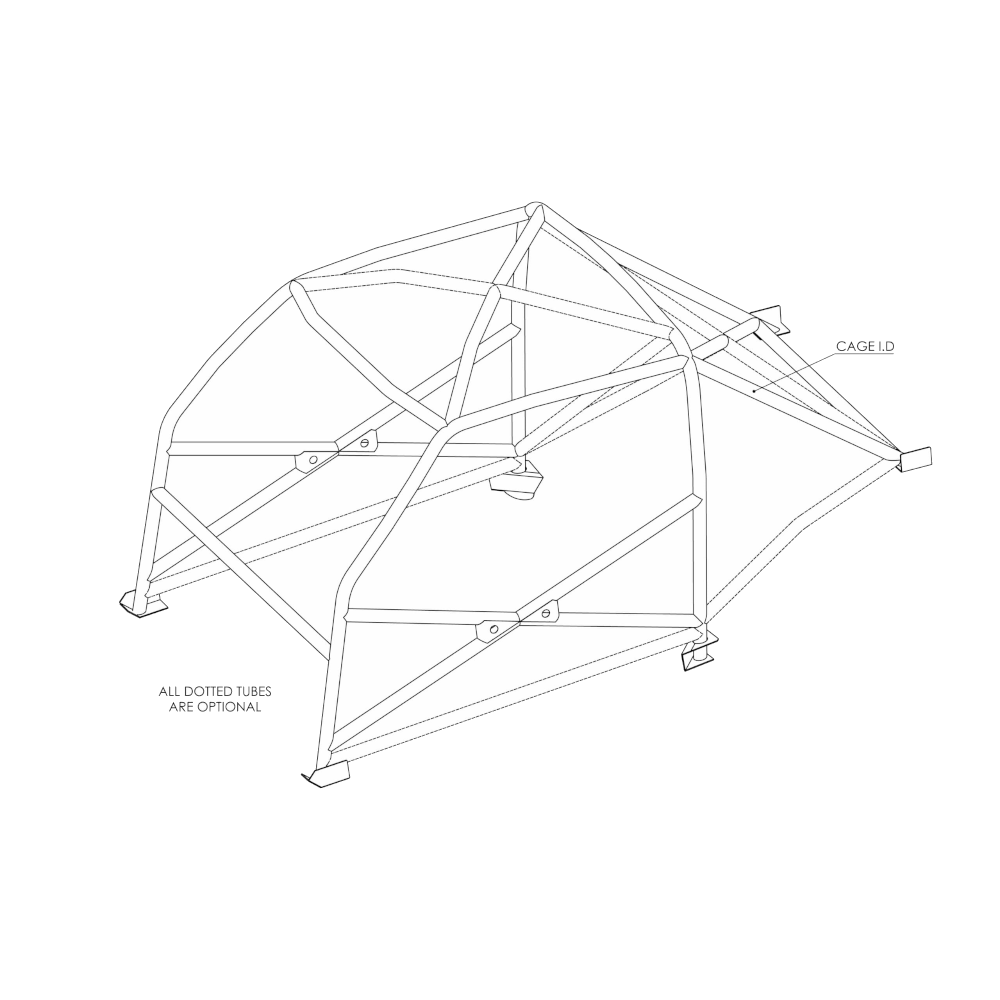

- Optional Tubes include Lower Rear Cross, Main Hoop Lower and additional tubes from the bulkhead to the turrets. (all options shown in the schematic).
This roll cage is designed for use in the following models:

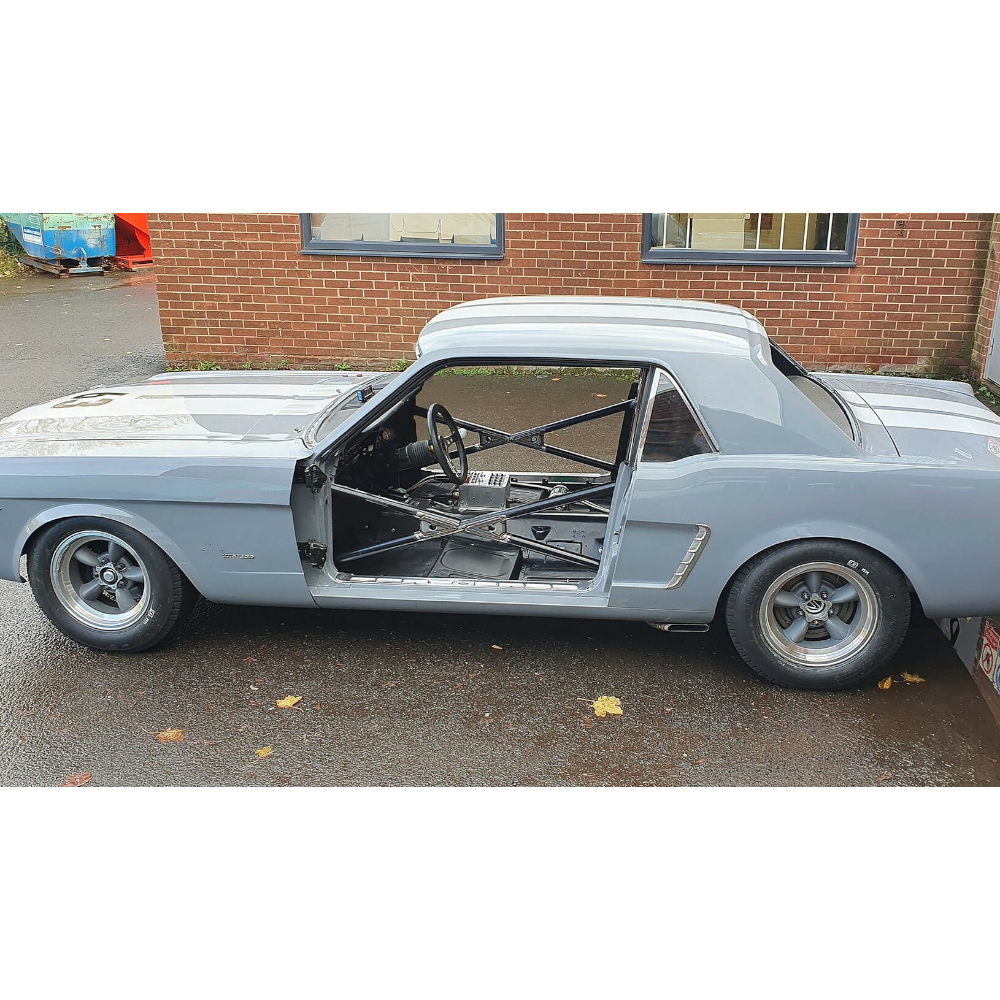

- Ford Mustang
Historic (Weld-in) Roll Cages:
- Traditionally these would be a ‘6-point’ design and significantly simpler than most ‘multi-point’ cages.
- Keeping to the spirit of the period is the key to most of the designs, which is why we try to replicate the original geometry.
- Current FIA regulations (Appendix K) allow for effectively full modern cages, but these often don’t reflect the designs of the day.
- Weld-in cages are perfectly acceptable and legal, although the number of fixings and mounting points is restricted.
A roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test. Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity. Additional samples may be requested, and Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificates.
