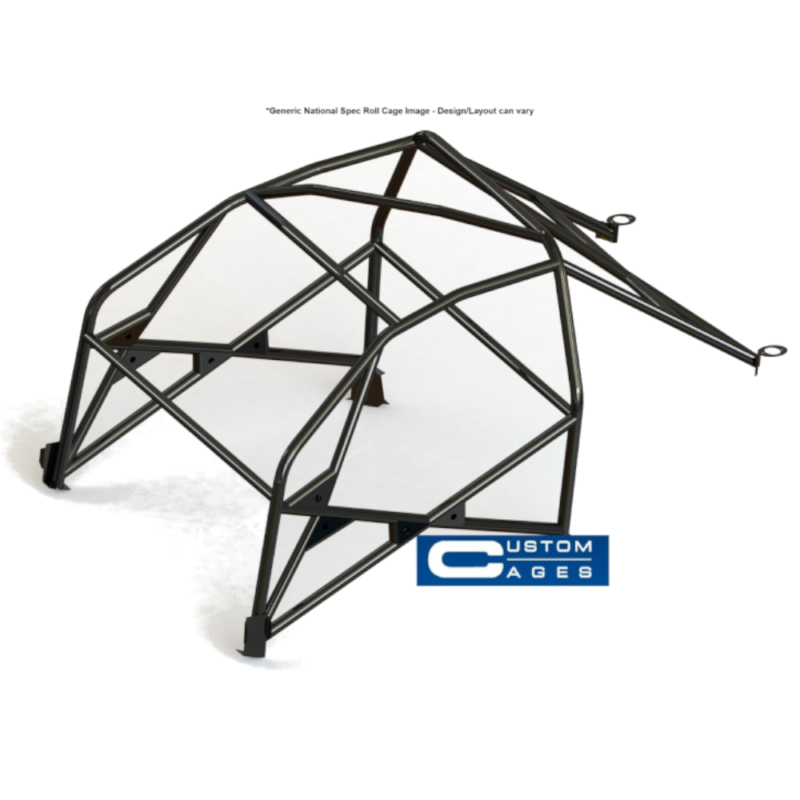

The Custom Cages BMW E36 M3 2 Door 6 Point National Spec CDS Roll Cage Kit is MSUK Compliant. Your roll cage will arrive shrink wrapped in durable black plastic and will include:
CNC formed tubes for the main hoop, A pillar hoops etc with square and profiled ends are necessary.
- Straight tubes with profiled ends ready for welding into place.
- Set of footplates.
- Check list (every tube has an identifying sticker) so you can be sure you have a complete kit (we will have already have checked that you have the right tubes twice before the kit is packed).
- Instructions sheet.
- CD showing the fully fitted roll cage.
This roll cage is designed for use in the following models:
- BMW E36 M3
Key Features:
- Suitable for: Hillclimb, Rallycross, Rallying, Sprints, Time Attack, Track Days.
- Manufactured using CDS tubing.
- 6 Point weld-in fitment.
- MSUK Compliant.
National Range (6 Point Roll Cage):
Our ‘National’ cages are fully MSUK compliant for both Race and Rally (and just about all other disciplines as well).
A simpler and more cost-effective safety cage than our FIA-certificated or Multi-point cages but with our second-to-none quality and fit.
The drawbacks would be they are heavier than an FIA / MSUK certificated design (average 15 to 20 kgs) and don’t add as much bodyshell stiffness as there are fewer mounting points.
These are manufactured from high-quality CDS (Cold Drawn Seamless) tube with a minimum tensile strength of 510 Mpa (although T45 can be specified at extra cost).
- The 6 point National spec. roll cage exceeds MSUK requirements.
- Based on our full multipoint cage design to ensure quality of fit.
- Weld-in for reduced weight and improved stiffness compared to a bolt-in cage.
- All tube is high quality CDS (510 Mpa) steel tube – 45 x 2.5mm.
- Hoop Lateral tube and Dash bar for improved side impact protection.
- Driver and co-driver harness tubes.
- A Pillar supports complete with gussets and Rear diagonal.
- Crossed door bars complete with gussets.
- Roof diagonal (or cross as an option).
- Kit includes all footplates.
- Simpler to install than full multipoint cage.
- Customers may have to check seat belt angles and trim harness tubes accordingly. Recommended angle of belts as per MS UK Blue Book specifications.
MSUK Compliant – See our ‘National’ range:
The roll cage will be made using the minimum MSUK prescribed tube sizes – thicker gauge than we would use in a certificated design, and, so (unfortunately) heavier.
Usually, these are manufactured from CDS (Cold Drawn Seamless) tube – ours is a high tensile material with a minimum tensile strength of 510 Mpa – although T45 can be specified at extra cost.
These cages are eligible for all MSUK events.
A roll cage design must comply with the MSA/FIA technical regulations published in the MS UK Blue book. It is the competitor’s responsibility to ensure his/her roll cage complies with the technical regulations appropriate to the event they are competing in.
To obtain a certificate for a self-fit roll cage, the installer must complete a Custom Cages weld test. Custom Cages’ roll cage kits include a weld test sample. Once completed these are returned to the company for load testing. They are subjected to a physical test to assess the actual yield strength of the weld. This ensures that the self-fit roll cages achieve the highest standards of integrity. Additional samples may be requested, and Certificates will only be issued on completion of a successful test.
Please be aware that there is a charge of £60.00 + VAT for all MS UK / FIA Certificate.
