The Triumph TR4 Surrey Top is a car that sits perfectly between classic road use and historic motorsport. Whether you are building a fast road car, planning hill climbs, or preparing for historic racing, adding a properly designed roll cage is one of the most important safety upgrades you can make.
In this guide, we walk through the Safety Devices TR4 Surrey Top specific roll cage, explain what makes it different from generic cages, and break down the installation process into simple, manageable stages so you know exactly what is involved before you start.
Why Choose a Surrey Top Specific Roll Cage?
The Surrey Top TR4 has unique bodywork and roof structure compared to standard soft top cars. A generic roll cage will often compromise fitment, interior clearance, or mounting strength. This is why Safety Devices developed a cage designed specifically around the Surrey Top shell.
This cage is shaped to sit correctly within the cockpit, clear the fixed rear screen, and land on strong mounting points within the body. The result is a cage that fits tightly and correctly without forcing panels or stressing the shell.
For owners who want period correctness combined with modern safety standards, this is the right approach.
Before You Start the Installation
Before any tools come out, preparation is key. Safety Devices are very clear that roll cages should only be installed into solid shells. Any corrosion around the rear arches, B pillars, sills, or floor needs addressing first. If the car has suffered accident damage in the past, alignment issues may affect how the cage fits.
Interior trim needs to be removed before installation. This includes seats, carpets, underfelt, rear arch trim, and seat belts. In some cases, sun visors or mirrors near the windscreen also need to come out to allow clearance during fitting.
The cage must bolt directly to the body shell. It should never sit on top of carpets or trim. This is both a safety and fitment requirement
Got a question about the equipment we sell?
Why Choose Garreth And Cameron At GSM Performance?
Understanding the Cage Components
The Safety Devices TR4 cage uses a combination of saddle brackets, lap joints, and slipper tubes. These allow the cage to be assembled inside the car while still achieving a strong, accurate fit.
Saddle brackets must be tightened evenly on both sides, with visible gaps remaining between the tabs. Slipper tubes are supplied loose and are only drilled once the cage has been fully test fitted. Lap joints need careful alignment, and Safety Devices recommend using clamps rather than forcing joints together.
Torque settings matter here, and thread locking compound is specified on key fixings to ensure long term security
Test Fitting the Roll Cage
The first major step is a full test fit. The rear cage assembly is placed into the car first, usually with the help of a second person. The fit is intentionally tight, and minor manoeuvring is normal when passing through the door openings and B pillars.
Once the rear section is positioned, the front legs and screen rail are loosely attached. At this stage, nothing is fully tightened. The goal is to get the entire structure sitting naturally in the shell so it can be centralised left to right and front to rear.
Only once the cage is correctly positioned should the joints be tightened to their specified torque values.
Mounting Plates and Welding

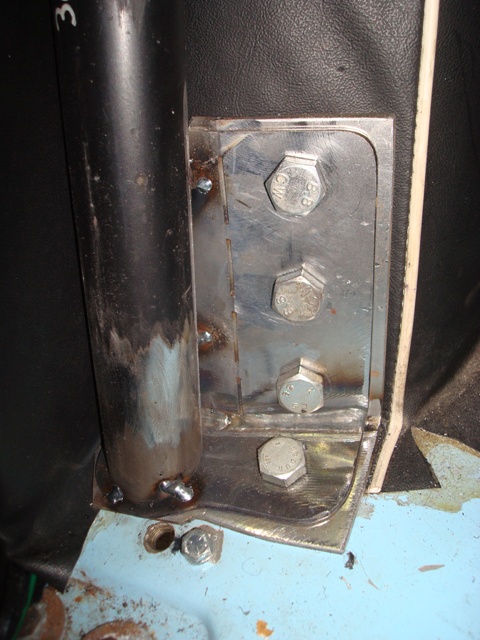

With the cage sitting correctly, mounting plates are positioned under each foot. Depending on location, these may sit on the floor, arches, or sill structures. Holes are marked and drilled, and the plates are temporarily bolted in place.
At this point, the cage is removed so the plates can be fully welded to the body shell. This step is critical, as the welded plates spread loads properly in the event of an impact.
After welding, the surrounding areas should be cleaned and protected with primer and paint before final installation.
Final Installation and Refitting
Once the plates are welded and painted, the cage is refitted for the final time. The cage is loosely assembled first, then bolted to the floor mounting points before tightening the cage joints.
Thread lock is used where bolts go into welded or captive nuts. After everything is secured, interior trim and seats can be refitted, with carpets trimmed neatly around the cage feet and tubes.
It is important not to trap carpet under mounting plates or attempt to hide fixings. A clean, honest installation is both safer and better looking.
The Safety Devices TR4 Surrey Top Roll Cage on Our Website
We stock the Safety Devices Triumph TR4 Surrey Top specific 4 point rear roll cage directly on the GSM Performance website and it is available to order online.
This cage is offered in multiple finish and colour options, allowing you to match your build style. Popular choices include black powder coat, white, and bare metal for customers who want to paint or colour match the cage themselves.
There are also different configuration options available depending on how the car will be used. You can choose a cross bar design, a single diagonal with harness bar for proper harness mounting, or a no diagonal version for road focused builds where access and originality are priorities.
All versions are designed specifically for the TR4 Surrey Top shell, so fitment remains correct regardless of configuration.
Final Thoughts
The Triumph TR4 Surrey Top is a car that rewards careful, considered upgrades. A properly designed roll cage adds a significant safety margin while preserving the character of the car when done correctly.
The Safety Devices Surrey Top specific cage offers a level of fit and confidence that generic solutions simply cannot match. When installed properly, it integrates cleanly into the car and provides protection suitable for both spirited road use and historic competition.
If you are planning a TR4 build and want advice on cage configuration, finish options, or installation support, the team at GSM Performance is always happy to help.
